Shredder, Hook Lift or Tracked, Diesel or Electric, 320 hp or 400hp

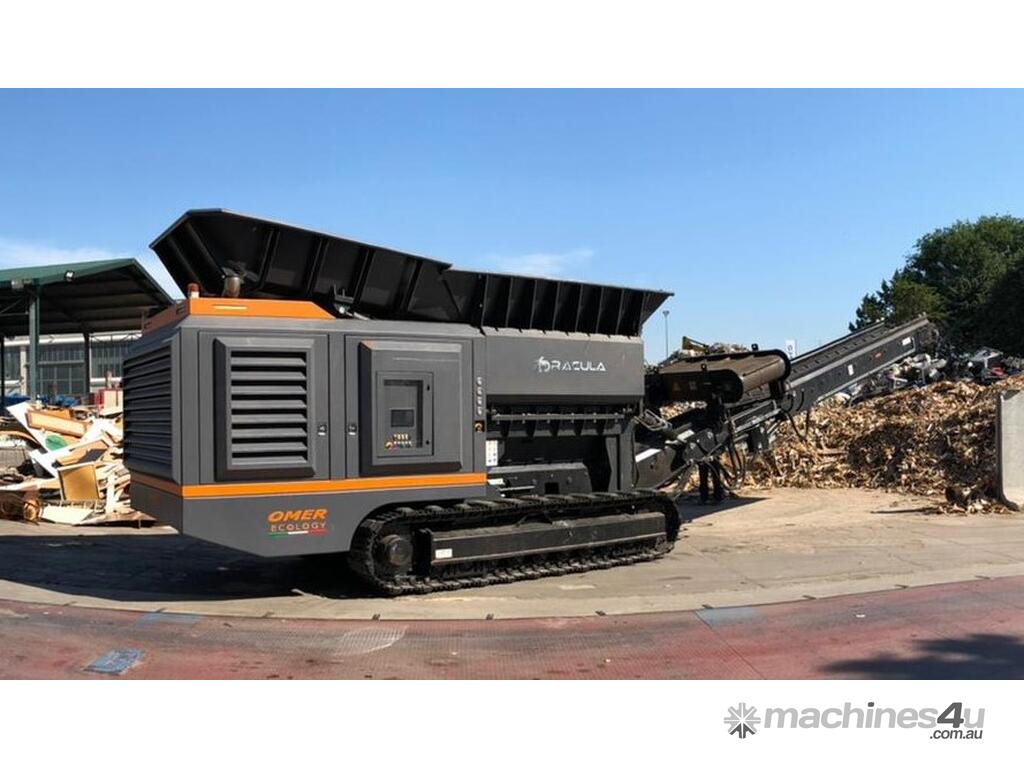

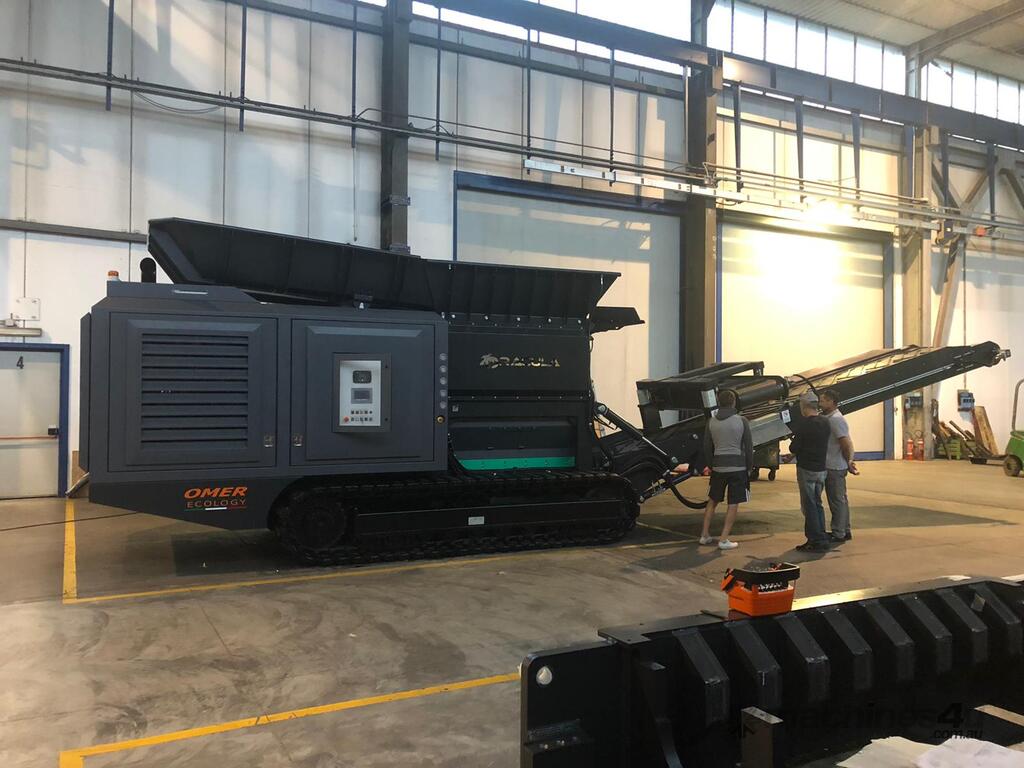

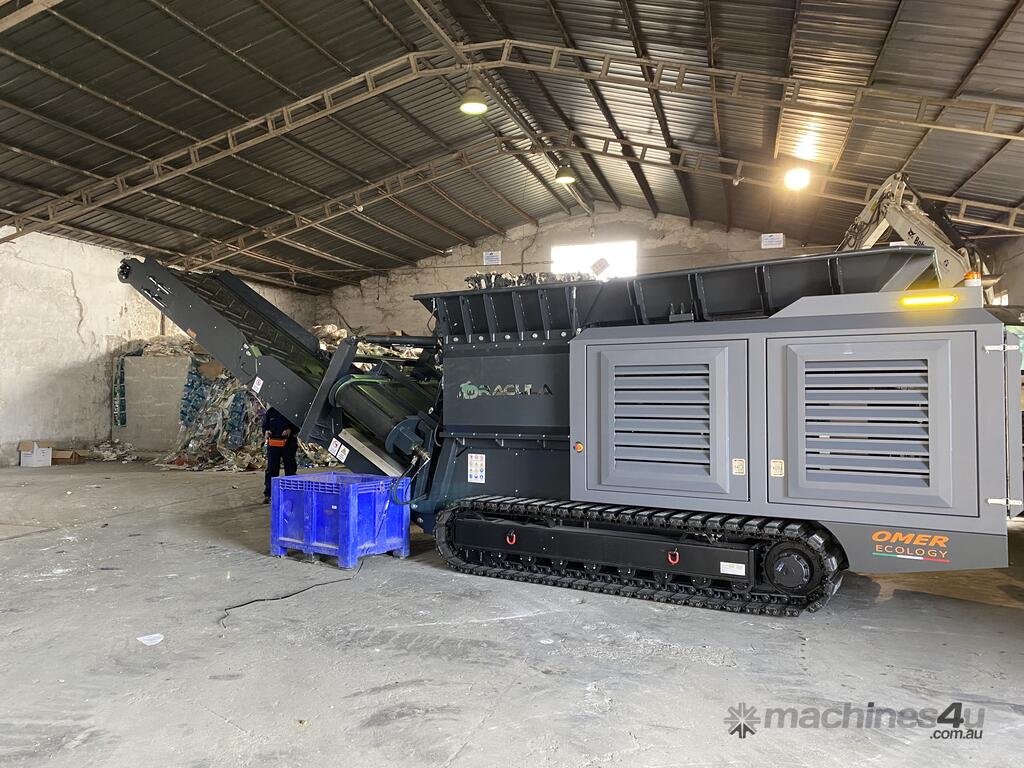

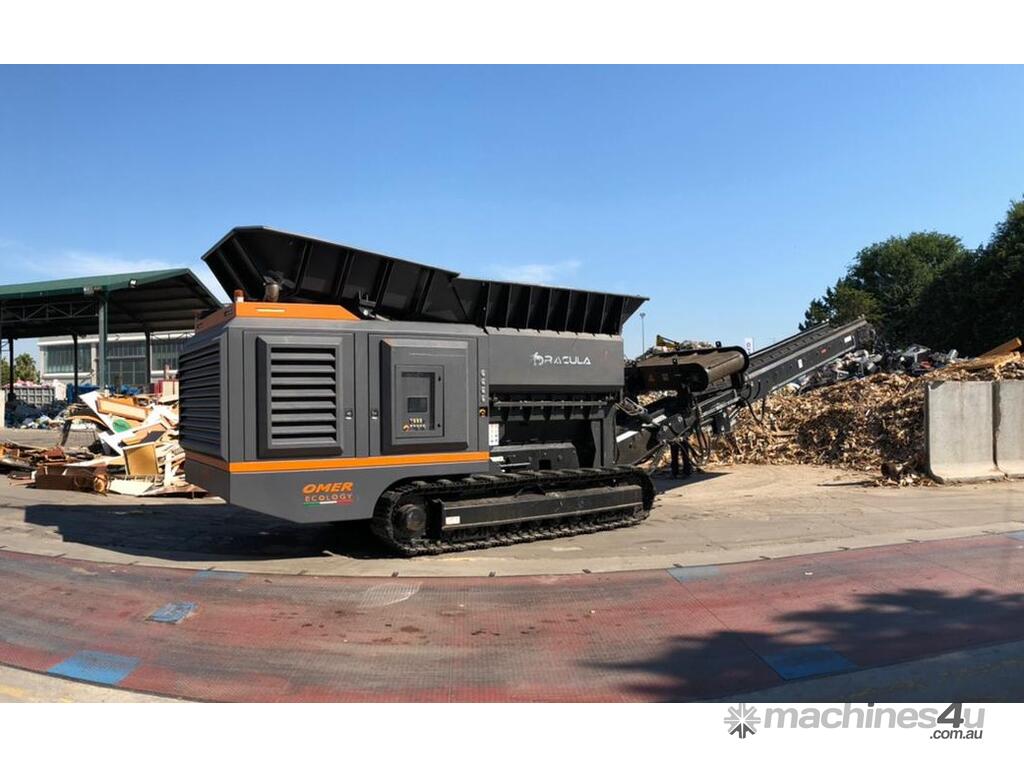

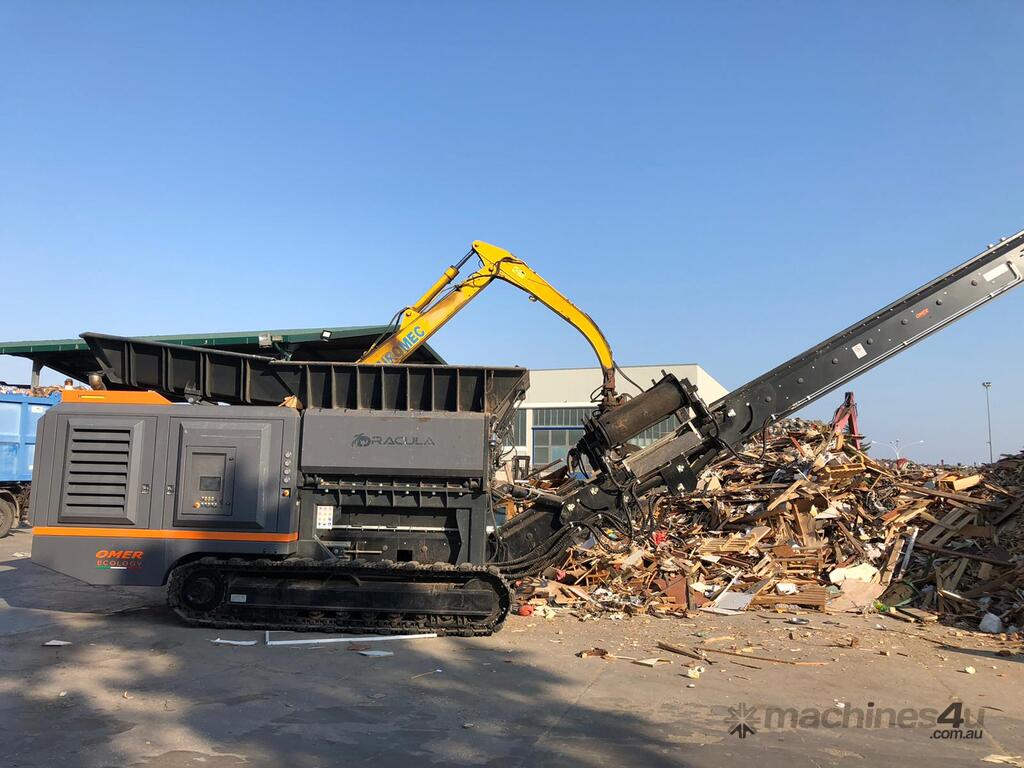

The primary double-shaft DRACULA shredder is a machine designed for primary roughing of solid urban waste, aluminium, bulky waste, used car tyres and wood.

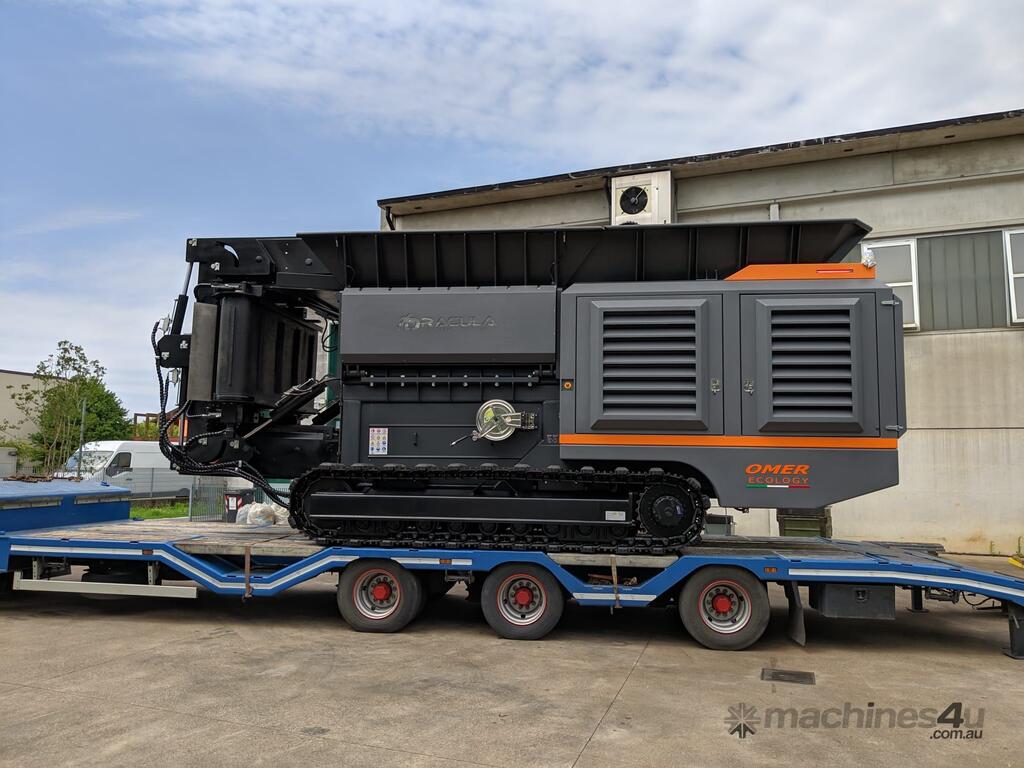

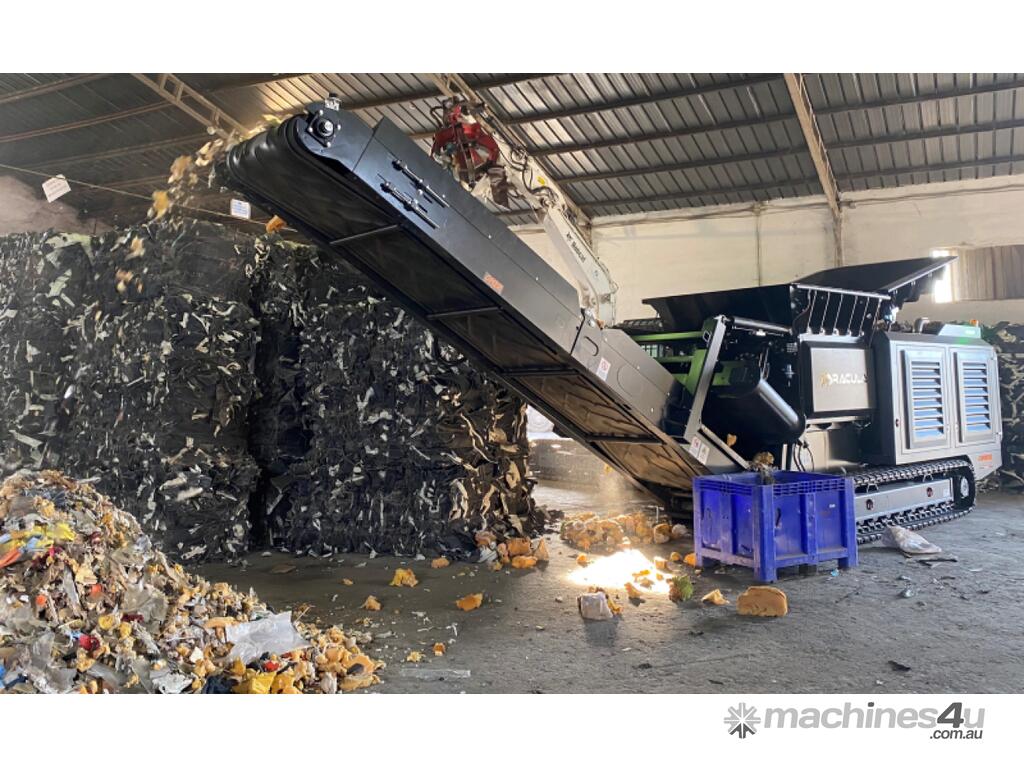

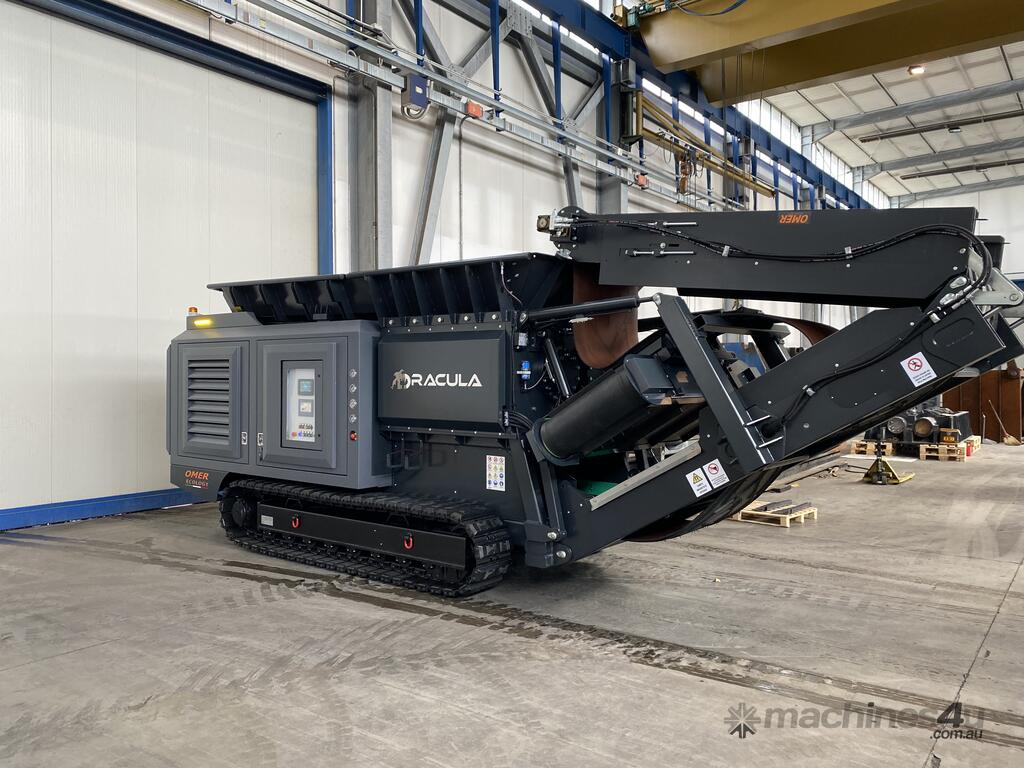

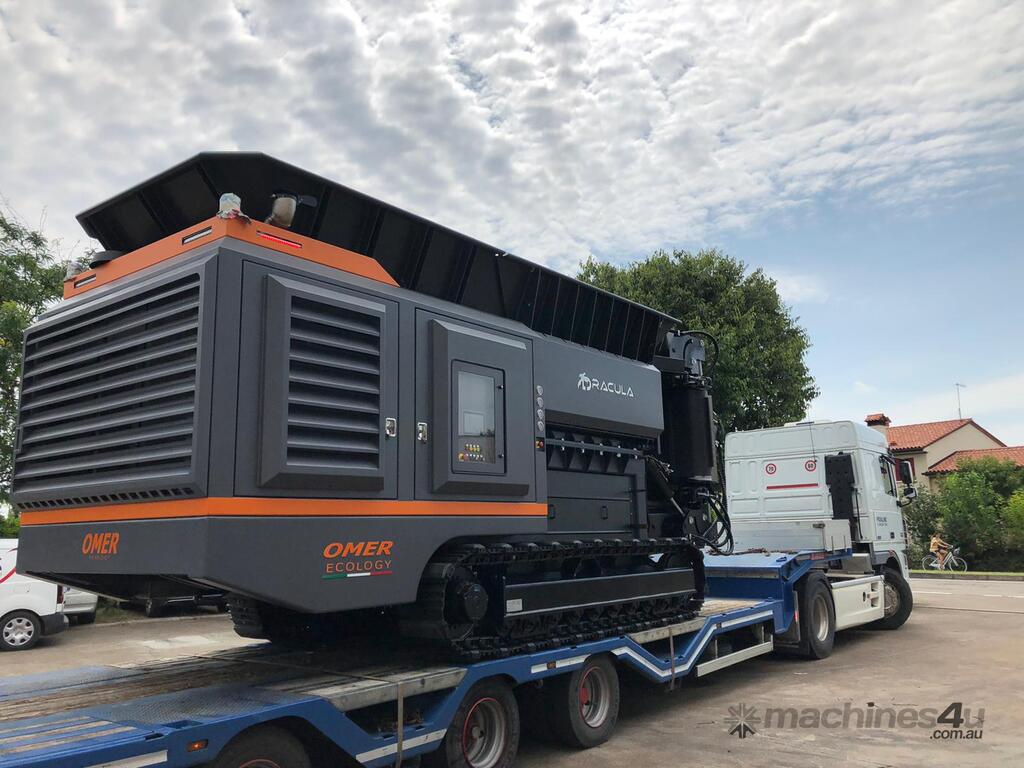

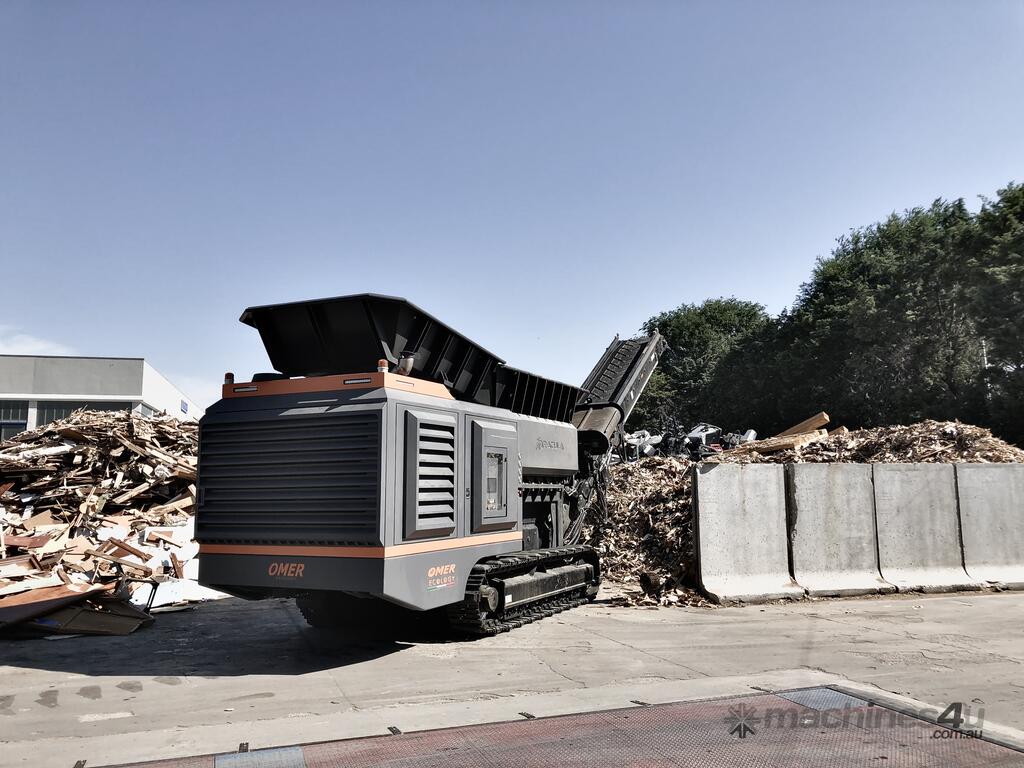

It can be fixed or movable, with electrical or diesel power engine. In both cases the transmission is hydraulic. In the movable configuration the machine is mounted on mobile tracks and it includes a conveyor belt and a built in magnetic separator. The handling of the shredder is tracked through a radio-control for complete safety.

COMMAND MONITOR Display of motor parameters and work cycles.
Hydraulic oil level and temperature parameters. Setting up to 5 programs.
Ability to download data with USB.
System for accessing the machine via internet.

DIESEL ENGINE
IVECO engine
Power 212/235 kw
Exhaust emissions compliant with EU Stage 5

DOUBLE LOADING HOPPER
Two hoppers, one of which can be overturned to facilitate the feeding of the material onto the cutting shafts.

MAGNETIC BELT
Magnetic separator for ferrous materials. Height adjustable.

NEW

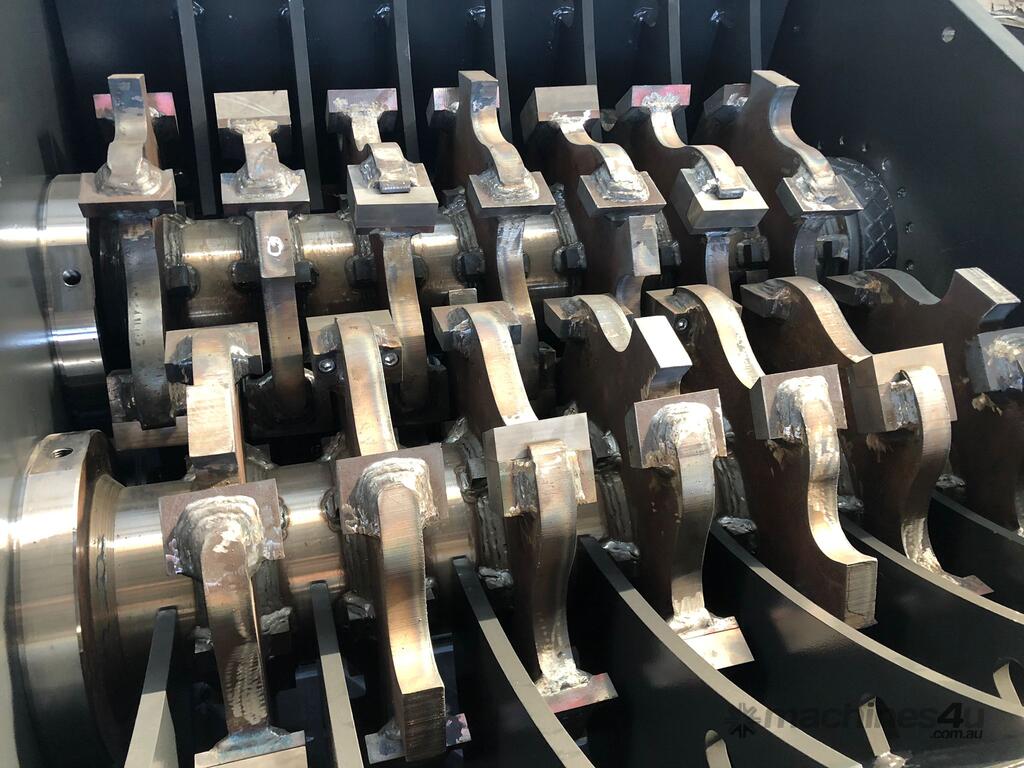

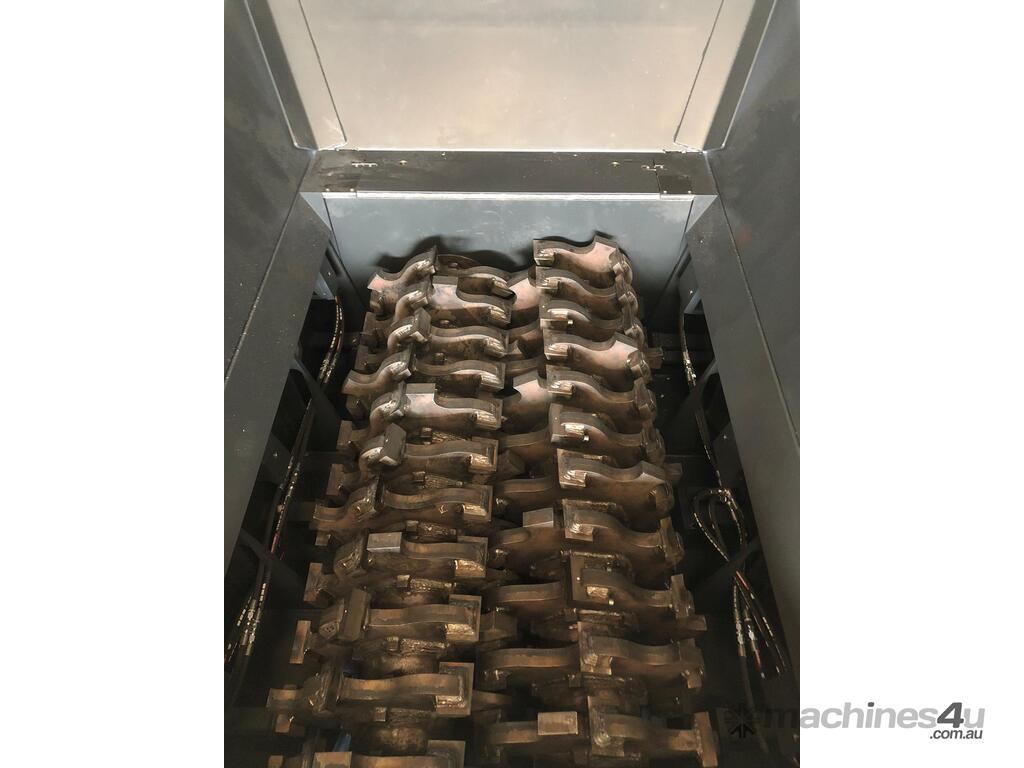

Blades with interchangeable plates

MODELS POWER ROTOR LENGTH DIMENSIONS WEIGHT
LxWxH mm
130 ROLL-OFF 212/235 kw 320 hp 1300 mm 8000x2250x3000 17 t
130DK TRACKED 212/235 kw 320 hp 1300 mm 8000x2250x3000 19 t
130 E ELECTRIC 200kw 1300 mm 8000x2250x3000 17 t
175 Roll-Off 294kw 400hp 1750 mm 7500x2490x3200 26 t
175 DK TRACKED 294kw 400hp 1750 mm 7500x2490x3200 28 t
175 E ELECTRIC 250kw 1750 mm 7500x2490x3200 26 t
