Hardened steel + Plasma nitration
Material thickness approx. 11,5 – 13 mm
Table side panel made of high quality steel S355J2+N + Plasma nitration

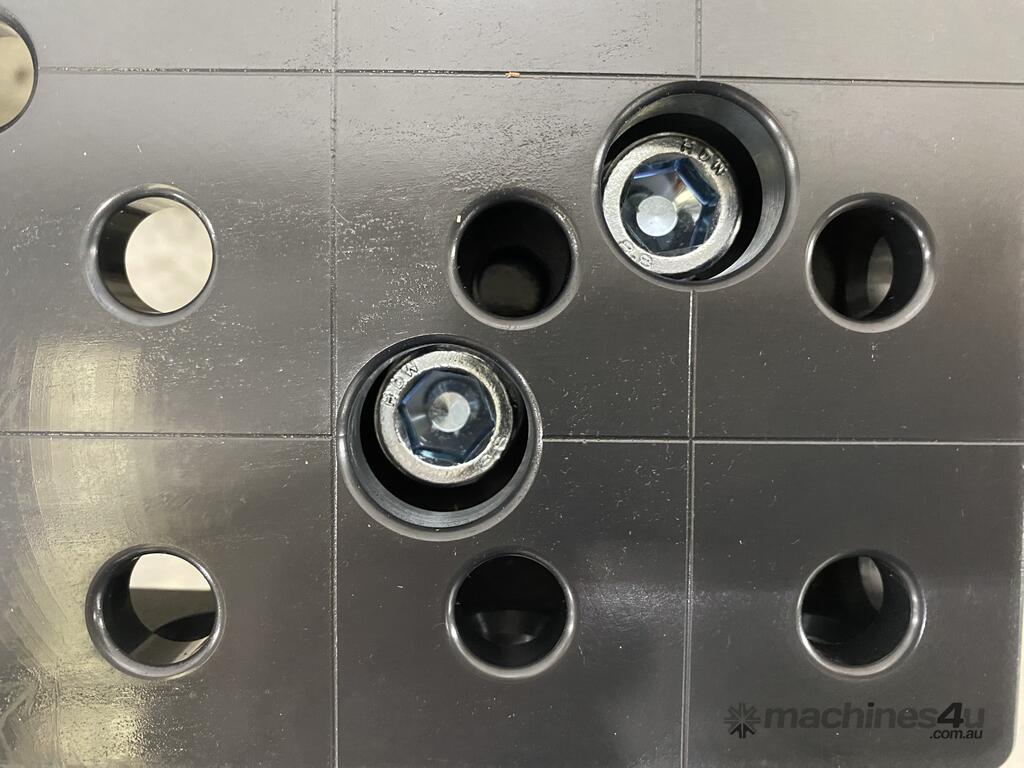

Borehole Ø 16 mm

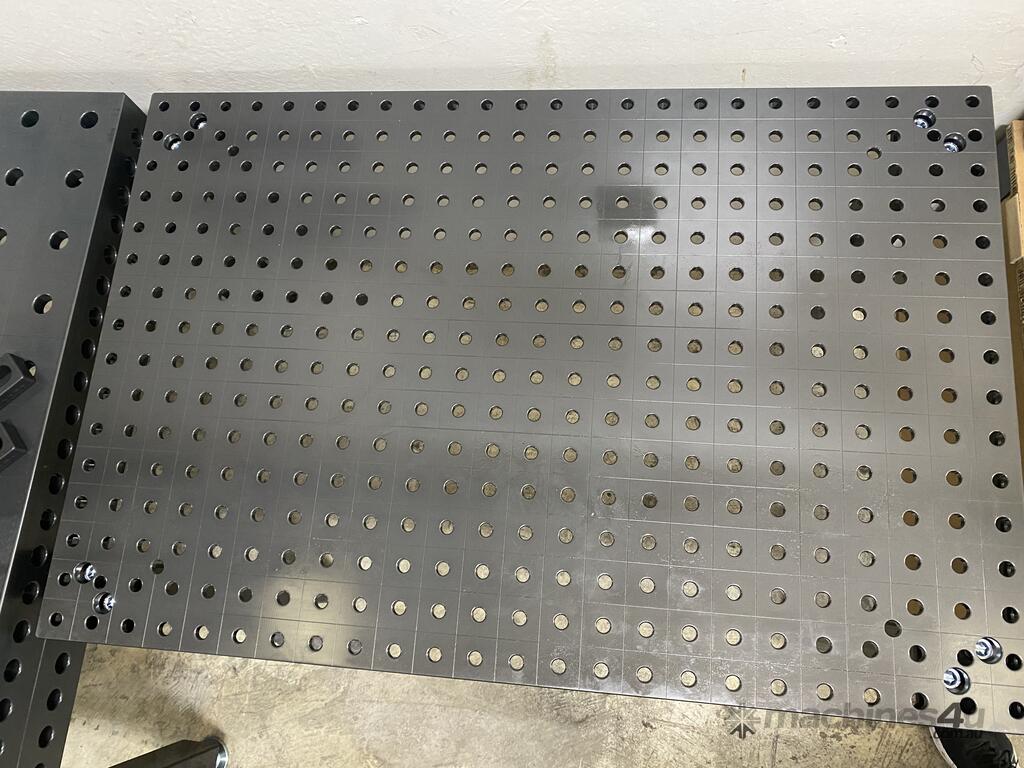

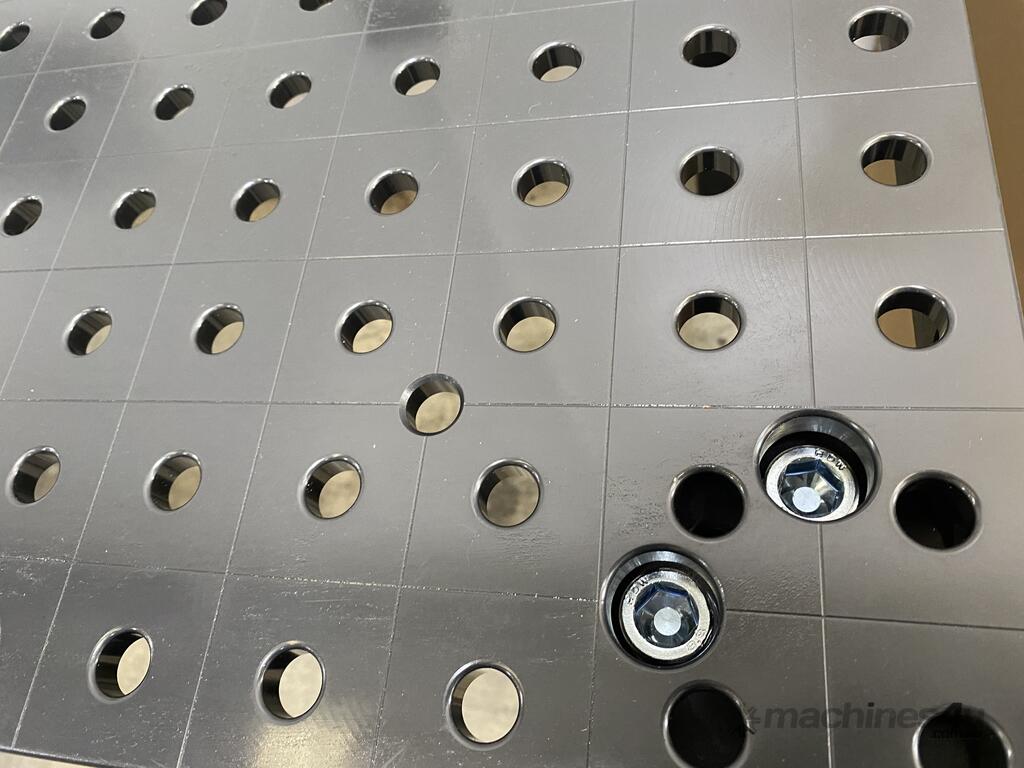

Boreholes on the surface 50×50 mm grid
Corners, edges and boreholes rounded
Height of table side 100 mm

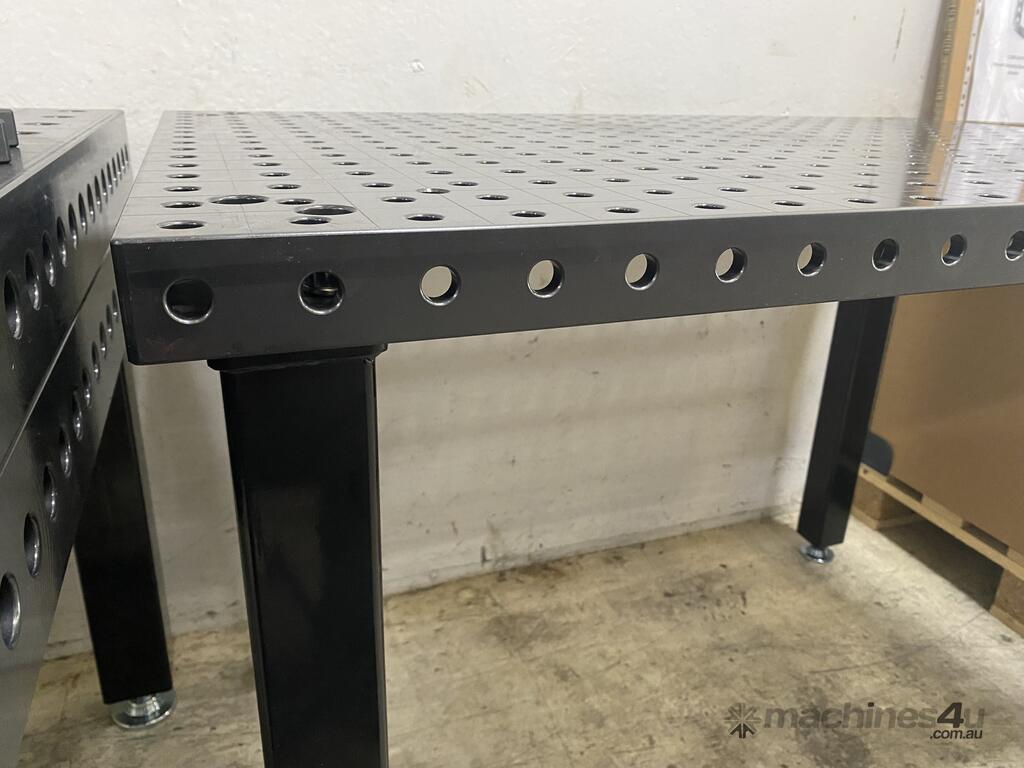

Boreholes on table sides 50mm grid
Construction reinforced with ribbing
50mm Grid lines allow precise constructions
Special equipment for welding tables available by request.
40 mm vernier adjustment
Length (a) : 1200 mm
Width (b) : 800 mm
Height (c) : 50 mm
Weight : 209 kg
