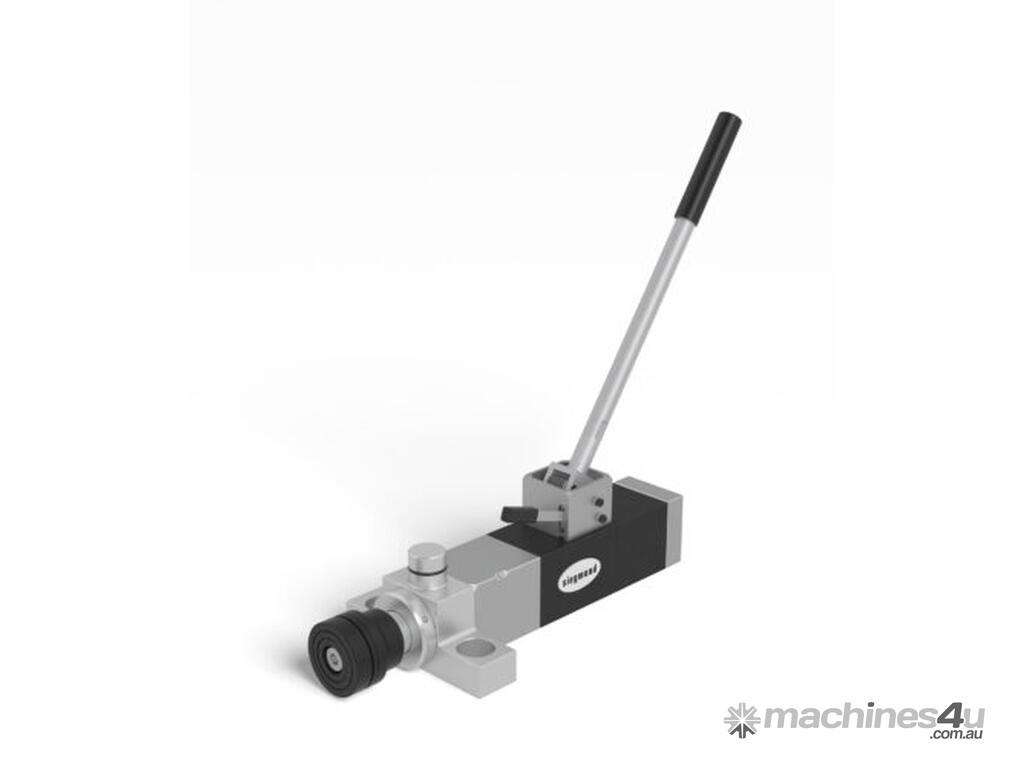

Siegmund Welding Table Hydraulic Press

For the perfect pre-stressed welded parts.

The table press is used for straightening deformed steel products. With a compressive force of 2,5 tons, parts that have unwanted unevenness or tension in the material, can be straightened. With the additionally available pipe bending stamp, pipes with a diameter of up to 42 mm can be bent flexibly.

The total stroke is 60 mm, which can be achieved with 13 pump strokes with an operating force of approx. 330 N (stroke per pump stroke 4,6 mm). An overflow valve prevents additional pressure build-up when the piston rod is fully extended.

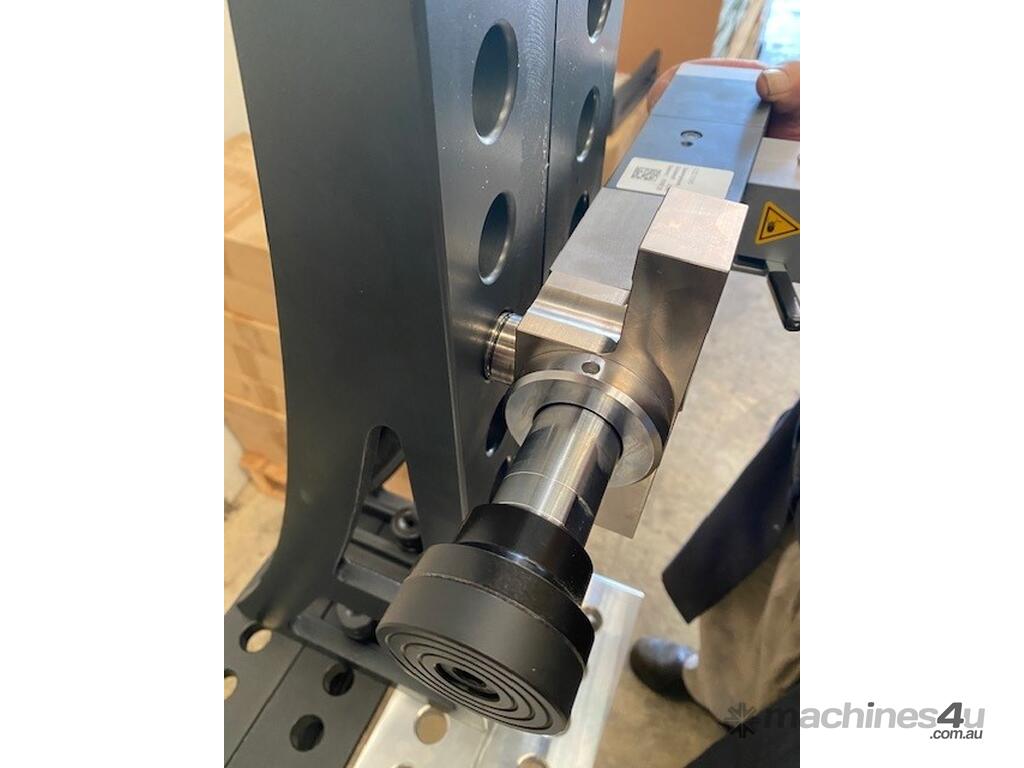

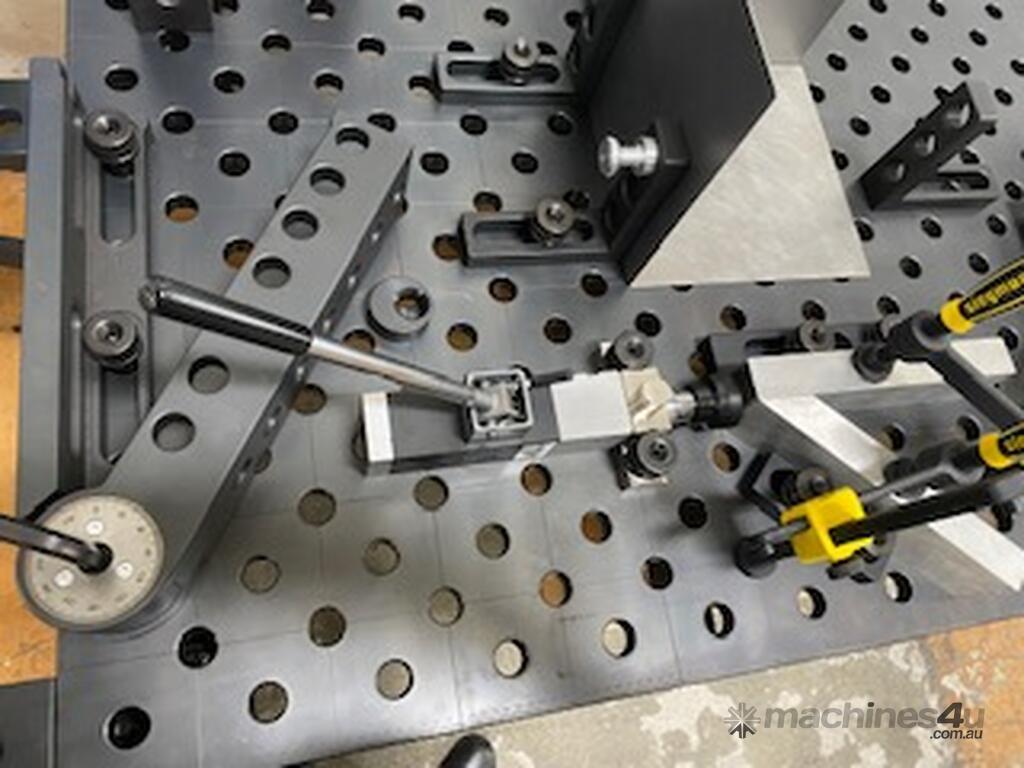

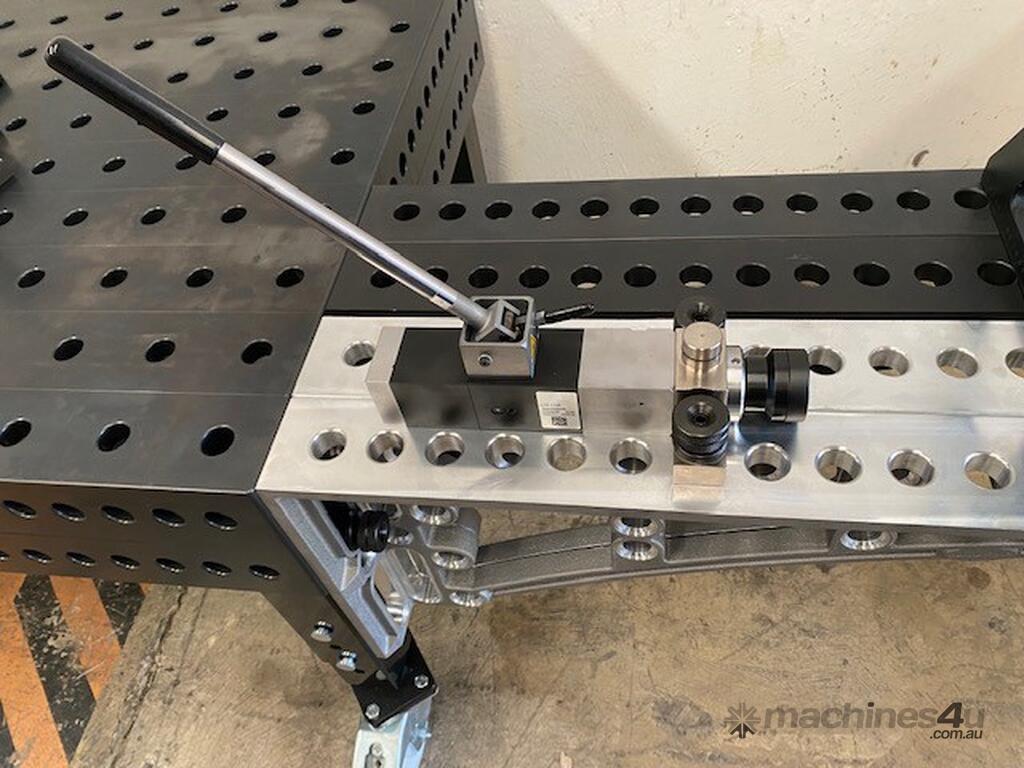

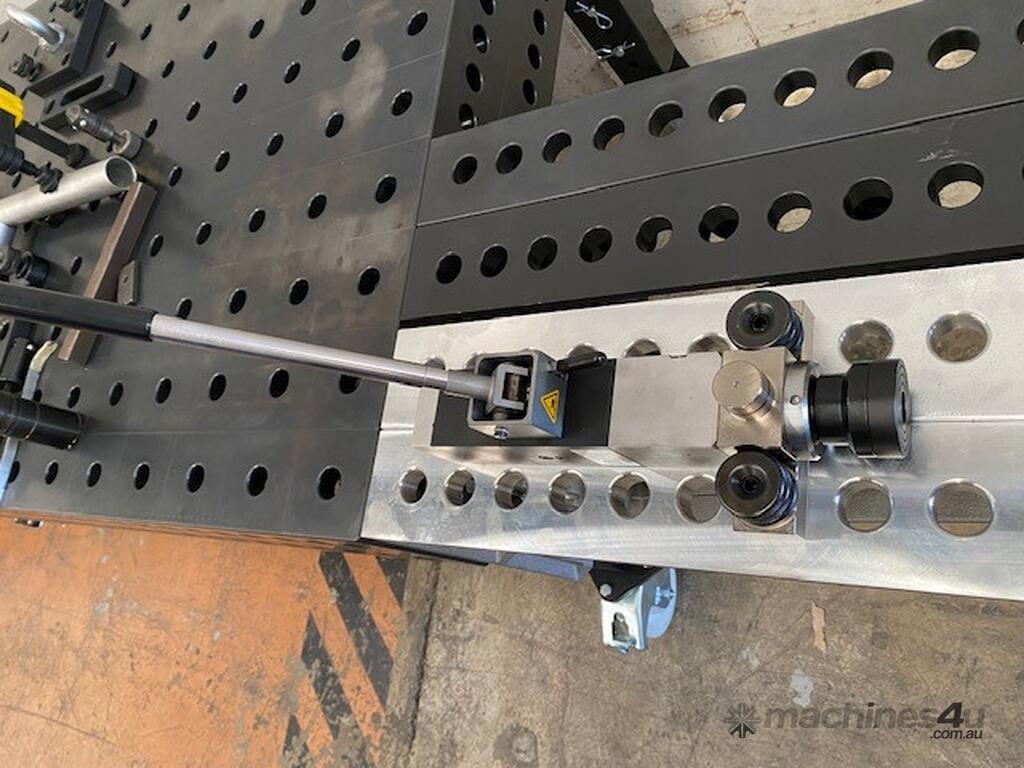

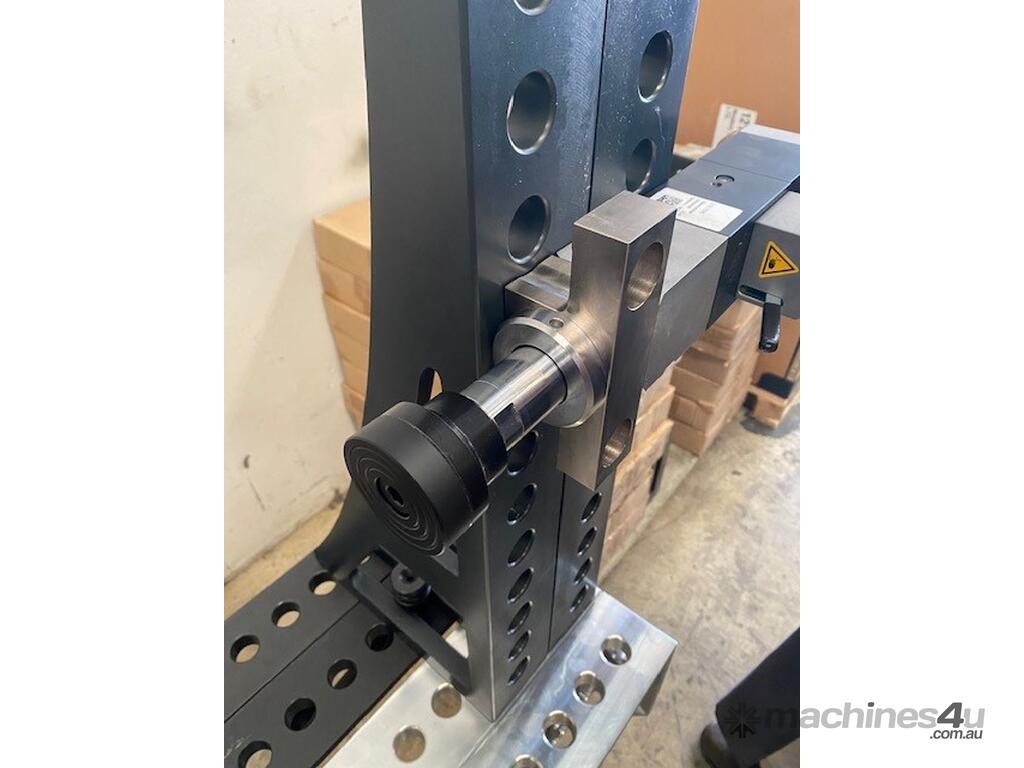

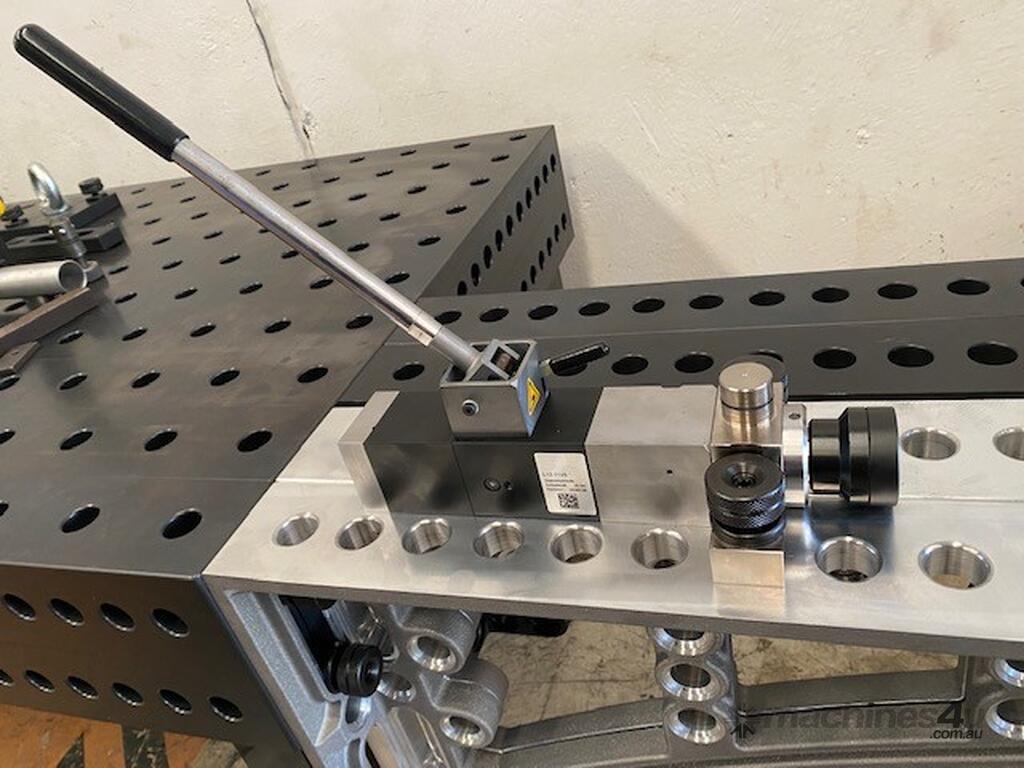

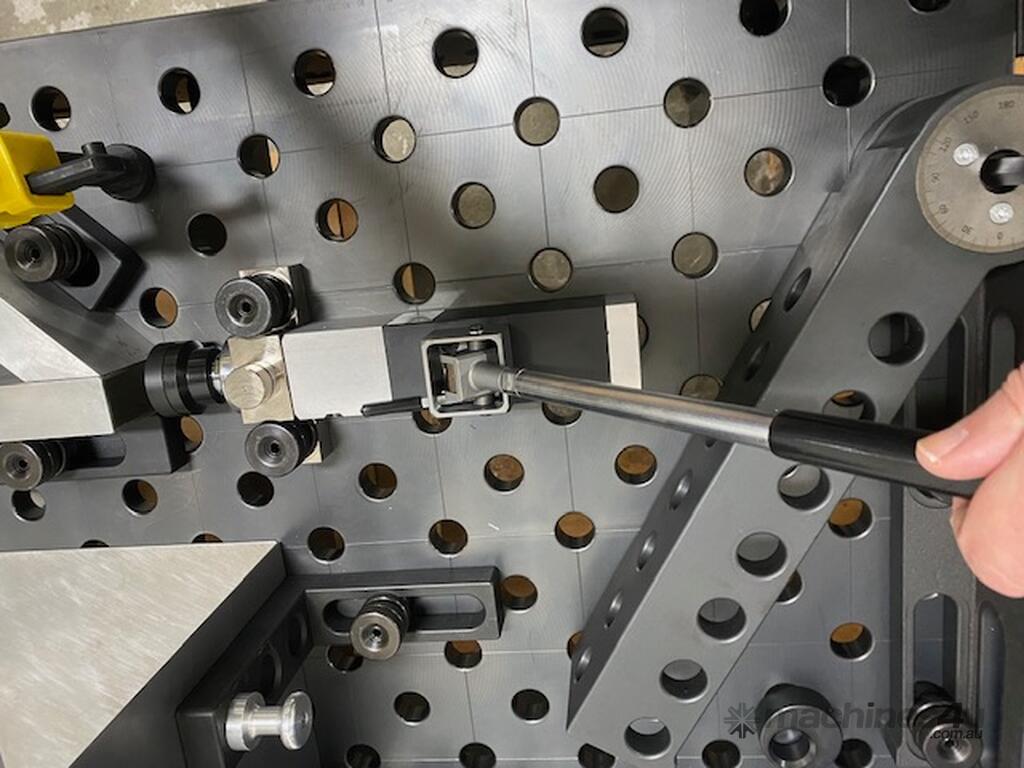

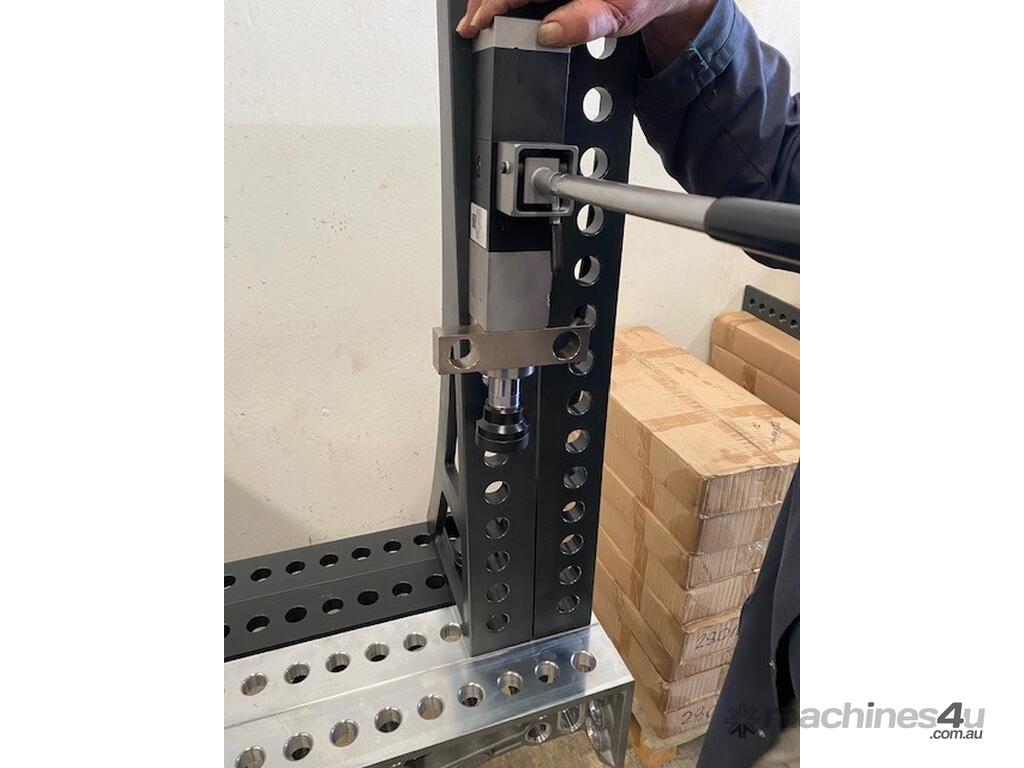

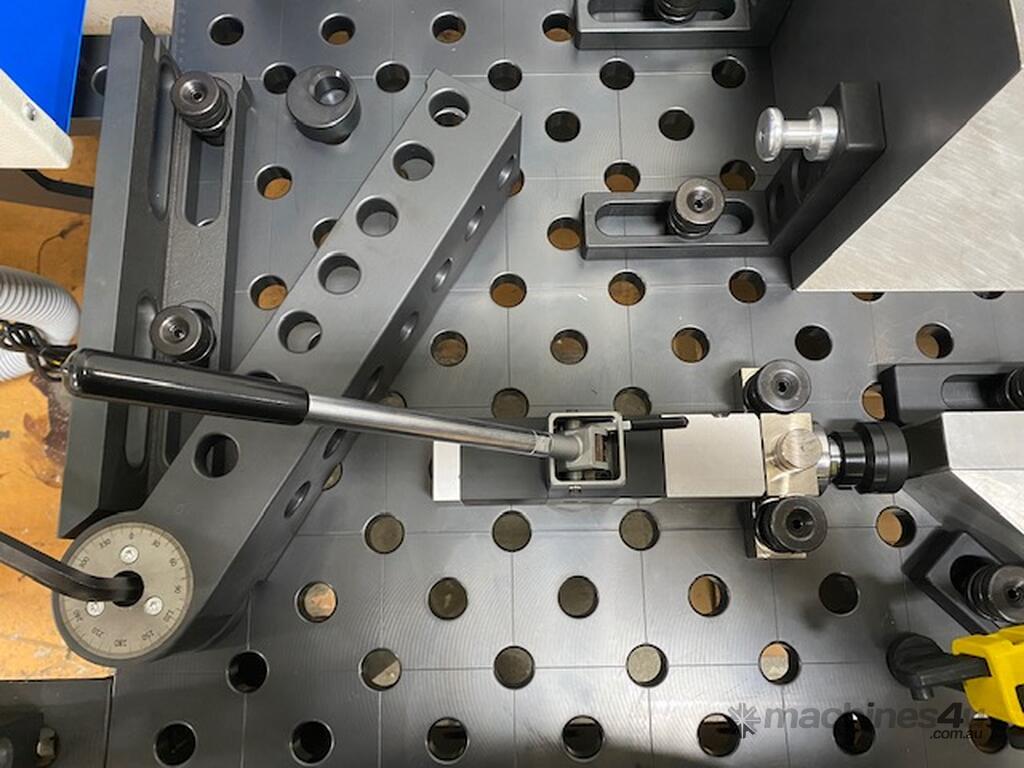

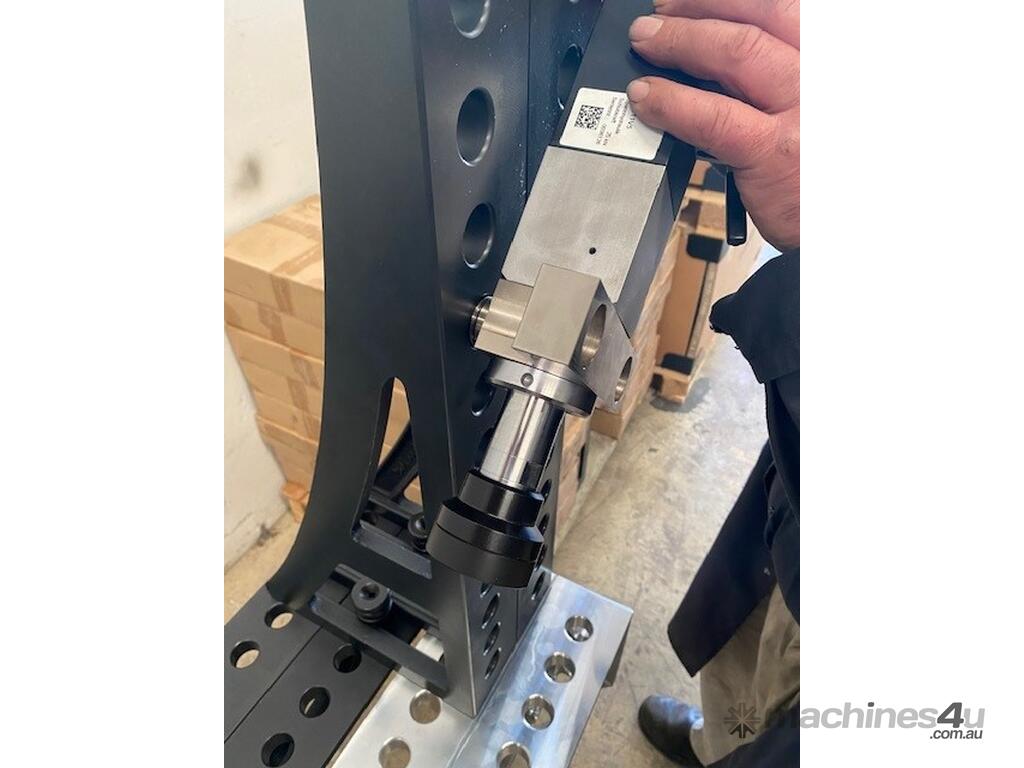

For a secure attachment on the table, the table press can be fixed through the turret head by using Fast Clamping Bolts or by the attached bolt.

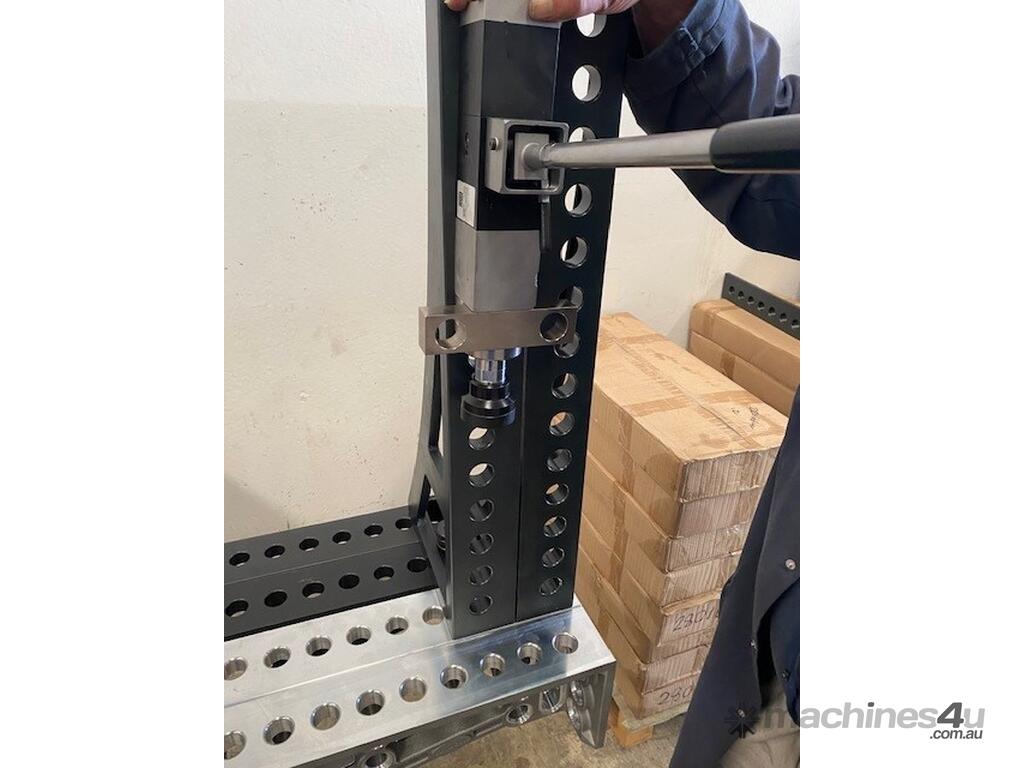

The table press must always be fixed in two places for clamping and straightening.

Specifications: Weight : 6,7 kg
