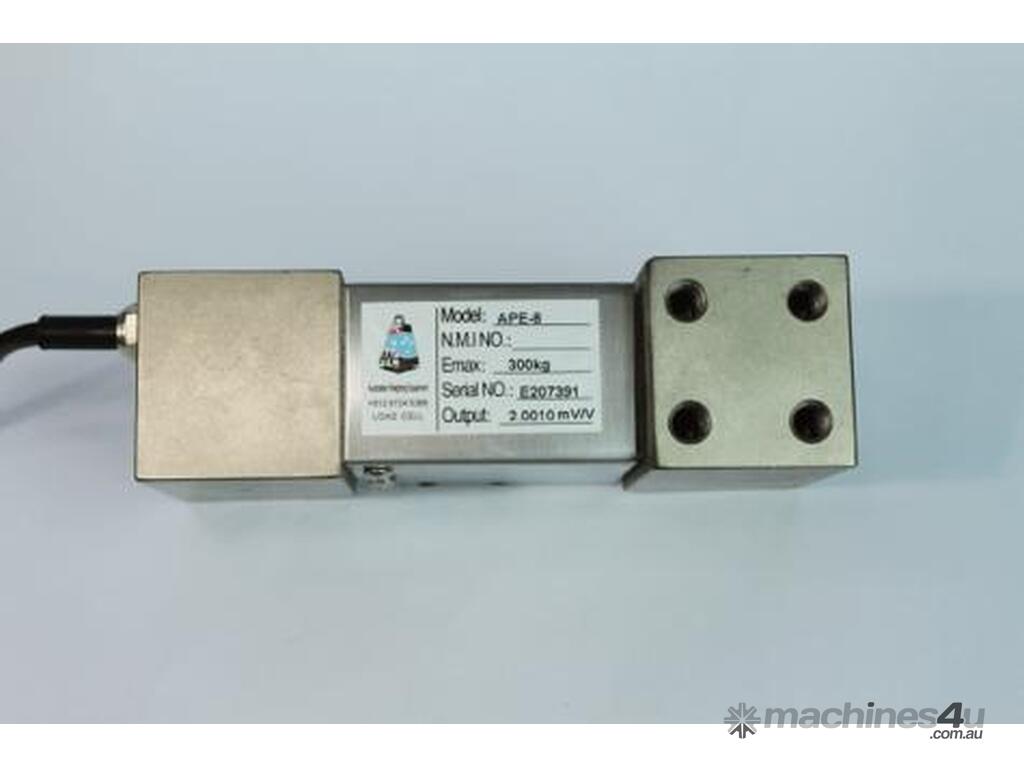

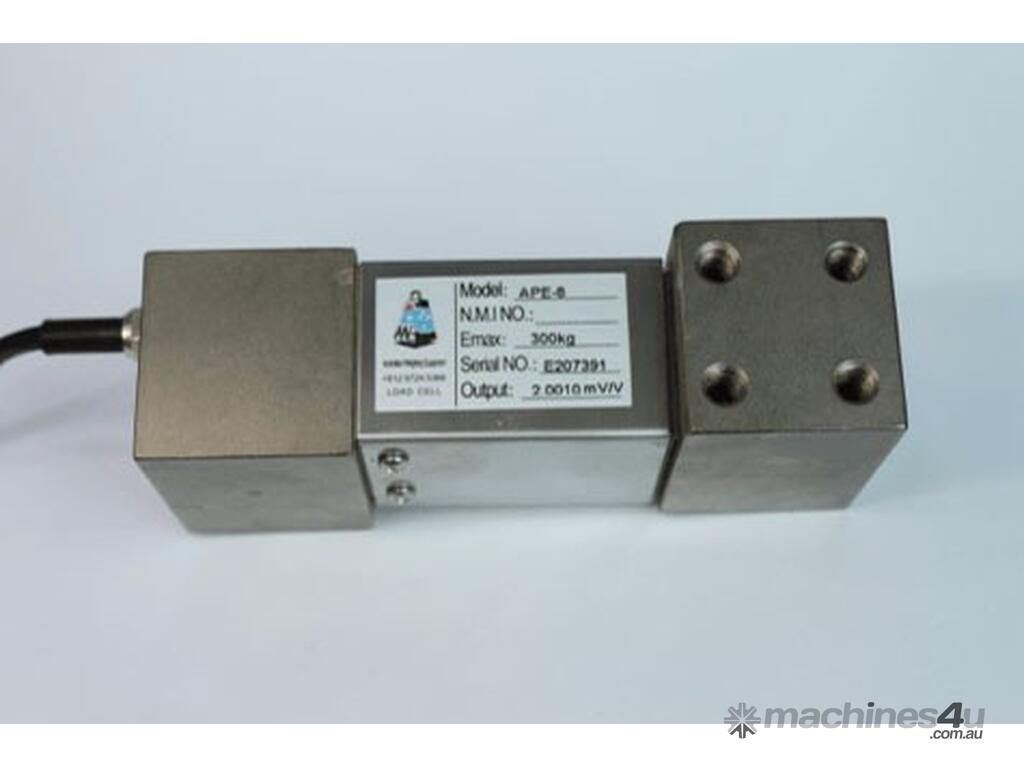

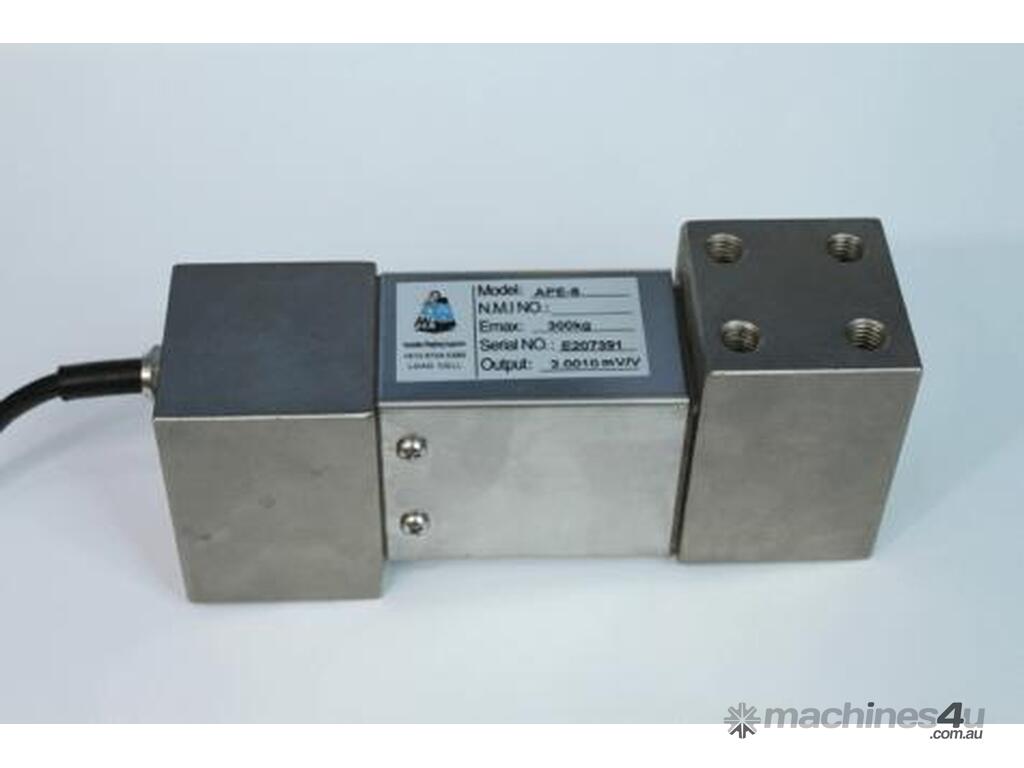

Single Point Load Cell: Up to 1000KG - APE-8

The APE-8 Load cell is ideal for electronic platform scales, custom design scales or engineering applications requiring a sturdy robust high accuracy load cell.

Box type single point load structure with Corner adjusted before delivery to ensure consistent output in stated load plane.Suitable for electronic platform scale, body scale, etc.

Stainless Steel Casing
Simply to install, easy to use
Suitable for electronic platform scale

APE-8 Single Point Load Specifications

Available Capacity 20,30,50,100, 300, 500, 700, 1000 KG
Rated Output (mv/v) 2.00±0.1
Nonlinearity ± 0.02%FS
Hysteresis ± 0.02%FS
Creep (30minutes) ± 0.03%FS
Zero Balance ± 1.00%FS
Temperature Effect ± 0.03%FS/10°C
Temperature Effect on Output ± 0.03%FS/10°C
Input Resistance (?) 385 ± 10
Output Resistance (?) 350 ± 3
Insulation Resistance ? 5000M ?
Excitation Voltage (Recommended) 10V(DC/AC)
Compensated Temperature Range -10°C to +50°C
Operating Temperature Range -20°C to +60°C
Operating Temperature Range -20°C to +60°C
Safe Overload 120%FS
Cable Diameter 5.4mm x 3m
Cable Colour Code Input: Red (+) Black (-)Output: Green (+) White (-)
