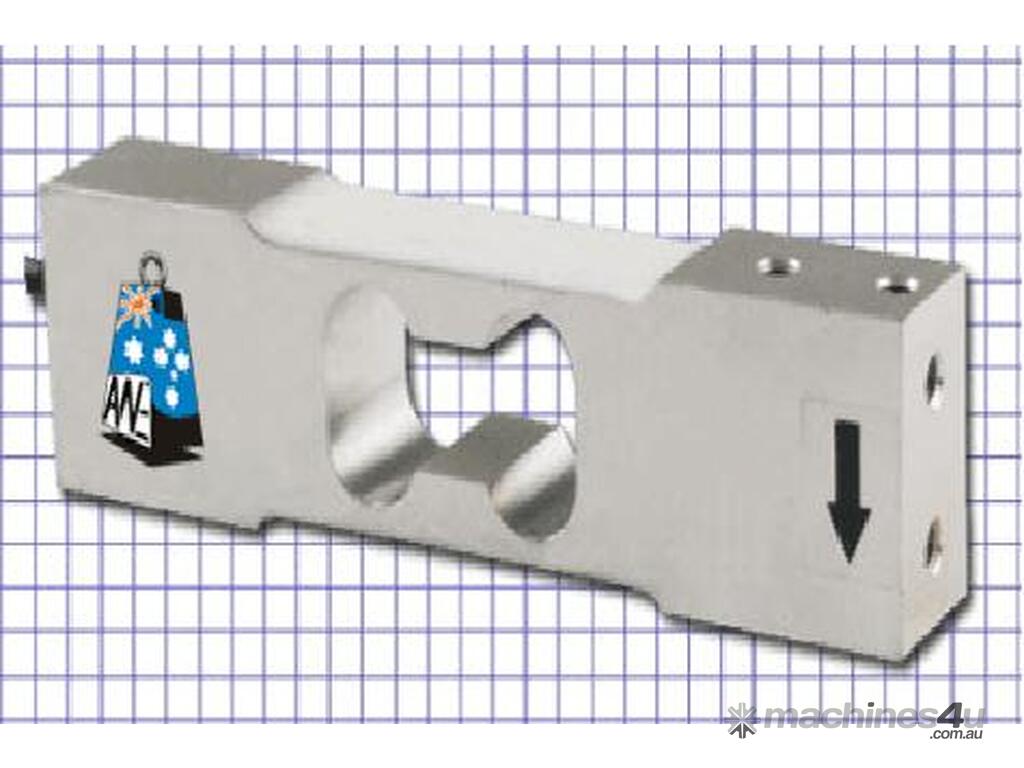

Single Point Load Cell: Up to 100kg - APE-2

Box type single point loading structure corner adjusted before delivery to ensure consistent output in stated load plane simple
to install easy to use suitable for electronic platform, body scale.
Select on the image below that best fits your requirement…

Simple to install,
Easy to use load cell.
Suitable for electronic platform, body scale etc.

Box type single point loading structure
Corner adjusted before delivery to ensure
Consistent output in stated load plane

APE-2 Single Point Load Cell Specifications:

Available Capacities 3,5,10,15,20,30,50,100 KG
Rated Output (mV/m) 2±0.2
Nonlinearity ± 0.02%FS
Hysteresis ± 0.02%FS
Repeatability ± 0.01%FS
Creep(30minutes) ± 0.02%FS
Zero Balance ± 1.00%FS
Temperature Effect on Zero ± 0.02%FS/10°C
Temperature Effect on Output ± 0.02%FS/10°C
Input Resistance (?) 410 ± 10
Output Resistance (?) 350 ± 3
Insulation Resistance ? 5000M ?
Exciting Voltage 10V(DC/AC)
Compensated Temperature Range -10°C to +50°C
Operating Temperature Range -20°C to +60°C
Safe Overload 120%FS
Cable ?5x 3m
Cable Colour Code Input: Red (+) Black (-)Output: Green (+) White (-)
