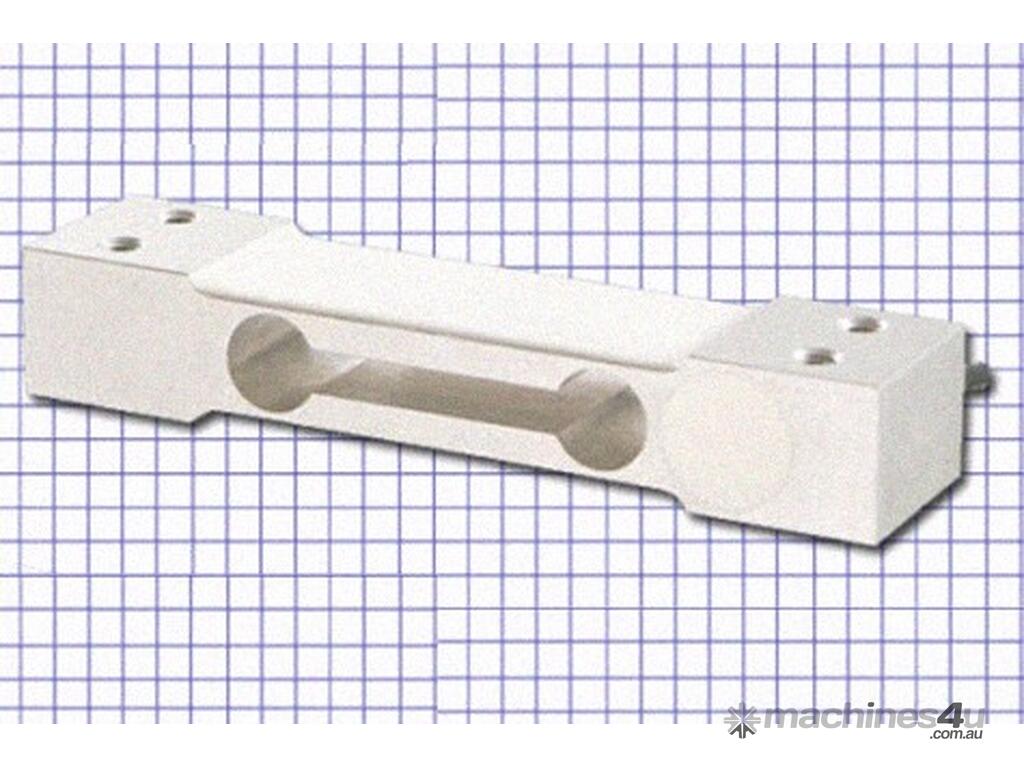

Single Point Load Cell: Up to 250kg - APE-1

Suitable for electronic price computing scales, table top scales, Platform scales and other small capacity electronic scales.

APE-1 Single Point Load Cell Key Features:
Temperature compensation and four corner adjustment
Double holed cantilever beam structure
Low profile
Small size

APE-1 Single Point Load Cell Specifications
Rated Output (mV/m) 1±0.01 (0.3-3kg) 2±0.1 (6-250kg)
Nonlinearity ± 0.02% of Full Scale
Hysteresis ± 0.02% of Full Scale
Reapeatably ± 0.01% of Full Scale
Creep(30minutes) ± 0.02% of Full Scale
Zero Balance ± 1.00% of Full Scale
Temperature Effect on Zero ± 0.02% of Full Scale/10°C
Temperature Effect on Output ± 0.02% of Full Scale/10°C
Input Resistance (?) 410 ± 15
Output Resistance (?) 350 ± 3
Insulation Resistance ? 5000M ?
Exciting Voltage 10V(DC/AC)
Compensated Temperature Range -10°C to +50°C
Operating Temperature Range -20°C to +60°C
Safe Overload 120% of Full Scale
Cable ?4X0.4(3)m
Cable Colour Code Input: Red (+) Black (-)
Output: Green (+) White (-)
