Single or Multi Daylight Hot Press 160T 3500 x 1300 Platen - Italian made

Orma by Wood Tech. Aus Owned and Operated. Local Service and Parts in 5 States. Download Brochure Now.

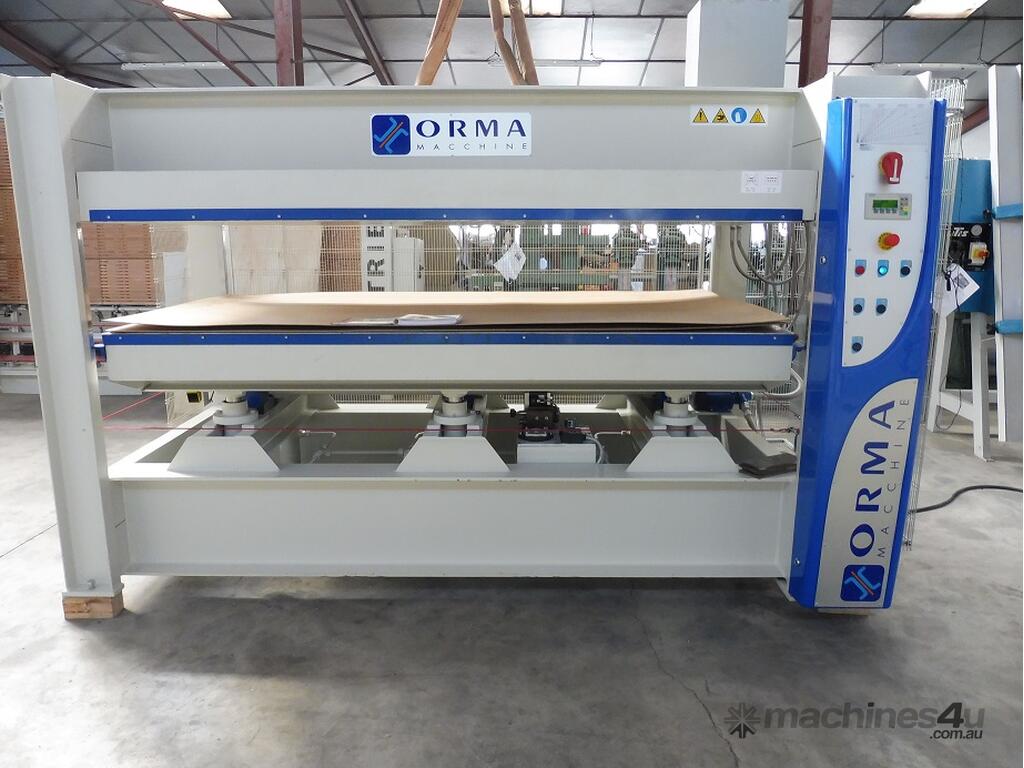

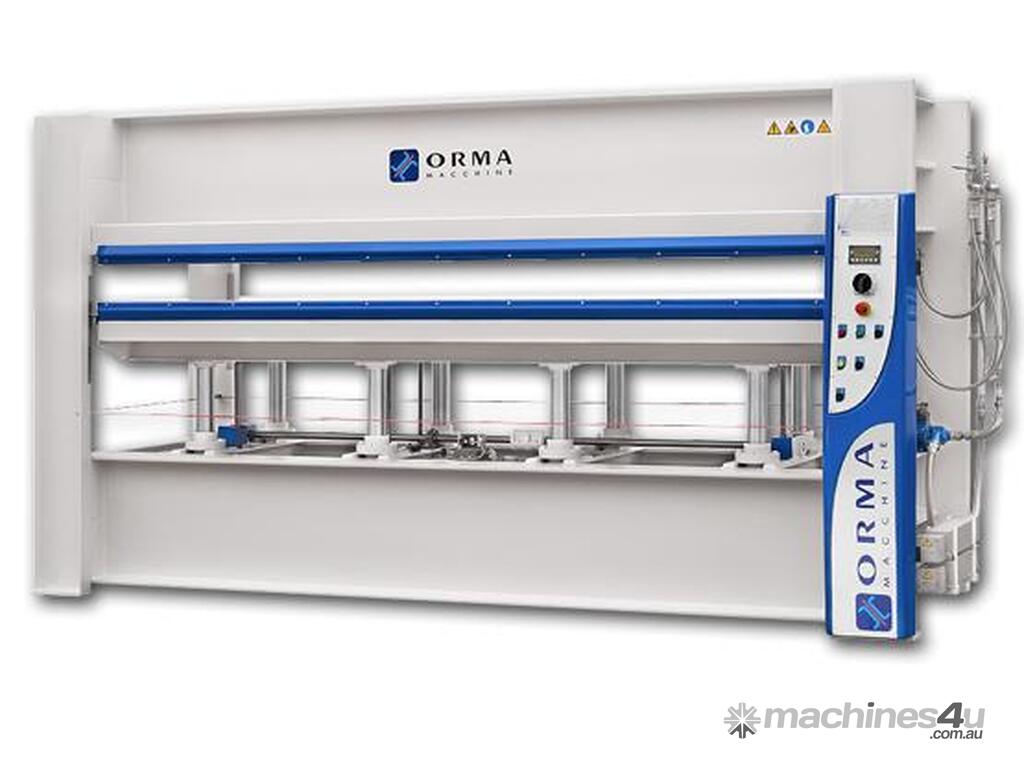

The Orma NPC Digit Hot Press is a flexible daylight pressing solution with hot, cold, single and multi pressing options.

Highlights
- Up to 200 metric tons pressure over 100% of the platen
- Rack & pinion guided lower platen
- Fabricated steel platens with 3 mm thick steel plates top & bottom welded to heavy wall steel tubes
- Possibility to use 50% capacity of the boiler

40 up to 200 metric tons pressure over 100% of the platen; (6) upstroke cylinders 70 mm dia. with chromed cylinder walls.

Rack & pinion guided lower platen to ensure parallel open-and-closing, closing cycle has sensors to insure parallel closing or the cycle will stop automatically.

Fabricated steel platens with 3 mm thick steel plates top & bottom welded to heavy wall steel tubes for heating circulation between the plates, tops of both platens are machined to flatness, includes aluminum covers.

Oil heating system with electrical heating elements. Possibility to use 50% capacity of the boiler(for boilers over 20KW) External circulation pump with plumbing and open expansion tank, 230 deg. F° max. (120 deg. C) temperature.

2-Stage self-contained 2 HP hydraulic pump for platen pressure, automatic press cycle timer, pressure and temperature gauges with LED readout, automatic reset of pressure and emergency stop system.

Includes: Hydraulic cylinder isolation valve kit (shuts off 2 end cylinders) to allow pressing of smaller panels.
