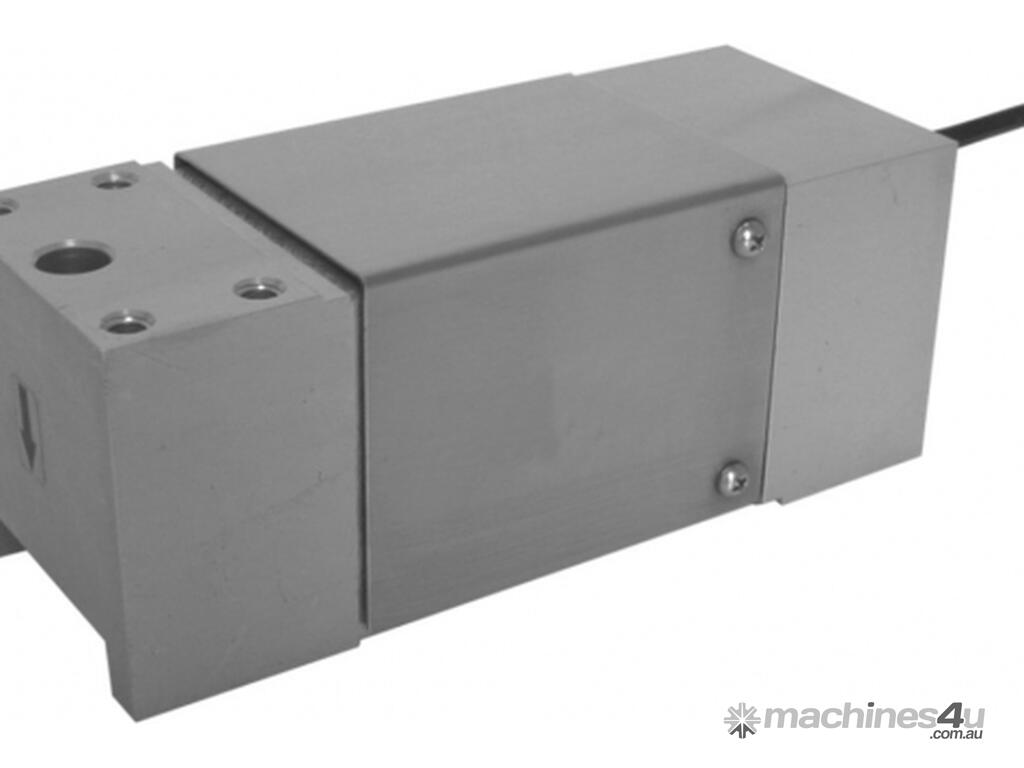

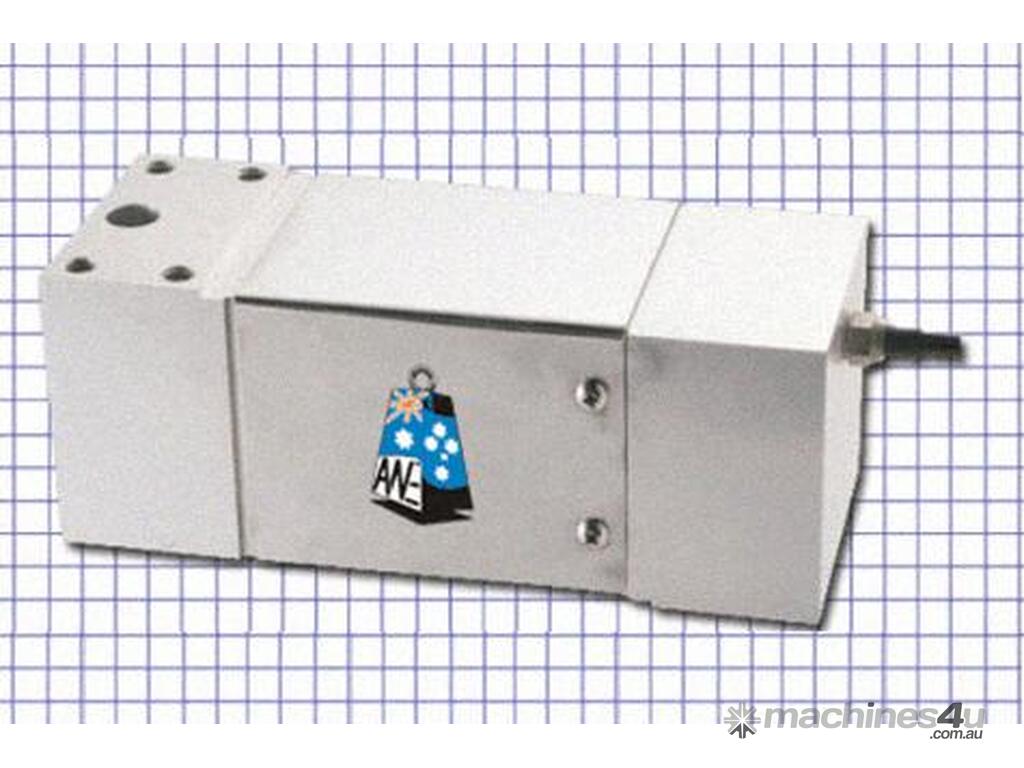

Single point load cell: Up to 1000 KG - APE-5

Box type single point loading structure corner adjusted before delivery to ensure consistent output in stated load plane simple to install easy to use suitable for electronic platform, body scale.

Suitable for electronic platform scale, body scale, etc.

Simply to install
Easy to use
Suitable for electronic platform scale

APE-5 Single Point Load Cell Specifications:

Available Capacity 50, 75, 100, 150, 200, 250, 300, 500, 635, 1000 KG
Rated Output (mV/m) 2 ± 0.2
Nonlinearity ± 0.02%FS
Hysteresis ± 0.02%FS
Reapeatably ± 0.01%FS
Creep(30minutes) ± 0.02%FS
Zero Balance ± 1.00%FS
Temperature Effect on Zero ± 0.02%FS/10°C
Temperature Effect on Output ± 0.02%FS/10°C
Input Resistance (?) 410 ± 10
Output Resistance (?) 350 ± 3
Insulation Resistance ? 5000M ?
Exciting Voltage 10V(DC/AC)
Compensated Temperature Range -10°C to +50°C
Operating Temperature Range -20°C to +60°C
Safe Overload 120%FS
Cable ?5x 3m
Cable Colour Code Input: Red (+) Black (-)Output: Green (+) White (-)
