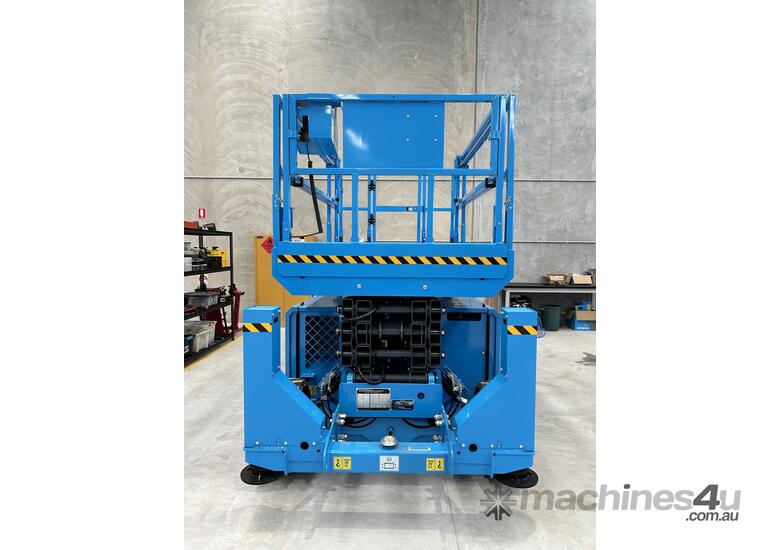

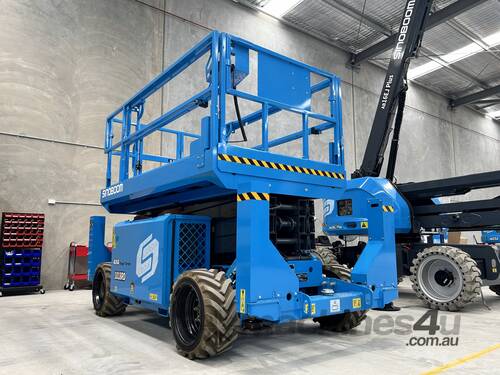

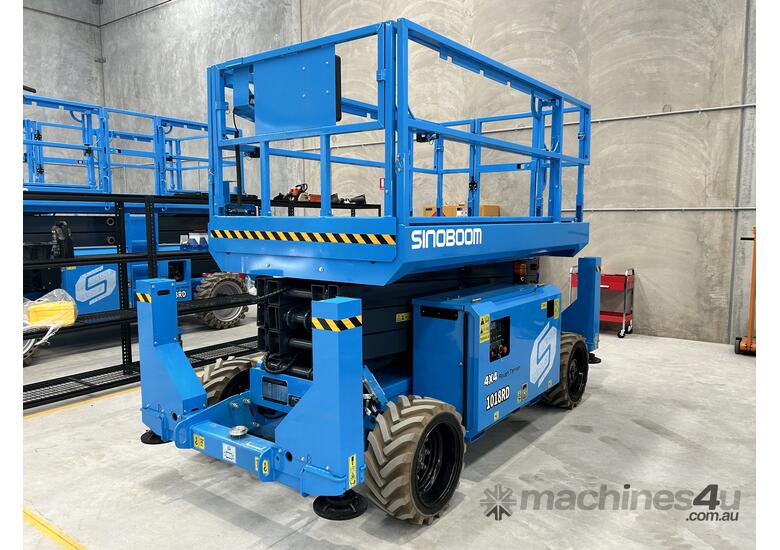

Sinoboom 10m Diesel Rough Terrain Scissor Lift 1018RD - Strong & Sturdy for Harsh Conditions

Excellent Performance
* Up to 35% gradeability, easily handling outdoor needs.
* Stable movement, oscillating working at both stowed and raised position.

High Efficiency
* 1.6m (5'3``) wide platform with one-way extension platform.
* One-click leveling, easy work on uneven road surfaces.

Easy Maintenance
* Two-sided hatchback door design for convenient maintenance.

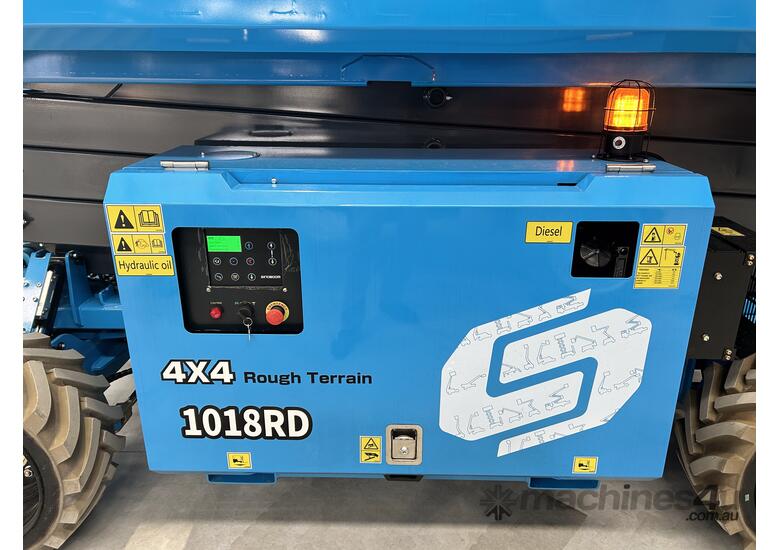

* Swing-out engine compartment for easy maintenance.

Standard Features
4WD × 2 WS
Forklift pockets and lifting points
Proportional controls
Flashing beacon
Emergency lowering system
Emergency stop
Electrophoretic painting
Tilt protection system
Foldable guardrail
Non-marking tires
Trackunit connector
Overload sensing system
Oscillating axle
Fault diagnosis system
White noise alarm
Drivable at full height

Dimensions
Max Working Height: 12 m (39'4.4``)
A Max Platform Height: 10 m (32'9.7``)
B Max Horizontal Reach: 1.5 m (4'11.1``)
C Length-Stowed (With/Without outriggers): 3.8 m/3.19 m (12'5.6``/10'5.6``)
D Width-Stowed: 1.78 m (5'10``)
E Height-Stowed (Rails Folded): 1.94 m (6'4.4``)
E Height-Stowed (Rails Unfolded): 2.56 m (8'4.8``)
F Wheelbase: 2.28 m (7'5.8``)
Ground Clearance: 0.22 m (8.66``)
Platform Size (L×W×H): 2.8m × 1.6m × 1.1m

Performance
Platform Capacity: 450 kg (992 lbs)
Extension Platform Capacity: 140 kg (309 lbs)
Max Platform Occupants (Indoor/Outdoor): 4 Persons/2 Persons
Drive Speed (Stowed): 0?5.6 km/h (0?3.5mph)
Drive Speed (Raised): 0?0.48 km/h (0?0.3 mph)
Lift Time (Unloaded): 42 s?52 s
Lower Time (Unloaded): 40 s?50 s
Gradeability: 35%
Tilt Rating (Front-to-back): 3°
Tilt Rating (Side-to-side, Outriggers Retracted/Deployed): 2°/0.8°
Max Outrigger Levelling (Front-to-back): 5.3°
Max Outrigger Levelling (Side-to-side): 11.7°
Turning Radius (Inside/Outside): 2.11 m/4.6 m (6'11.1``/15'1.1``)
Tire Spec/Type: 26×12-16.5/Solid

Power
Drive × Steer: 4WD × 2WS
Engine: Kubota D1105-E4B-EU-X1
Hydraulic Tank Capacity: 72L
Fuel Tank Capacity: 48L
Battery: 12 V, 60 Ah
System Voltage: 12 VDC

Weight
Weight: 4,110 kg
