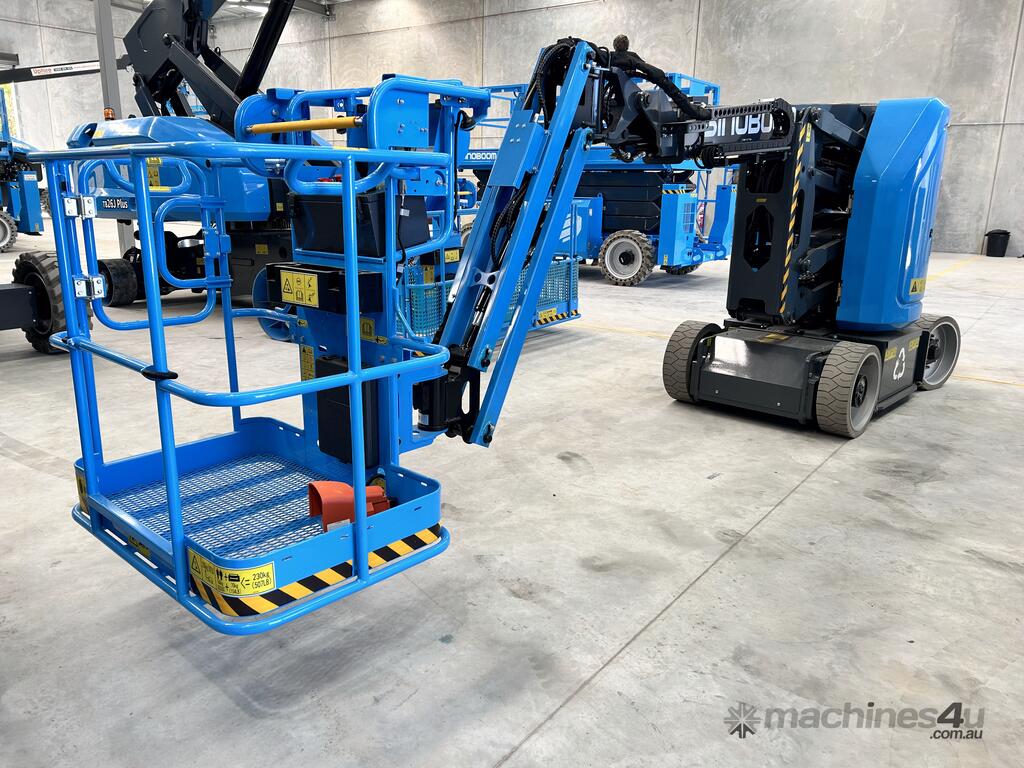

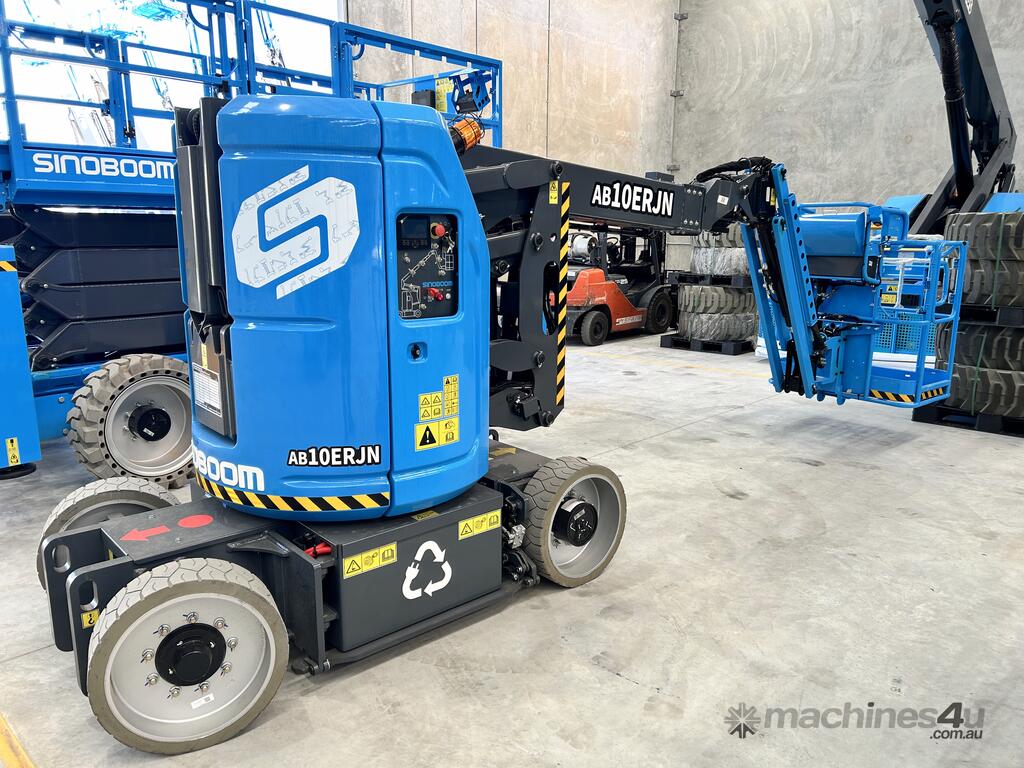

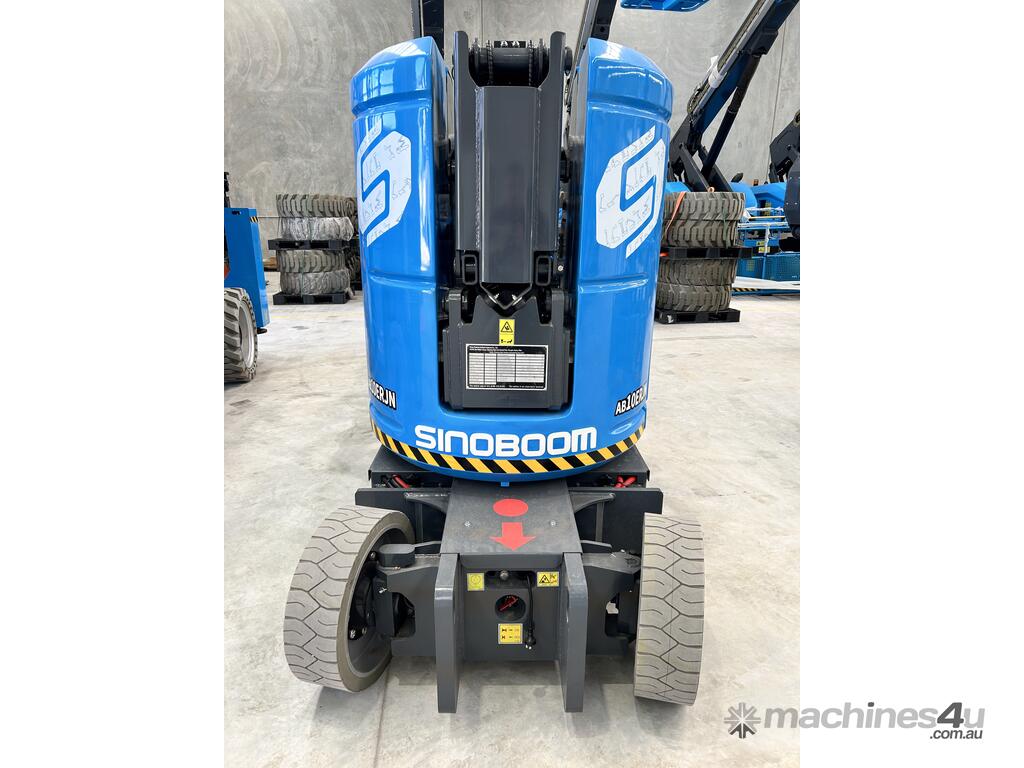

At Franklin Equipment, we proudly offer the Sinoboom AB10ERJN, a highly flexible 10m electric articulated boom lift designed to get you into hard-to-reach areas with ease. Whether you're navigating obstacles or working in tight spaces, this boom lift offers the convenience and productivity you need without the hassle of repositioning the base. With quick access to servicing and built-in trusted components, the AB10ERJN is perfect for your lifting needs.
Product Highlights

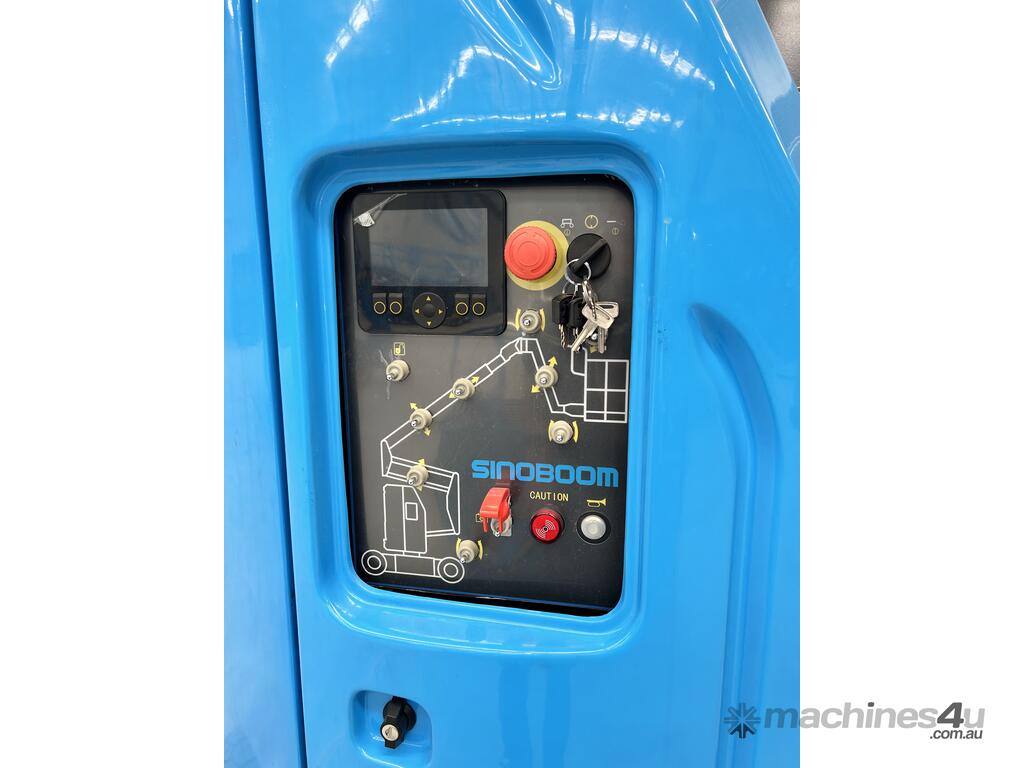

Sinoboom family control system (Rexroth, ground and platform), compliant with ISO13849, ensuring safety and reliability.
Intuitive control system for ease of operation.
Smart display for easy machine status and fault diagnostics.
Fully battery-powered for silent, zero-emissions operation – ideal for indoor environments and long workdays.

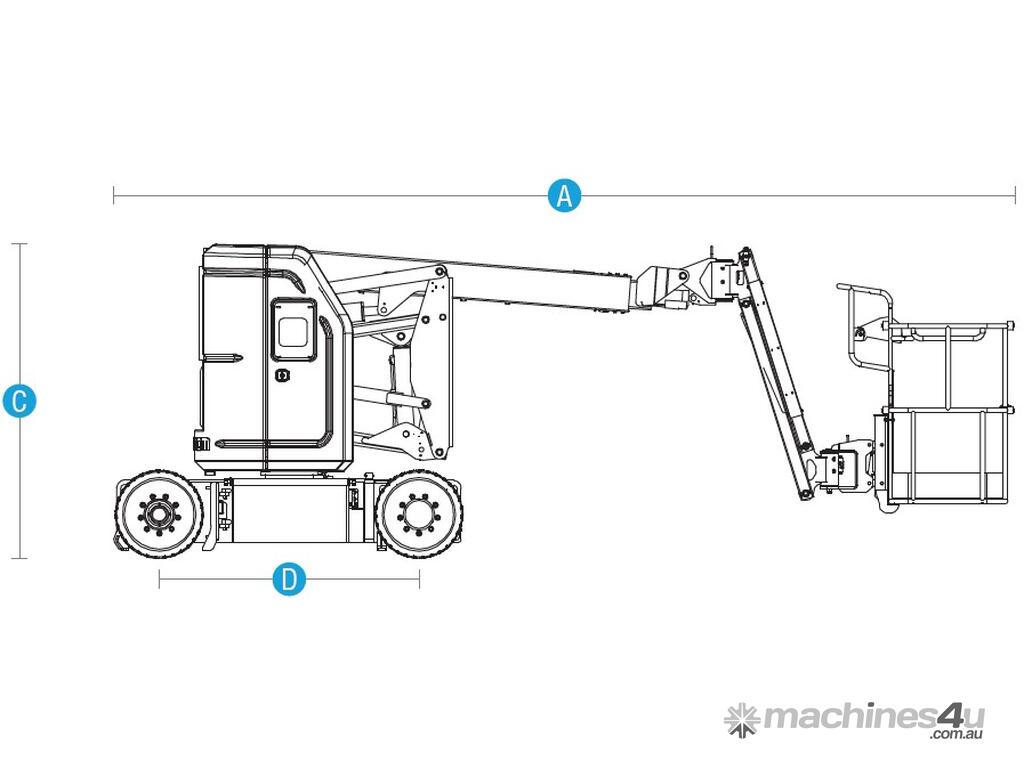

Dimensions:

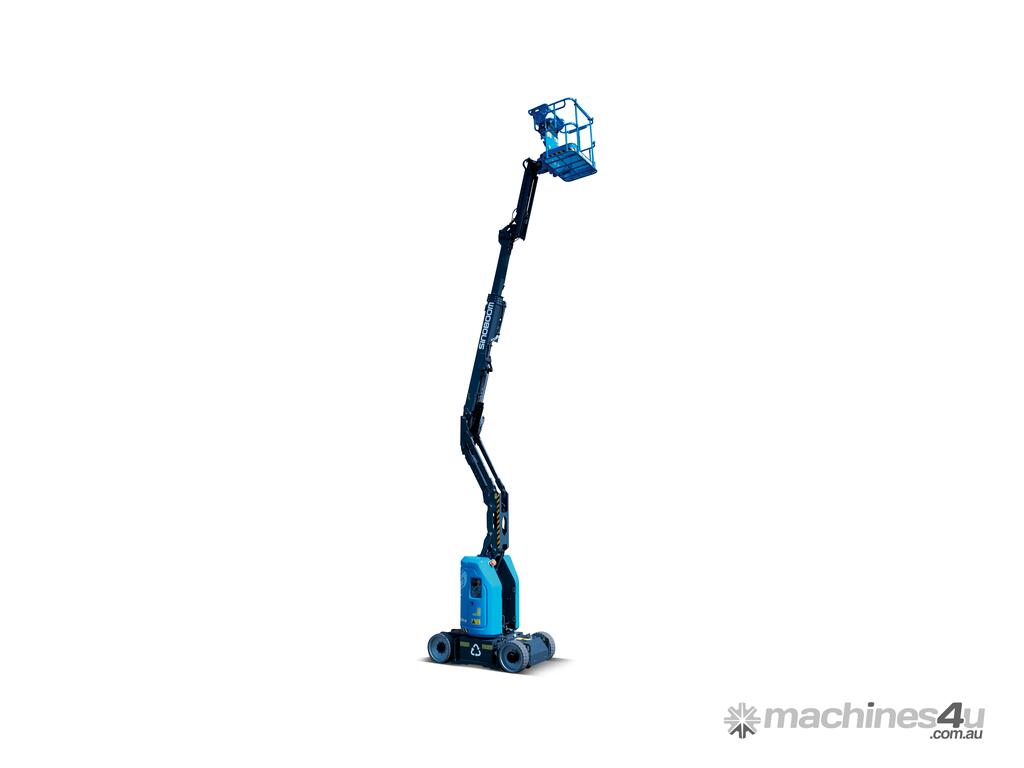

Max Platform Height: 9.62m (31'7")
Max Working Height: 11.62m (38'1")

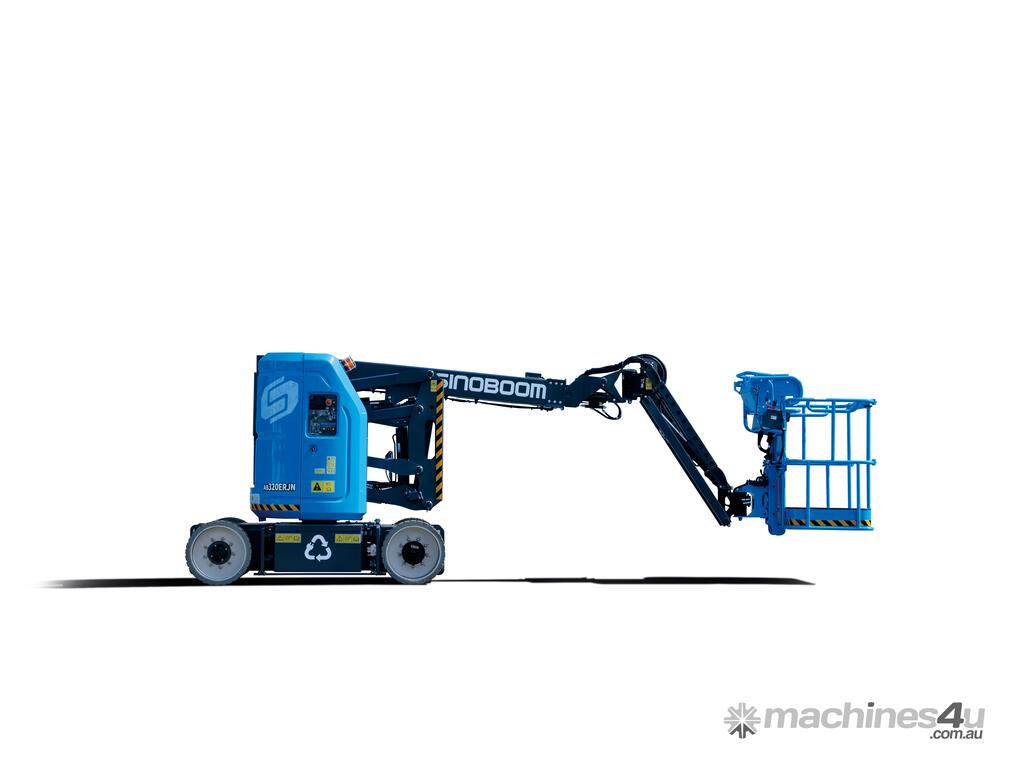

Max Horizontal Extension: 6.3m
Length-Stowed: 5.72m
Width-Stowed: 1.19m
Height-Stowed: 1.99m
Ground Clearance: 0.075m / 0.02m (pothole guard stowed/deployed)
Performance:

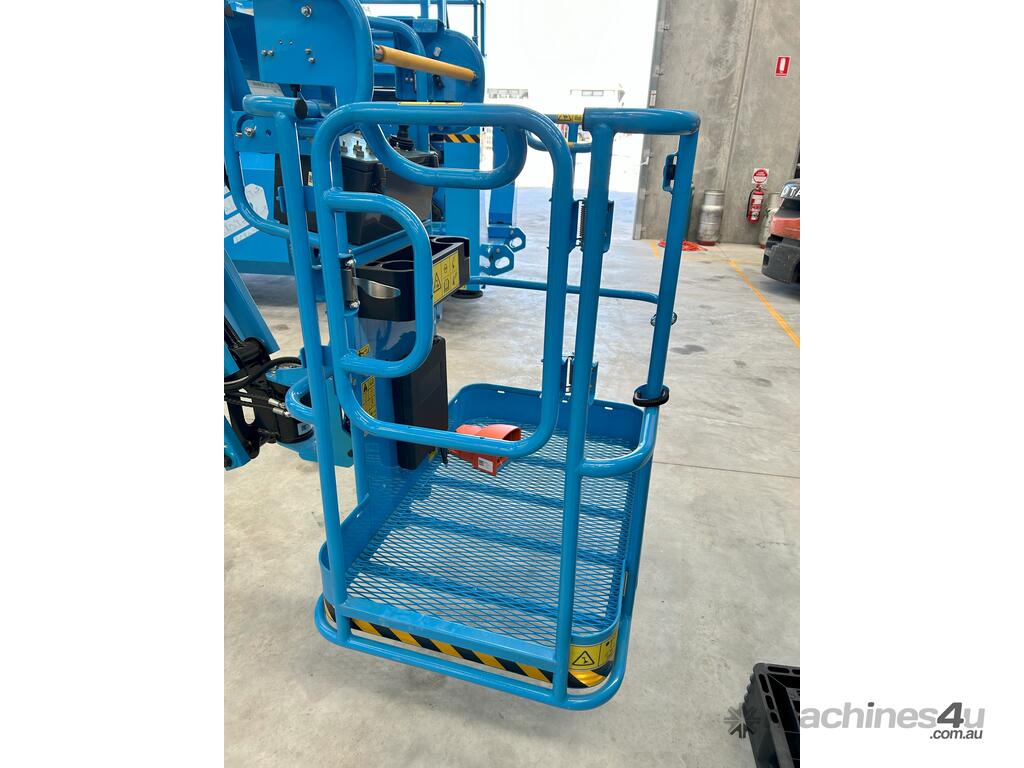

Platform Capacity (Unrestricted/2 Persons): 230kg
Turntable Rotation: 355° non-continuous
Platform Rotation: 180°
Drive Speed-Stowed: 0–5 km/h
Drive Speed-Raised: 0–0.8 km/h
Gradeability: 35°
Turning Radius-Inside: 1.7m
Turning Radius-Outside: 3.25m
Tyres: Solid non-marking 22 × 7 × 17.75''
Power:
Batteries: 48 V, 330 Ah (AGM, lead-acid battery)
Auxiliary Power Unit: 12V DC

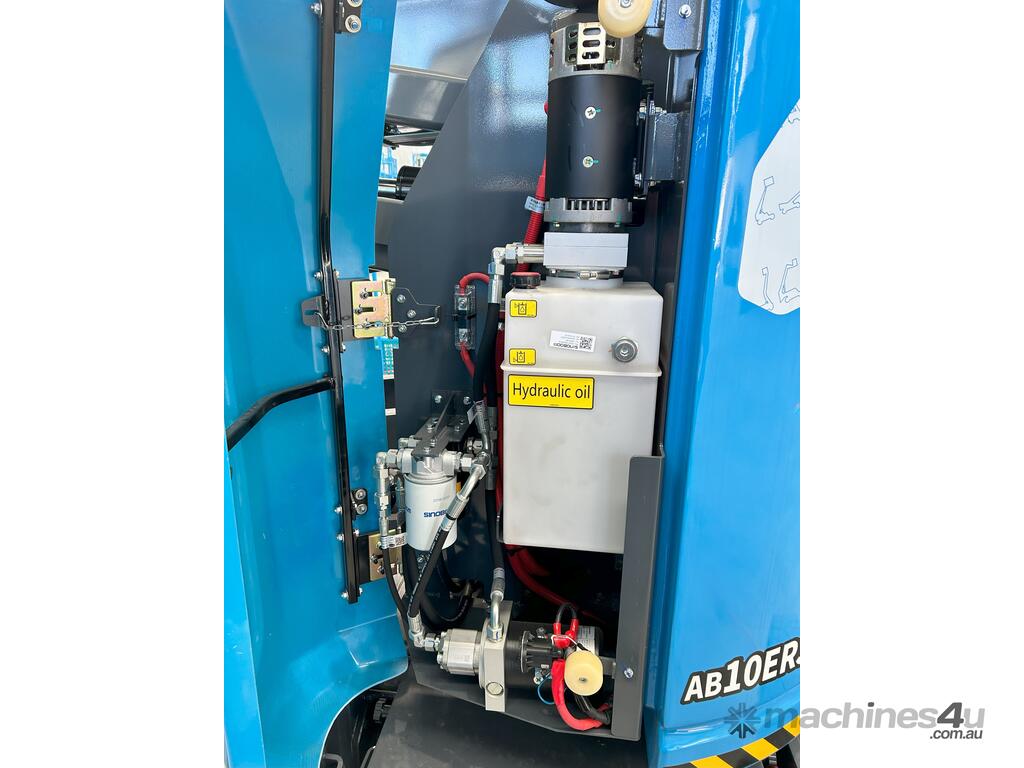

Hydraulic Tank Capacity: 20L
Weight: 6,760kg
Compliance: AS1418.10
With Franklin Equipment as your trusted Sinoboom onseller, the AB10ERJN brings unmatched flexibility, performance, and efficiency, especially for indoor jobs where space and silence matter. Whether you’re in construction, maintenance, or any other industry, the Sinoboom AB10ERJN is your go-to solution for reliable, eco-friendly access.
Ready to elevate your operations Reach out today to learn more or arrange a demo!
