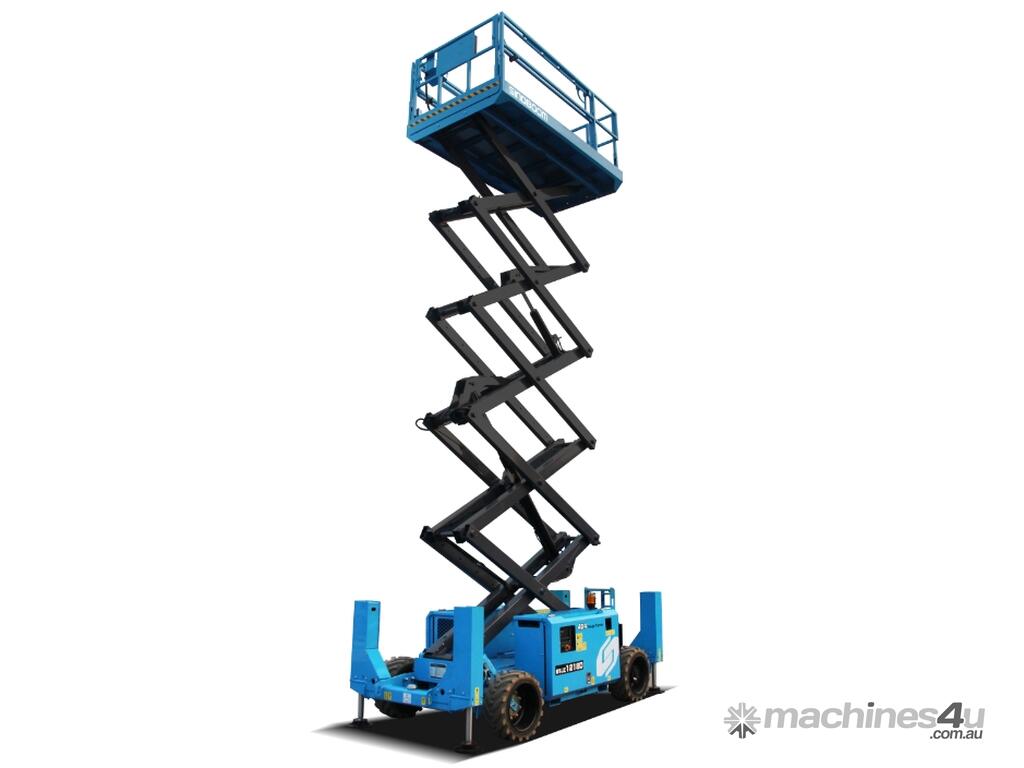

Sinoboom 1218RD Rough Terrain Scissor Lift – Built for Tough Jobs, Designed for Versatility

At Franklin Equipment, we proudly offer the Sinoboom 1218RD Rough Terrain Scissor Lift, a rugged, high-performance machine designed for both indoor and outdoor applications. With exceptional lift capabilities and a robust design, the 1218RD is perfect for navigating tough, uneven terrain while providing stability and safety for workers at height.

Product Highlights
Robust Design for Tough Terrain:

Designed with 4WD x 2WS drive mode and solid non-marking tires, the 1218RD is perfect for rough terrain, ensuring smooth movement across challenging surfaces.
High Platform Capacity:

With a 450kg platform capacity, the 1218RD can support up to 3 persons indoors or 2 persons outdoors, making it ideal for a variety of tasks.
Stable and Safe Operation:

The lift includes a tilt protection system, overload sensing system, and oscillating axle to maintain stability, even on uneven ground.
A foldable guardrail provides safety while ensuring easy access to the platform.
Efficiency in Movement:

With a drive speed of 5.6km/h when stowed and 0.48km/h when raised, this lift allows for efficient movement across the worksite, with quick elevation and descent times (55-65 seconds for elevation and 50-60 seconds for descent).
Optional Features:

Add-ons like AC power to the platform and a secondary guarding system can be included to meet your specific needs.

Dimensions
Max Working Height: 14.2m (46'10.7")
Max Platform Height: 12.2m (40'0.3")
Max Horizontal Extension: 1.5m
Length-Stowed (With/Without Outriggers): 3.8m / 3.19m
Width-Stowed: 1.78m
Height-Stowed (Rail Folded): 2.1m
Height-Stowed (Rail Unfolded): 2.73m
Wheelbase: 2.28m
Ground Clearance: 0.22m
Platform Dimensions (L×W×H): 2.8m x 1.6m x 1.1m

Performance
Platform Capacity: 450kg
Max Occupants (Indoor/Outdoor): 3 persons / 2 persons
Drive Speed (Stowed): 5.6 km/h
Drive Speed (Raised): 0.48 km/h
Elevation Time (Unloaded): 55s–65s
Descent Time (Unloaded): 50s–60s
Gradeability: 35%
Turning Radius (Inside/Outside): 2.11m / 4.6m
Tilt Rating (Front to Back): 3°
Tilt Rating (Side to Side): 2° (Tele-In), 0.8° (Tele-Out)
Max Outrigger Leveling: 5.3° (Front), 4.2° (Back)
Max Outrigger Leveling (Side to Side): 11.7°
Tire Type: Solid, 26x12-16.5 (Non-marking)

Power and Weight
Power Source: Kubota D1105-E4B-EU-X1 (Diesel)
Drive Mode: 4WD x 2WS
Fuel Tank Capacity: 48L
Hydraulic System Capacity: 72L
Weight (With Outriggers/Without Outriggers): 5,180kg
Standards Compliance: AS/NZS

Standard Features
4WD x 2WS drive system for versatile movement
Forklift Pockets and Lifting Points for easy transport
Proportional Control for smooth and accurate operation
Tilt Protection System and Overload Sensing System for enhanced safety
Oscillating Axle for stability on uneven surfaces
Drivable at Full Height for improved productivity
Telematics-Ready Connector for remote machine monitoring
Non-Marketing Tires to protect surfaces
White Noise Alarm for safety in noisy environments

Optional Features
AC Power to Platform for additional power on-site
Secondary Guarding System for added safety
Lockable Battery Isolator for secure storage

Applications
Industrial Sites
Venue Construction and Maintenance
Warehousing and Storage
Outdoor Construction and Maintenance

The Sinoboom 1218RD Rough Terrain Scissor Lift is built to deliver the performance and safety you need to handle any job site, especially in challenging environments. Whether you're working indoors or outdoors, Franklin Equipment is here to provide you with the best access solutions and support for your business.

Contact us today for more information or to request a quote!
