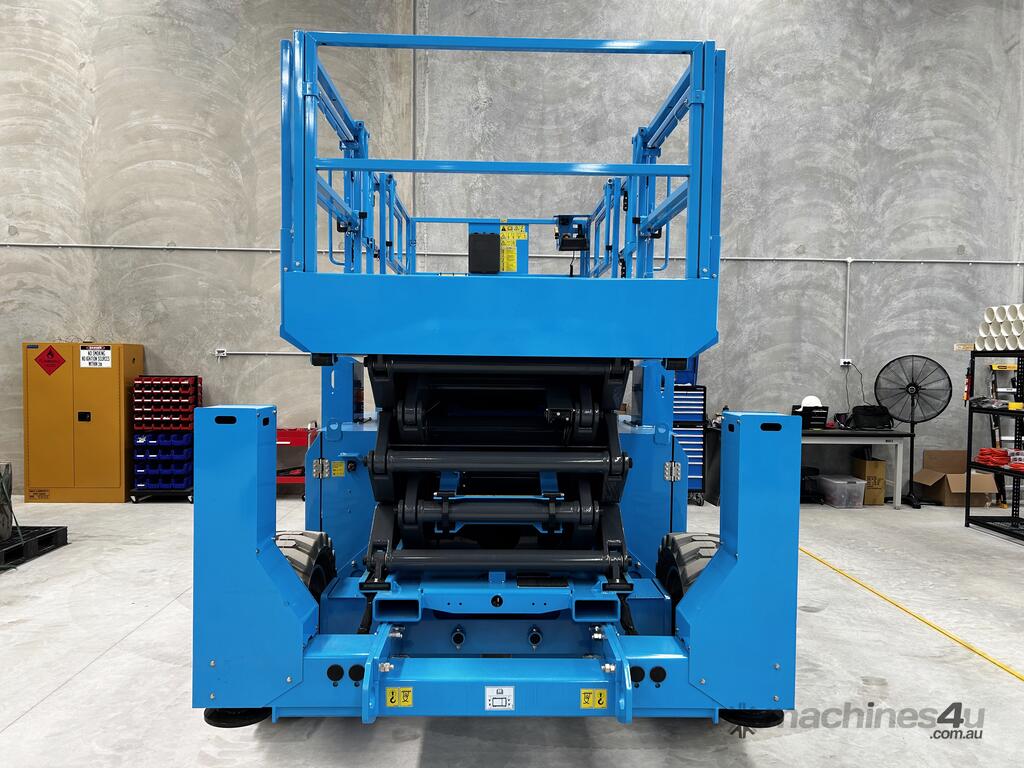

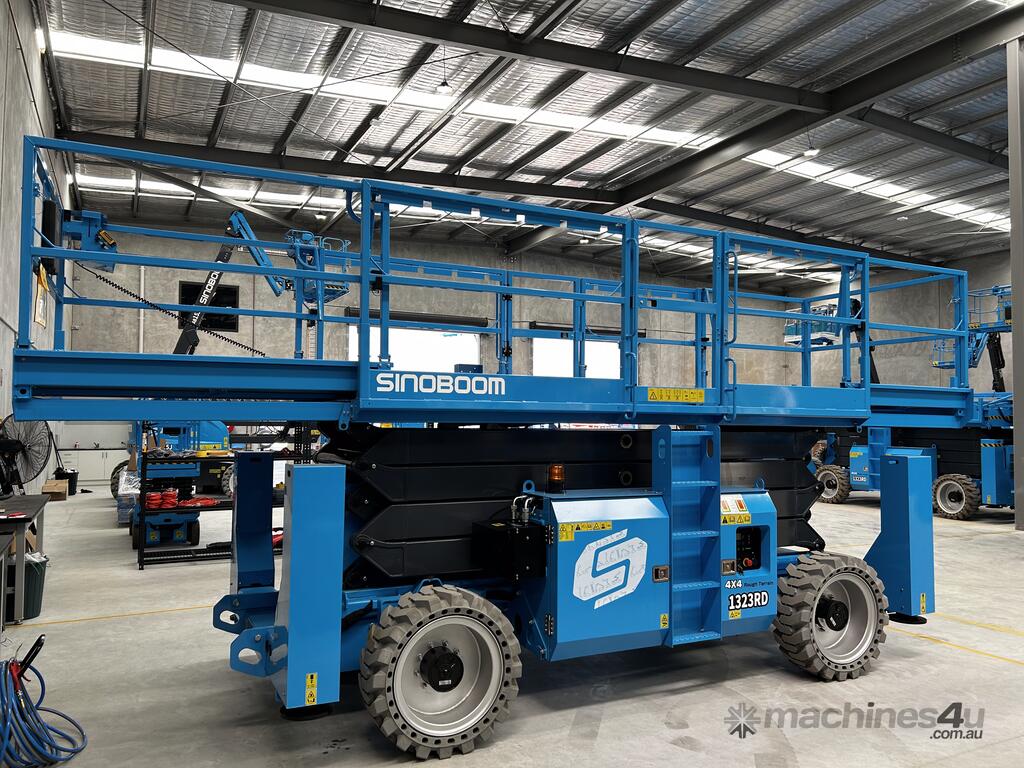

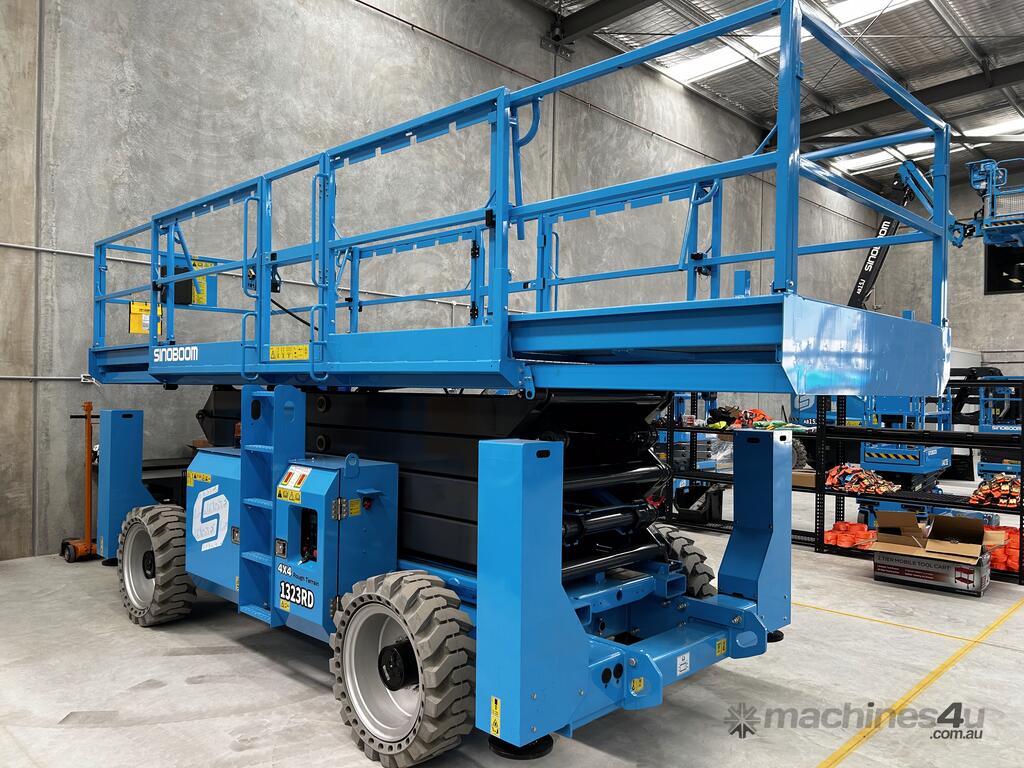

Sinoboom 13m Diesel Rough Terrain Scissor Lift 1323RD – Powerful, Versatile, and Built Tough

At Franklin Equipment, we are proud to offer the Sinoboom 1323RD Diesel Rough Terrain Scissor Lift, a robust and efficient solution designed to tackle the toughest job sites. Whether you're working on rough or potholed ground, this lift delivers top-tier performance and exceptional reliability.

Product Highlights
Outstanding Performance:

High platform capacity for superior efficiency.

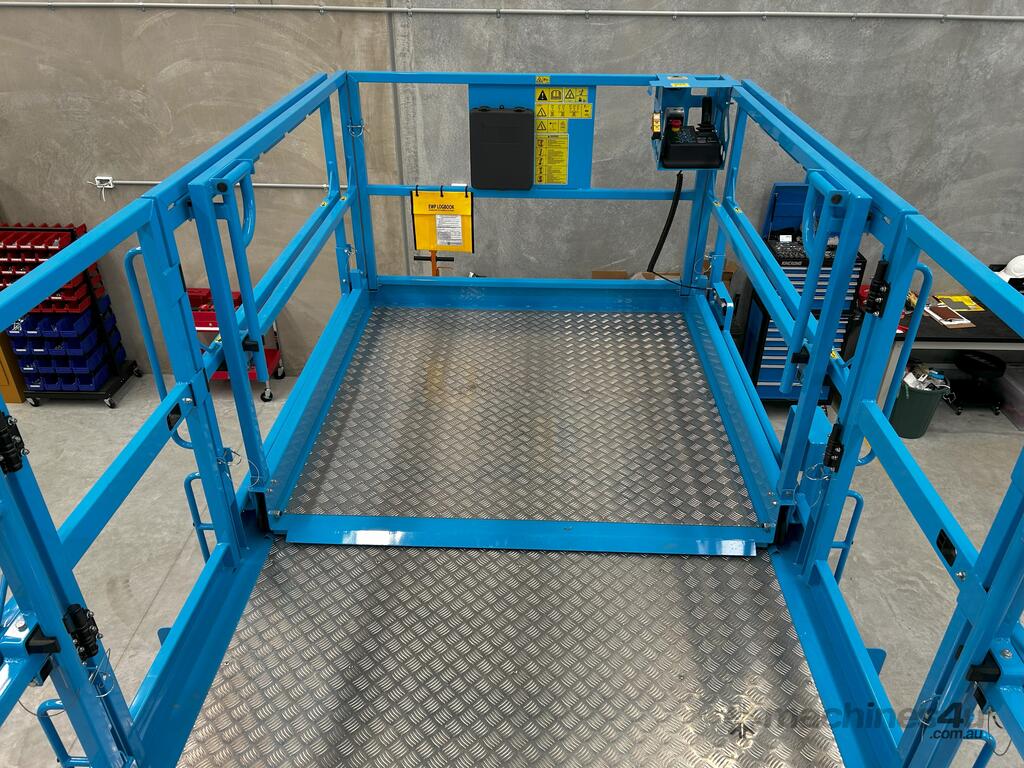

Spacious, two-way extendable platform.
Wide-angle tilt with one-click outrigger leveling for added convenience.
Strong Off-Road Capability:

Stable movement across uneven, pothole-ridden terrain.
4WD for superior traction and stability.
Ease of Maintenance:

Integrated pipeline assembly for quick troubleshooting.

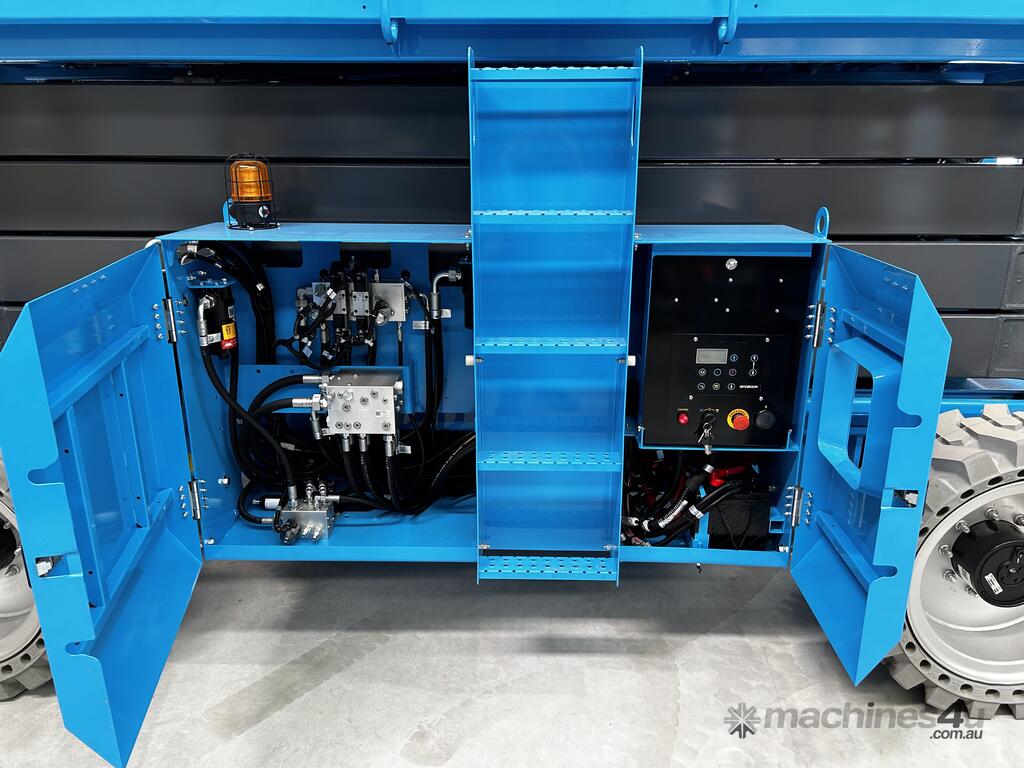

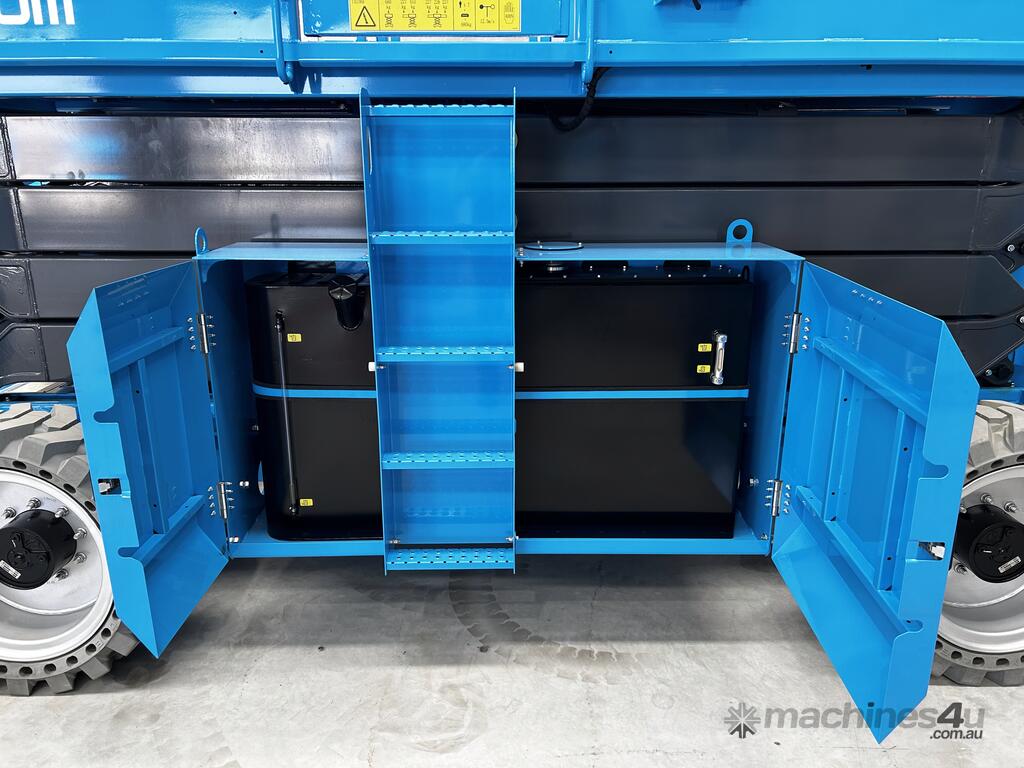

Double-door design provides easy access to the maintenance area.
Drawer-type engine compartment for hassle-free servicing.

Standard Features:
4WD × 2WS for all-terrain mobility.
Forklift pockets and lifting points for easy transportation.

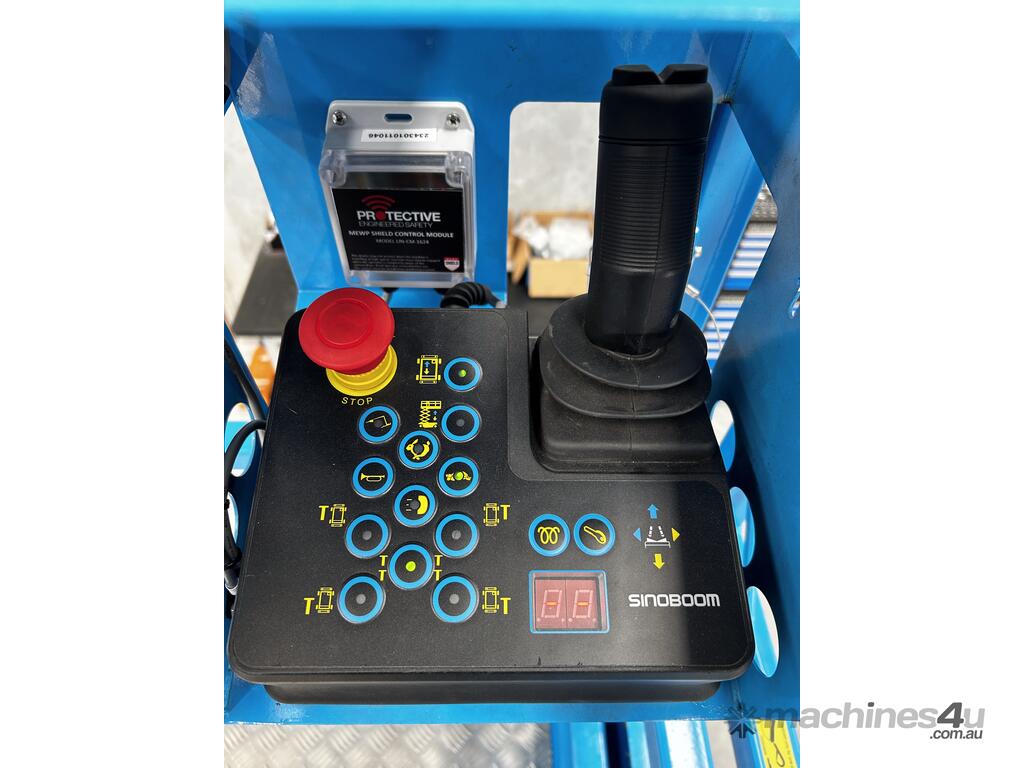

Proportional control for smooth operation.
Manual storage box for added convenience.
Flashing beacon for increased visibility.
Emergency lowering system and stop buttons for safety.
Electrophoretic painting for durability.
Tilt protection system to prevent unintended tilts.
Foldable guardrails for easy storage and transport.
Non-marking tires for surface protection.
Overload sensing system for safety.
Oscillating axle to maintain stability on uneven ground.
Fault diagnosis system for easy troubleshooting.
White noise alarm for safety and awareness.

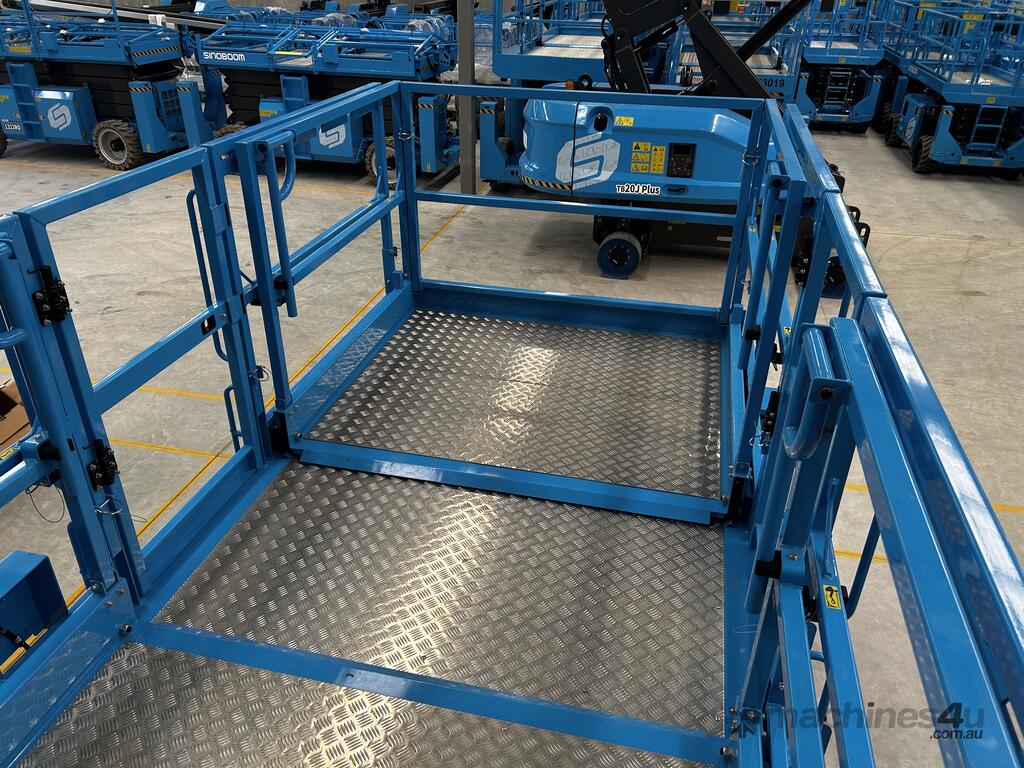

Dual extension decks for enhanced reach.
Pipe rack ready for added utility.

Dimensions:
Max Working Height: 15.1 m (49'6.5")
Max Platform Height: 13.1 m (42'11.7")
Max Horizontal Reach: 1.5 m (4'11.1") / 1.2 m (3'11.2")
Length-Stowed: 4.88 m (16')
Width-Stowed: 2.28 m (7'5.7")
Height-Stowed (Rails Folded): 2.22 m (7'3.4")
Height-Stowed (Rails Unfolded): 2.98 m (9'9.3")
Wheelbase: 2.84 m (9'3.8")
Ground Clearance: 0.36 m (1'2.2")
Platform Size: 0.96m × 1.82m × 1.1m

Performance:
Platform Capacity: 680 kg (1,499 lbs)
Extension Platform Capacity: 227 kg (500 lbs)
Max Platform Occupants (Indoor/Outdoor): 7 Persons
Drive Speed (Stowed): 0-6.1 km/h (0-3.8 mph)
Drive Speed (Raised): 0-1.1 km/h (0-0.68 mph)
Lift Time (Unloaded): 50s-60s
Lower Time (Unloaded): 34s-44s
Gradeability: 50%
Tilt Rating (Front-to-back): 3°
Tilt Rating (Side-to-side, Outriggers Retracted/Deployed): 2°/0.8°
Max Outrigger Levelling (Front-to-back): 7°
Max Outrigger Levelling (Side-to-side): 12°
Turning Radius (Inside/Outside): 2.2 m / 5.3 m (7'2.6" / 17'4.7")
Tire Spec/Type: 315/55D20/foam-filled

Power:

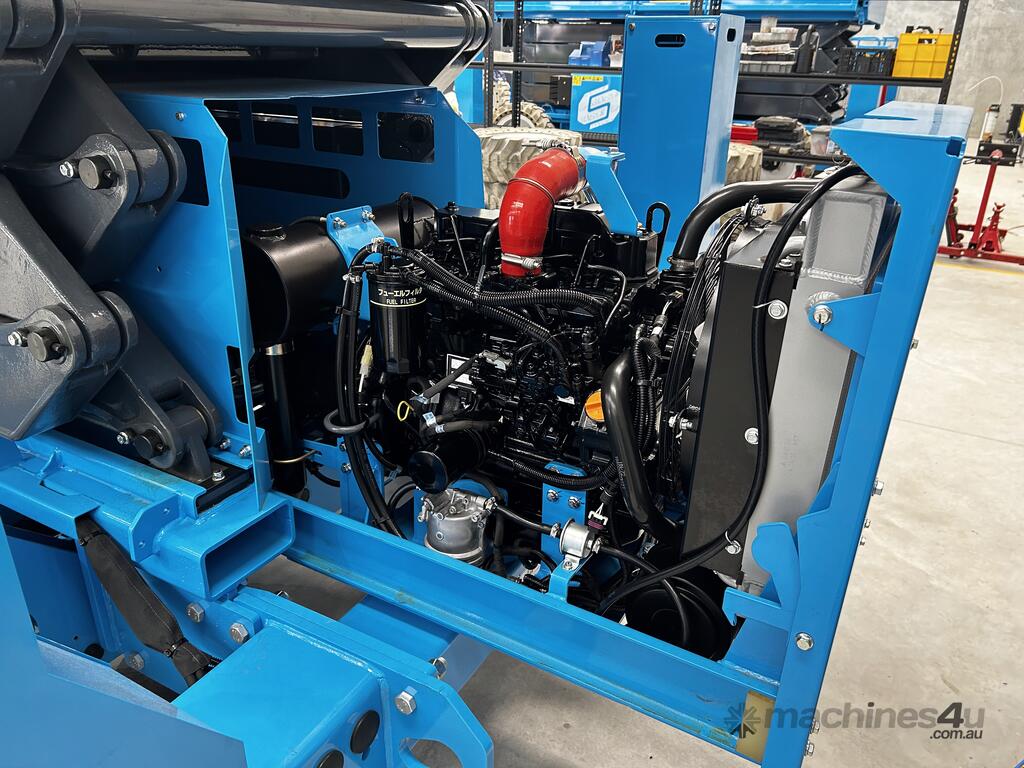

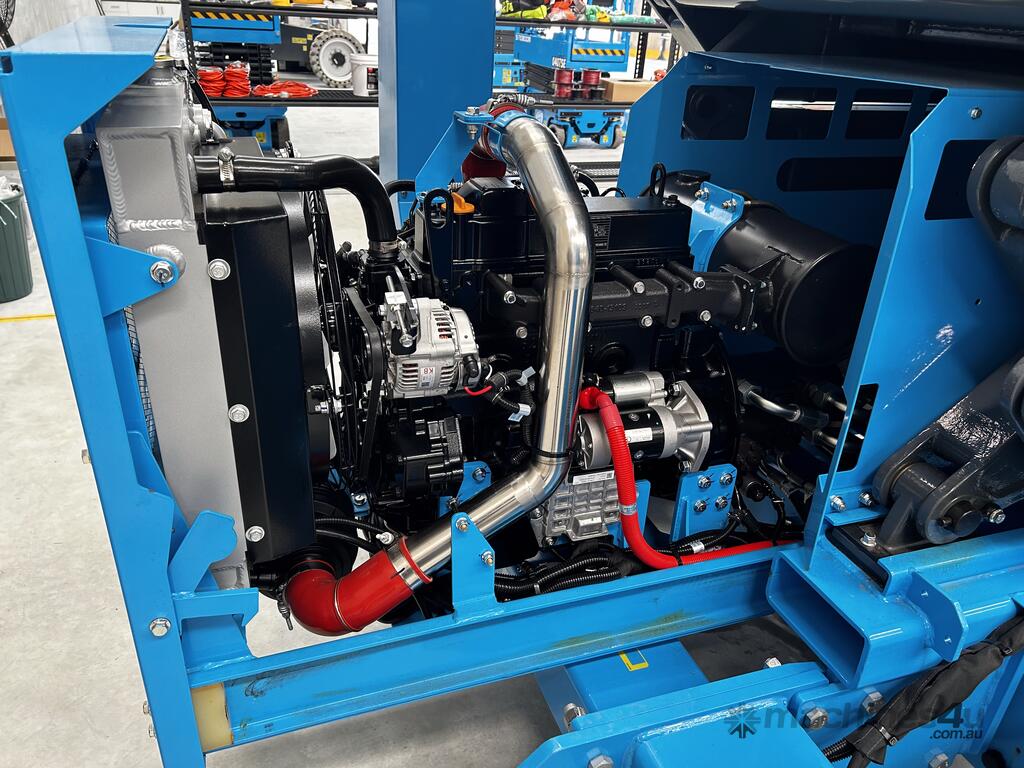

Engine: Yanmar 4TNV88-BDFLTC, 34.5kW
Hydraulic Tank Capacity: 140L (30.8 gal UK / 37 gal US)
Fuel Tank Capacity: 110L (24 gal UK / 29 gal US)
Battery: 12 V, 110 Ah
System Voltage: 12 VDC

Weight:
Weight: 7,700kg (16,976lbs)
Standards Compliance:
AS/NZS1418.10
Franklin Equipment is committed to providing innovative access solutions like the Sinoboom 1323RD Diesel Rough Terrain Scissor Lift that meet the demands of the toughest job sites. Whether you’re in construction, maintenance, or any other industry, we offer high-performance equipment that enhances both safety and efficiency.

With locations and dealers throughout Australia, our dedicated team is here to provide you with the support you need. Your satisfaction is our top priority, and we’re here to exceed your expectations with excellence and reliability.

Contact us today for more information and to find the perfect access solution for your needs!
