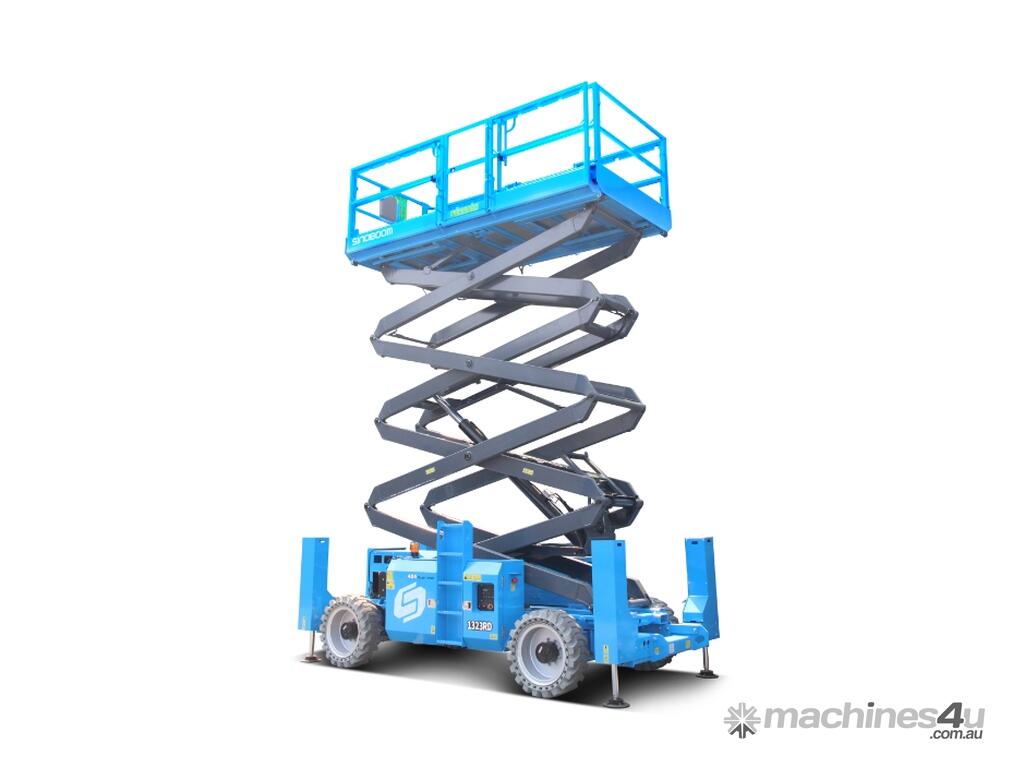

Sinoboom 1623RD Rough Terrain Scissor Lift – Power, Performance, and Safety for Every Job Site

At Franklin Equipment, we offer the Sinoboom 1623RD Rough Terrain Scissor Lift, a high-performance machine designed to handle the most demanding outdoor environments. Combining robust design, excellent off-road capability, and easy maintenance, the 1623RD is your ideal solution for large-scale construction, maintenance, and industrial applications.

Product Highlights
Strong Off-Road Capability

The 1623RD features 40% gradeability, allowing it to navigate uneven terrain, including potholed ground, with ease.
The oscillating axle ensures stability, even in the toughest conditions, making it a top choice for rugged outdoor environments.
Powerful Performance

With a platform capacity of 680kg, the 1623RD can support up to 4 persons indoors or outdoors, ensuring plenty of room for the crew and tools.
Two-way extendable platform allows for added working space, making it perfect for large-scale tasks.
Efficient Operation

The wide-angle tilt and one-click outrigger leveling provide exceptional stability and ease of use when setting up on varied surfaces.
Fast elevation time (70-90 seconds) and descent time (45-55 seconds) ensure maximum productivity throughout the day.
Easy Maintenance

Integrated pipeline assembly makes troubleshooting easier, while the double-door design provides convenient access for regular maintenance.
The drawer-type engine compartment offers a user-friendly approach to maintenance tasks, helping reduce downtime.

Dimensions
Max Working Height: 18.2m (59'8.5")
Max Platform Height: 16.2m (53'2")
Max Horizontal Extension: 1.5m/1.2m
Length-Stowed (With/Without Outriggers): 4.88m
Width-Stowed: 2.28m
Height-Stowed (Rail Folded): 2.44m
Height-Stowed (Rail Unfolded): 3.21m
Wheelbase: 2.84m
Ground Clearance: 0.36m
Platform Dimensions (L×W×H): 3.98m x 1.83m x 1.1m (13' x 6' x 3'7") (6.5m platform)

Performance
Platform Capacity: 680kg
Max Occupants (Indoor/Outdoor): 4 persons
Drive Speed (Stowed): 6.1 km/h
Drive Speed (Raised): 1.1 km/h
Elevation Time (Unloaded): 70s–90s
Descent Time (Unloaded): 45s–55s
Gradeability: 40%
Turning Radius (Inside/Outside): 2.2m / 5.3m
Tilt Rating (Front to Back): 3°
Tilt Rating (Side to Side, Outrigger Tele-In/Tele-Out): 2° / 0.8°
Max Outrigger Leveling (Front to Back): 7° (front) / 7° (back)
Max Outrigger Leveling (Side to Side): 12°
Tire Type: Solid, 315/55D20 (Non-marking)

Power and Weight
Power Source: Yanmar 4TNV88-BDFLTC 34.5kW (Diesel)
Drive Mode: 4WD x 2WS
Fuel Tank Capacity: 110L
Hydraulic System Capacity: 140L
Weight (With Outriggers/Without Outriggers): 8,780kg
Standards Compliance: AS/NZS1418

Standard Features
4WD x 2WS drive system for exceptional off-road mobility
Forklift Pockets and Lifting Points for easy transport
Proportional Control for precise, smooth operation
Tilt Protection System and Overload Sensing System for enhanced safety
Oscillating Axle for added stability on uneven ground
Telematics-Ready Connector for remote diagnostics and machine monitoring
Non-Marketing Tires to protect sensitive surfaces
Pipe-Rack Ready for easy attachment of accessories
White Noise Alarm for safe operation in noisy environments

Optional Features
AC Power to Platform for additional on-site power
Secondary Guarding System for enhanced operator safety
Lockable Battery Isolator for added security
Pipe Rack for convenient material handling

Applications
Industrial Sites
Venue Construction and Maintenance
Outdoor Construction and Maintenance
Warehousing and Storage
Event and Large-Scale Venue Setup

The Sinoboom 1623RD Rough Terrain Scissor Lift is a powerful, reliable, and easy-to-maintain machine built for tackling tough jobs on rugged outdoor sites. Whether you're handling large-scale industrial tasks or venue construction, the 1623RD offers the lift capacity and performance to meet your needs efficiently and safely.

Contact Franklin Equipment today for more information or to request a quote!
