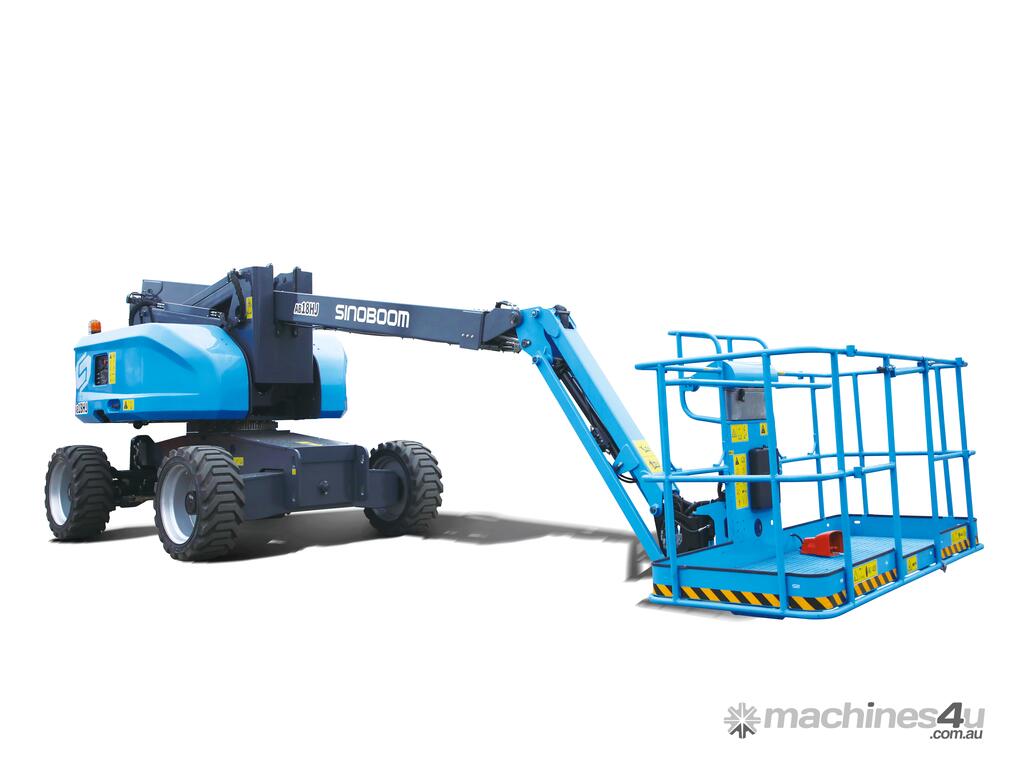

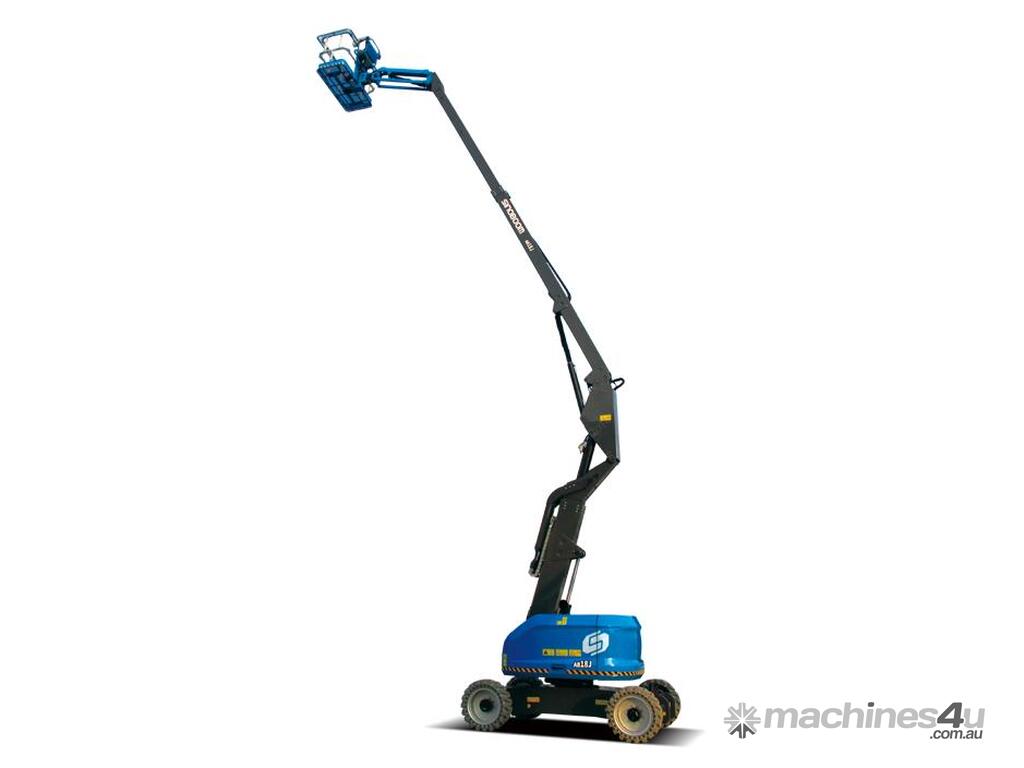

Sinoboom 18m Articulated Boom Lift AB18J – Precision Performance and Off-Road Capability

At Franklin Equipment, we are proud to offer the Sinoboom AB18J, an 18m articulated boom lift designed to tackle a wide range of tasks with impressive flexibility and precision. Perfect for accessing hard-to-reach areas, the AB18J allows you to easily get up and over obstacles without the need to reposition the base. Featuring the advanced components you trust, it’s built for quick servicing and reliable performance.

Powerful Off-Road Performance
The Sinoboom AB18J excels in rugged conditions with 40% gradeability and proprietary anti-skid control technology, ensuring strong off-road capabilities and enhanced traction even on uneven surfaces.

Precision Performance
Designed for maximum control, the AB18J features 3 joysticks with variable proportional control. This allows for smooth, precise adjustments for boom swing, extension, turntable rotation, and walking speed, giving you complete accuracy in reaching your worksite target.

Smart Maintenance

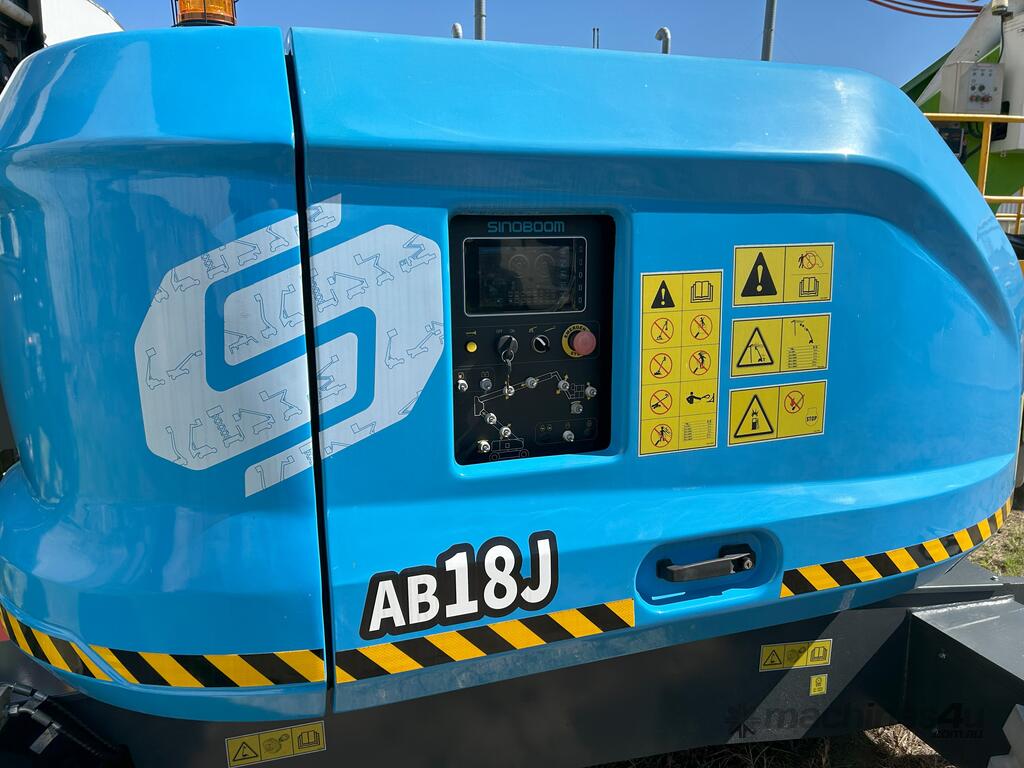

With a 7-inch smart display, the AB18J provides easy-to-view fault and status information, ensuring you’re always aware of machine performance, settings, and any potential maintenance needs. This reduces downtime and increases operational efficiency.

Safe and Reliable
The AB18J is designed with safety in mind, featuring secure hydraulic interlocking for luffing operation, a reliable folding arm, and simple, efficient hydraulic platform leveling for stable and safe operation in all conditions.

Operating Efficiency
The AB18J offers impressive operational efficiency, allowing the working platform to be quickly lifted and lowered without the need for secondary boom operation. This makes for faster setup and increased productivity.

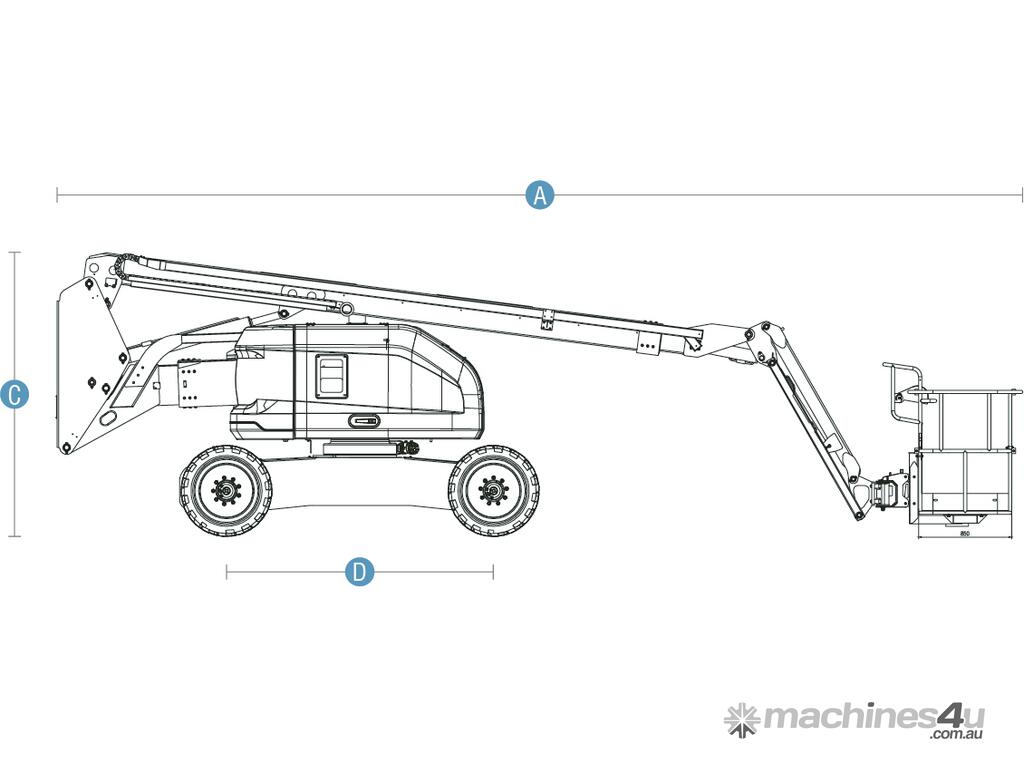

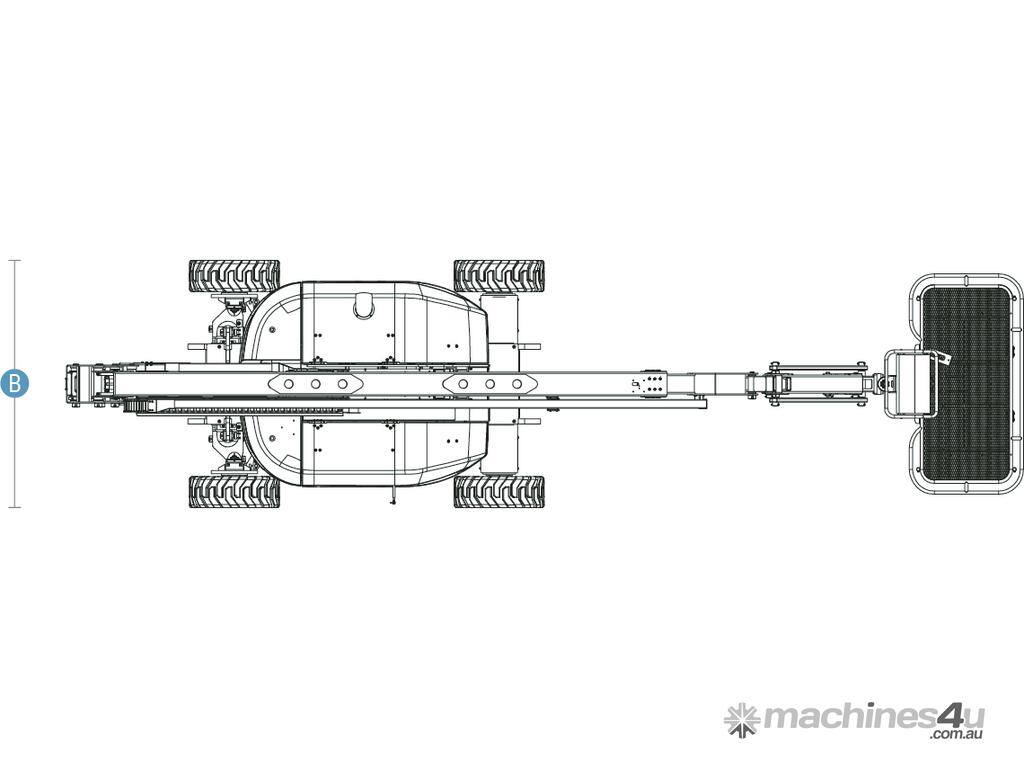

Dimensions:

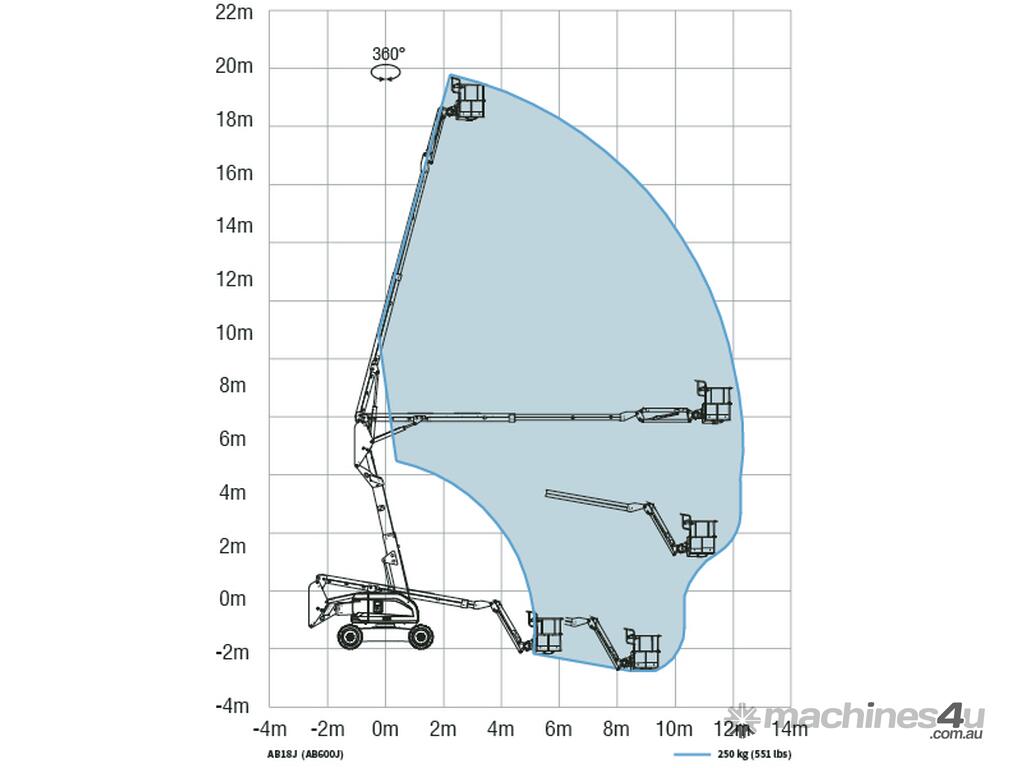

Max Platform Height: 18.3m
Max Working Height: 20.3m
Max Horizontal Extension: 12.2m
Length-Stowed: 8.6m
Width-Stowed: 2.28m
Height-Stowed: 2.56m
Ground Clearance: 0.23m

Performance:
Platform Capacity (Unrestricted/2 Persons): 250kg
Turntable Rotation: 360° continuous
Platform Rotation: 160°
Drive Speed-Stowed: 5km/h
Drive Speed-Raised: 1.1km/h
Gradeability: 40%
Turning Radius-Inside: 3.48m
Turning Radius-Outside: 6.29m
Turntable Tailswing: 0.2m
Tilt Rating: 5°
Max Operating Noise Level: 82dB(A)
Drive × Steer: 4WD × 2WS
Tyres Spec/Type: 33×12D610 (non-marking)

Power:
Power Source (Optional): 43 kW Cummins engine
Fuel Tank Capacity (Diesel): 110L
Hydraulic Tank Capacity: 120L
Weight: 10,700kg
Standards Compliance: AS/NZS1418.10

The Sinoboom AB18J is built to perform in tough conditions, offering advanced features that maximize safety, performance, and operational efficiency. Whether you’re in construction, maintenance, or another sector, this versatile boom lift will get the job done.

For more information or to schedule a demonstration, give us a call today. At Franklin Equipment, we’re committed to providing you with top-tier access solutions tailored to your needs.
