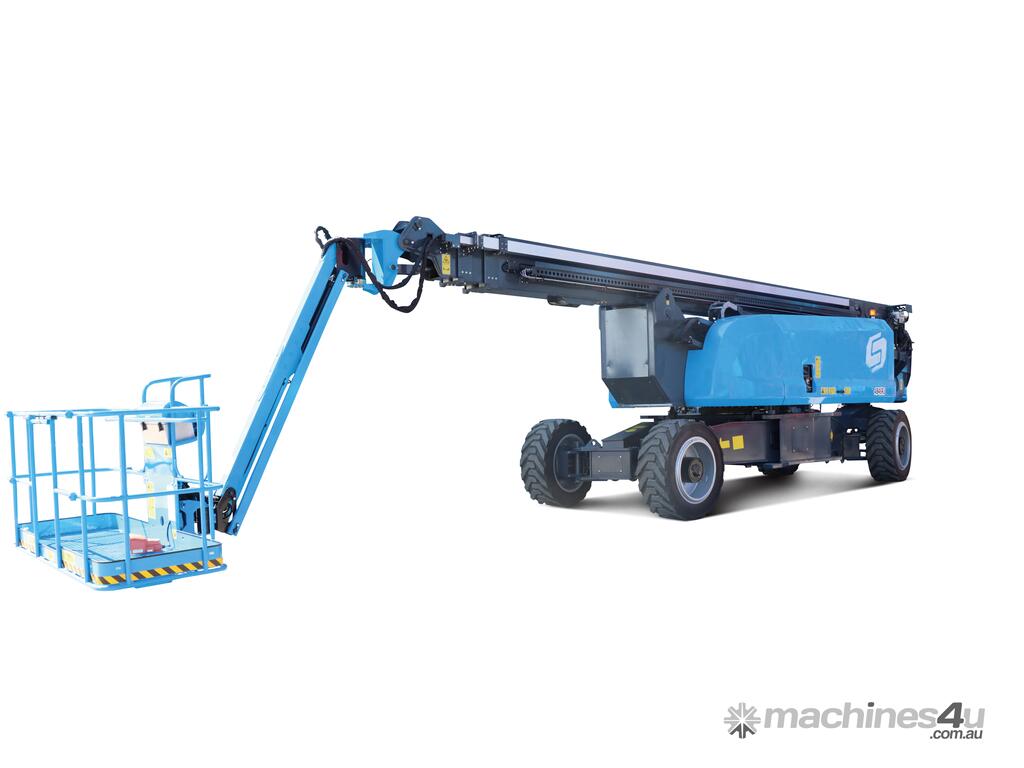

Sinoboom 46m Articulated Boom Lift AB46RJ, The World's Largest Diesel-Powered Articulating Boom Lift

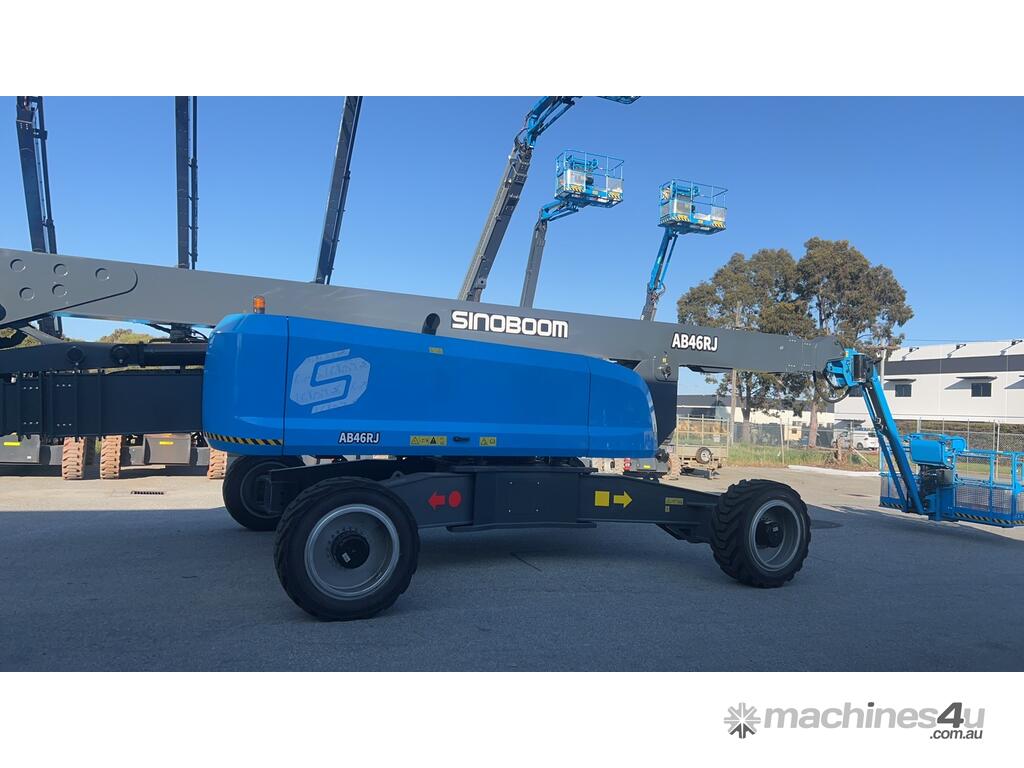

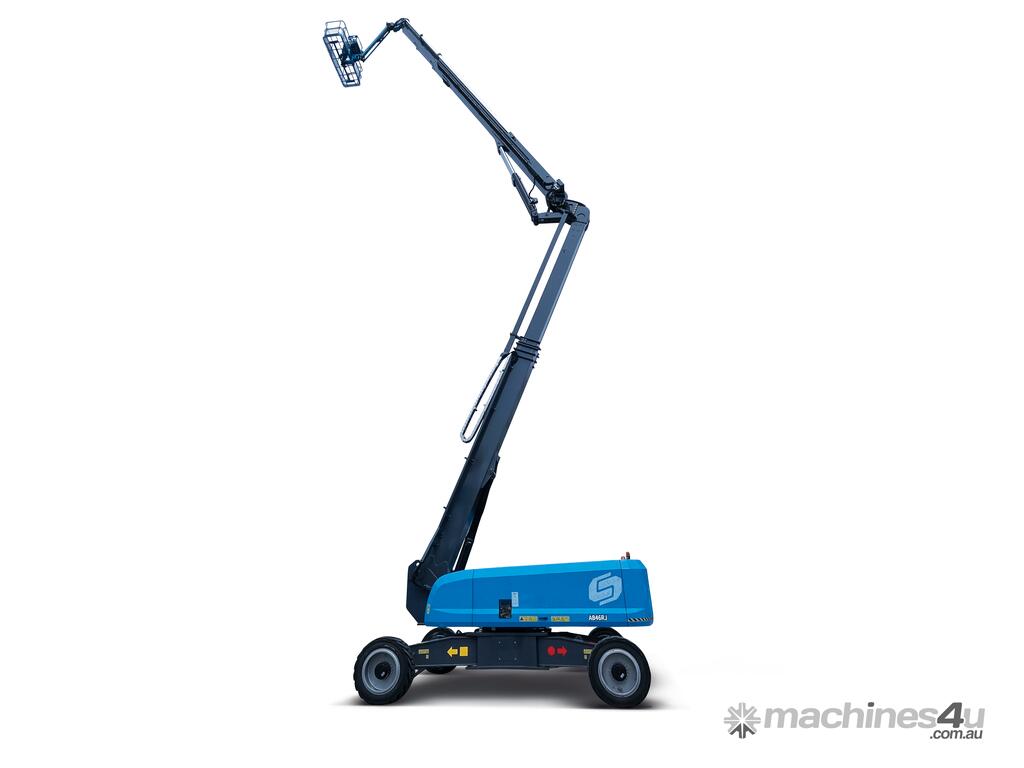

Introducing the Sinoboom AB46RJ, the world's largest diesel-powered articulating boom lift, now available through Franklin Equipment in Australia. With an impressive 48.6m maximum working height and a 25.5m horizontal outreach, the AB46RJ is designed to help you get up and over obstacles efficiently, without the need to reposition the base. This robust and versatile machine is perfect for high-reach applications on the most challenging job sites, offering unparalleled reliability and performance.

Product Highlights
Sinoboom Family Control System (Rexroth, ground and platform), compliant with ISO13849, ensuring top-notch safety and reliability.
Intuitive Control System for easy operation.
Smart Display provides real-time machine status and fault diagnostics for quick, on-site troubleshooting.

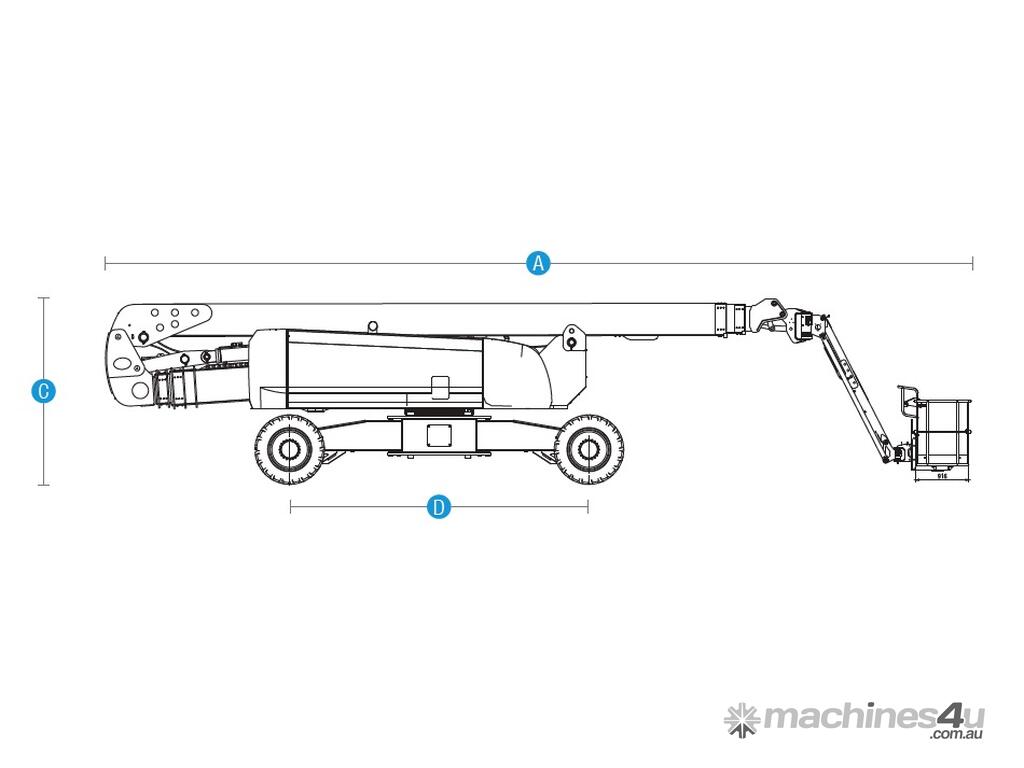

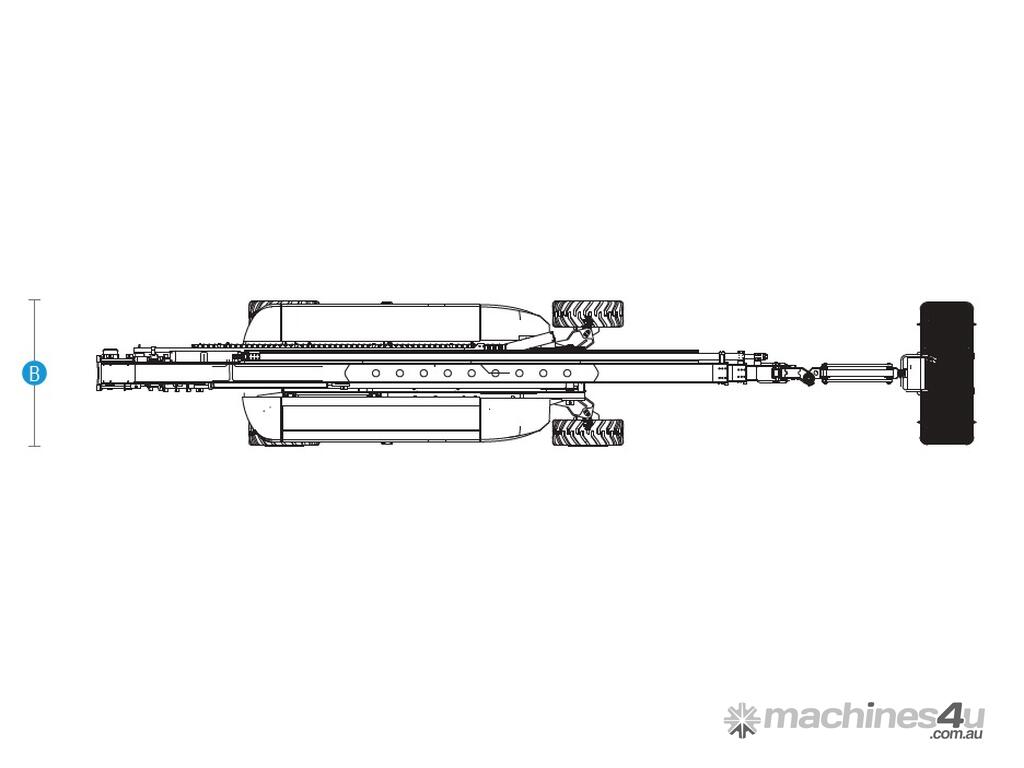

Dimensions:

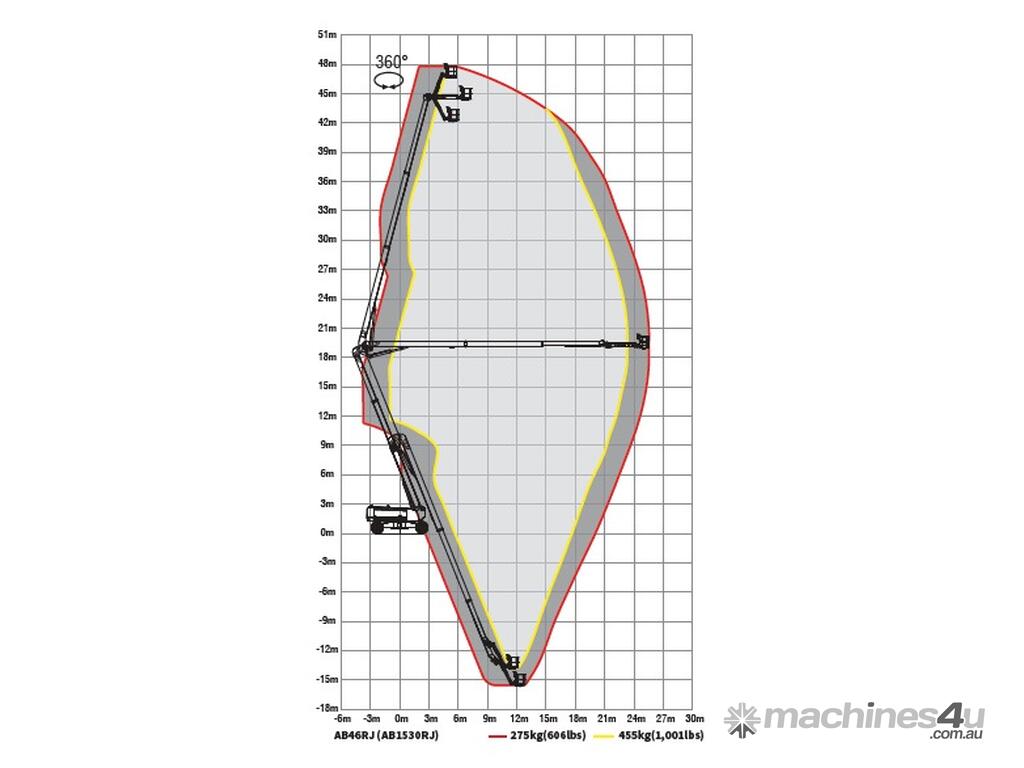

Max Platform Height: 46.6m (152'11")
Max Working Height: 48.6m (159'5")
Max Horizontal Extension: 25.5m
Length-Stowed: 15m
Width-Stowed: 2.49m
Height-Stowed: 3.2m
Wheelbase: 5.2m
Ground Clearance: 0.33m
Platform Dimensions (L×W×H): 2.44 x 0.91 x 1.1m

Performance:
Platform Capacity (Unrestricted): 275kg
Platform Capacity (Restricted): 455kg
Turntable Rotation: 360° continuous
Platform Rotation: 180°
Drive Speed-Stowed: 4.5km/h
Drive Speed-Raised: 0.48km/h
Gradeability: 40%
Turning Radius-Inside: 7.1m
Turning Radius-Outside: 9.52m
Turntable Tailswing: 4.6m
Tilt Rating: 5°
Drive × Steer: 4WD x 4WS
Tyres: 445/50D710 24PR (non-marking)

Power:
Power Source: Cummins QSF3.8t3TC99 / EU Stage 3A
Auxiliary Power Unit: 12 VDC
Fuel Tank Capacity (Diesel): 200L
Hydraulic Tank Capacity: 410L
Weight: 27,300kg
Standards Compliance: AS/NZS1418.10

With its exceptional height, reach, and off-road capabilities, the Sinoboom AB46RJ is designed to meet the demands of tough work environments, whether you're in construction, maintenance, or any other sector. This powerful articulating boom lift ensures that you can perform with efficiency and safety on even the most challenging job sites.

Franklin Equipment is proud to offer the Sinoboom AB46RJ as part of our comprehensive lineup of high-quality access equipment. We are dedicated to providing innovative solutions to meet the diverse needs of our customers across Australia. Our knowledgeable team is here to provide expert support, ensuring you have the right equipment and service every step of the way.

For more information or to request a demonstration, contact Franklin Equipment today!
