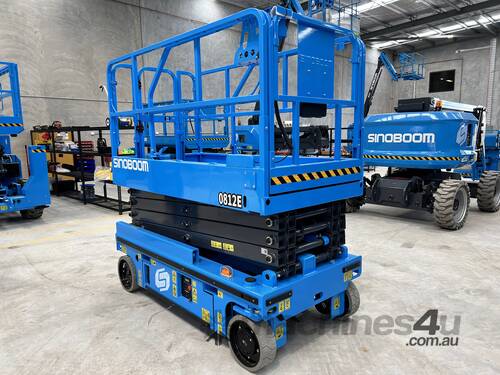

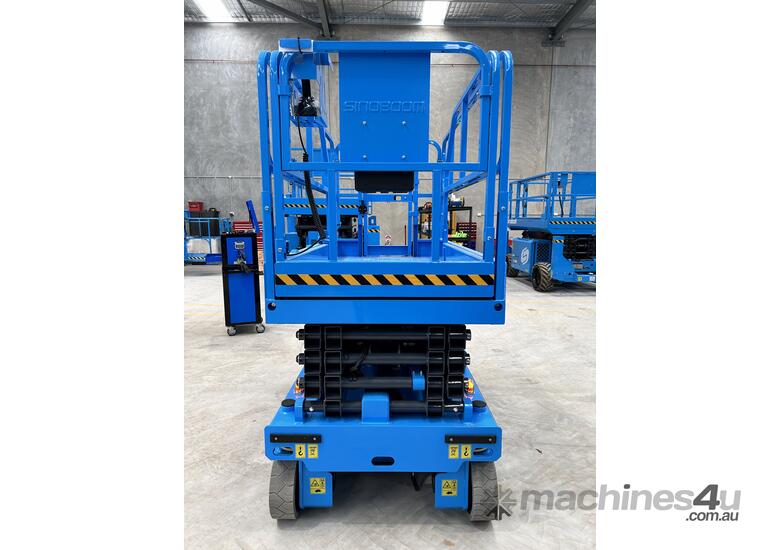

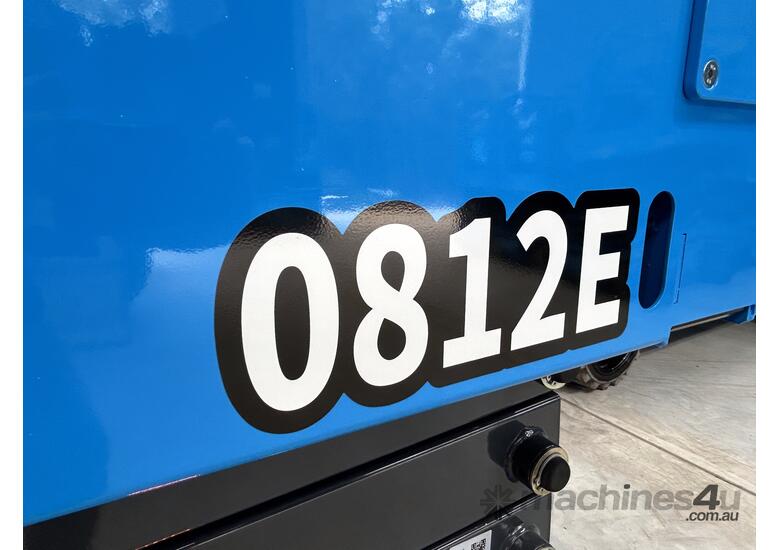

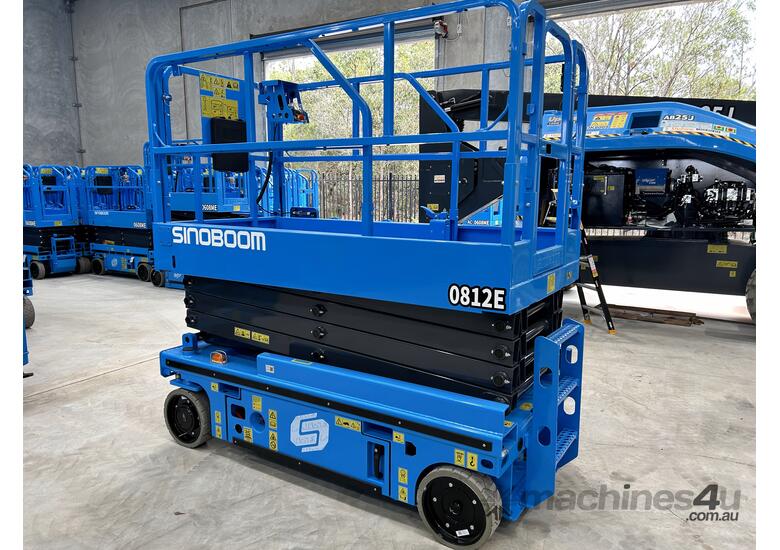

Sinoboom 8m Electric Scissor Lift 0812E - Quiet Operation for Indoor Use

Sinoboom’s extensive range of scissor lifts include both diesel (RD) and electric drive (E).
All models feature robust and durable designs with components you know and trust.

INDOOR & OUTDOOR USE
Compliant with the latest Australian standards, all scissor lift models can be used indoor and outdoors for all your jobsite needs.

MAINTENANCE-FREE BATTERIES ARE STANDARD
Higher fleet ROI from our Discover maintenance-free batteries that come standard.

EXCLUSIVE BUMPER GUARDS
Prevent paint and decal scratching with our unique bumper guards that keep your equipment looking like new.

EASY MAINTENANCE ACCESS
Swing-out trays make maintenance quick and accessible to help minimize downtime.

EFFICIENT AND ENVIRONMENTALLY FRIENDLY
Higher work efficiency.
Environmental protection, zero emissions.

REDUCED MAINTENANCE COSTS
Rapid, convenient transportation with two-way forklift slot.
Lower cost of ownership with highly versatile parts.

Standard Features
2WD × 2WS
Maintenance-free batteries
Fault diagnosis system
Non-marking tires
Proportional controls
Emergency lowering system
Emergency stop
Electrophoretic painting
Tilt protection system
Flashing beacon
Forklift pockets and lifting points
Overload sensing system
Foldable guardrails
Automatic pothole protection
Manual storage box
Drivable at full height
Bumper rails
White noise alarm
Trackunit connector

Dimensions
Max Working Height (Indoor/Outdoor): 10.1m (33'2``)
Max Platform Height (Indoor/Outdoor): 8.1m (26'7``)
Platform Extension: 0.9m
Length-Stowed: 2.45m
Width-Stowed: 1.17m
Height-stowed (Rails Folded): 1.73m
Height-stowed (Rails Unfolded): 2.36m
Wheelbase: 1.88m
Ground Clearance (Pothole Guard Stowed): 0.1m
Ground Clearance (Pothole Guard Deployed): 25 mm
Platform Size (L×W×H) 2.30m × 1.15m × 1.1m

Performance
Platform Capacity: 450 kg
Extension Platform Capacity: 120 kg
Max Occupants?Indoor/Outdoor): 2 Persons
Drive Speed (Stowed): 0?4 km/h
Drive Speed (Raised): 0?0.8 km/h
Lift Time (Unloaded): 33s?38s
Lower Time (Unloaded): 35s~40s
Gradeability: 25%
Max Allowable Inclination (front-to-back/side-to-side): 3 °/1.5 °
Turning Radius (Inside/Outside): 0/2.35 m
Tire Spec/Type: 380×125 mm/solid

Power
Drive × Steer: 2WD × 2WS
Power Source (V/kW): 24V DC ,3.3 kW
Drive Motor (V/kW): 24 V DC / 0.85 kW 24 V AC /0.7 kW
Hydraulic Tank Capacity: 15 L
Batteries: 24 V,220 Ah (Lead acid battery)
Charger (Input/Output): 100?240 V AC/30 A
