Sinoboom AB10J (AB34J) 10m Diesel Articulating Boom Lift - Rough Terrain, Easy Transport!

At Franklin Equipment, we are proud to offer a wide range of premium EWP equipment that fits your needs—without breaking the bank. As an authorised seller of Sinoboom, we provide top-of-the-line, reliable, and cost-effective equipment to help you get the job done efficiently.

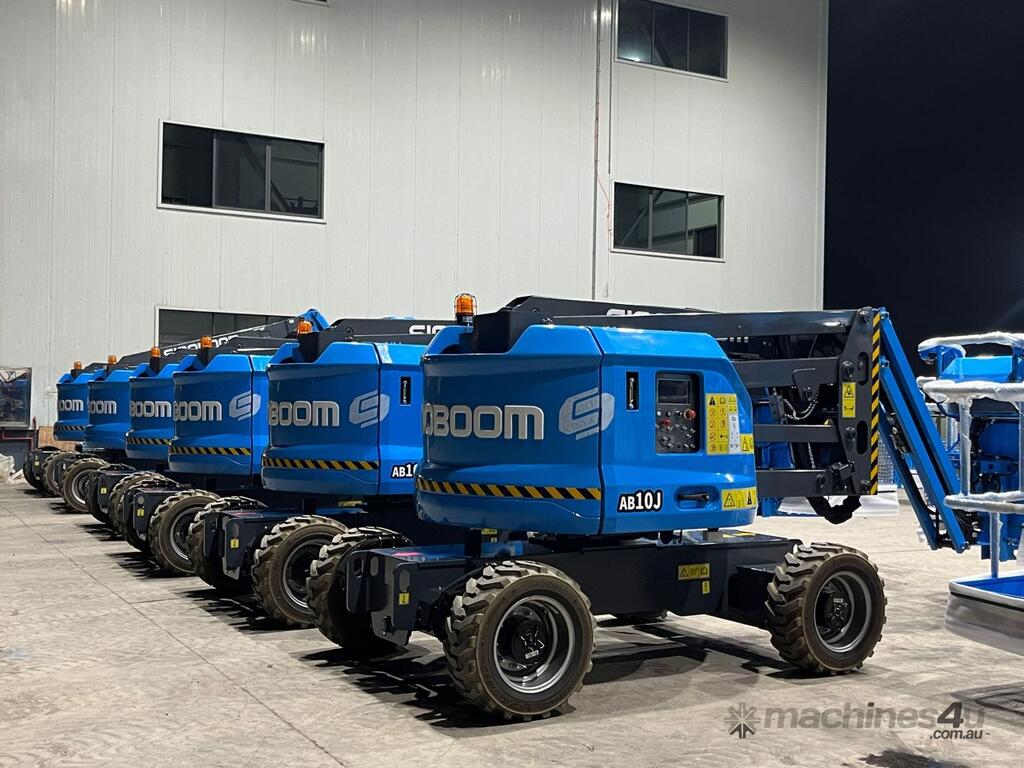

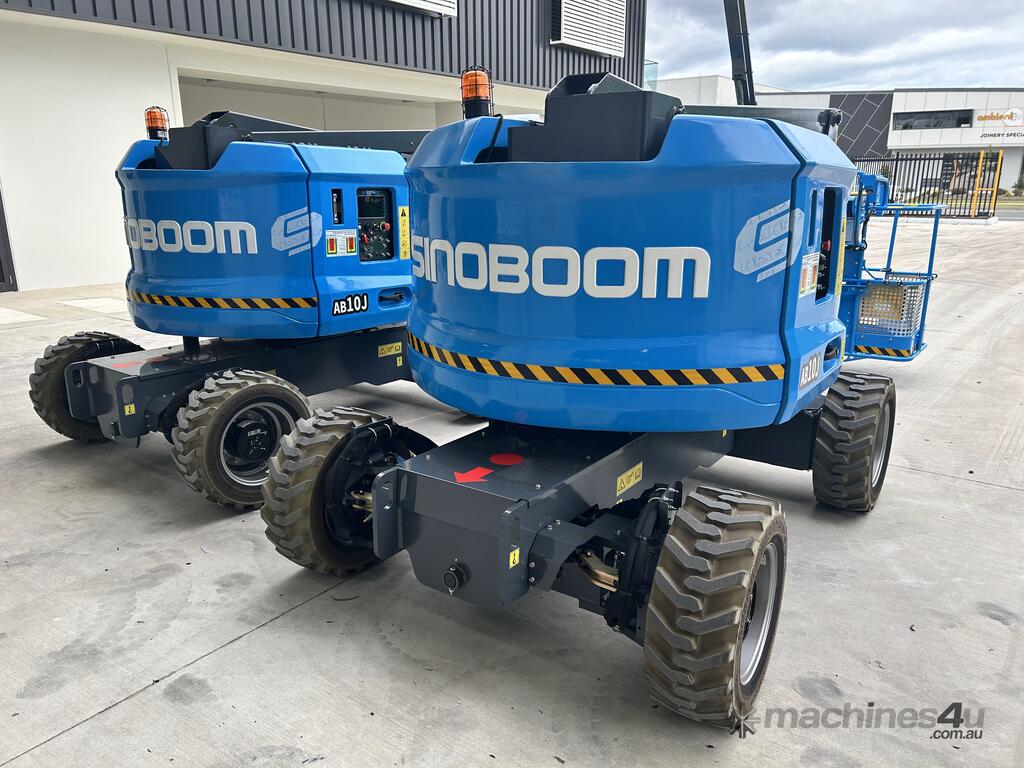

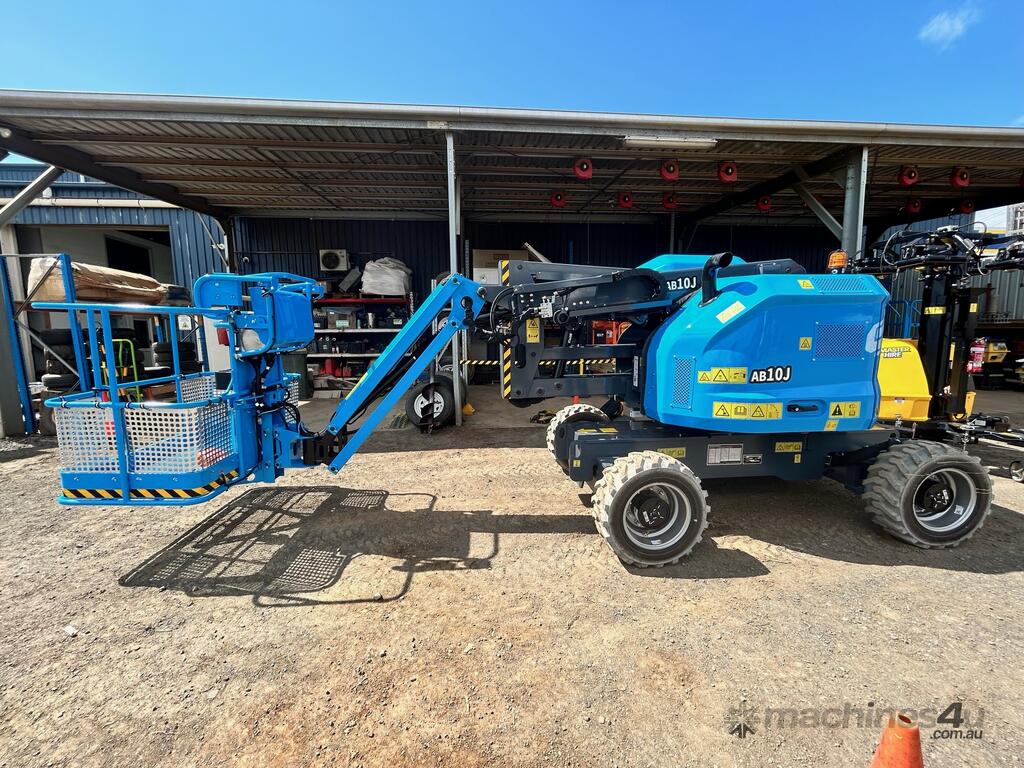

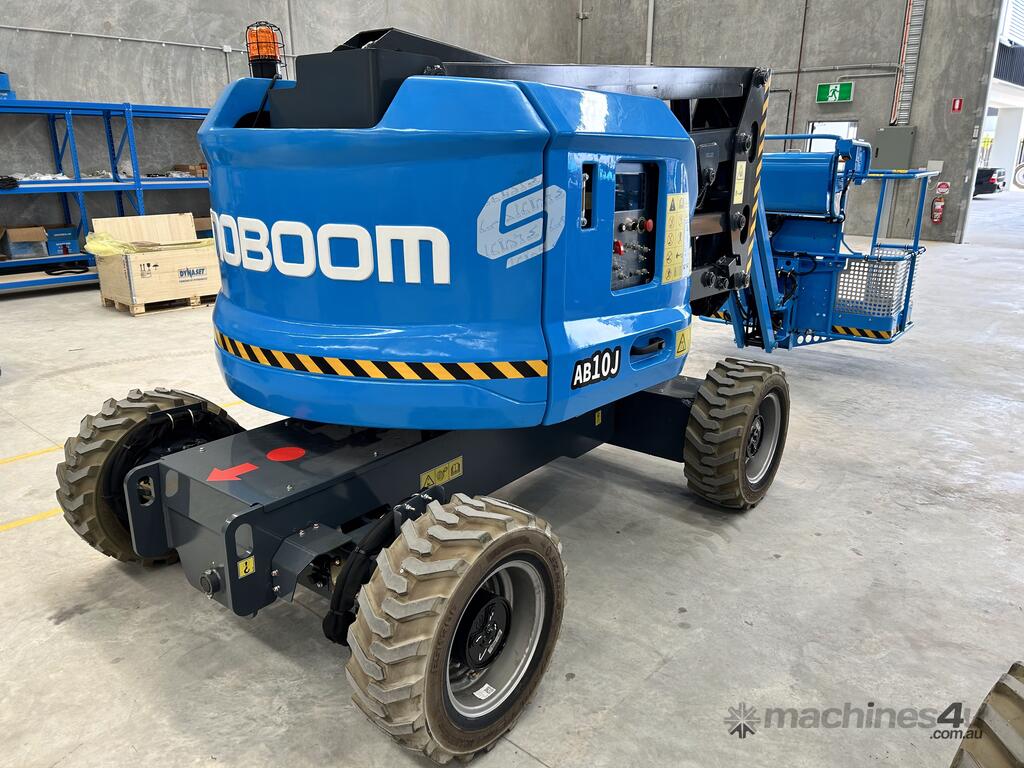

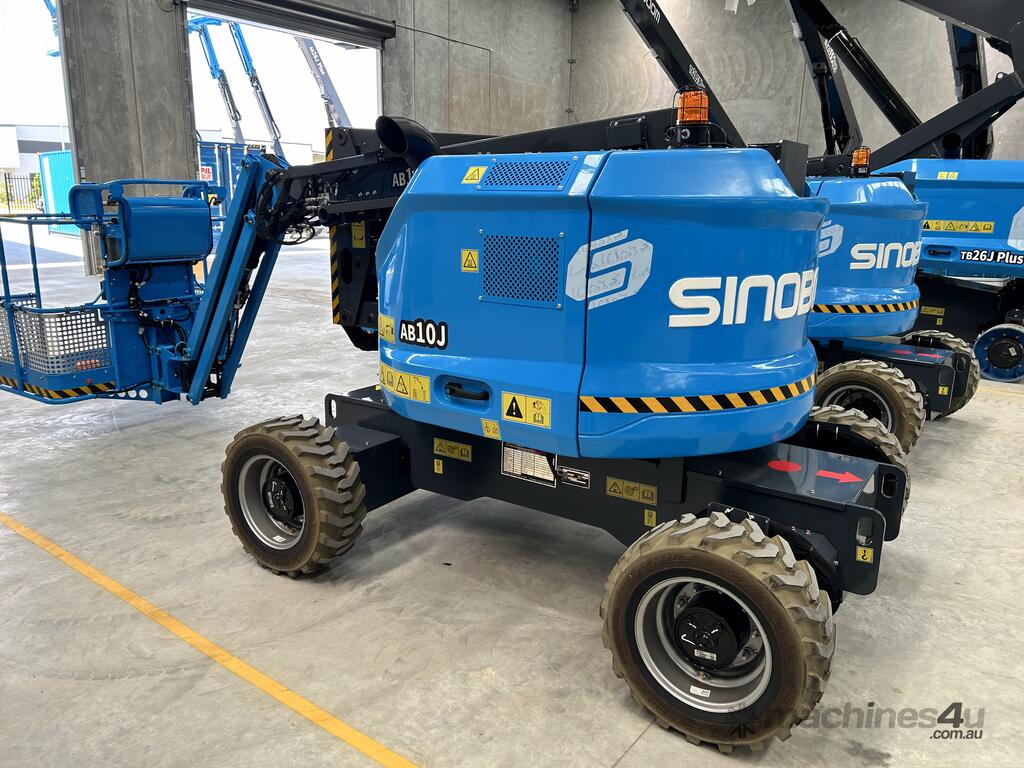

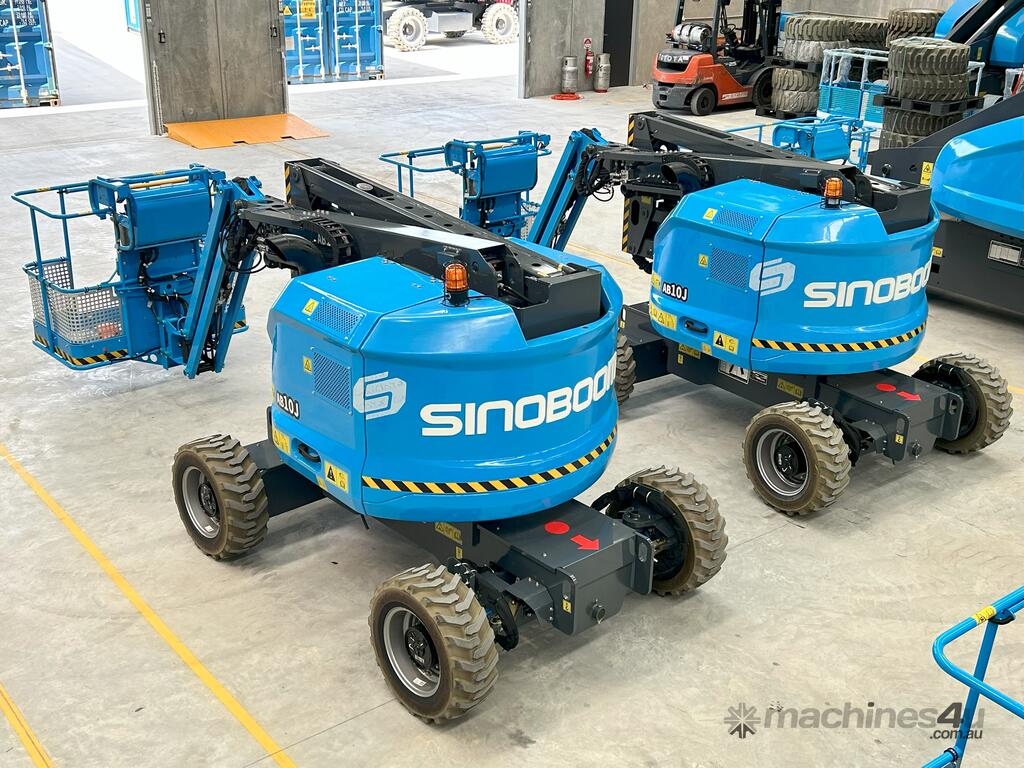

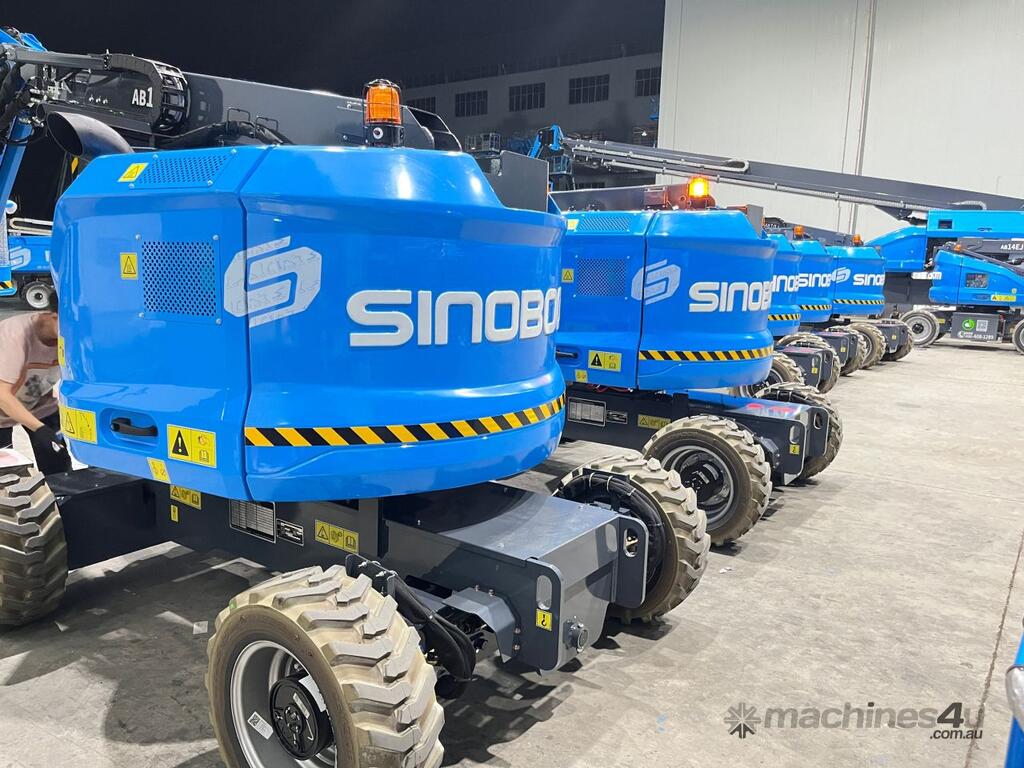

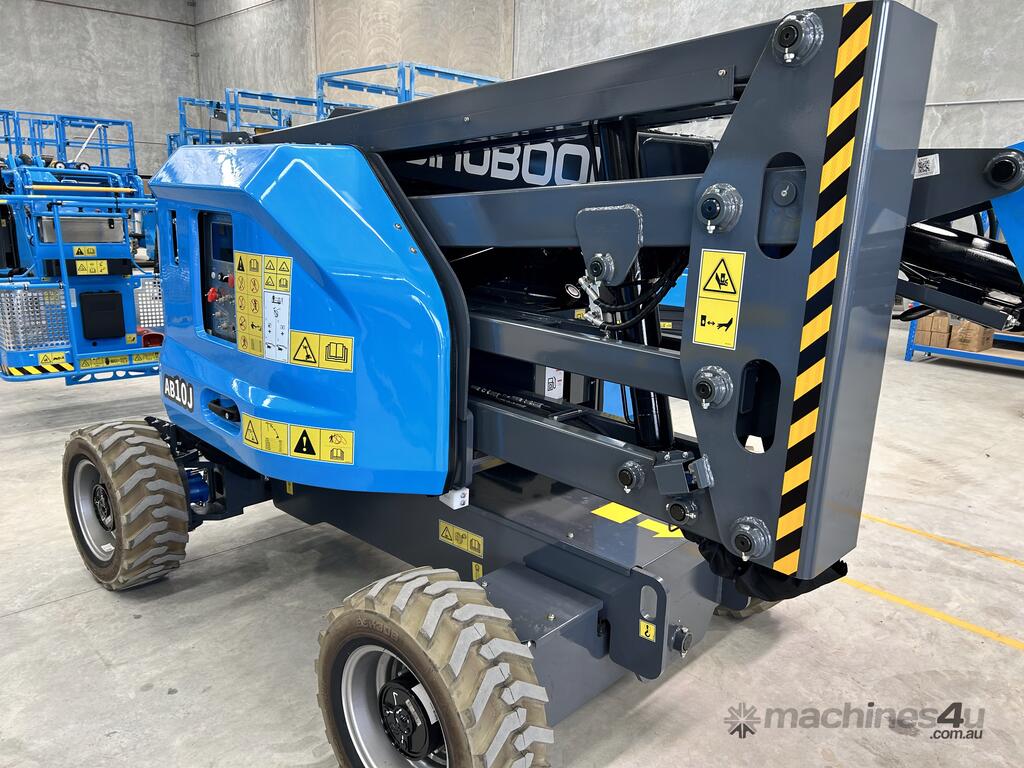

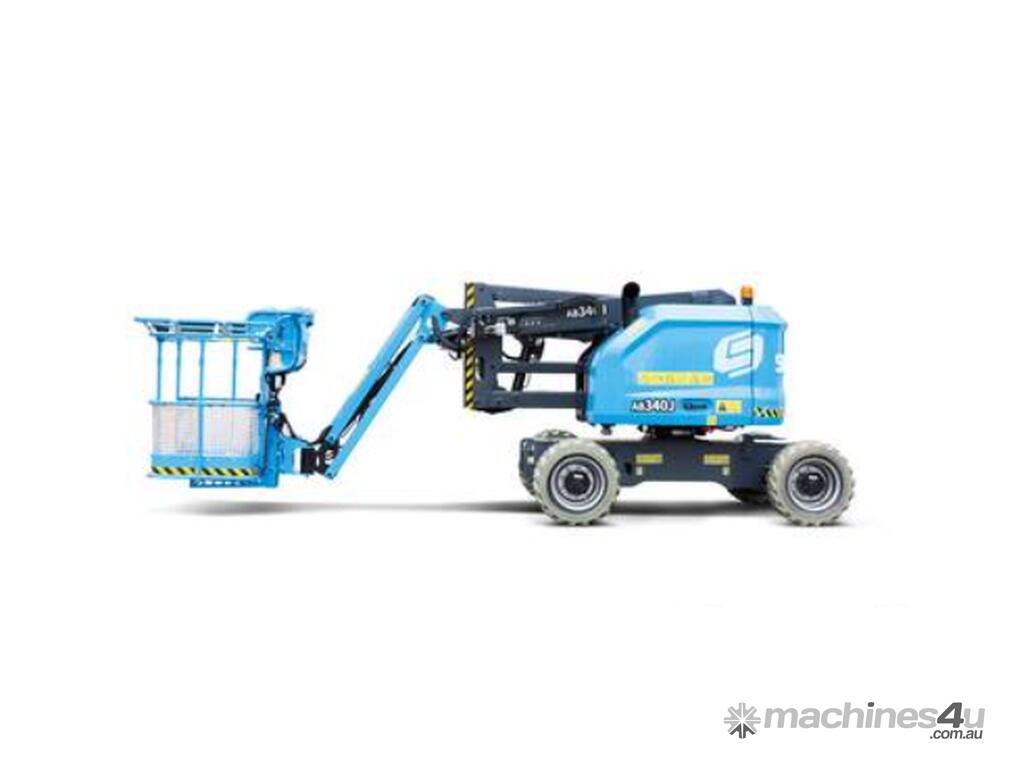

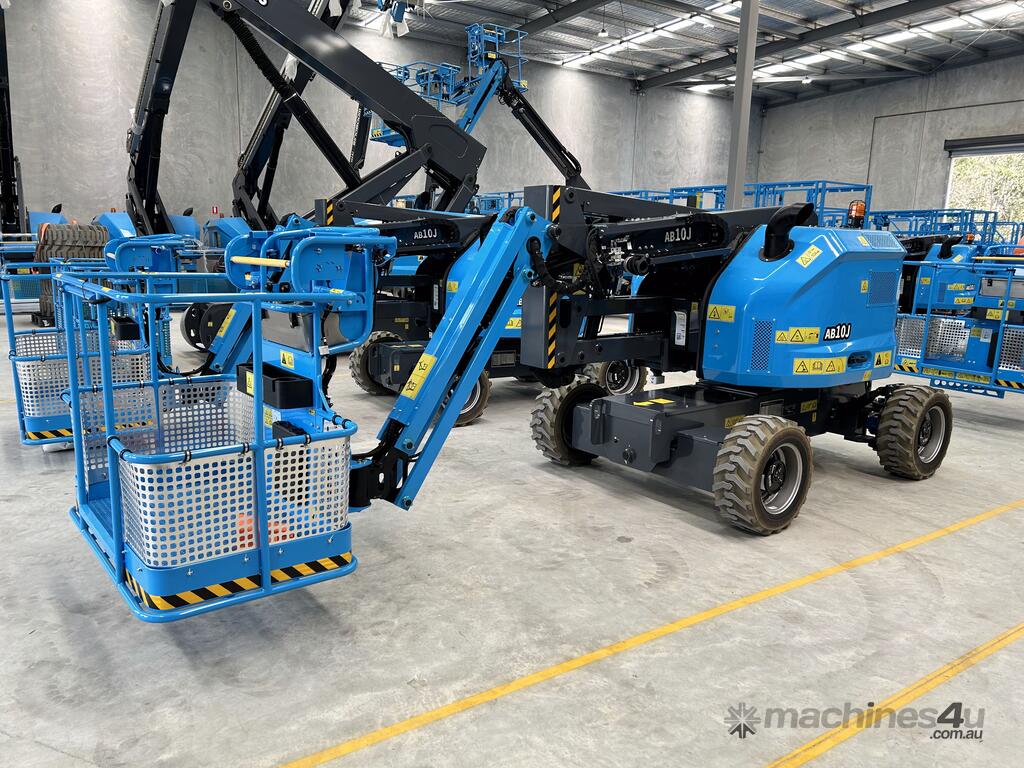

Introducing the Sinoboom AB10J (34' knuckle boom), now available in Australia! This articulating boom lift is designed to give you superior access to hard-to-reach areas, offering outstanding flexibility and ease of use. Whether you’re working around obstacles or need to cover large spaces, the AB10J helps you increase productivity by letting you work without having to reposition the base. Built for durability and ease of maintenance, this machine is equipped with the high-quality components you trust.

PRODUCT HIGHLIGHTS:
- Sinoboom Family Control System: Featuring Rexroth components (ground and platform), compliant with ISO 13849 for safety and reliability.

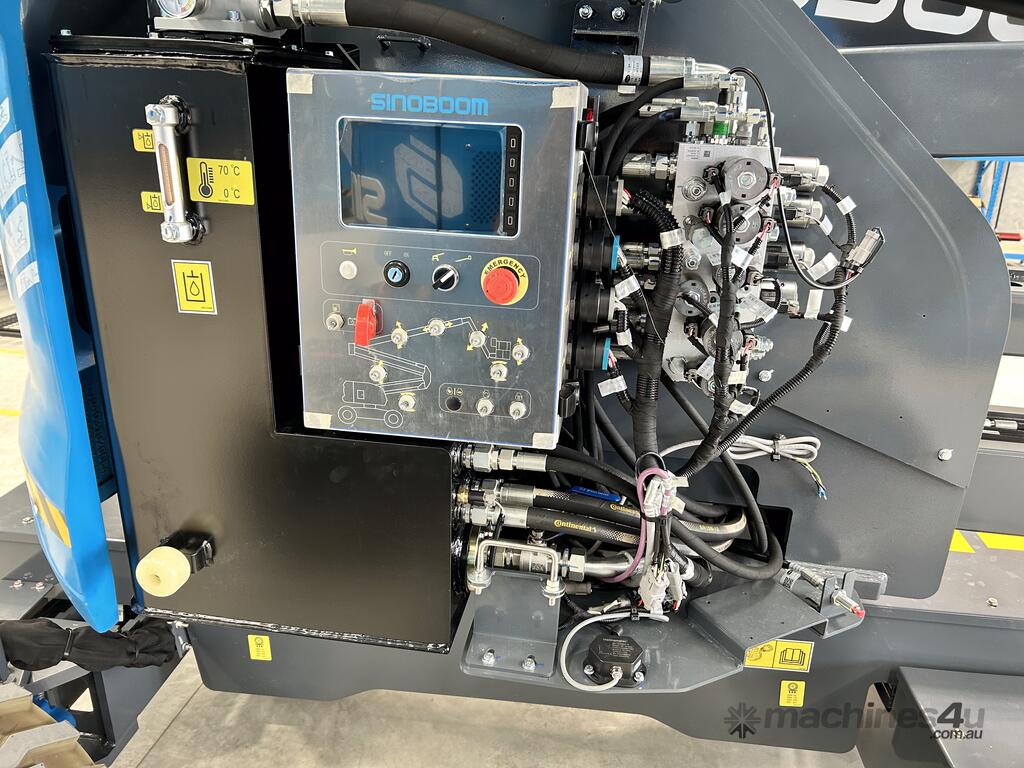

- User-Friendly Control System: A smart display offers real-time machine status and fault diagnostics, reducing downtime. Faults are shown clearly on the screen without the need for codes, and all calibrations can be completed through the display.
- Superior Rough Terrain Performance: With an oscillating axle, 4WD, 40% gradeability, and high ground clearance, the AB10J excels in both indoor and outdoor applications, even on rough or uneven terrain.
- Impressive Platform Capacity: Supports up to 250kg, allowing two workers and tools to safely and efficiently complete tasks.
- Easy Transport: Weighing under 5 tons, the AB10J is easy to transport and ideal for projects with weight restrictions.
- Enhanced Tilt Rating: Adaptable to uneven surfaces, making it perfect for challenging job sites.

STANDARD FEATURES:

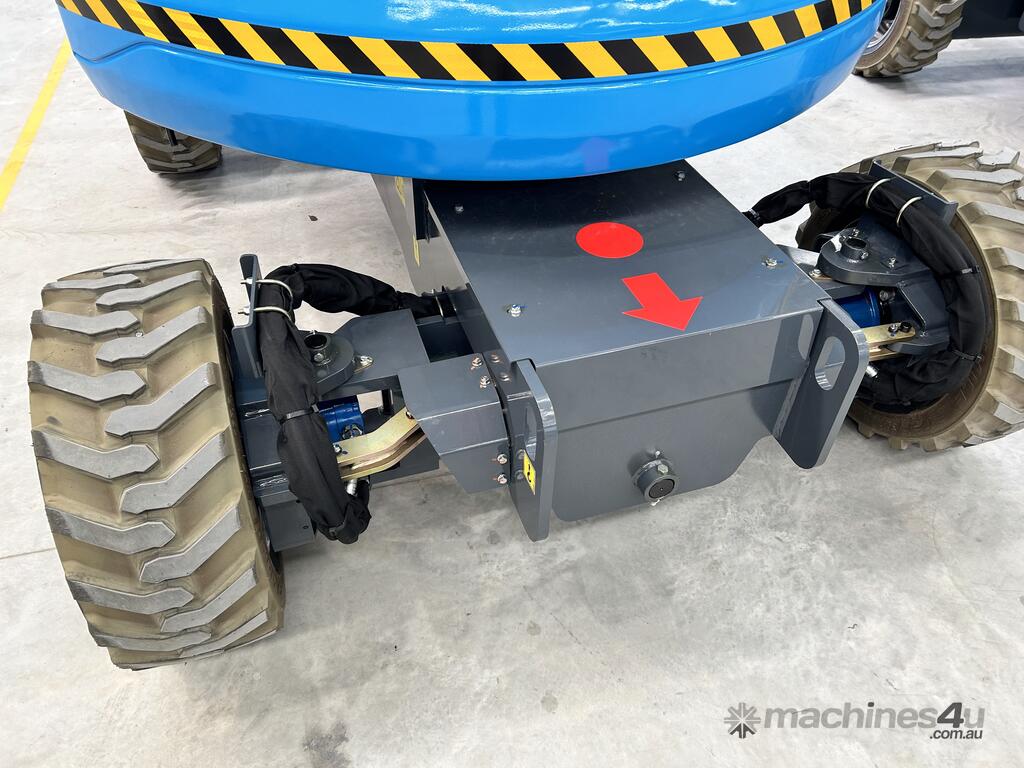

- Active oscillating axle
- 7-inch LED screen
- 4WD x 2WS drive system

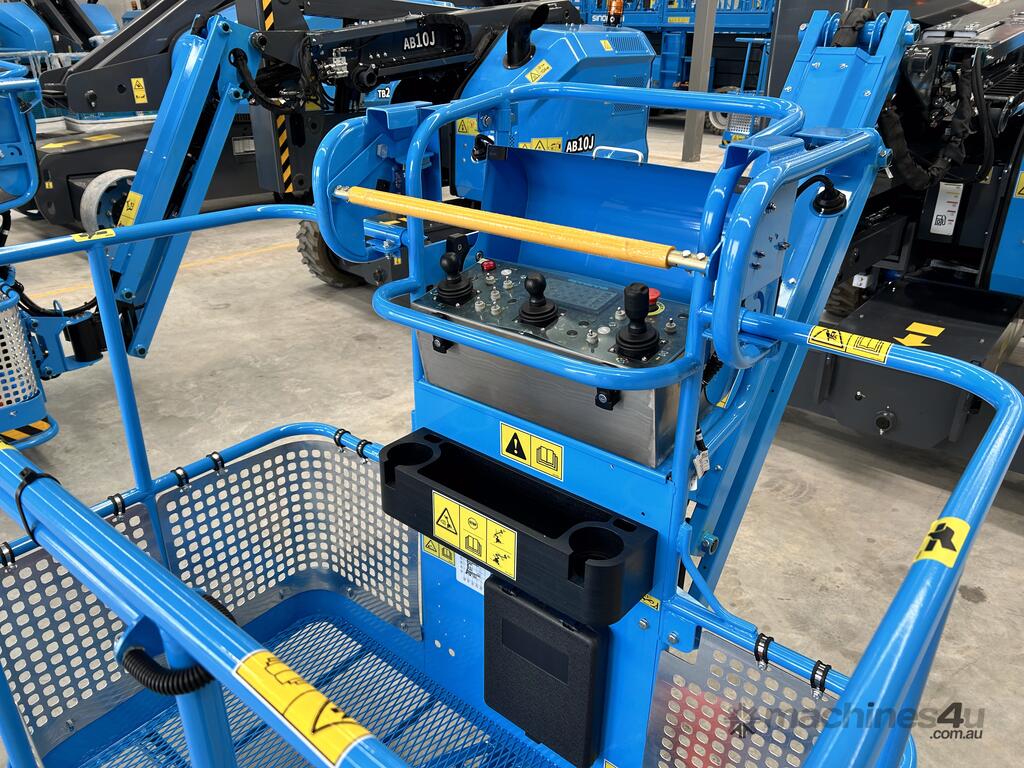

- Proportional controls
- Tilt rating: 3° / 4°
- Emergency lowering system
- Hydraulic platform leveling
- Automotive-grade sleeves for all pipes
- Weighing system
- Battery isolator
- Half mesh basket
- Flashing beacon
- Lifting/tie-down points
- Fault diagnostic system
- Swing-out engine tray
- Foam-filled non-marking tires
- Secondary guarding device
- White noise alarm

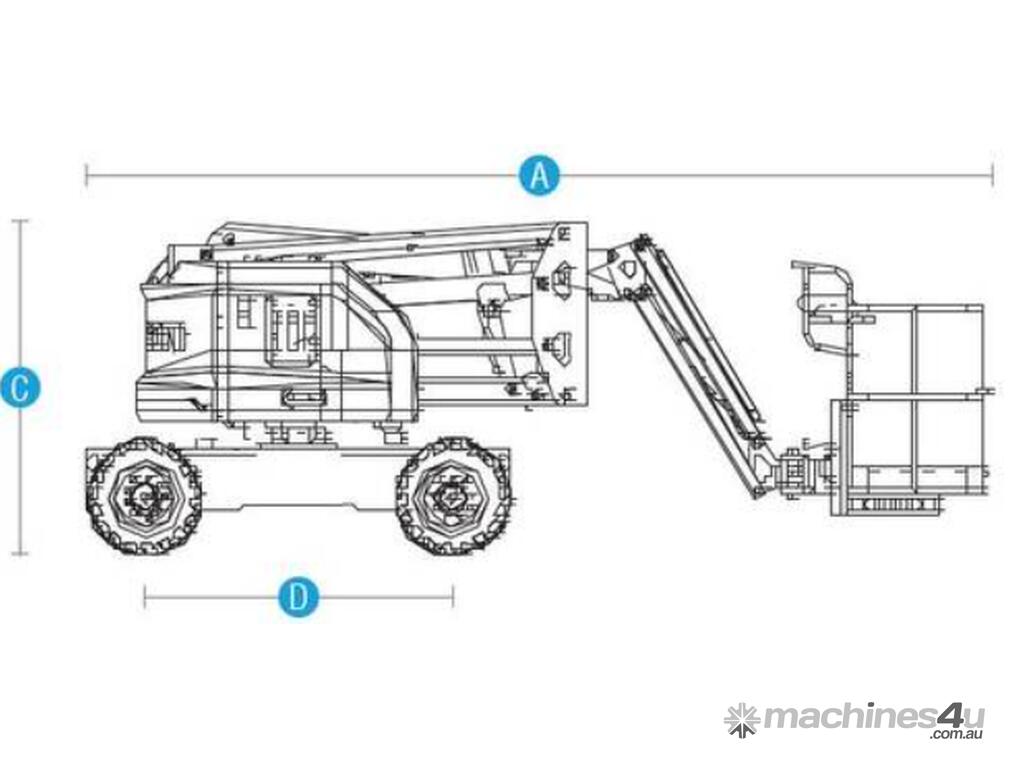

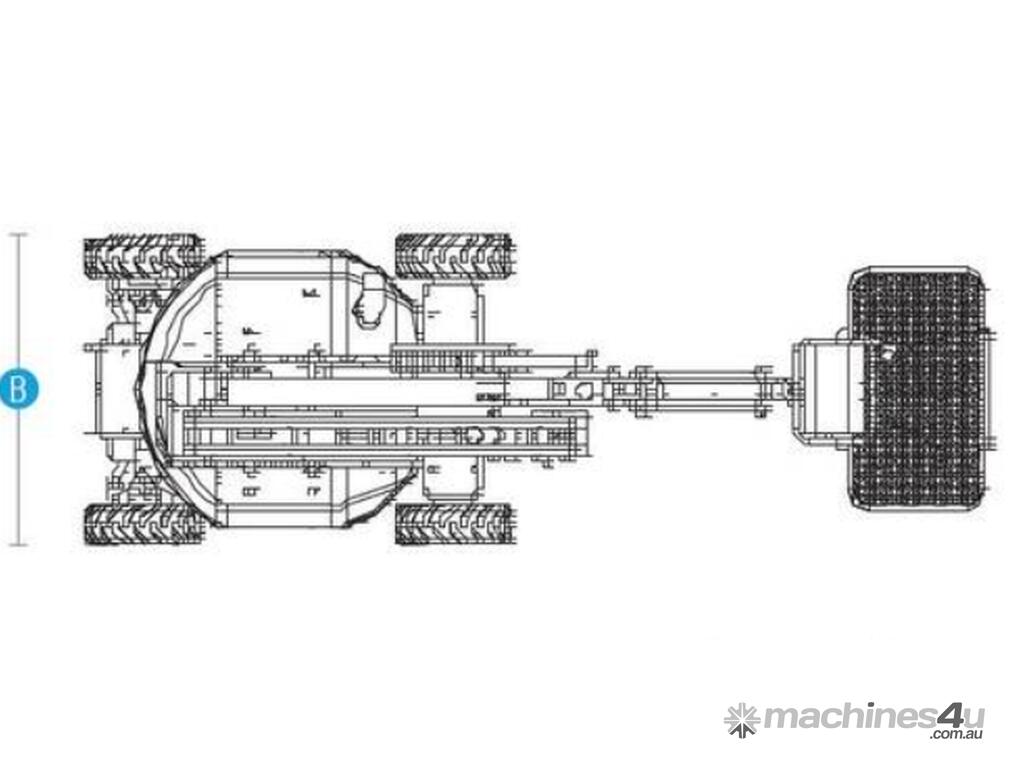

DIMENSIONS:

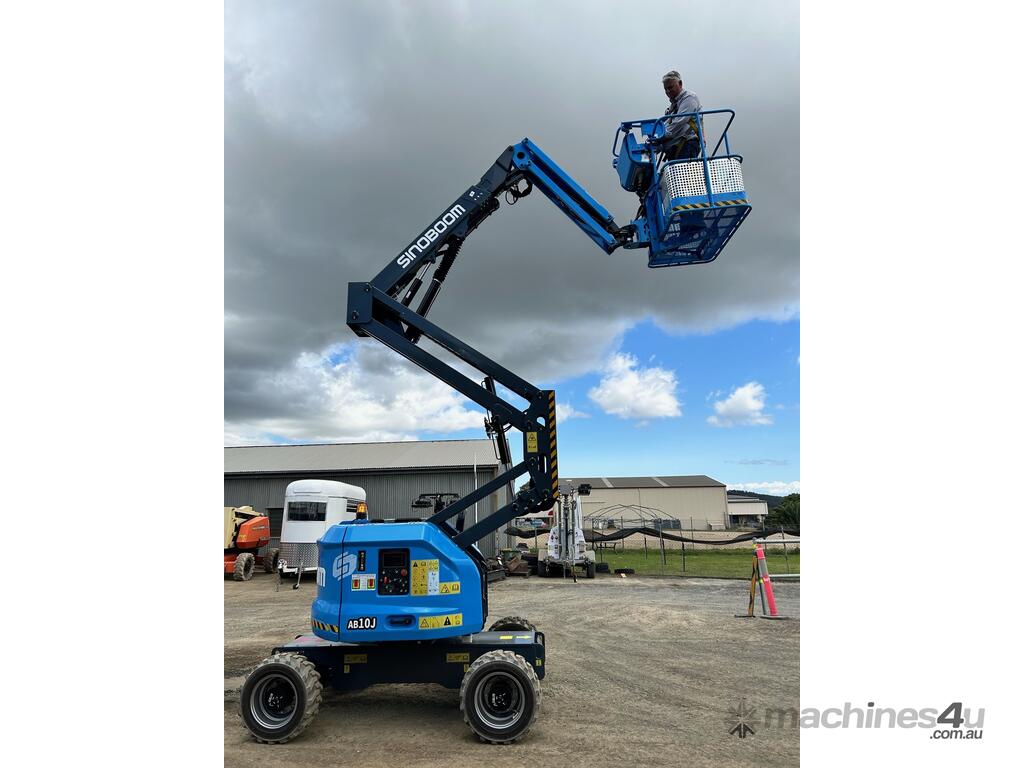

- Max Platform Height: 10.39m (34'1")
- Max Working Height: 12.39m (40'8")
- Max Horizontal Extension: 5.75m

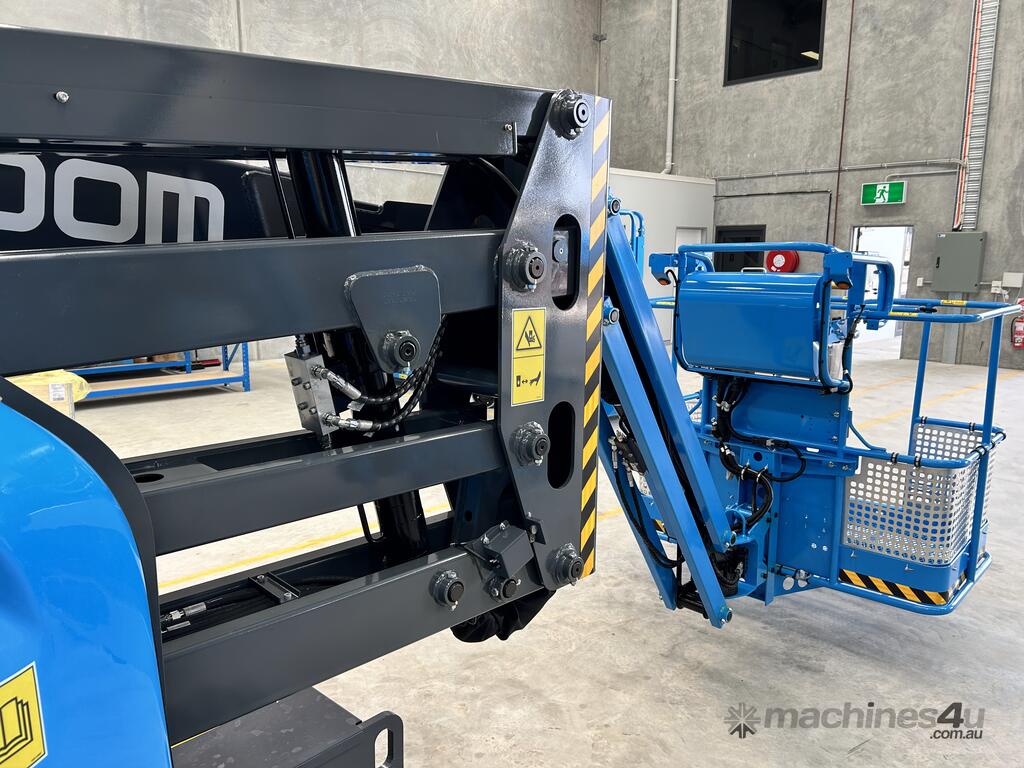

- Platform Dimensions (L × W × H): 1.42m × 0.76m × 1.1m

PERFORMANCE:
- Platform Capacity: 250kg (unrestricted/2 persons)
- Turntable Rotation: 355°
- Platform Rotation: 160°
- Drive Speed (Stowed): 5.5 km/h
- Drive Speed (Raised): 1.1 km/h
- Gradeability: 40%
- Turning Radius: Inside: 1.5m, Outside: 3.9m
- Turntable Tailswing: 0m
- Tilt Rating: 3°/4.5° (side to side/front to back)

POWER:
- Power Source (Optional): Kubota D1105, 18.2kW
- Auxiliary Power Unit: 12V DC
- Fuel Tank Capacity (Diesel): 65L

COMPLIANCE:
- Weight: 4986kg
- Standards Compliance: AS1418.10

The Sinoboom AB10J is a versatile, reliable, and cost-effective solution to help you tackle your toughest aerial tasks with ease. Let Franklin Equipment assist you in finding the right EWP solution—because your productivity and safety are our top priority!
