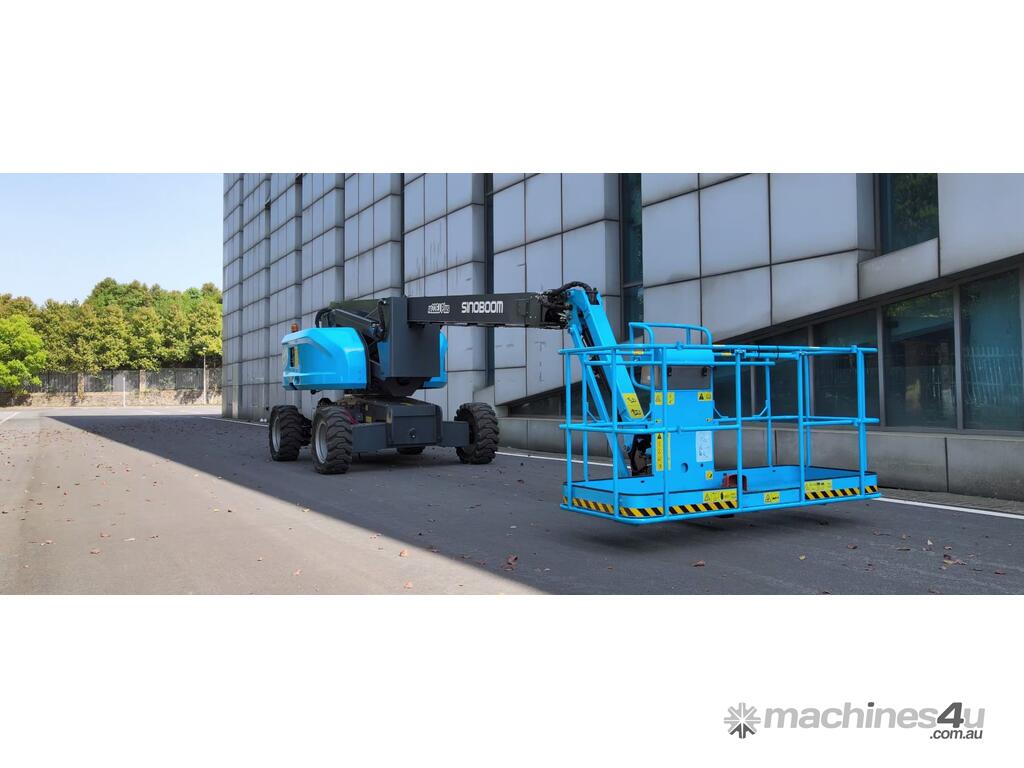

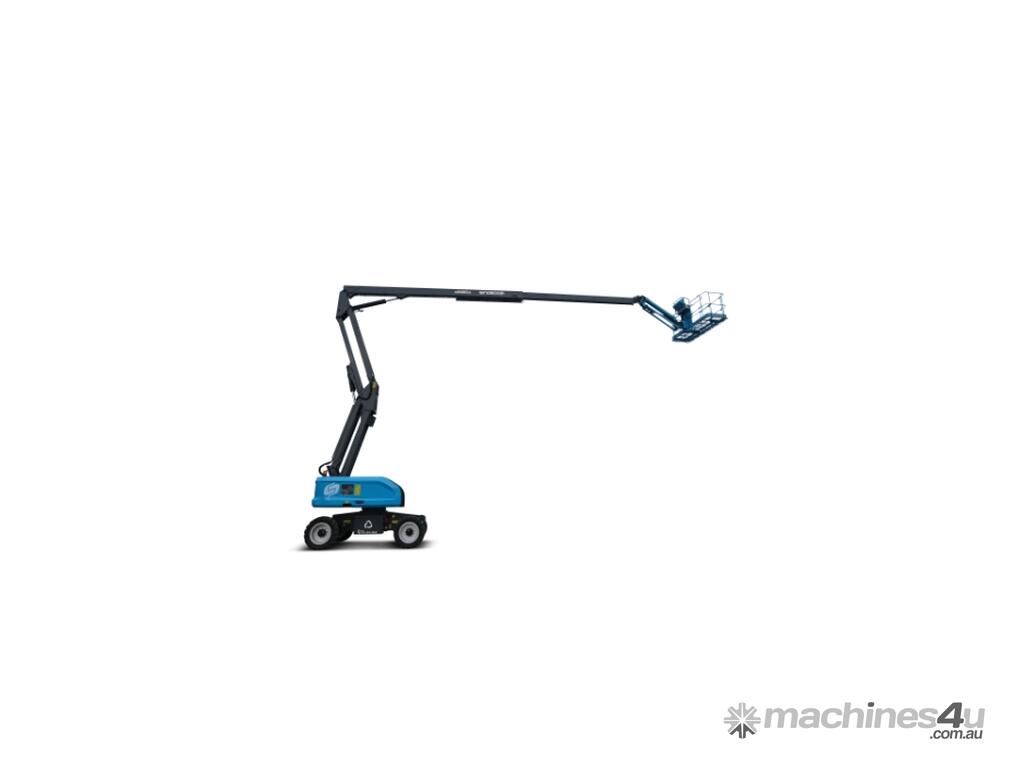

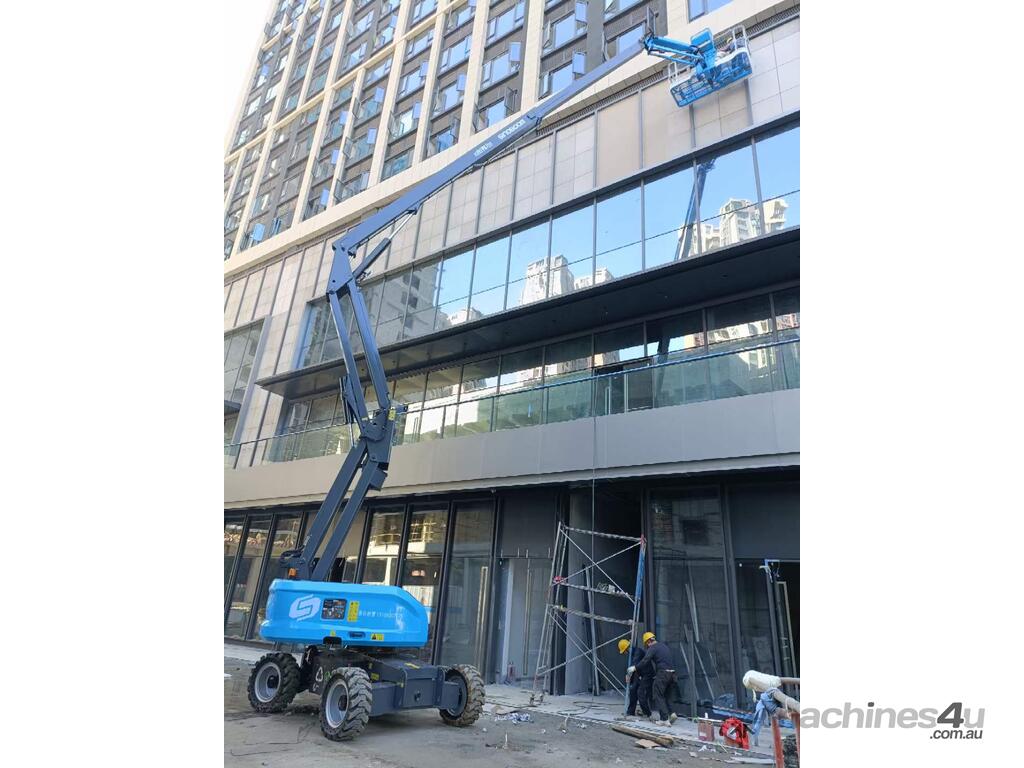

Sinoboom AB22EJ Plus Electric Articulated Boom Lift – 22m Height, 40% Gradeability, Zero Emissions

At Franklin Equipment, we've got you covered with the Sinoboom AB22EJ Plus Electric Articulated Boom Lift, designed to make accessing hard-to-reach areas easier and more efficient. Whether you're working indoors or outdoors, this fully electric lift offers powerful performance with zero emissions, making it the ideal choice for your projects, while also helping to reduce operating costs.

The Sinoboom AB22EJ Plus combines flexibility, convenience, and robust power with a maximum platform height of 21.6m. Its 4WD and 40% gradeability ensure excellent traction and maneuverability, while the intuitive control system provides ease of use. Featuring a silent, zero-emission battery-powered design, it’s especially suited for indoor work, offering a quiet and environmentally friendly solution.

Product Highlights:
Electric & Eco-Friendly: Fully battery-powered with zero emissions, ideal for both indoor and outdoor tasks.
4WD & 40% Gradeability: Offers superior maneuverability and the ability to work on various terrains.
Safety & Performance: Equipped with advanced safety features, including a smart display for fault diagnosis, tilt protection, and a weighing system.
Flexible & Reliable: Reach difficult spots easily without repositioning the base, saving you time and effort.

Key Specifications:

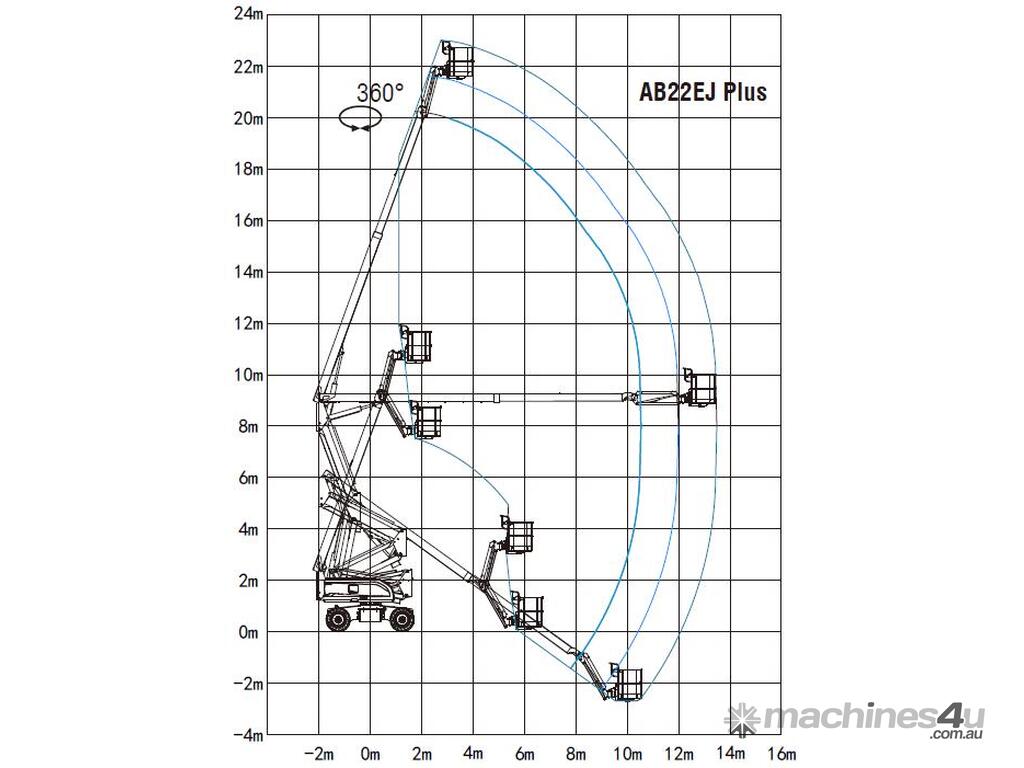

Max Platform Height: 21.6m
Max Working Height: 23.6m
Max Horizontal Extension: 13.4m / 11.9m / 10.45m
Platform Capacity: 230kg (unrestricted) / 340kg (restricted) / 450kg (restricted)
Gradeability: 40%
Drive Speed (Stowed): 4.8 km/h
Drive Speed (Raised): 1.1 km/h
Turning Radius: Inside: 2.4m / Outside: 5.55m

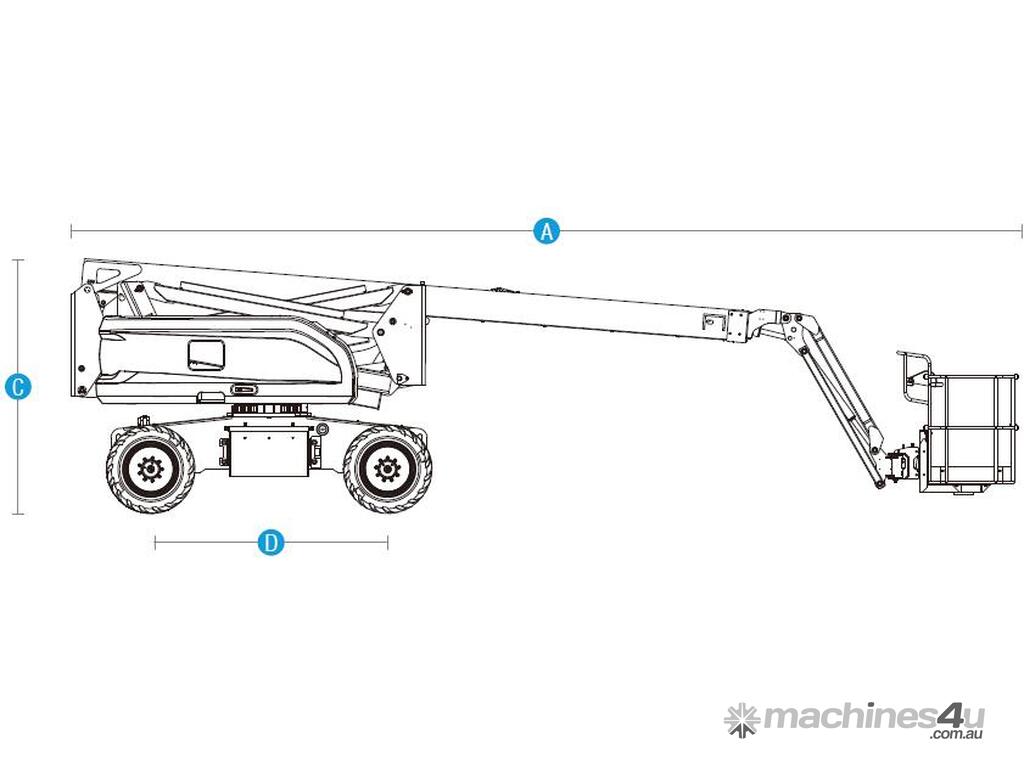

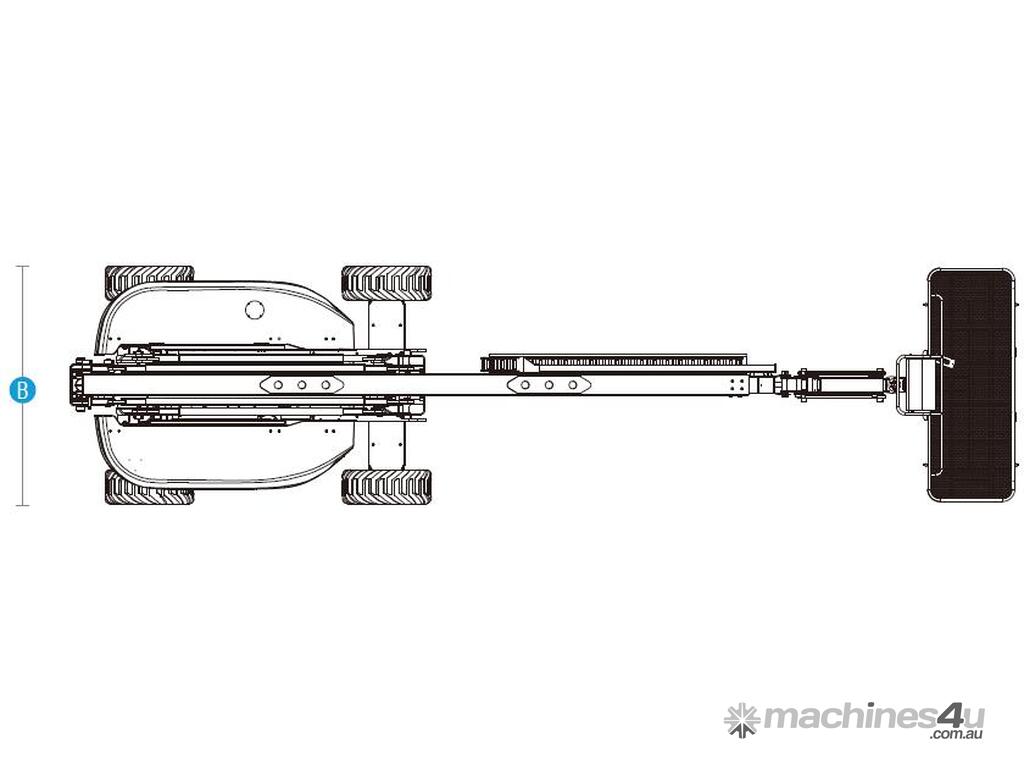

Dimensions:
Length-Stowed: 9.95m
Width-Stowed: 2.49m
Height-Stowed: 2.68m
Wheelbase: 2.49m
Ground Clearance: 0.39m

Power:
Battery: 48V, 480Ah (Lead Acid)
Auxiliary Power Unit: 12V DC
Hydraulic Tank Capacity: 130L

This Sinoboom AB22EJ Plus articulating boom lift is the perfect solution for industries that require high-reach capabilities combined with superior flexibility and environmental responsibility. It’s ideal for construction, maintenance, and more, offering both outstanding performance and reliability in one compact package.

At Franklin Equipment, we are proud to offer this high-performing lift as part of our extensive access equipment range. Our team is dedicated to providing top-notch service and ensuring you have the right equipment for the job.

Contact Franklin Equipment today for more information or to request a demonstration!
