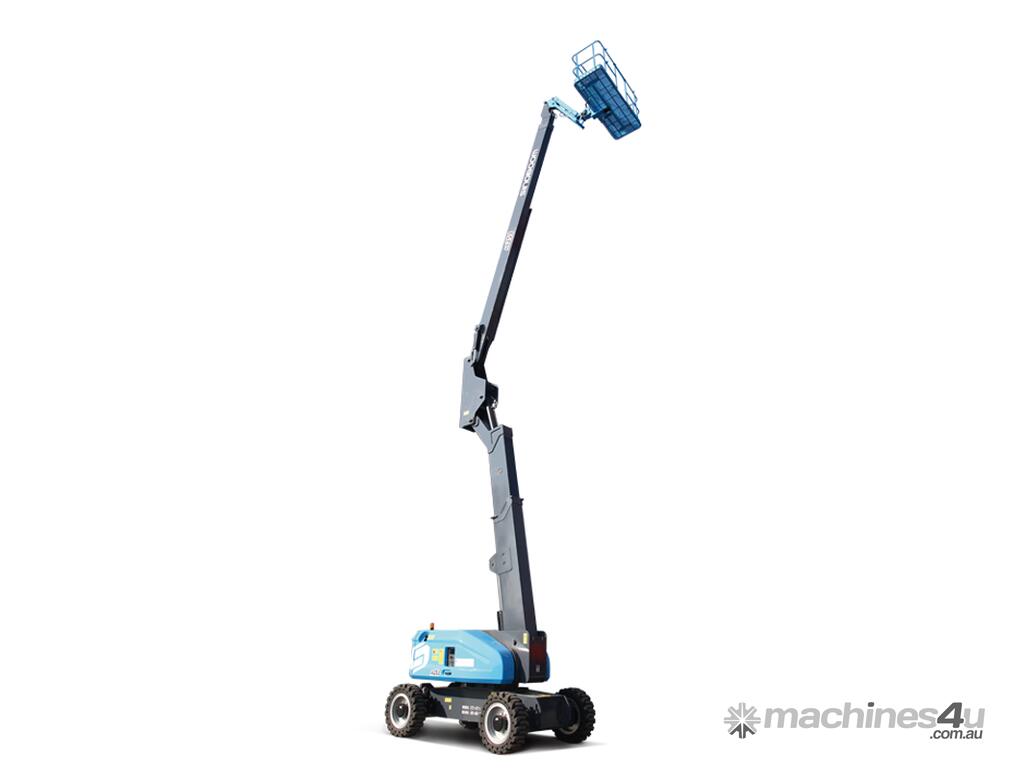

Sinoboom AB25J Diesel Articulated Boom Lift – Advanced Flexibility, Robust Performance for Any Job!

At Franklin Equipment, we proudly offer the Sinoboom AB25J Diesel Articulated Boom Lift—an efficient, high-performance solution for jobs requiring precision, flexibility, and rugged capabilities. Engineered to tackle a variety of applications across industries, this articulating boom lift is designed for maximum maneuverability and operational efficiency.

Product Highlights
Powerful Off-Road Performance:

Featuring a 40%-45% gradeability, the AB25J incorporates proprietary patented anti-skid control technology, ensuring reliable off-road performance even on the most challenging terrains.
Smart Maintenance:

Equipped with a smart 7" display screen, users can easily view machine status, fault diagnostics, parameters, and settings, simplifying maintenance and reducing downtime.
Precision Control:

The AB25J boasts three proportional joysticks for precise control of boom swing, extension, turntable rotation, and walking speed. Expect smooth starts and stops and a high level of accuracy in reaching your operational targets.
Safety and Reliability:

With secure, reliable folding arms and hydraulic interlocking for luffing operation, this lift ensures a safe and stable working environment. Hydraulic-connection body leveling and platform leveling further improve operational stability.
Enhanced Operating Efficiency:

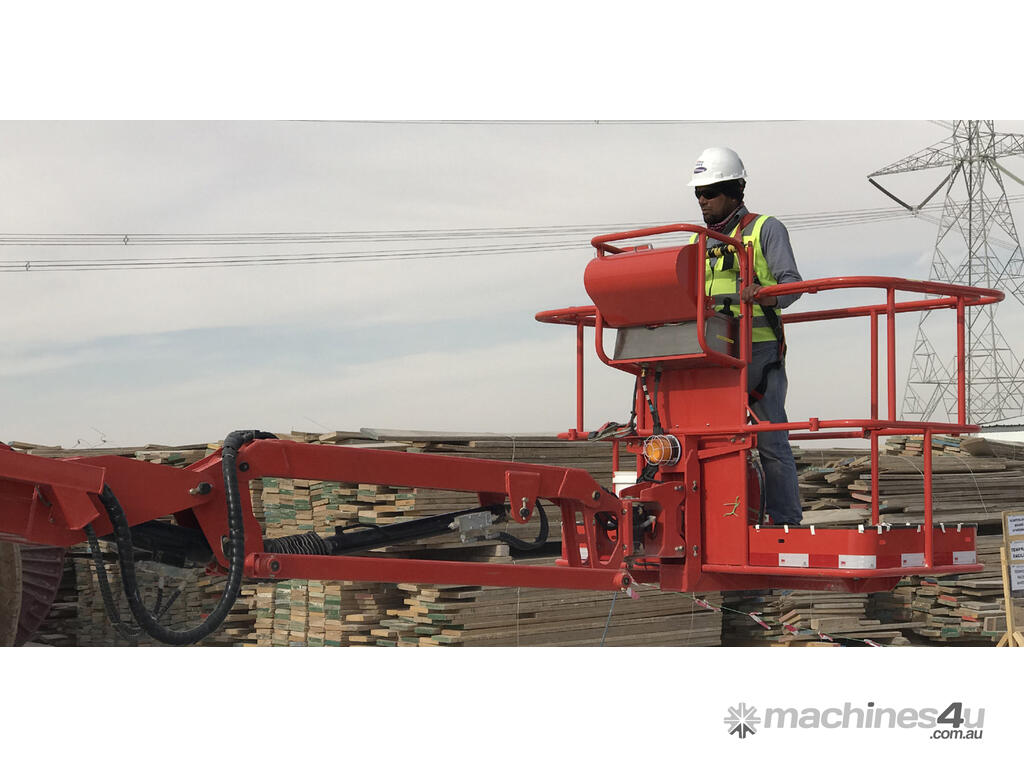

The working platform can be lifted and lowered to any position without needing to operate the folding arm, and quick ascent and descent allow for greater productivity.

Dimensions

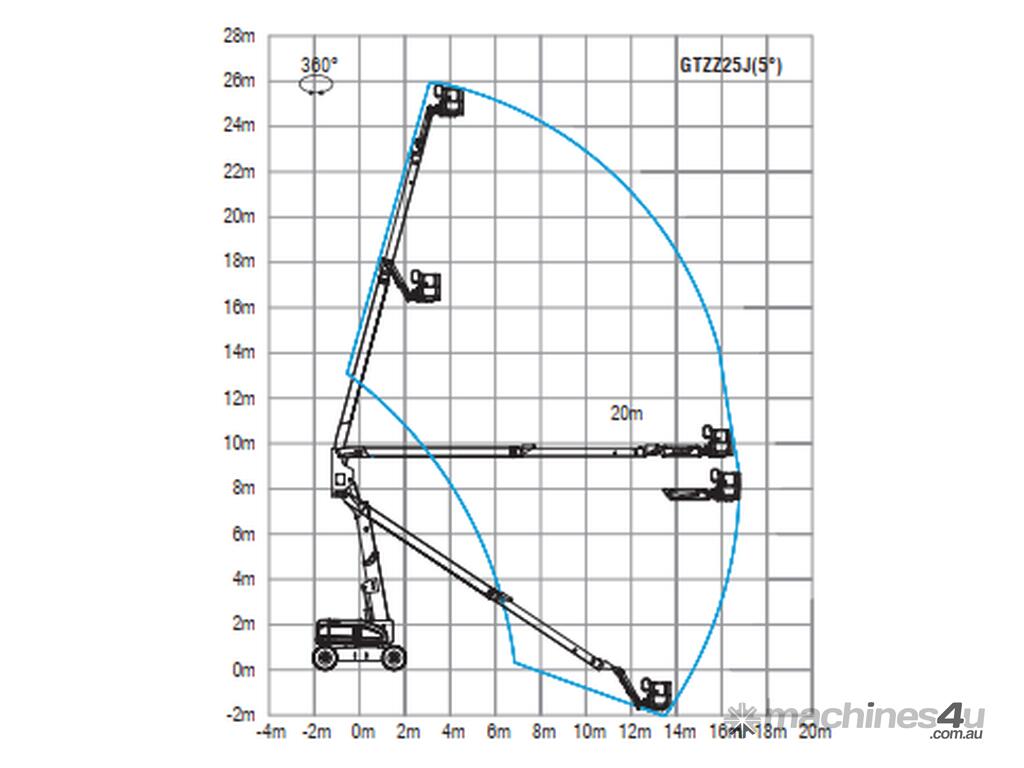

Max Platform Height: 24.6m
Max Working Height: 26.6m

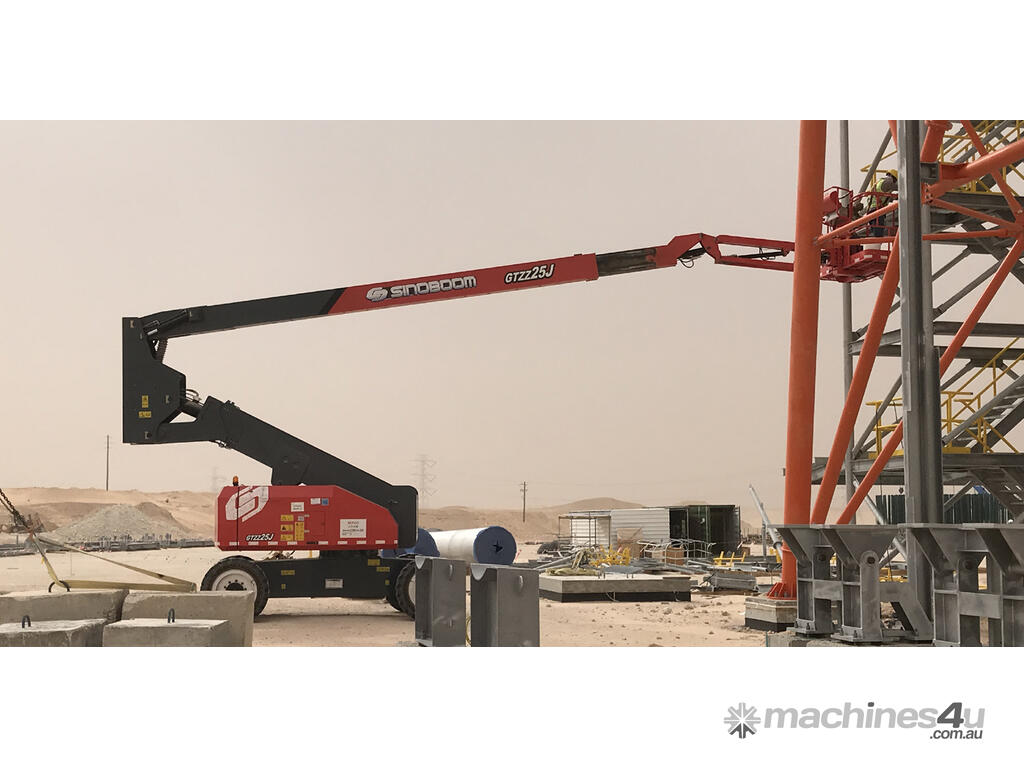

Max Horizontal Extension: 16.1m

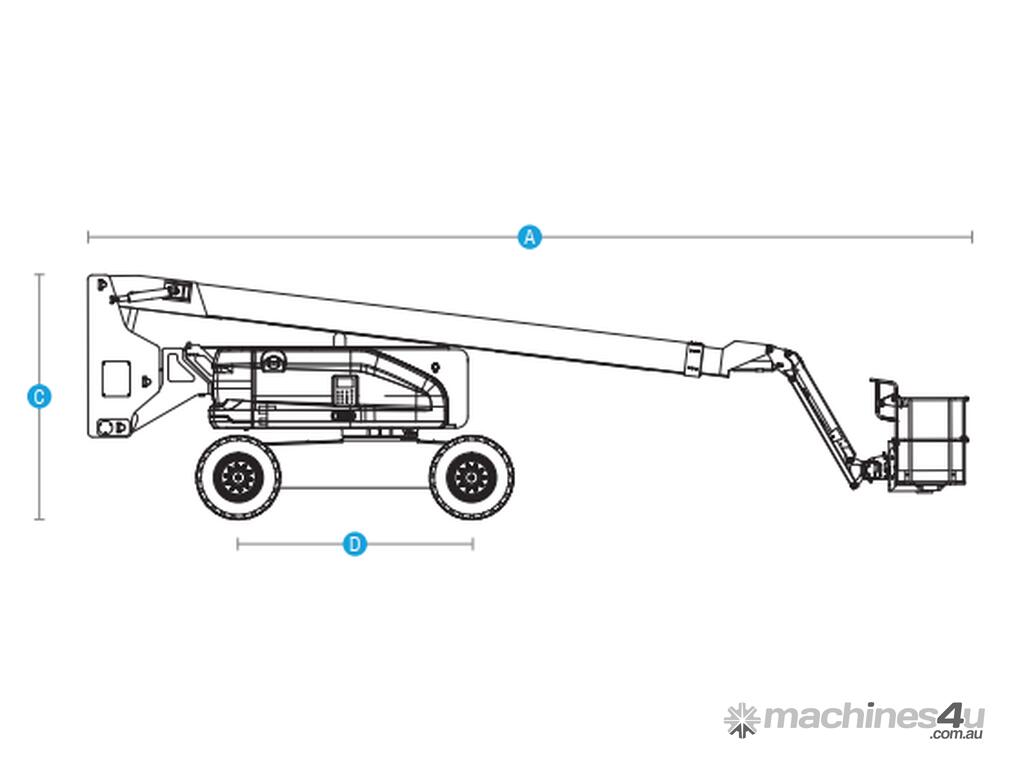

Length-Stowed: 11.51m

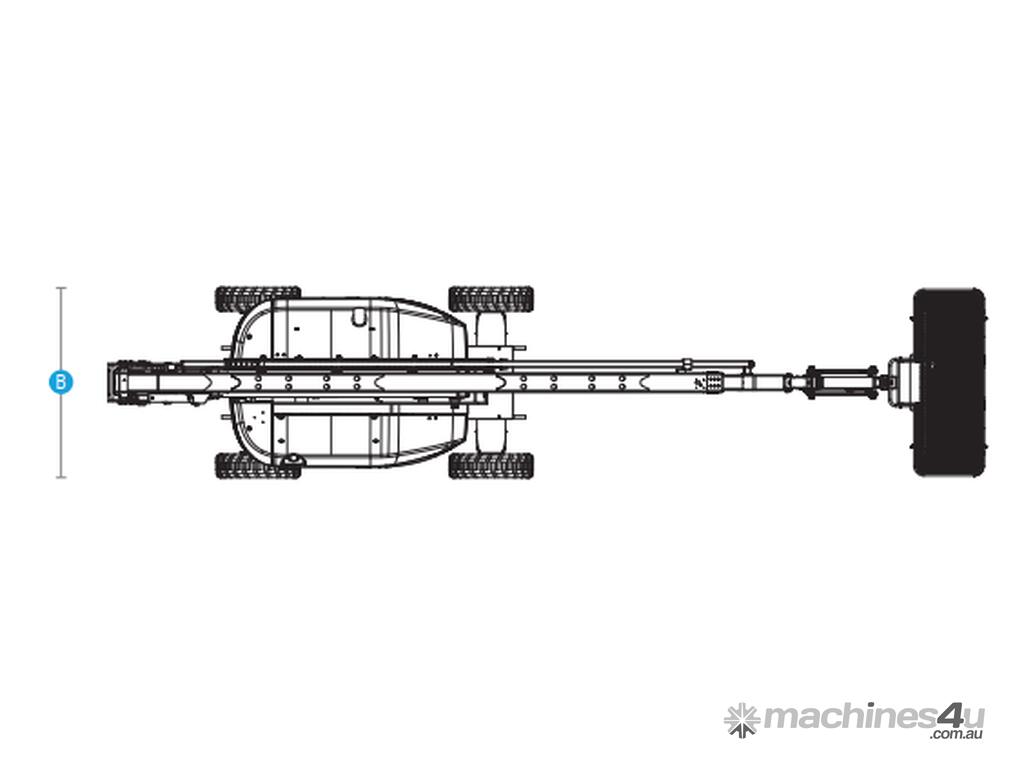

Width-Stowed: 2.49m
Height-Stowed: 3.2m
Wheelbase: 3.05m
Ground Clearance: 0.39m
Platform Dimensions (L×W×H): 2.44 x 0.91 x 1.1m

Performance
Platform Capacity (Unrestricted/2 Persons): 230kg
Turntable Rotation: 360° continuous
Platform Rotation: 160°
Drive Speed (Stowed): 4.4km/h
Drive Speed (Raised): 1.1km/h
Gradeability: 45%
Turning Radius (Inside): 3.0m
Turning Radius (Outside): 6.33m
Turntable Tailswing: 1m
Tilt Rating: 5°
Max Operating Noise Level: Not specified
Drive × Steer: 4WD x 2WS
Tire Type: 385/65-22.5 (Non-marking)

Power
Power Source (Optional): 54 kW/2400 rpm Cummins QSF2.8t3TC72 (China T3/EU Stage 3A)
Auxiliary Power Unit: 12V DC
Fuel Tank Capacity: 140L
Hydraulic Tank Capacity: 180L

Weight
Weight: 17,150kg

Standards Compliance
AS/NZS1418

Standard Features
Oscillating Function for stable operation on uneven ground
7-Inch Display Screen for easy machine monitoring
Proportional Control with 3 Joysticks for precise maneuvering
Hydraulic Platform Leveling for consistent stability
160° Platform Rotation for versatile positioning
Non-marking Tires to protect surfaces
Secondary Guarding System for additional safety
Telematics-Ready Connector for remote monitoring
White Noise Alarm for increased safety awareness
Lockable Battery Isolator for secure operation

Optional Features
AC power to the platform
Harness tube for worker safety
Wheel nut indicator for maintenance safety
Fire extinguisher for fire safety
Full mine specification for mining applications

Applications

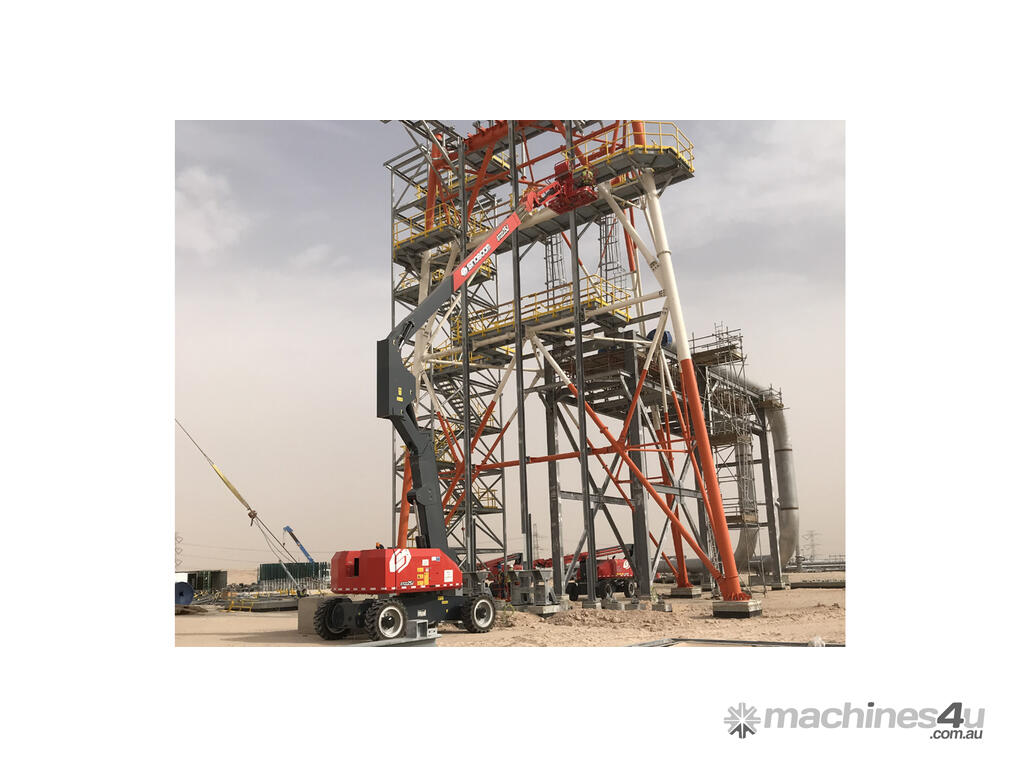

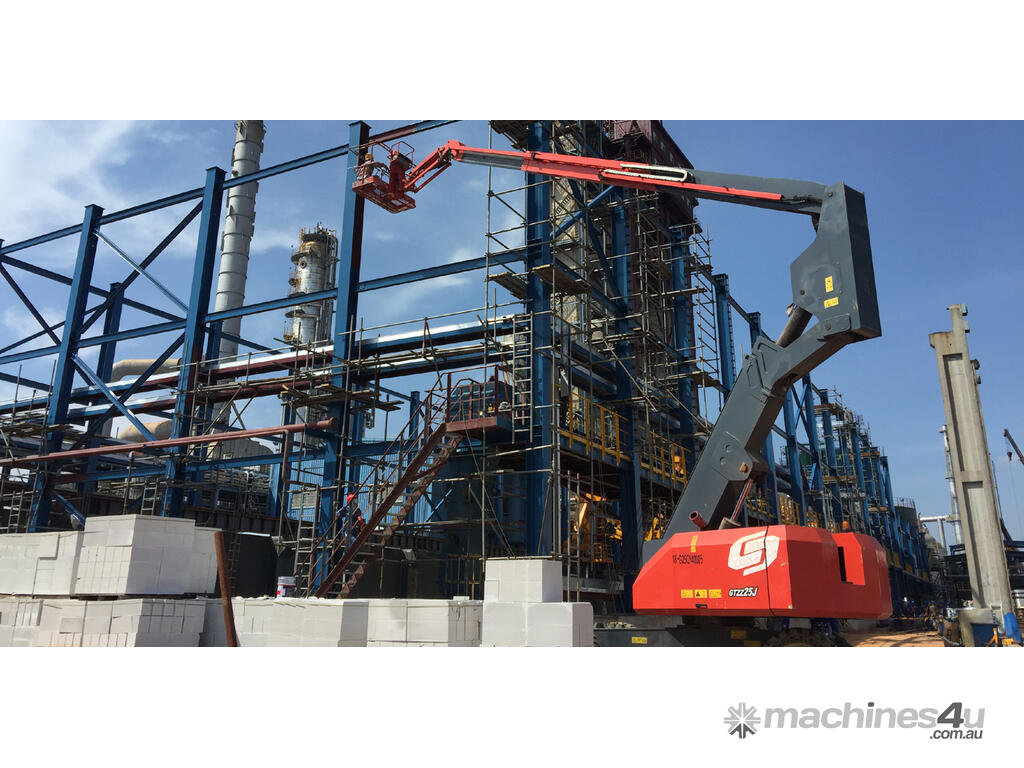

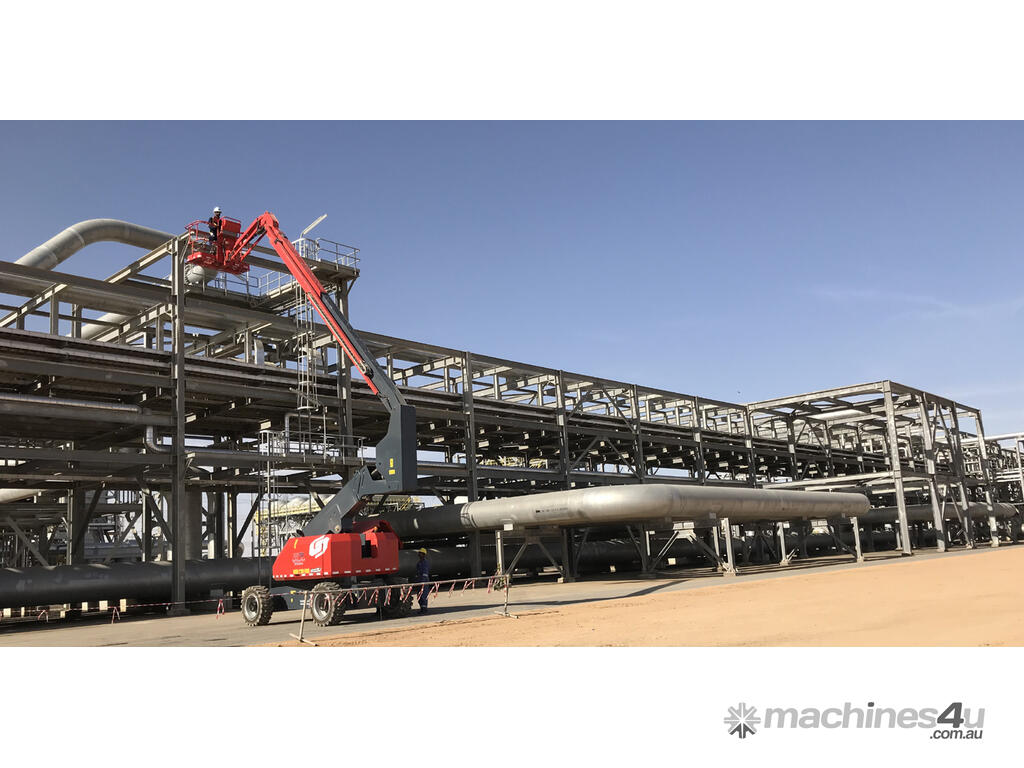

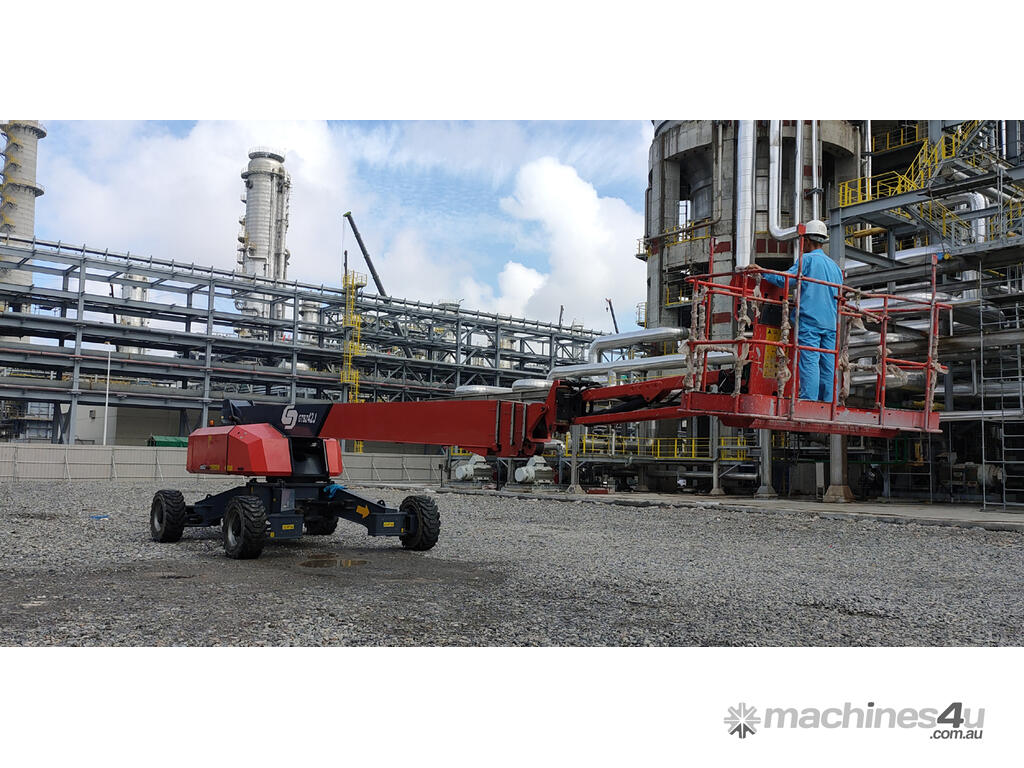

Petrochemical

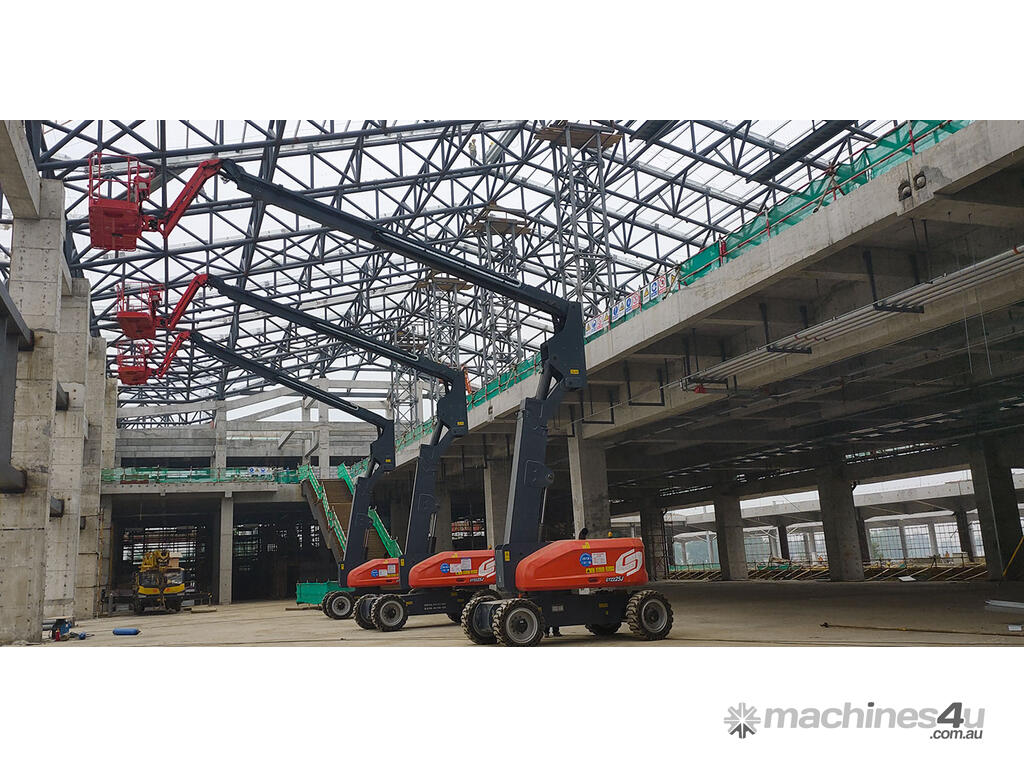

General Construction
Plant Installation and Maintenance
Venue Construction and Maintenance
Large-Scale Warehousing
Airports and Harbors
Urban Utilities and Gardening

The Sinoboom AB25J Diesel Articulated Boom Lift is designed to meet the needs of industries that require versatile, high-performance aerial access solutions. With Franklin Equipment, you gain access to cutting-edge technology, a high standard of safety, and exceptional service and support throughout Australia.

Contact us today to learn more or to request a quote for your next project!
