Introducing the Sinoboom ML10EJ (ML340EJ) Electric Vertical Mast Lift, now available through Franklin Equipment. This compact, fully electric lift offers a maximum platform height of 8.3m and is perfect for applications requiring a small footprint and high efficiency. With zero tail swing and a platform capacity of 200kg, the ML10EJ is a versatile solution for both indoor and outdoor use.
Product Highlights
Compact Design: Easily passes through most standard doors, with zero tail sweep and zero tailswing.
Efficient Electric Power: Powered by 4 x 6-volt maintenance-free AGM batteries, providing zero emissions and long battery life, ideal for high-duty cycles.
Enhanced Durability: The machine features an electrophoretic primer paint process, offering excellent impact resistance and wear protection, extending the machine’s lifespan.
User-Friendly Design: Easy to operate and maintain, designed with convenience and efficiency in mind.
Dimensions

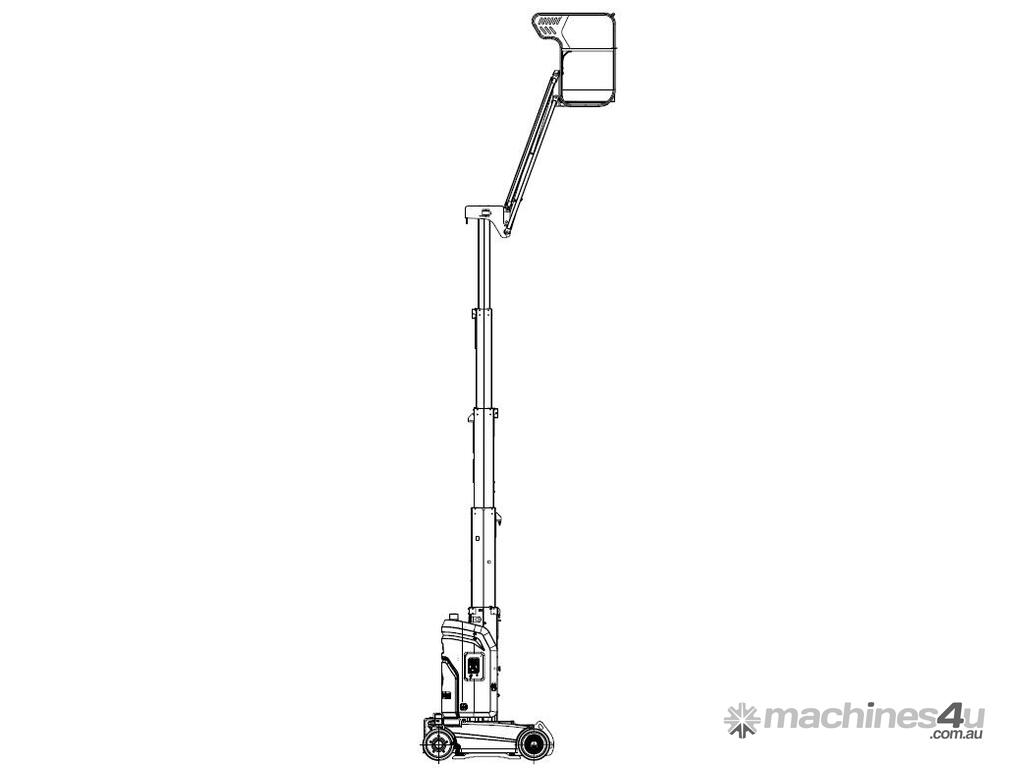

Max Platform Height: 8.3m
Max Working Height: 10.3m
Max Horizontal Reach: 3.3m
Turntable Rotation: 345°
Turntable Tailswing: Vertical jib rotation +70°/-50°

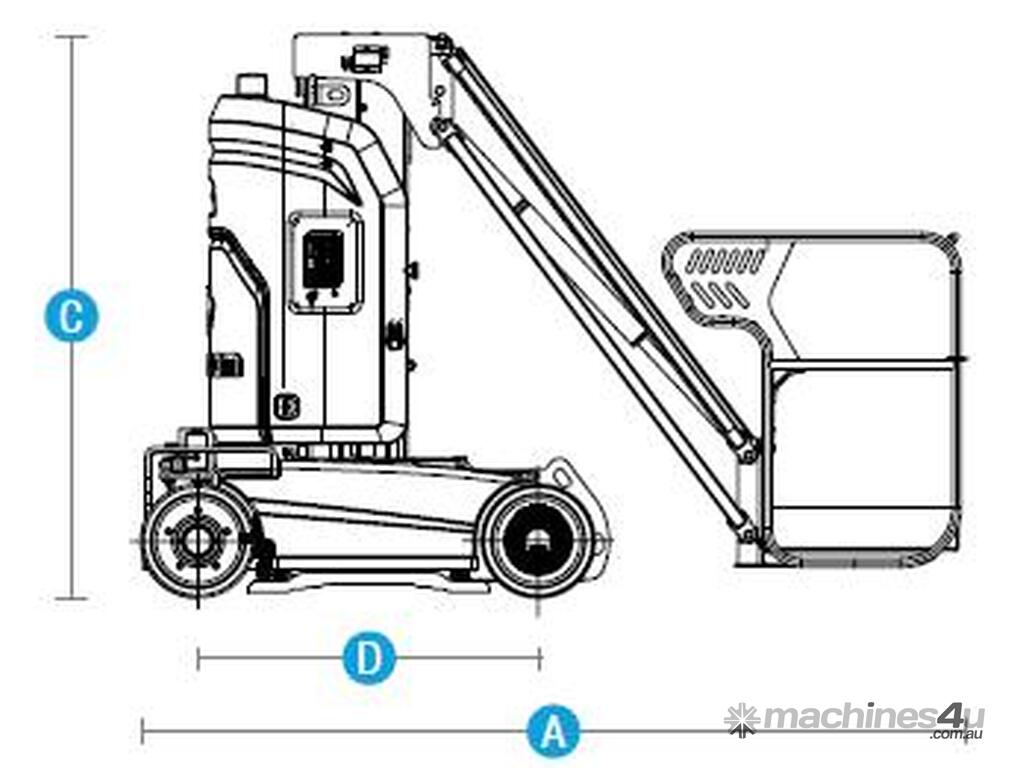

Height-Stowed: 1.99m

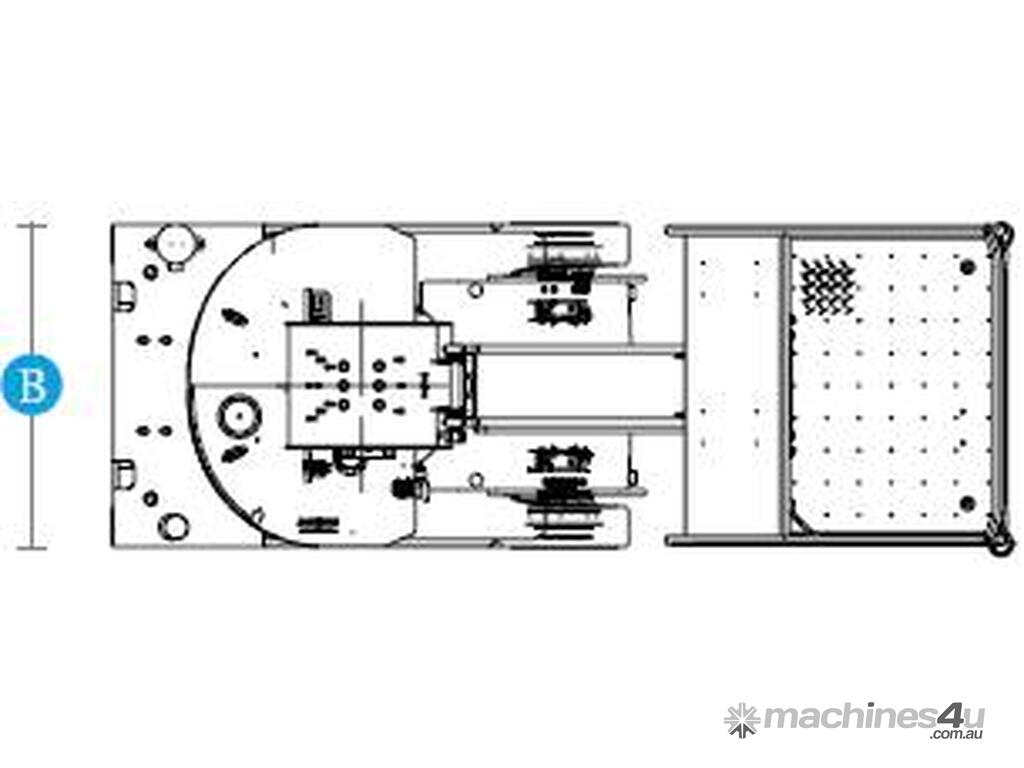

Width-Stowed: 0.99m
Length-Stowed: 2.97m
Wheelbase: 1.2m
Ground Clearance (Pothole Guard Stowed): 0.06m
Ground Clearance (Pothole Guard Deployed): 0.02m
Platform Dimensions (L×W×H): 0.99×0.7×1.1m
Performance
Platform Allowable Occupants (Indoor/Outdoor): 2 persons/1 person
Platform Capacity: 200kg
Drive Speed-Stowed: 4km/h
Drive Speed-Raised: 0.6km/h
Elevation Time: 32~36s (unloaded)
Descent Time: 32~37s (unloaded)
Gradeability: 25%
Turning Radius: Inside/Outside: 0/1.55m
Tilt Rating: Front to Back/Side to Side: 3°/3°
Tyre Spec/Type: 406×127mm
Power
Batteries: 24 V, 240 Ah
Power Source: 24V DC / 4 kW
Drive Mode: 2WD × 2WS
Charger Input: 240 V AC
Charger Output: 30A
Brake: 2 rear wheels
Hydraulic System Capacity: 13L
Weight
2,678kg
Standards Compliance: AS/NZS1418.10
The Sinoboom ML10EJ is the ideal electric vertical mast lift for contractors and workers who need efficient, reliable equipment for a wide range of tasks. Whether it’s tight spaces, high reaches, or heavy-duty use, this lift provides exceptional performance without the hefty price tag.
At Franklin Equipment, we’re proud to offer this cutting-edge lift as part of our range of premium access equipment. Our team is committed to providing you with the best solutions and outstanding customer service, ensuring you get the right equipment for your job.
Contact Franklin Equipment today for more information or to schedule a demonstration!
