Sinoboom ML10EJ Vertical Mast Lift – Compact, Agile, and Versatile for Light Construction

At Franklin Equipment, we offer the Sinoboom ML10EJ Vertical Mast Lift, a compact and highly maneuverable lift designed for light construction work and confined spaces. With a zero tail sweep, small turning radius, and the ability to pass through standard doorways, the ML10EJ is an excellent choice for projects that require flexibility and precision in tight areas.

Product Highlights

Compact Design for Tight Spaces
The ML10EJ can easily pass through most standard doors and corridors, making it ideal for indoor maintenance, construction, and other tasks that require accessing narrow or hard-to-reach places.
Zero tail sweep and zero tailswing enhance safety and maneuverability in confined environments.

Advanced Safety Features
The automatic pothole protection system ensures smooth operation on uneven surfaces by protecting the lift mechanism from potential damage.
Equipped with a secondary guarding system, overload sensing system, and tilt protection, the ML10EJ maximizes operator safety during elevated work.

Excellent Performance
The ML10EJ offers 8.3m platform height (10.3m max working height) and a 3.3m horizontal reach, providing ample reach for most indoor tasks.
With a 200kg platform capacity, the lift is suitable for 2 persons indoors or 1 person outdoors, ensuring optimal load capacity for light work.

Easy to Operate
The lift is driven by a 24V DC motor with 2WDx2WS drive mode and features proportional controls for smooth and precise operation.
The lift is also drivable at full height, offering convenience in repositioning while elevated.

Dimensions

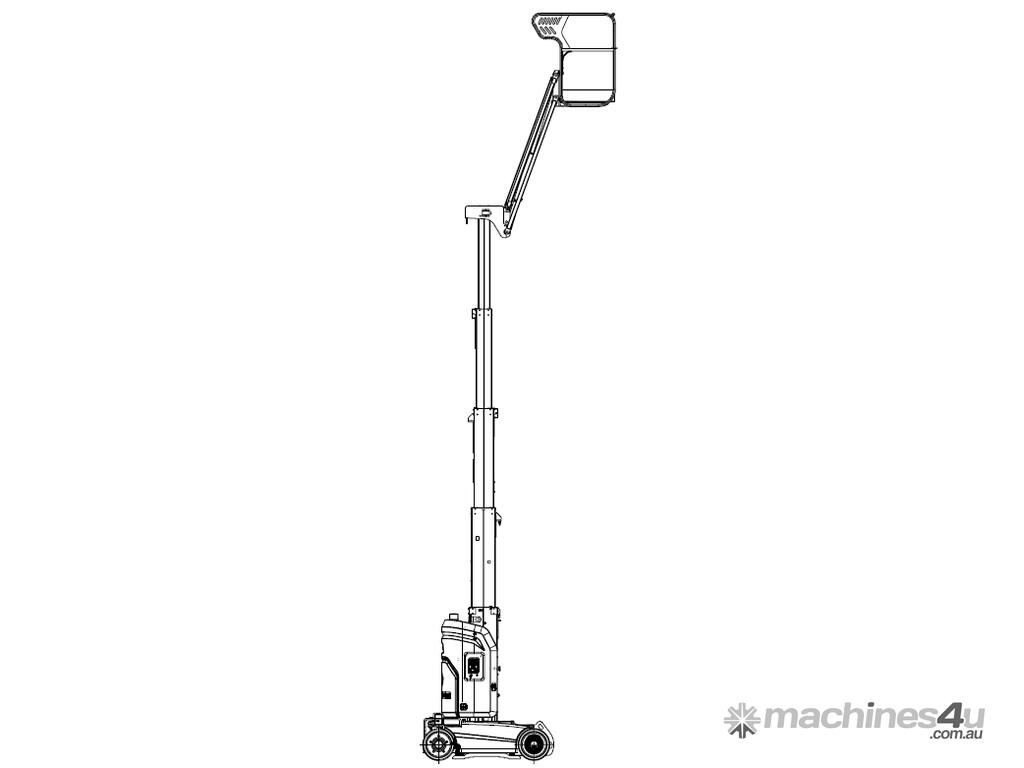

Max Platform Height: 8.3m (27'3")
Max Working Height: 10.3m (33'9.5")
Max Horizontal Reach: 3.3m
Turntable Rotation: 345°
Vertical Jib Rotation: +70° / -50°

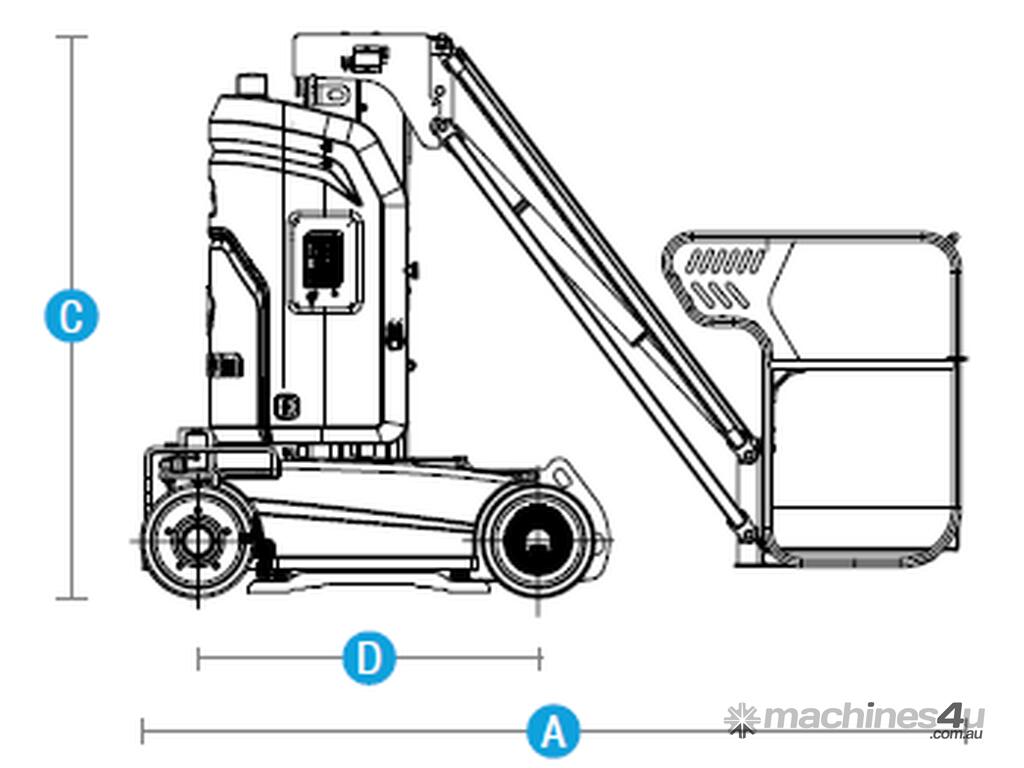

Height-Stowed: 1.99m

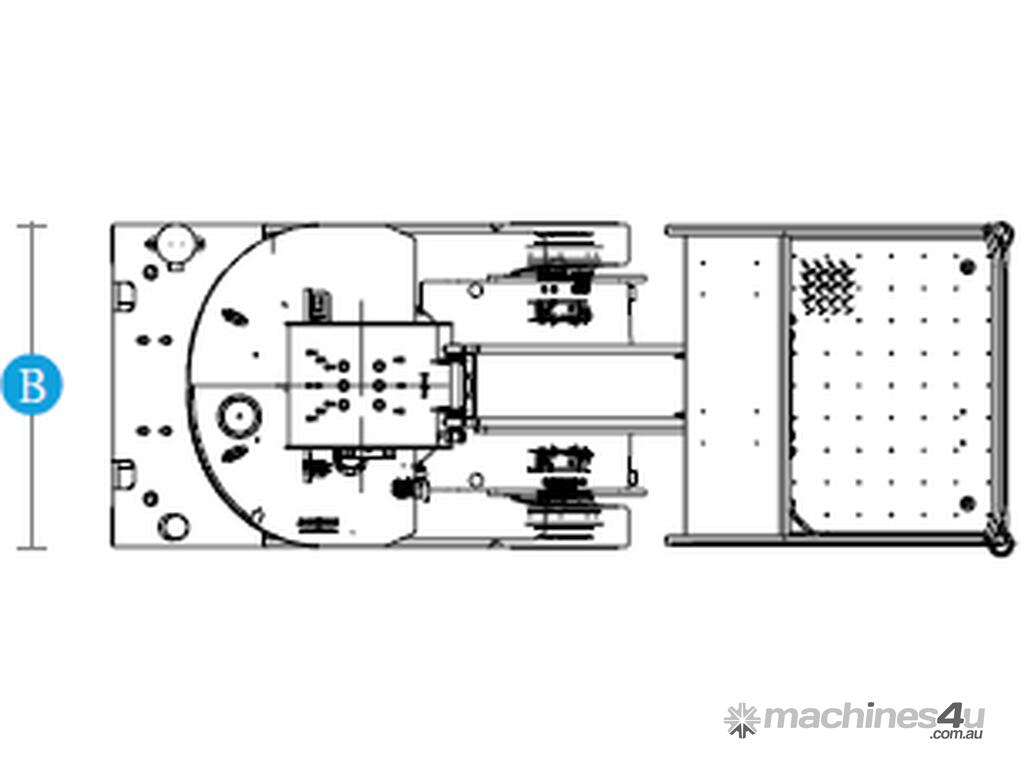

Width-Stowed: 0.99m
Wheelbase: 1.2m
Length-Stowed: 2.97m
Ground Clearance (Pothole Guard Stowed): 0.06m
Ground Clearance (Pothole Guard Deployed): 0.02m
Platform Dimensions (L×W×H): 0.99m x 0.7m x 1.1m

Performance
Platform Capacity: 200kg
Max Occupants (Indoor/Outdoor): 2 persons / 1 person
Drive Speed (Stowed): 4 km/h
Drive Speed (Raised): 0.6 km/h
Elevation Time (Unloaded): 32–36 seconds
Descent Time (Unloaded): 32–37 seconds
Gradeability: 25%
Turning Radius (Inside/Outside): 0m / 1.55m
Tilt Rating (Front to Back): 3°
Tilt Rating (Side to Side): 3°
Tire Type: 406x127mm (Non-marking)

Power and Weight
Batteries: 24V, 240 Ah
Power Source: 24V DC / 4 kW
Drive Mode: 2WDx2WS
Charger Input: 100–240V AC
Charger Output: 30A
Hydraulic System Capacity: 13L
Weight: 2,678kg
Standards Compliance: AS/NZS1418

Standard Features
2WDx2WS drive system for easy maneuverability
Non-marking tires for safe indoor use
Proportional control for smooth and responsive operation
Emergency stop for added safety
Tilt protection system and overload sensing system for reliable operation
Zero inside turning radius for easy movement in tight spaces
Automatic pothole protection for a smoother ride on uneven surfaces
Drivable at full height for added convenience
Bumper rails to protect the lift and surroundings
Auto braking system for enhanced safety during operation
Secondary guarding system to prevent accidental operator exposure
Telematics-ready connector for remote diagnostics
White noise alarm for safe operation in busy environments

Optional Features
AC Power to Platform for additional power needs
Harness Tube for operator safety
Wheel Nut Indicator to ensure safe tire attachment
Fire Extinguisher for workplace safety
Full Mine Spec for specialized applications

Applications
Indoor Construction
Maintenance and Installation
Retail and Warehouse Operations
Facility Management
Light Construction Work
Events and Venue Setup

The Sinoboom ML10EJ Vertical Mast Lift is the perfect solution for light construction and maintenance work in tight spaces. Its compact design, ease of maneuverability, and advanced safety features make it an essential tool for indoor applications, ensuring you get the job done efficiently and safely.

Contact Franklin Equipment today for more details or to request a quote!
