Sinoboom TB28J Diesel Telescopic Boom Lift – High-Reach, Powerful, and Versatile for Demanding Work

The Sinoboom TB28J Diesel Telescopic Boom Lift is built for high performance, offering rugged reliability and precision in tough work environments. Designed for construction, industrial, and maintenance applications, this self-propelled telescopic boom lift excels in demanding conditions, providing operators with an adaptable, safe, and efficient solution for working at height.

Key Features

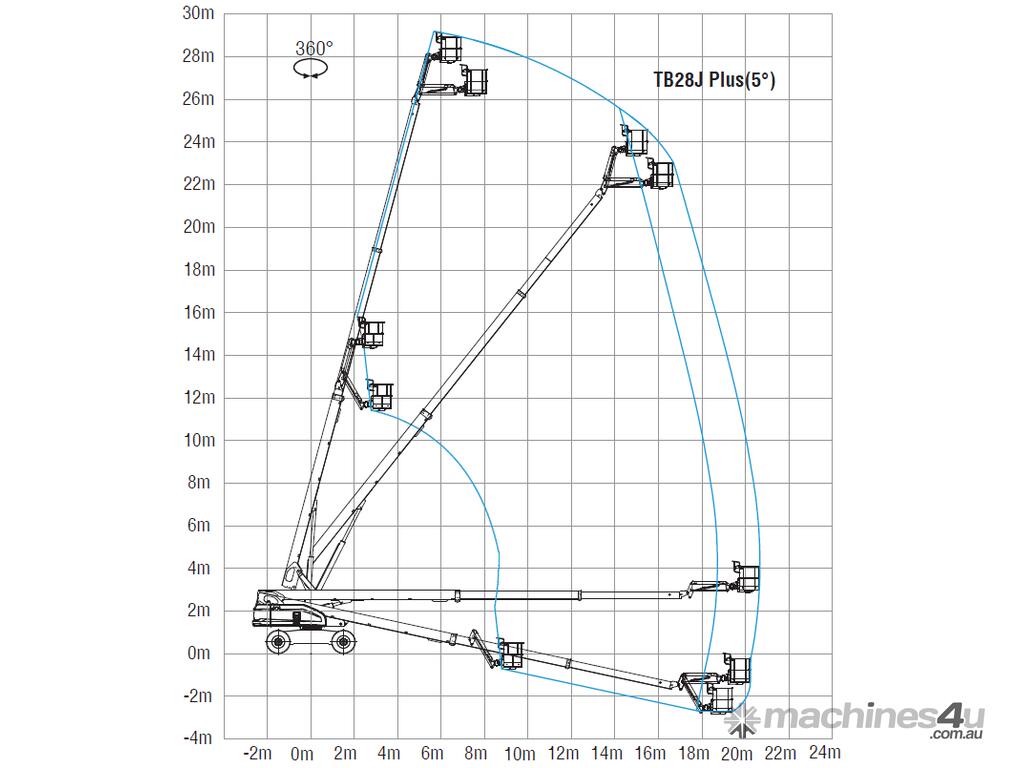

Impressive Reach & Flexibility
Max Working Height: 29.6m (97'1")
Max Platform Height: 27.6m (90'7")
Max Horizontal Extension: 18m (Restricted) / 19.9m (Unrestricted)
The TB28J offers exceptional reach with a 360° continuous turntable rotation and 160° platform rotation, enabling precise and flexible positioning at height. The 45% gradeability allows the lift to tackle challenging terrain, reducing the risk of wheel slippage while maintaining stability on inclines and uneven surfaces.

High Capacity for Operators & Equipment
This model is engineered to handle heavy loads, accommodating up to 3 operators plus tools and materials, with a platform capacity of 454kg (restricted) and 300kg (unrestricted). Its large load capacity ensures that all necessary equipment can be transported safely to the job site.

Precision Control for Smooth Operation
Equipped with an upper control box featuring 3 full-proportional joysticks, the TB28J provides smooth, gradual control over lifting, telescoping, turntable rotation, and driving speed. This ensures precision in every movement, enabling operators to approach their worksite target with ease.

Enhanced Safety Features
Safety is paramount, with active oscillating axle functionality for stability on uneven ground. The 7-inch display screen offers real-time fault and status information, simplifying maintenance and enhancing operational efficiency. The unit also includes a secondary guarding system, non-marking tires, and a hydraulic platform leveling system to ensure operator safety at all times.

Efficient Diesel Power
The TB28J is powered by a 54 kW Cummins engine, providing strong performance for demanding tasks. With a diesel fuel tank capacity of 140L, this model is capable of long working hours, while the 12V DC auxiliary power unit ensures consistent operation.

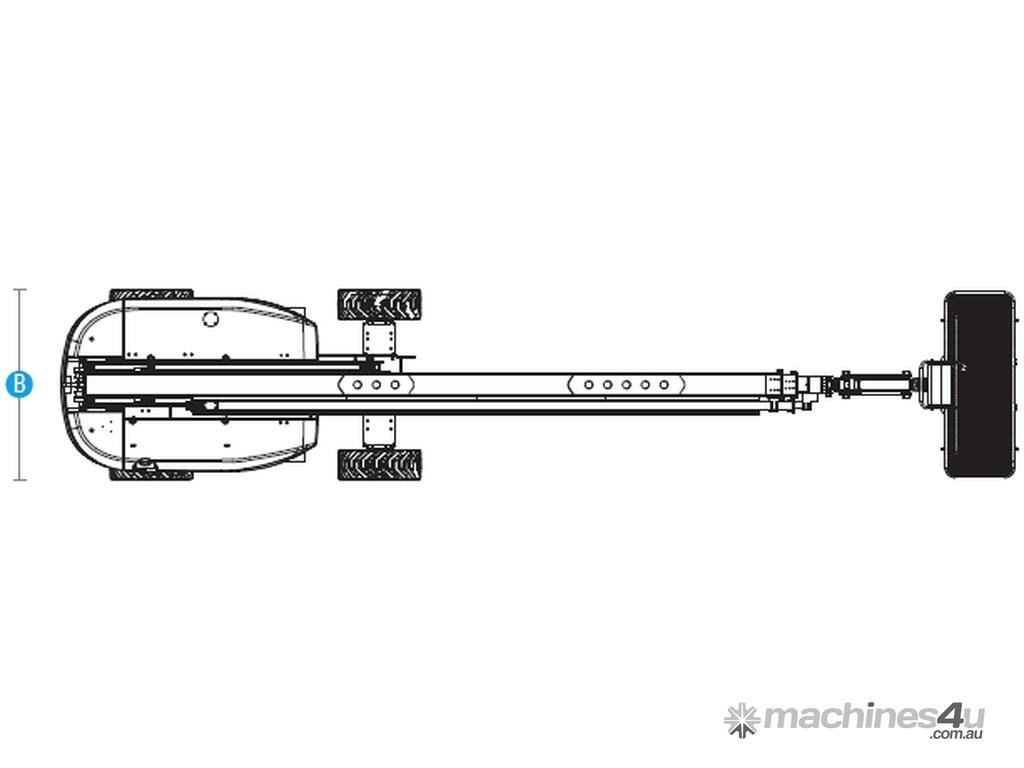

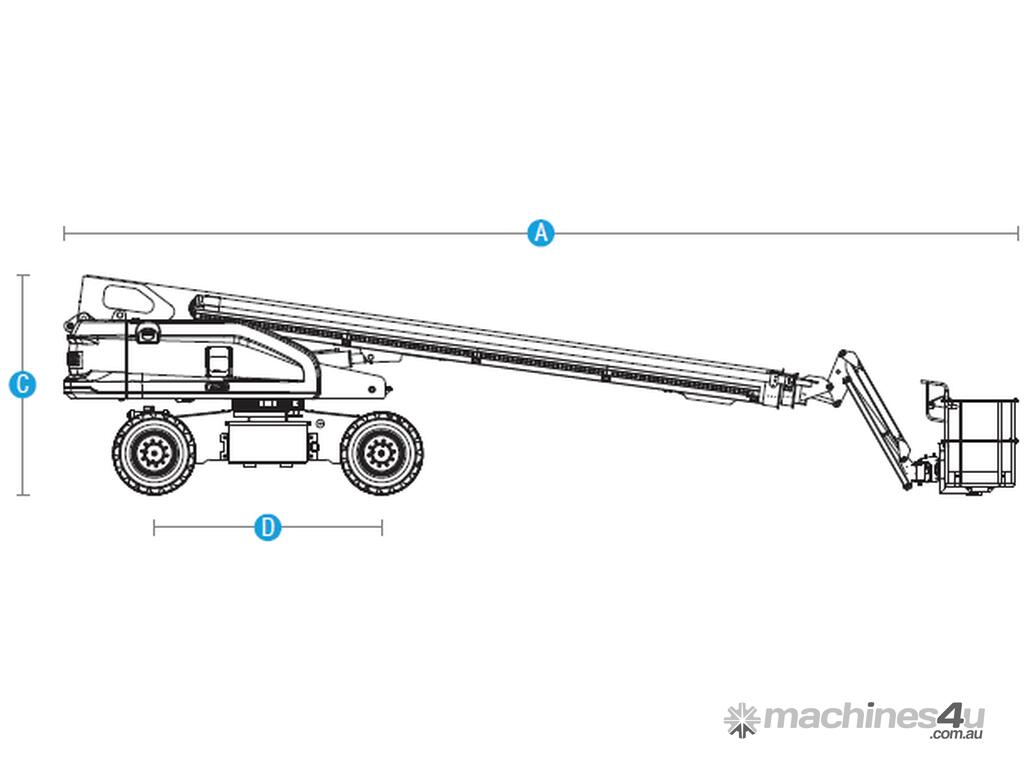

Dimensions
Max Platform Height: 27.6m (90'7")
Max Working Height: 29.6m (97'1")
Max Horizontal Extension: 18m (Restricted) / 19.9m (Unrestricted)
Length-Stowed: 12.5m
Width: 2.49m
Height-Stowed: 2.88m
Wheelbase: 3m
Ground Clearance: 0.46m
Platform Dimensions (LxWxH): 2.44m x 0.91m x 1.1m

Performance
Platform Capacity (Unrestricted): 300kg
Platform Capacity (Restricted): 454kg
Turntable Rotation: 360° continuous
Platform Rotation: 160°
Drive Speed-Stowed: 4.8 km/h
Drive Speed-Raised: 0.8 km/h
Gradeability: 45%
Turning Radius (Inside): 3.65m
Turning Radius (Outside): 6.91m
Turntable Tailswing: 1.45m
Tilt Rating: 5°
Max Operating Noise Level: Quiet operation

Power
Power Source (Optional): 54 kW/2400 rpm Cummins engine
Auxiliary Power Unit: 12V DC
Fuel Tank Capacity: 140L
Hydraulic Tank Capacity: 180L
Weight: 17,000kg

Standard Features
Active oscillating axle for stable operation on inclines
7-inch display screen for easy monitoring and diagnostics
4WD x 2WS for off-road capability
Proportional control with 3 joysticks for precise operation
Hydraulic platform leveling for maintaining balance on uneven ground
Non-marking tires for surface protection
Secondary guarding system for added safety
Half mesh platform for secure working conditions
Telematics-ready connector for real-time fleet management
White noise alarm for increased awareness on job sites
Lockable battery isolator for added security

Optional Features
AC power to platform for additional electrical tools
Generator for independent power supply

Applications
Construction & Building Maintenance
Shipbuilding & Industrial Applications
Steel Structures & Large-Scale Projects
Urban Infrastructure & Utilities
Petrochemical & Chemical Industry Projects
Landscaping & Garden Maintenance
Airport & Harbor Operations

The Sinoboom TB28J Diesel Telescopic Boom Lift is engineered to meet the demands of high-reach operations in challenging environments. Offering an impressive working height, high load capacity, and advanced safety features, this model provides unparalleled performance and reliability for construction, industrial, and maintenance tasks.

Contact Franklin Equipment today for more information or to schedule a demo.
