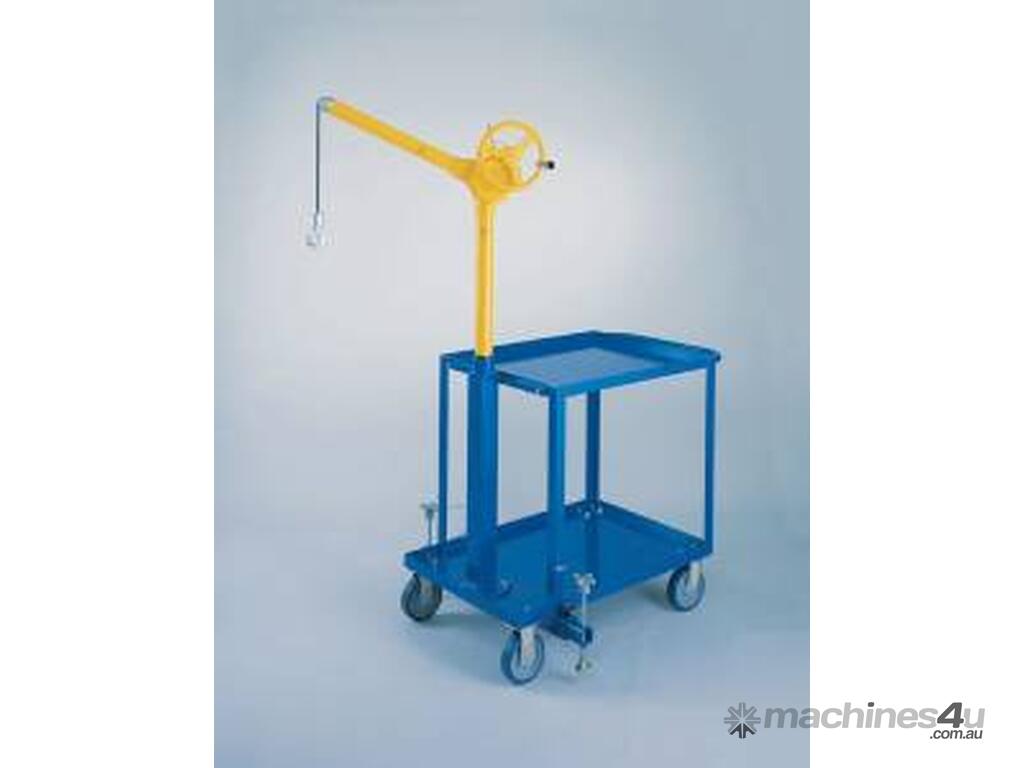

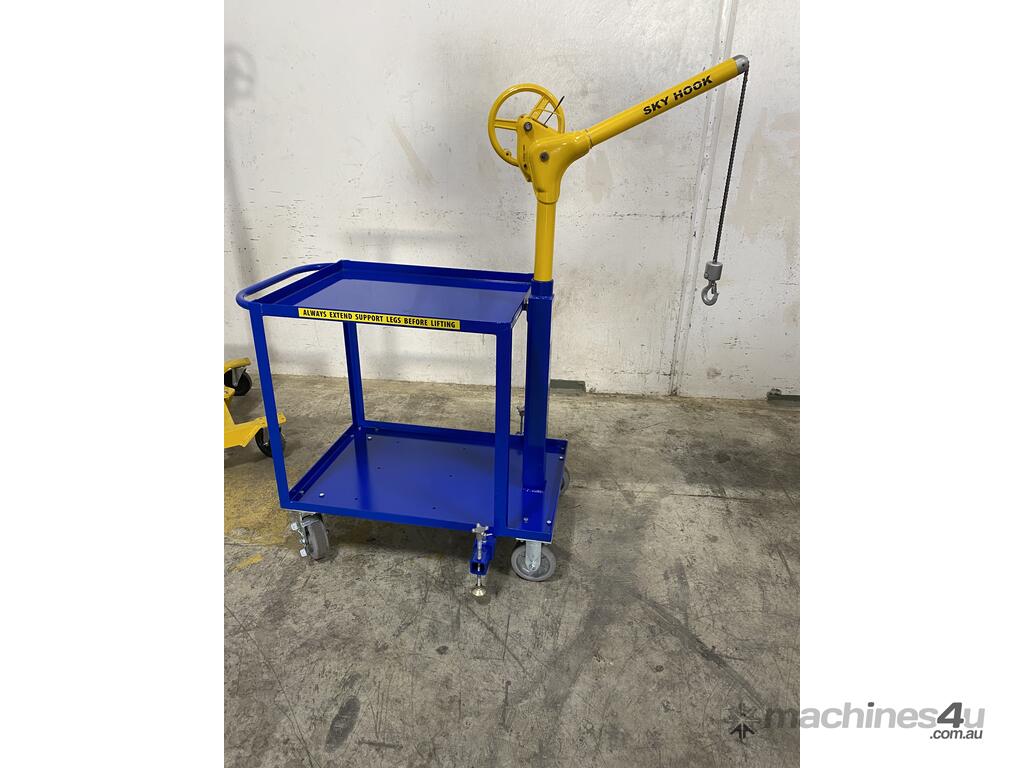

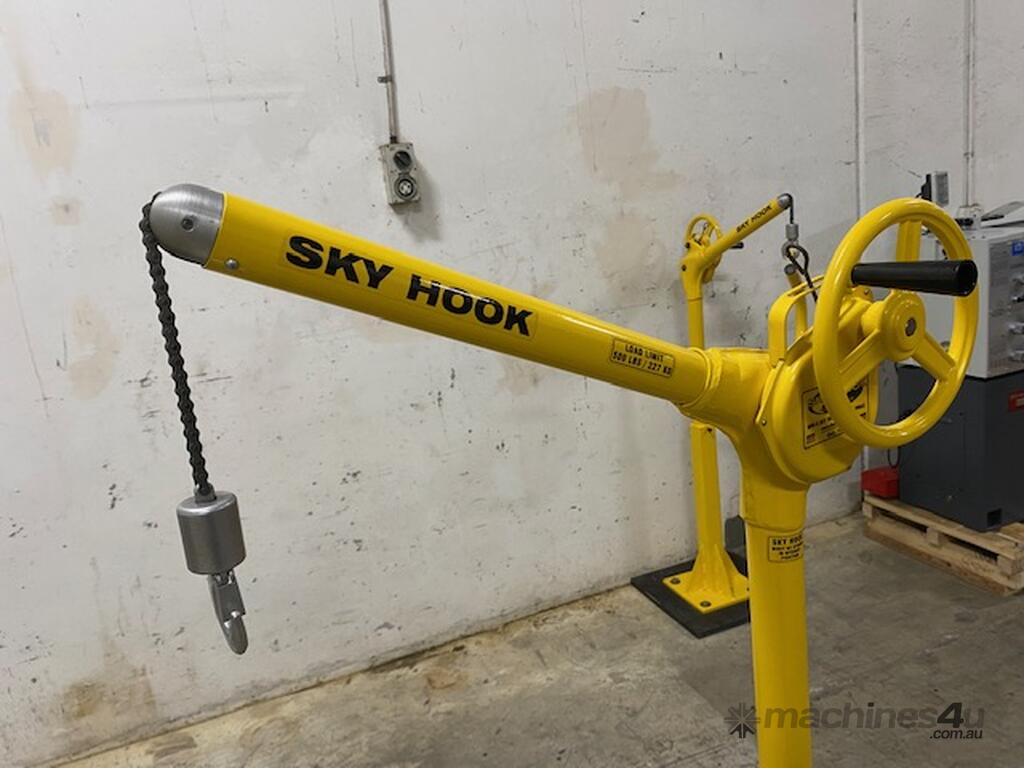

Sky hook Lifting Crane with Mobile Cart

Features and Benefits
Prevents lifting injuries
No Need for a Forklift licence
Bases to fit most quick change tool holders
Uses one hand operation that does the work of four people
Safely lifts and positions up to 500 lbs. with one person
Pivots 360°
Designed for precision positioning
Operates in tight working conditions
Constructed of high strength steel
Is totally maintenance free

Specifications

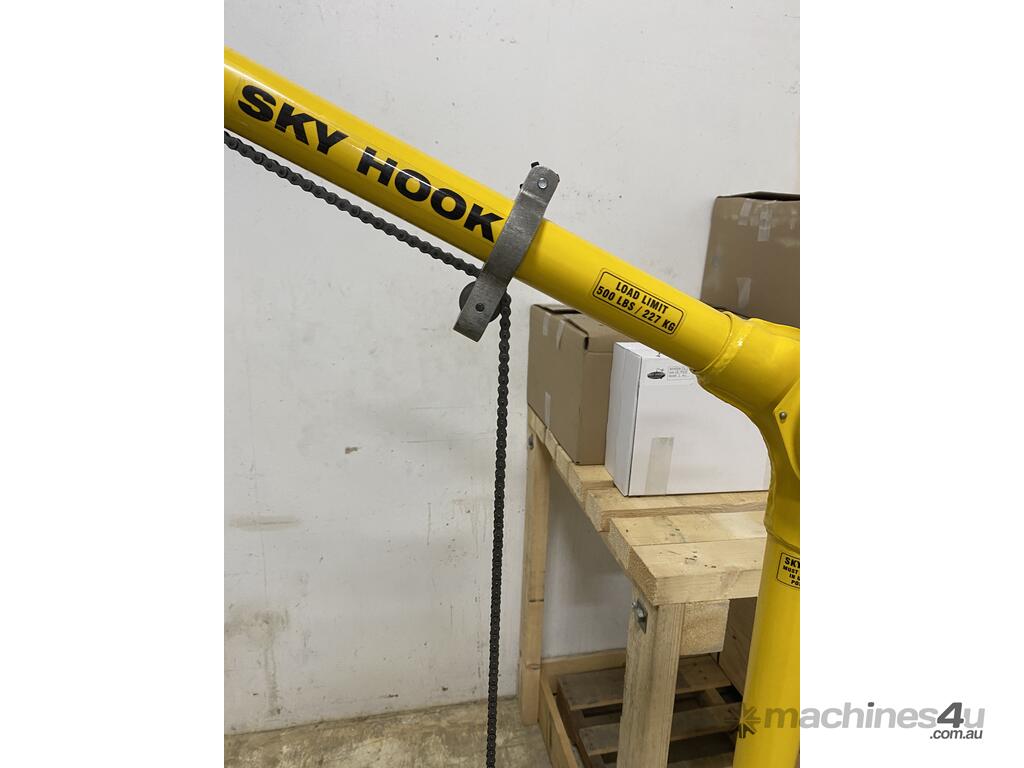

Load limit 500 lbs. / 227 kg.
Brake style: Lever Operated Friction Brake
Overall height (including base): 71.6”
Overall reach (center of hook to center of vertical tube): 21.3”
Sky Hook rotation in base: 360° (under load with support legs extended)
Sky Hook weight: 26 lbs.
Base weight: 128 lbs.

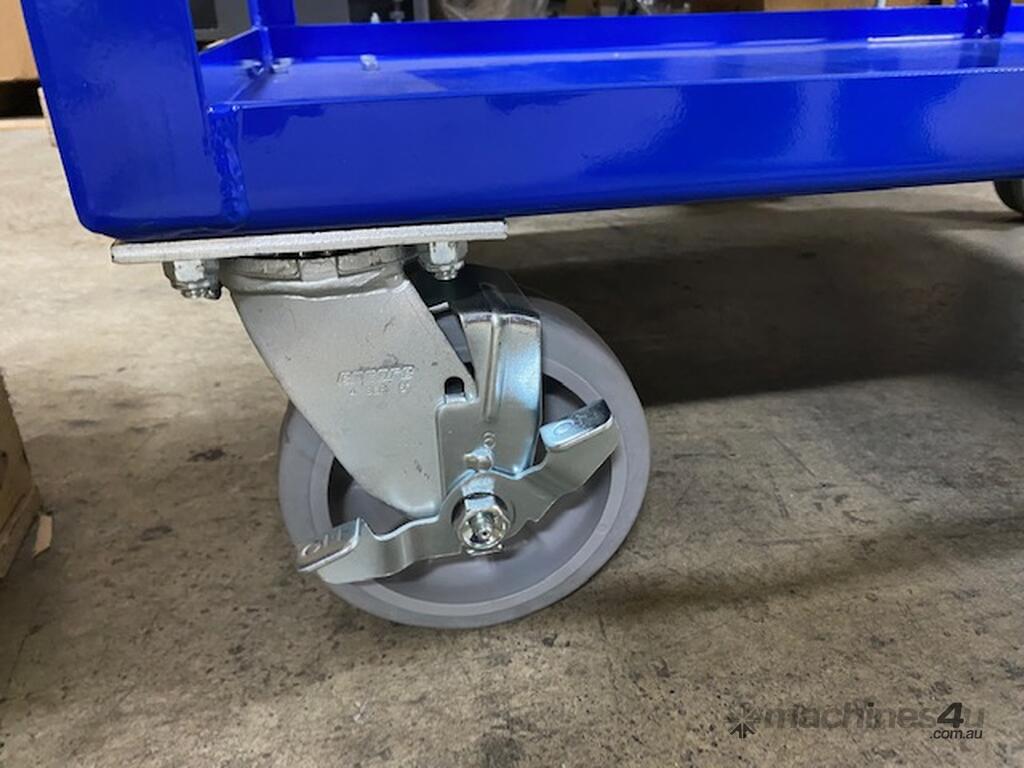

6" x 2” polyolefin casters (2-swivel w/ brakes, 2-rigid)

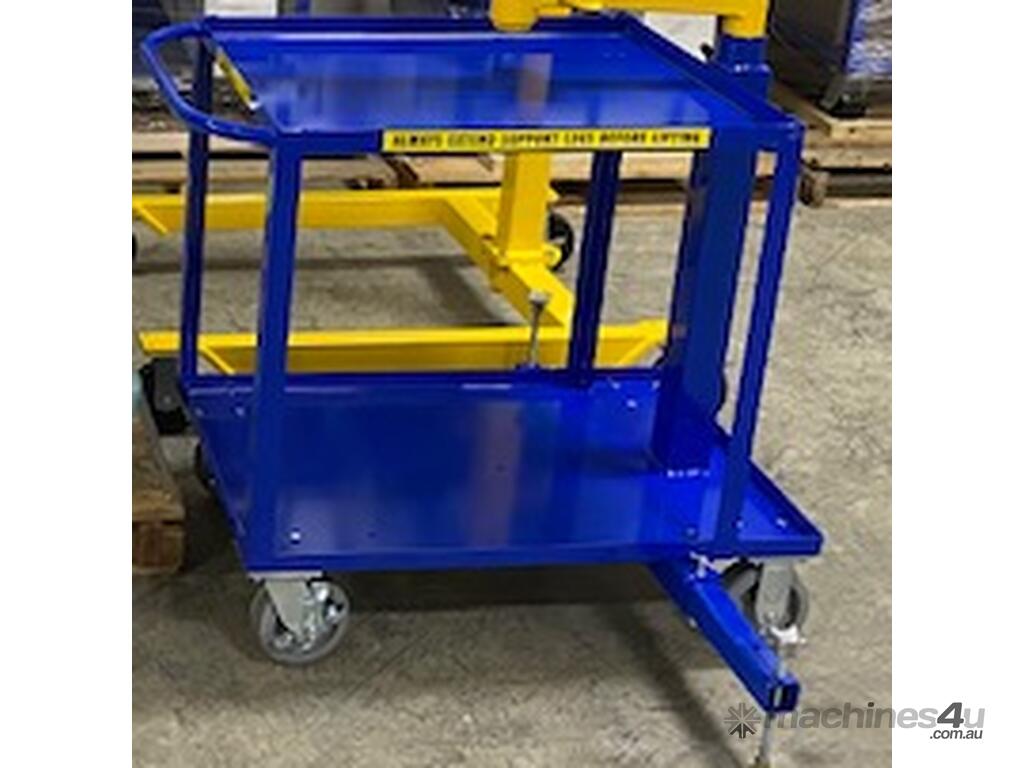

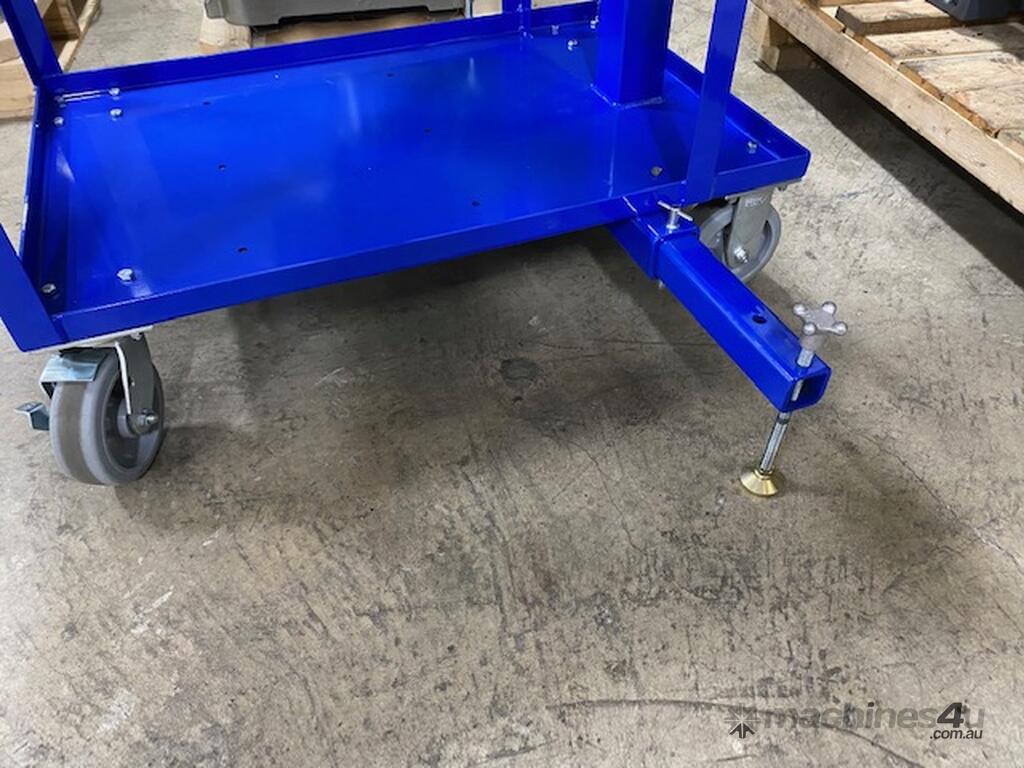

33.1" overall cart width with support legs retracted
Controlled lowering of the load by pulling back on the friction brake lever while applying a slight amount of pressure to the hand wheel with the palm of your hand
Brake automatically locks when hand is removed from brake lever
Custom modifications available

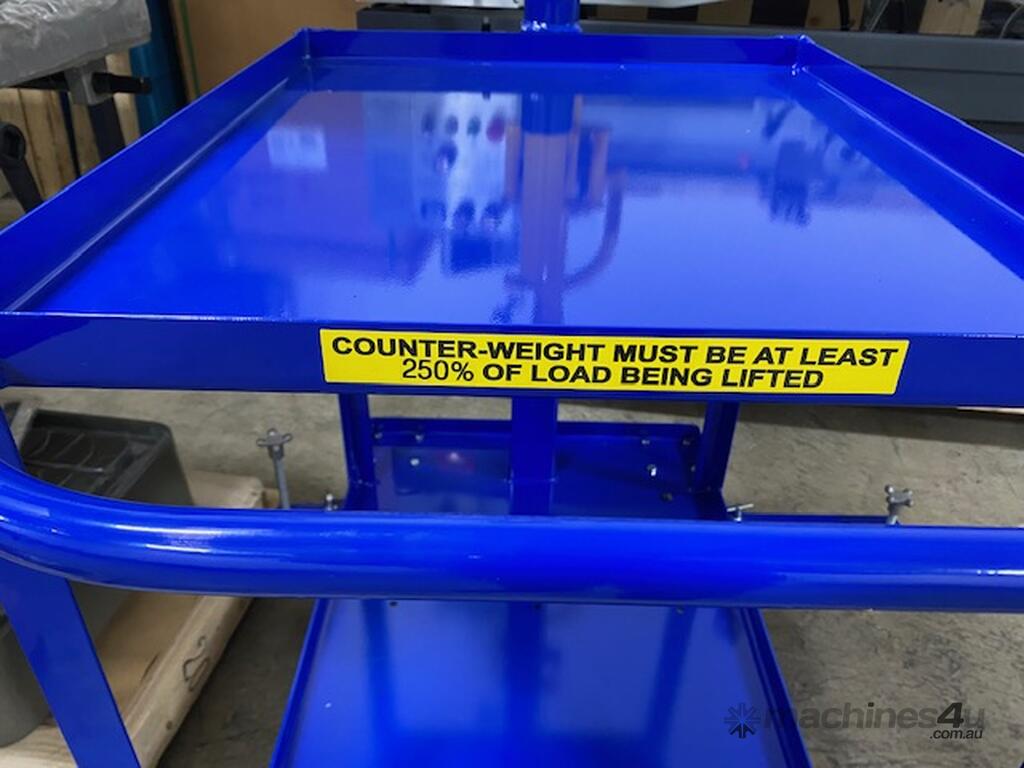

Counterweight Required!

Benefits to users
Reaches easily into machine without legs beneath load
Prevents lifting injuries
Uses one hand operation that does the work of four people
Safely lifts and positions up to 500 lbs. with one person
Designed for precision positioning
Lifts, transports, and stores machine accessories, material, or heavy awkward items.
Designed to fit a 3-foot standard aisle and tight, hard to reach areas
Use on CNC equipment and all other general lifting requirements
Economical brake style while allowing safe and controlled lifting up to 500 lbs.
6" x 2” polyolefin casters allows for easy, precise movement
Heavy duty 12ga. steel top shelf with angle posts for maximum strength
Constructed of high strength steel
Maintenance free
Limited manufacturer’s warranty
Meets applicable O.S.H.A. & ASME requirements
Made in the U.S.A. since 1969
