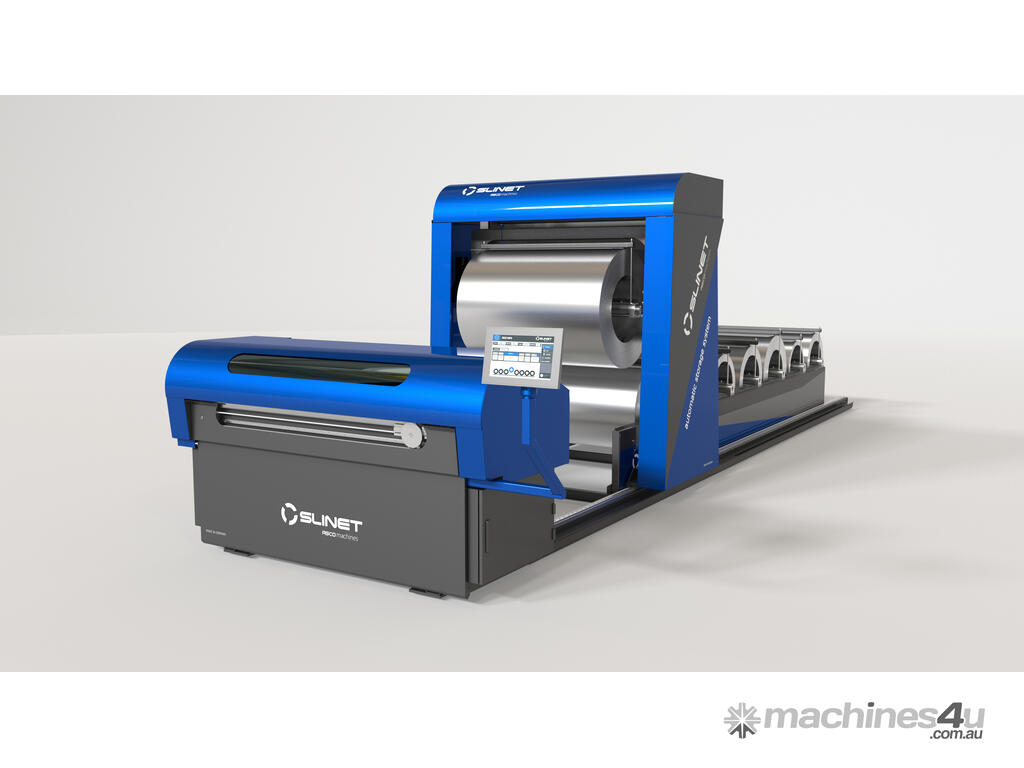

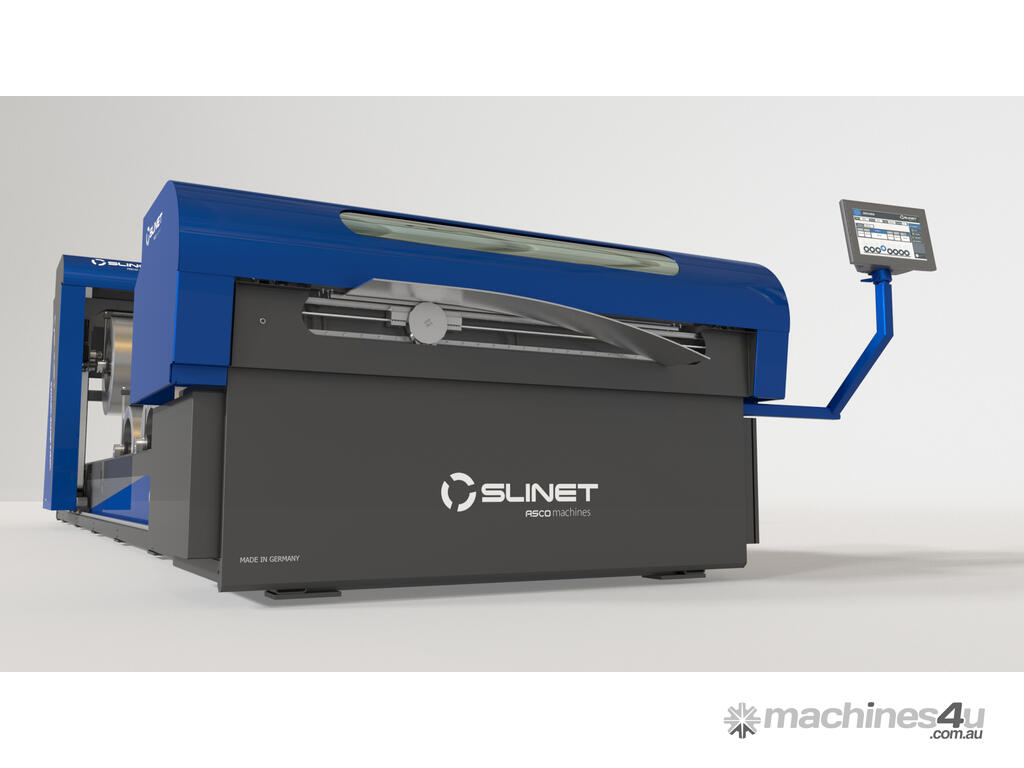

Slinet S 1.5 Slitting Line with 2 Ton coil storage system

Ex Stock Melbourne

Made in Germany

Includes:

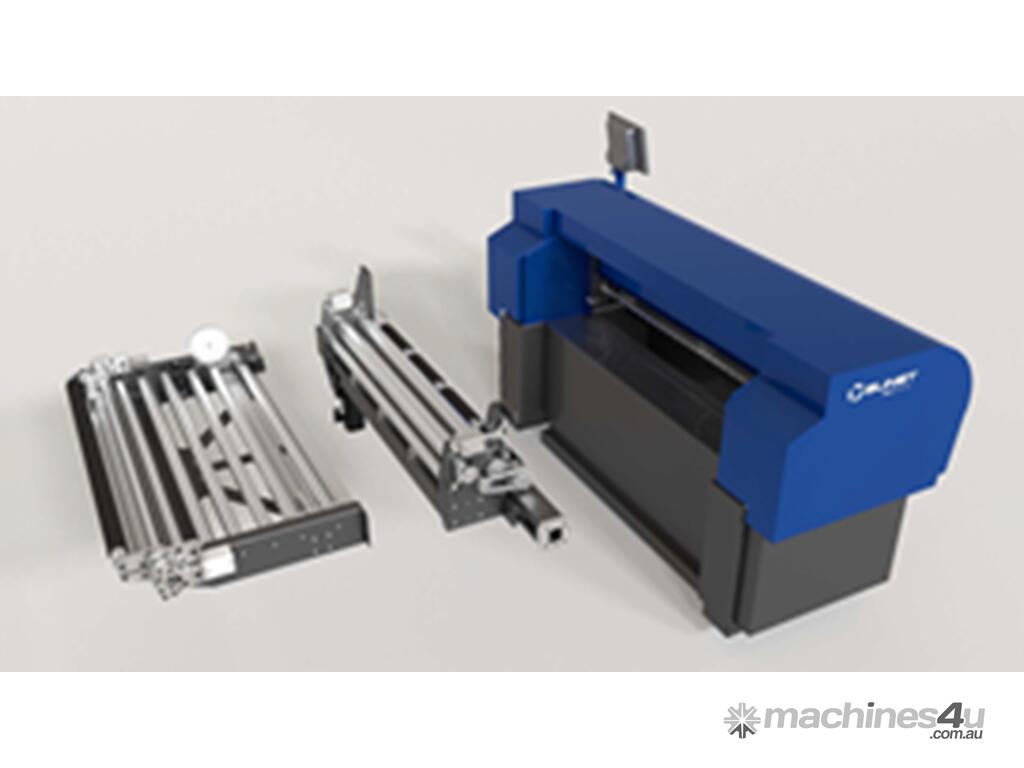

Straightening Unit with 4 rolls
Slitting knife pairs (3 Pieces) 8 knives fitted in total.

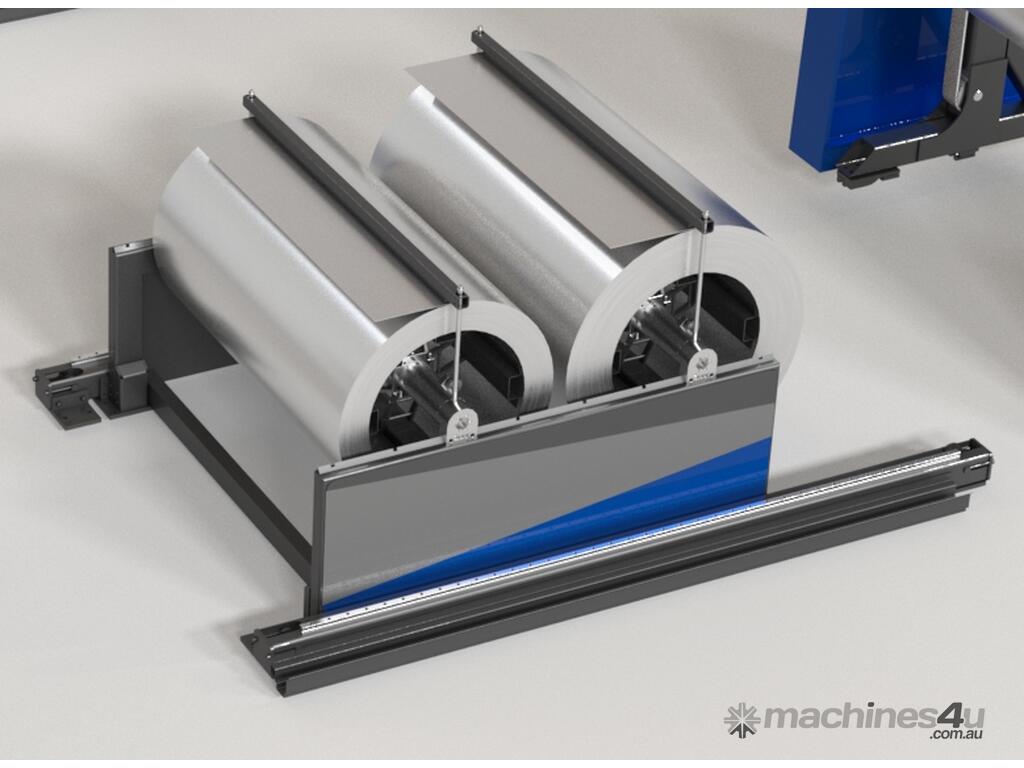

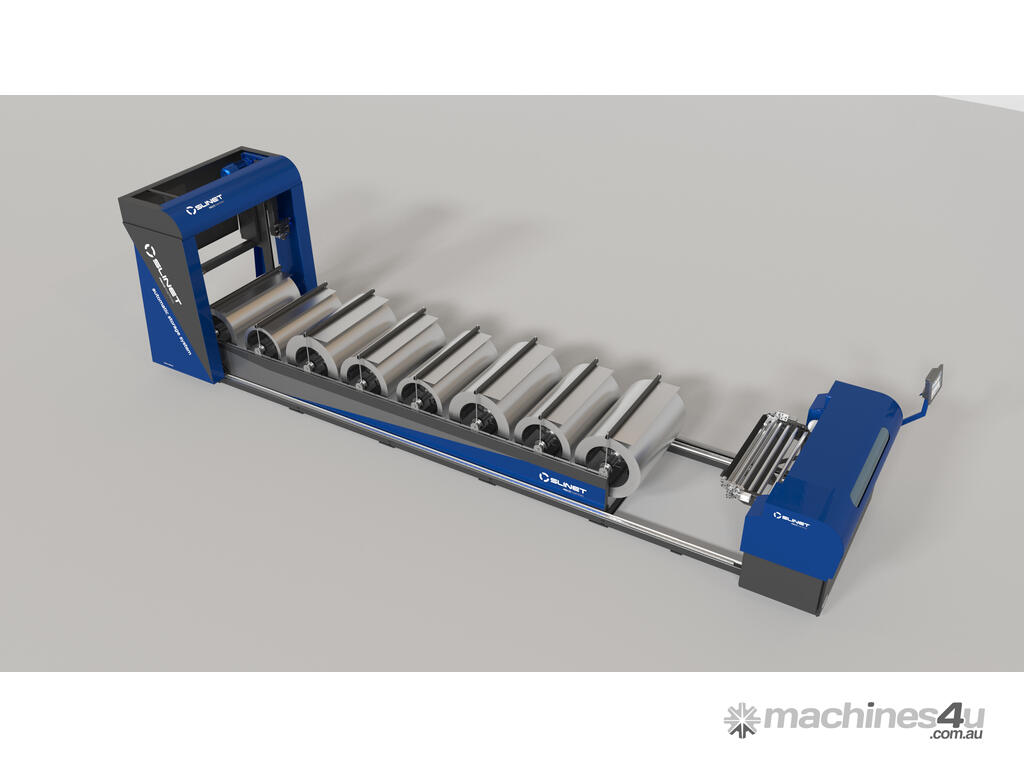

Coil storage system up to 2 To. incl. coil lifter and 4 axes

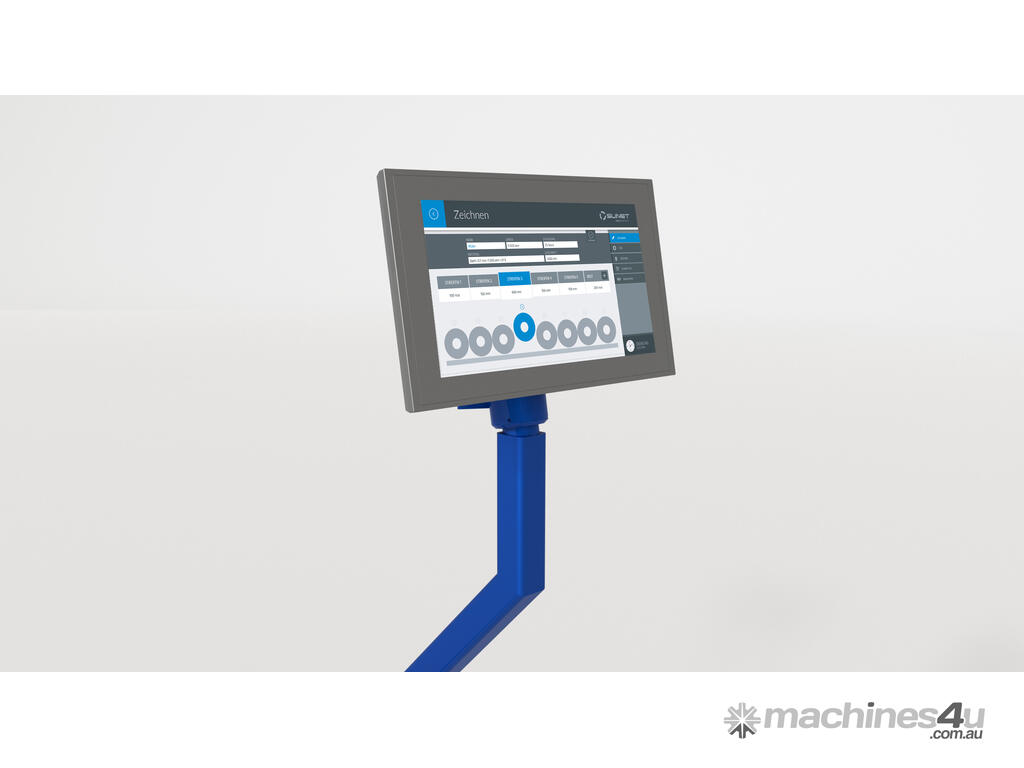

Partial Cut software
Label Printer

Additional Coil axis & Coil storage extension base frame without axis for two additional coil zones / 2 Ton available at an extra cost

Automated knife adjustment

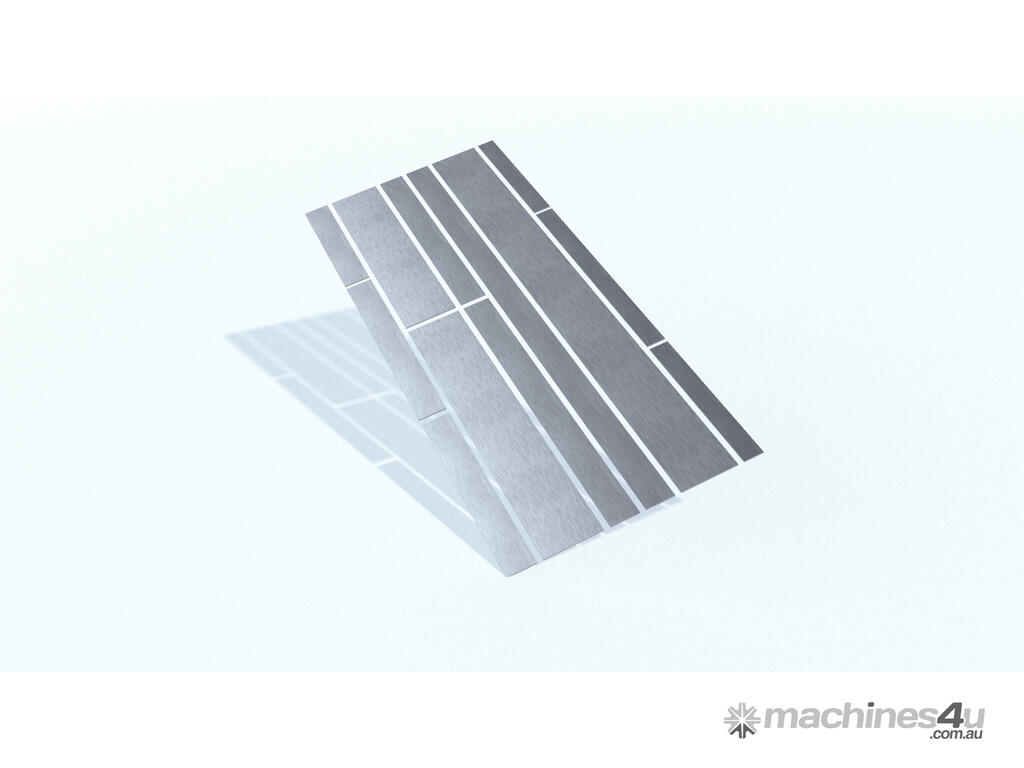

With it is up to 8 knife automated knife adjustment the production of
blanks for profiles and flashings can be made fast and easy without
manual knife adjustment.
Cross cut
The cross cut is made by a roll knife. This cut will not be made from the
top as usual. The industry innovation of SLINET allows the cross cut from
bottom up. This innovation eliminates scratches which occurs during
material handling as the small grade goes up not down.

ASCO GmbH Raiffeisenbank Rupertiwinkel
Technical information:
Max. width: 1.250 mm
Cutting capacity: 0,4 - 1,50 mm
Steel 400 N/mm² 0,4 - 1,0 mm
Stainless Steel 550 N/mm² 0,4 - 1,0 mm
Alu 190 N/mm² / Kupfer 0,5 - 2,00 mm
Smallest cut: 60 mm
Cutting precision: DIN/ISO 2768 (± 0,8 mm/m)
Overlap adjustment: DIN/ISO 2768 (± 0,8 mm/m)
Slitting: 0 - 0,75 mm
Cross cut: Made by 5 roll knifes
Electrical: 3 PH 400-480V AC/PE
Air pressure: 100 Liter/min , 6 Bar
Dimensions L x B x H: 2000 x 2300 x 1500 mm
