Small Parts, Grinding, Welding Fume, Extraction System, Includes Anti-Spark Arrestor,

Name: Small Parts Grinding Welding Fume Extraction System Includes Anti-Spark Arrestor
Brand: steelmaster
SKU: 21-0807
Price: 10850 AUD
Availability: InStock

DANDENONG SOUTH, VIC - Delivers Nationally

Play Video

$10,850 AUD($11,935 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$37.79
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Exhaust Fume Extraction

Make:

STEELMASTER

Model:

MODEL: SM-SHF-30

No. in Stock

Year:

2024

Member Since: Oct 2007

Platinum Member

Listings: 367

Electrical Phase:

Three Phase

Number of Filters:

Sellers stock ID:

21-0807

Description

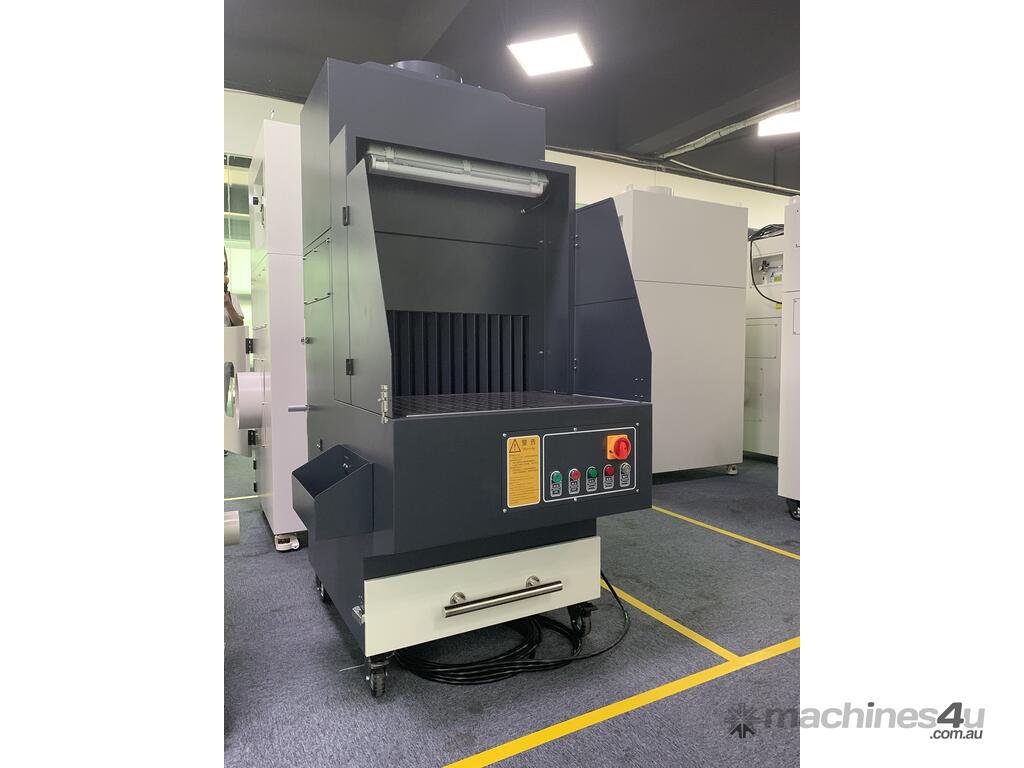

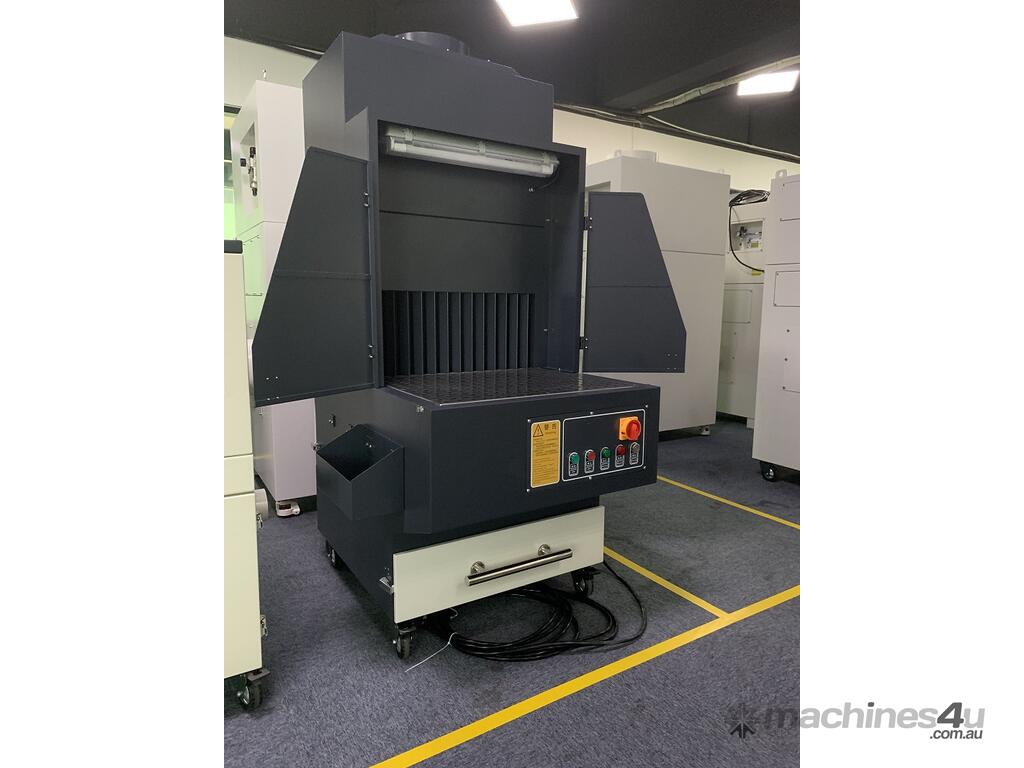

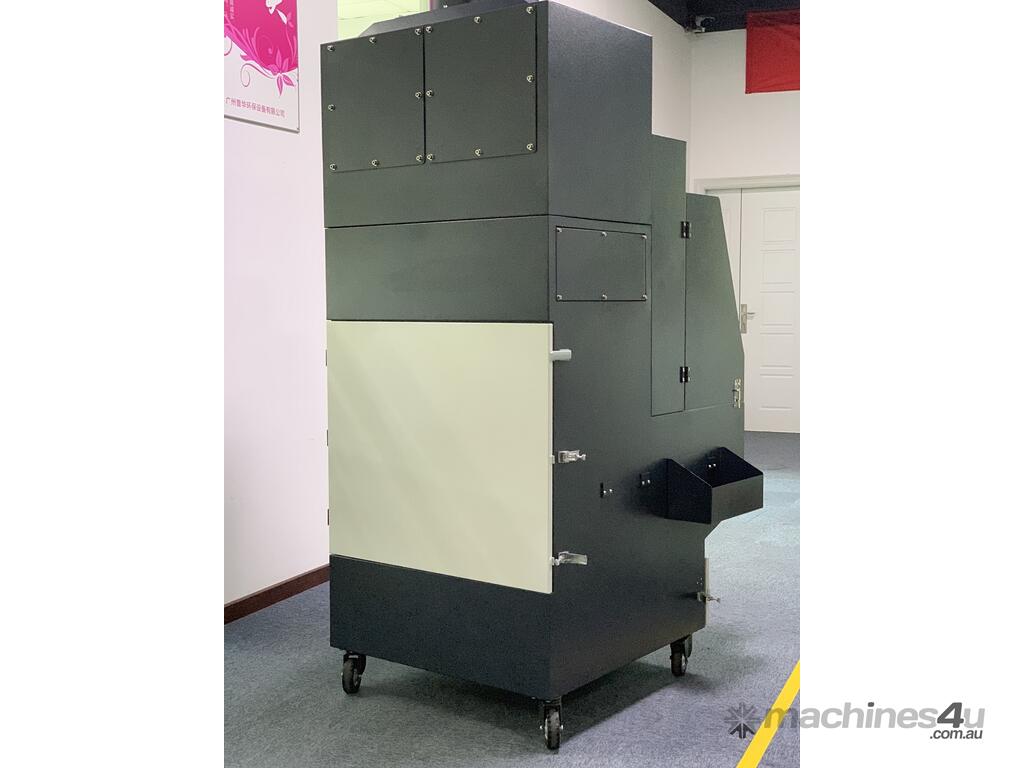

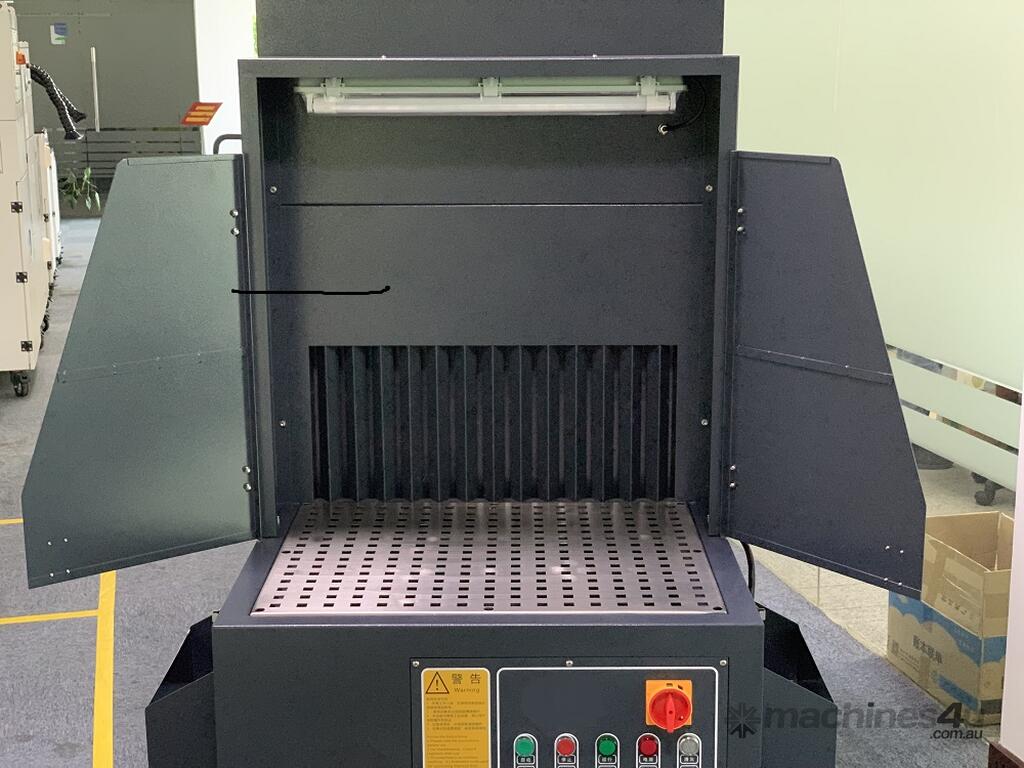

CLEARMASTER SM-SHF-30 Parts Spark, Fume, Extraction System, 3600m/Hr. Anti-Spark Arrestor,
Perforated Table With Waste Trap, Vertical Coated Cartridge Filters, Pulse Auto Cleaning, 3Kw Volt
Description:

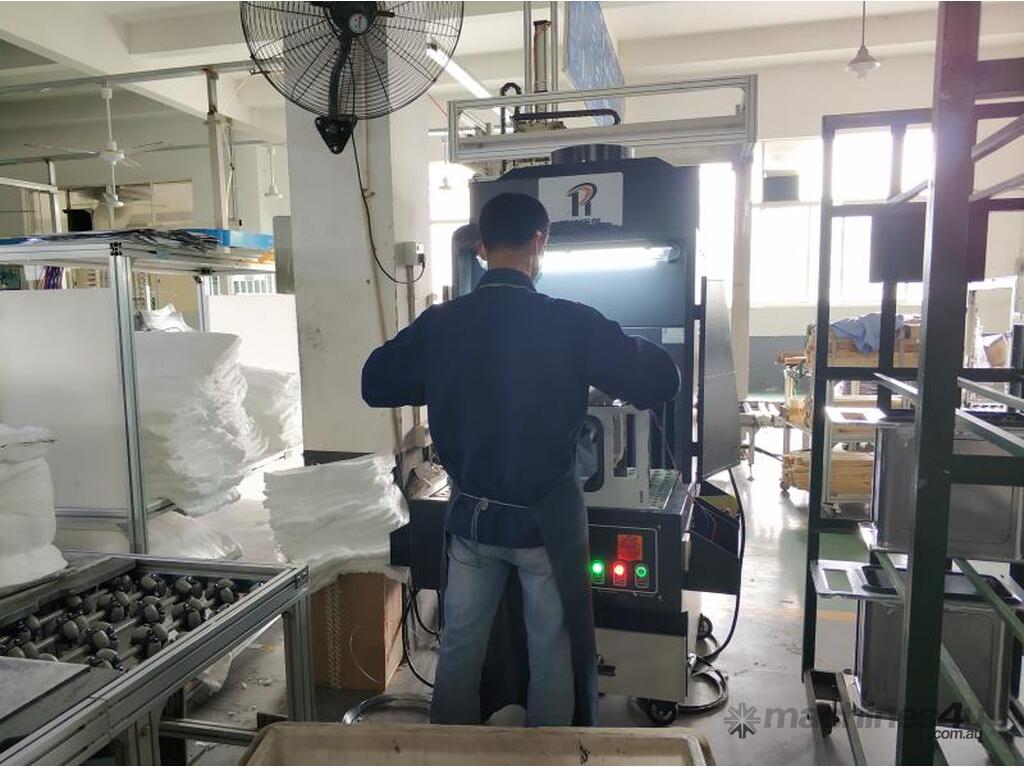

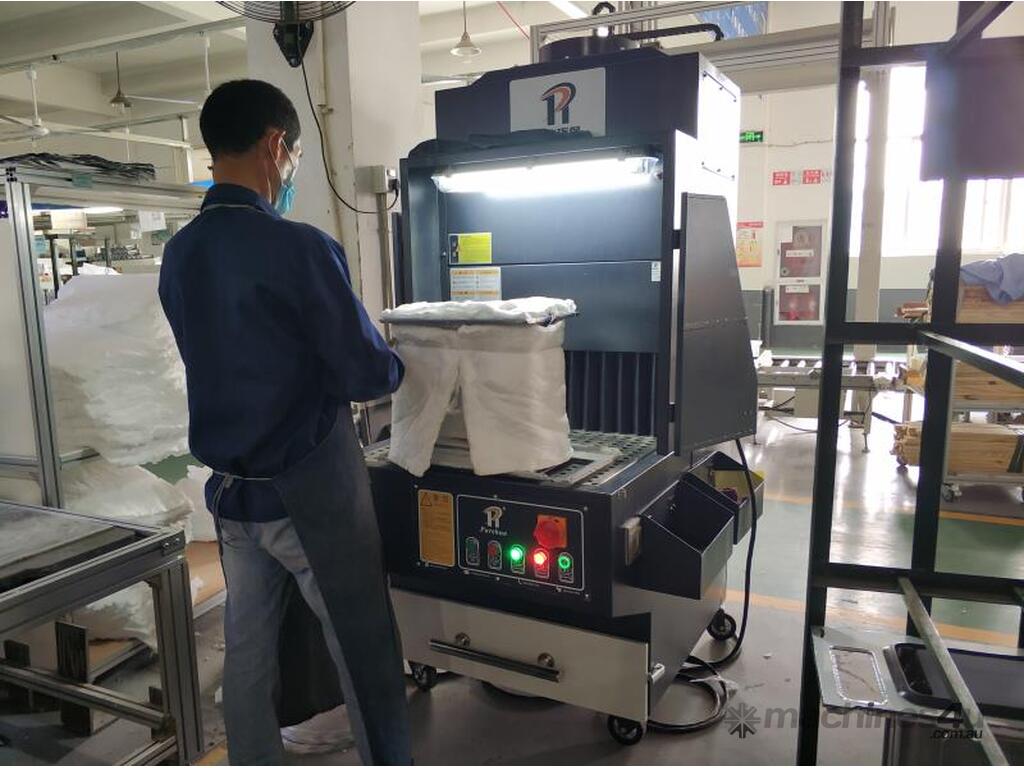

A workplace must for all small parts grinding, polishing, welding, reworking both metal and non-metal parts
Simply power up and connect your ducting for a cleaner, safer workplace.

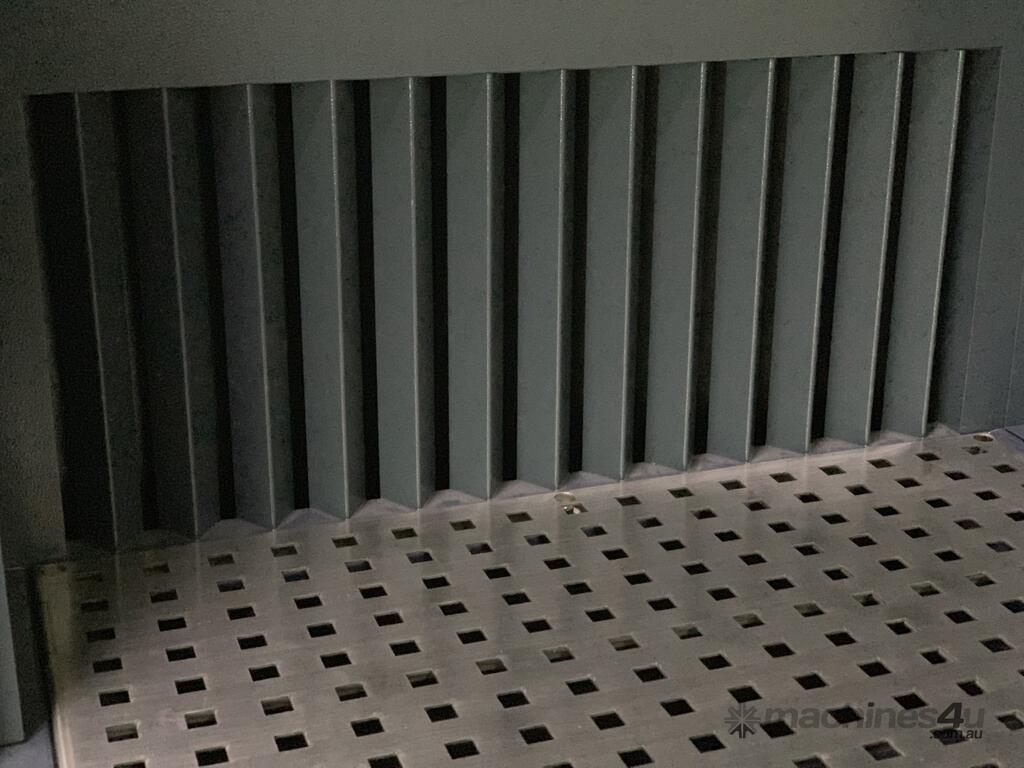

Fitted off with spark arrestors and providing a clean, safe, healthy work environment.

Features

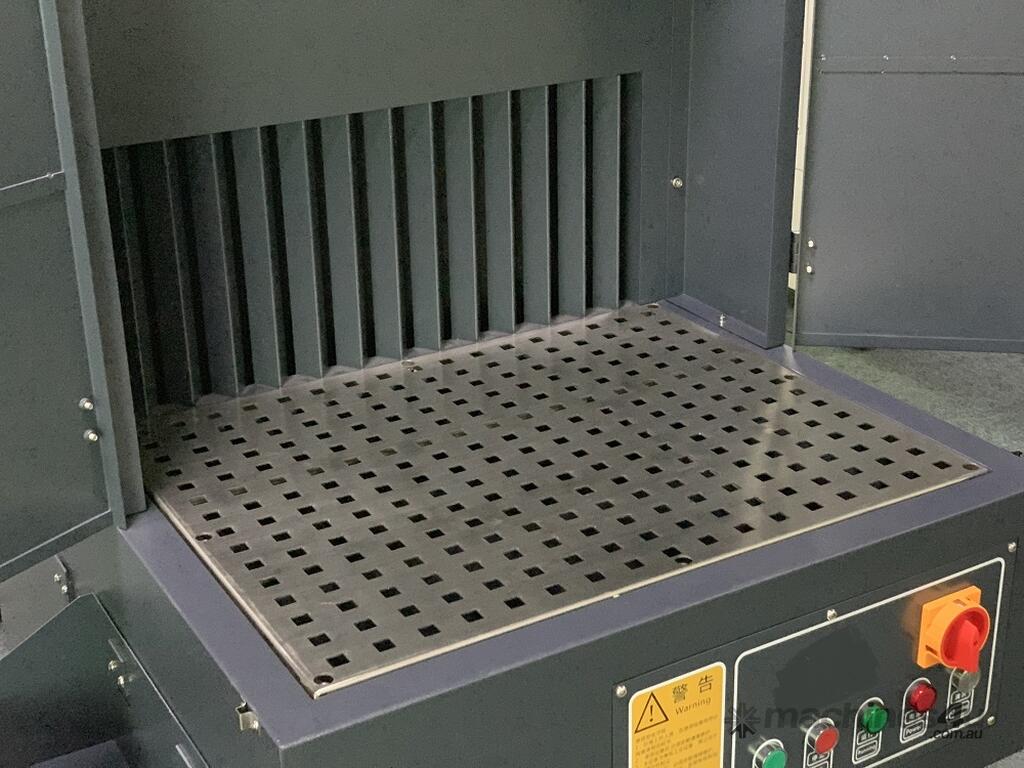

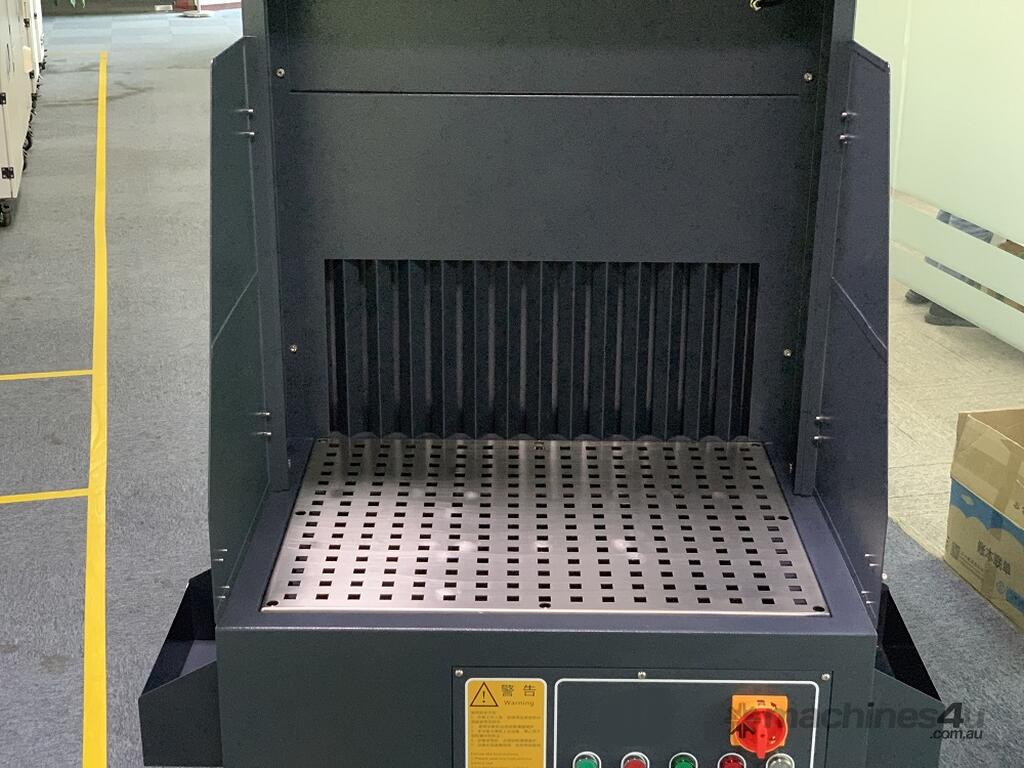

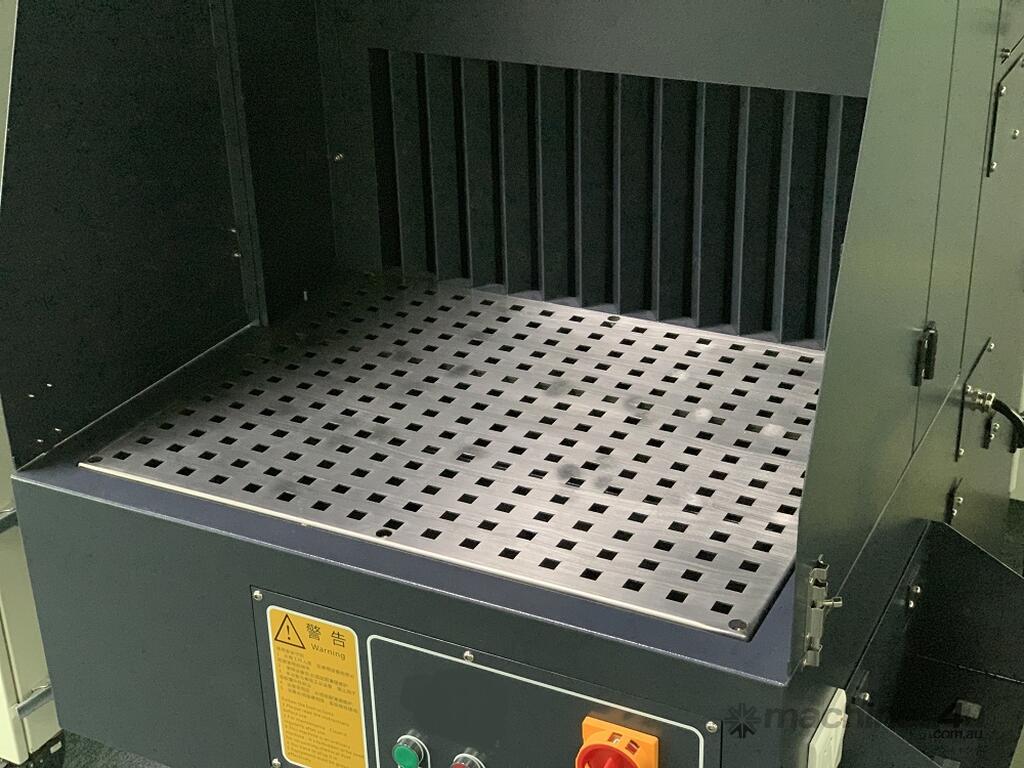

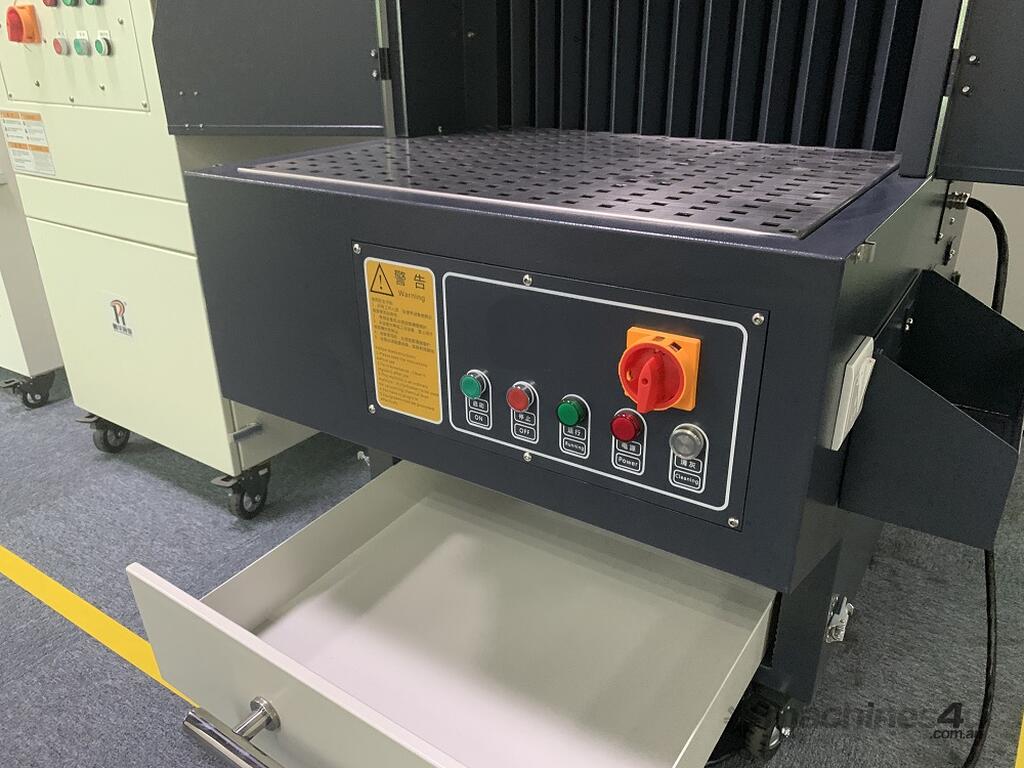

?Stainless steel grinding table, easy to access with rear pull out waste draw
?SIEMENS motor, Schneider electrical control.
?Auto pulse back flushing, filter easily with high effect.
?Top mounted Exhaust

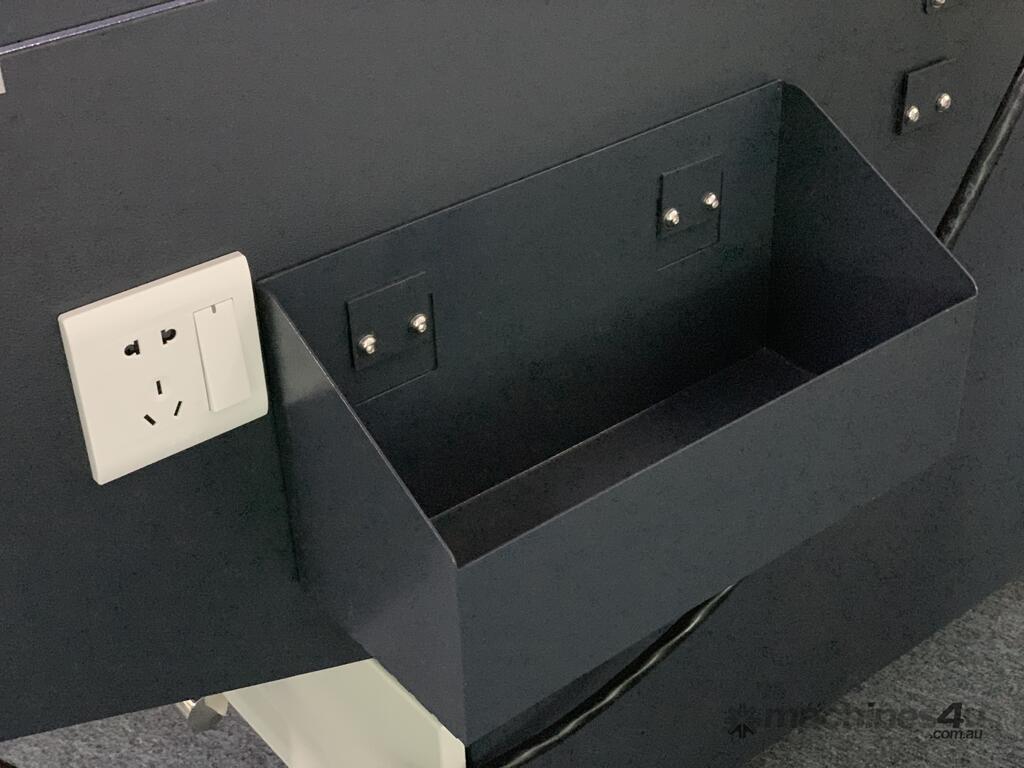

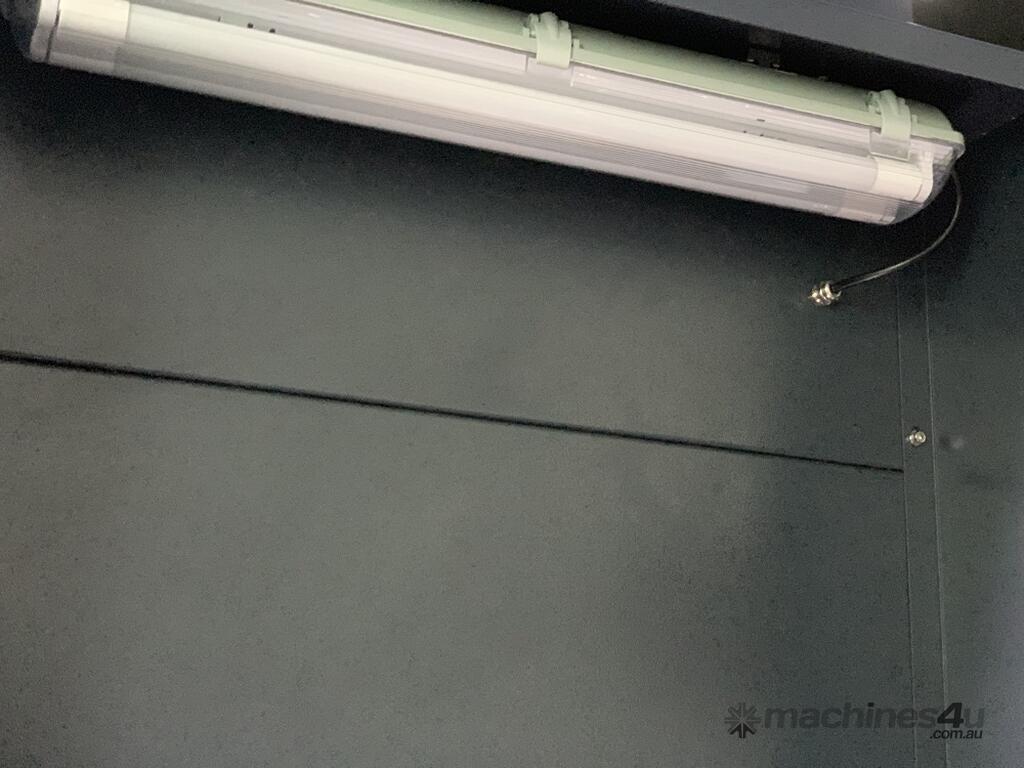

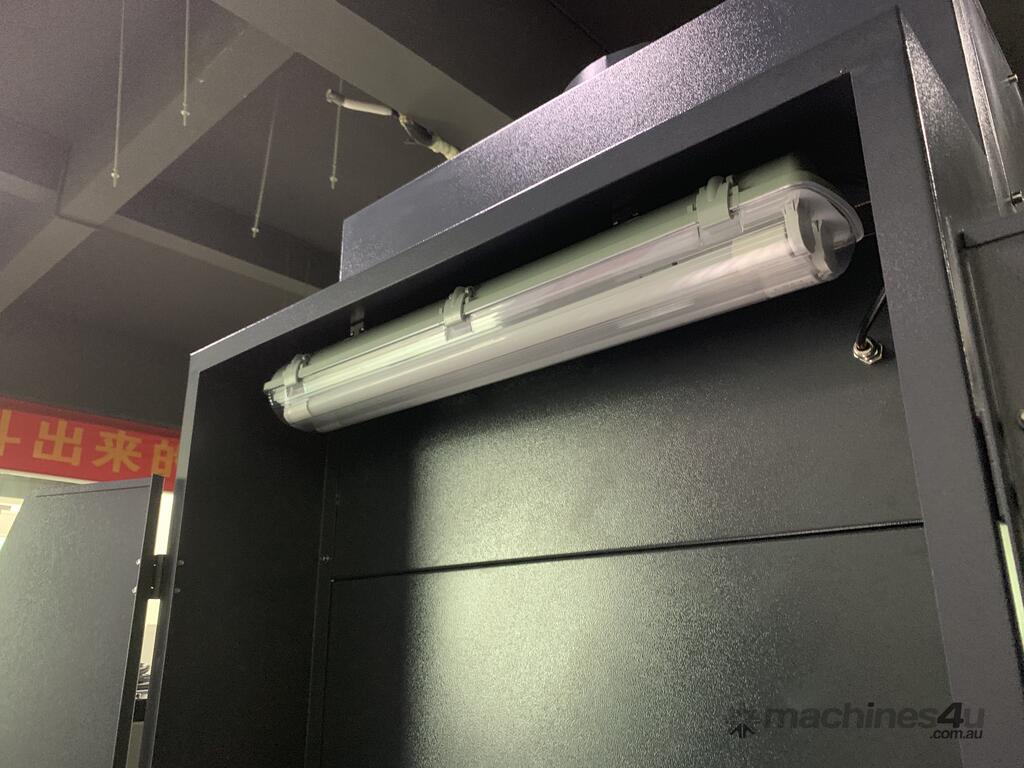

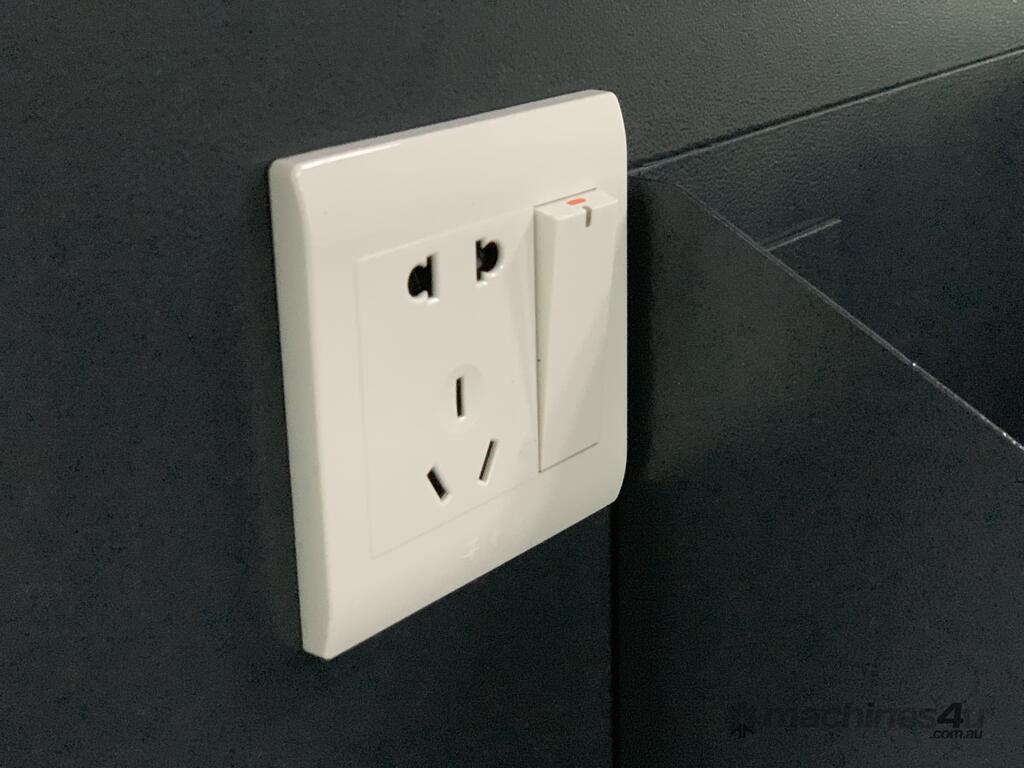

?LED lamp, 240Volt power point with added usb point
?Powder coated frame
?lockable castor wheels

Technical Snap Shot:
?Model: SM-SHF-30
?Extraction Type – Spark, Small Parts, Grinding, Polishing, Welding, Smoke, Fume, Dust
?Air Volume – 3600m3/Hr
?Max. Pressure (Pa) – 2400Pa
?Work Table Size: 800mm x 670mm (Other sizes available – 1550mm & 2100mm Wide)

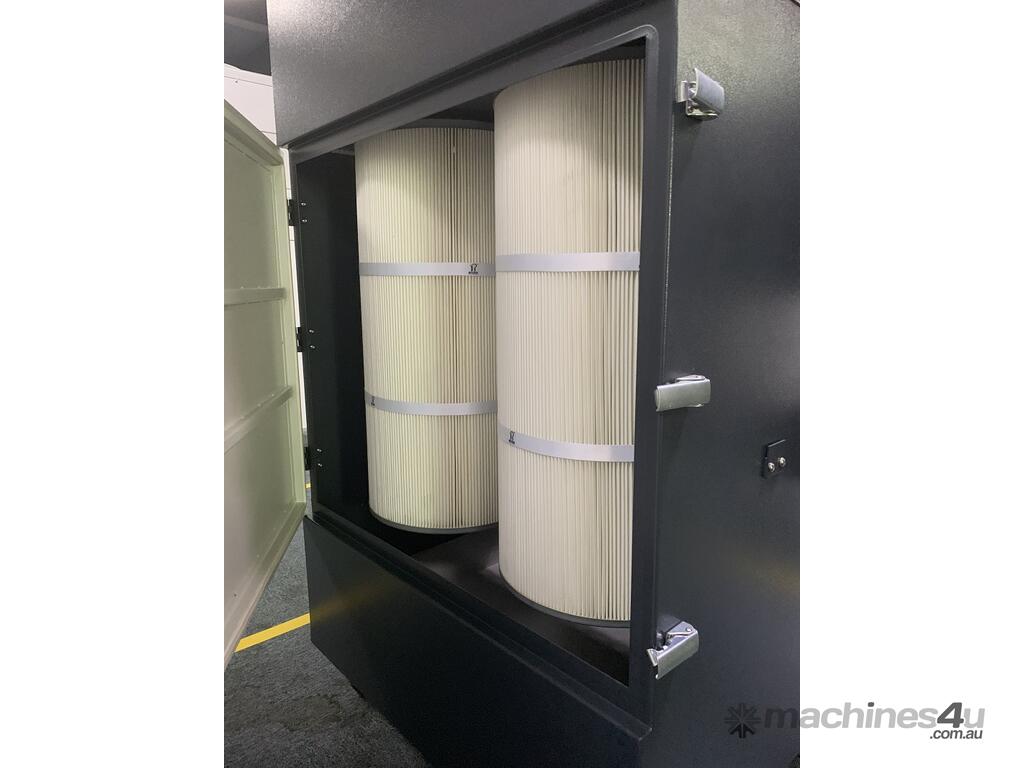

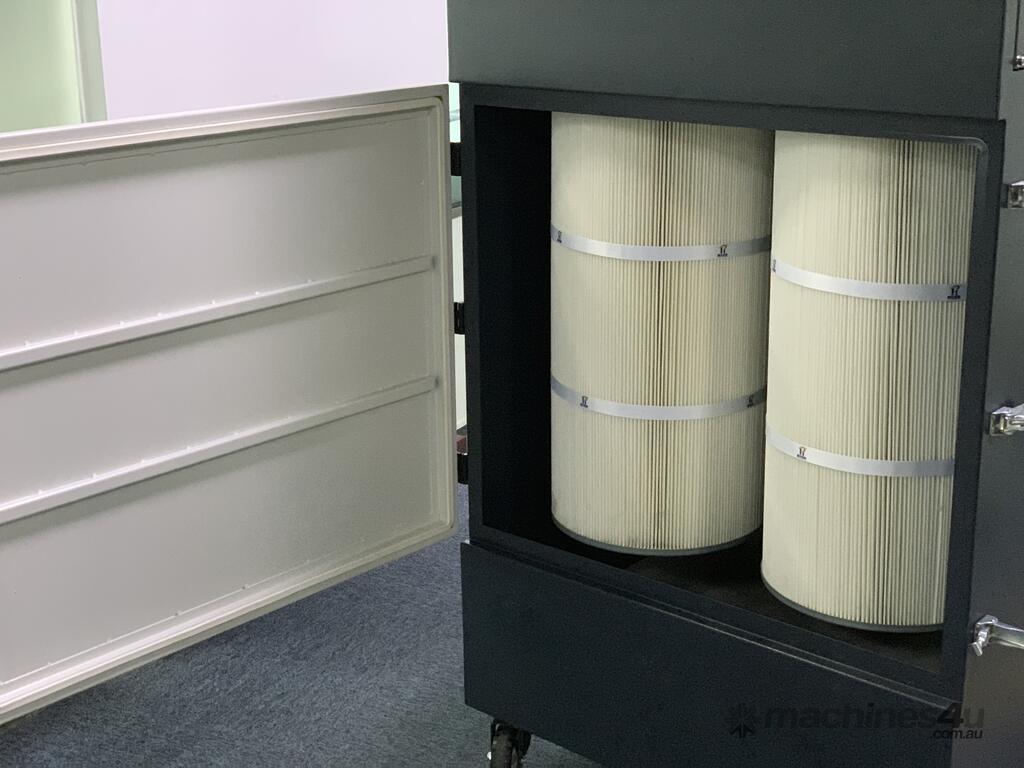

?Filter Material – PTFE Coated Folded Cartridge
?Filter Installation – Vertical
?Filter Area – 22m3
?Filter Efficiency – 99.9%

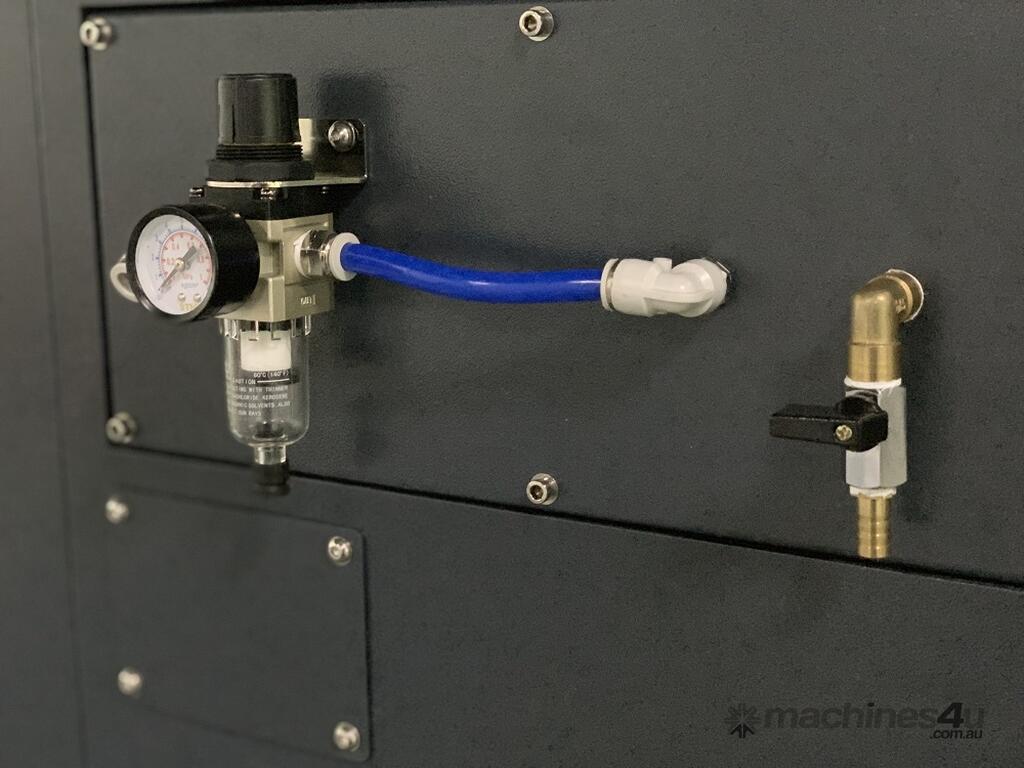

?Compressed Air – 0.5 ~ 0.6Mpa
?Solenoid Valves – 2 off
?Extra replaceable Vertical Filters & Spark Arrestors - Available
?Dimensions – 800mm x 1100mm x 1900mm x 280Kg
?Power – 3Kw – V
?Stock Ordering Code - 21-0807

Aftersales Filters
? STEELMASTER SM-SHF-30 Fume Extraction System Vertical Filters – Sole Each - Ordering Code 21#0817

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.

Asset Plant & Machinery - Steelmaster Machinery
118 Logis Boulevard Dandenong South VIC 3175
