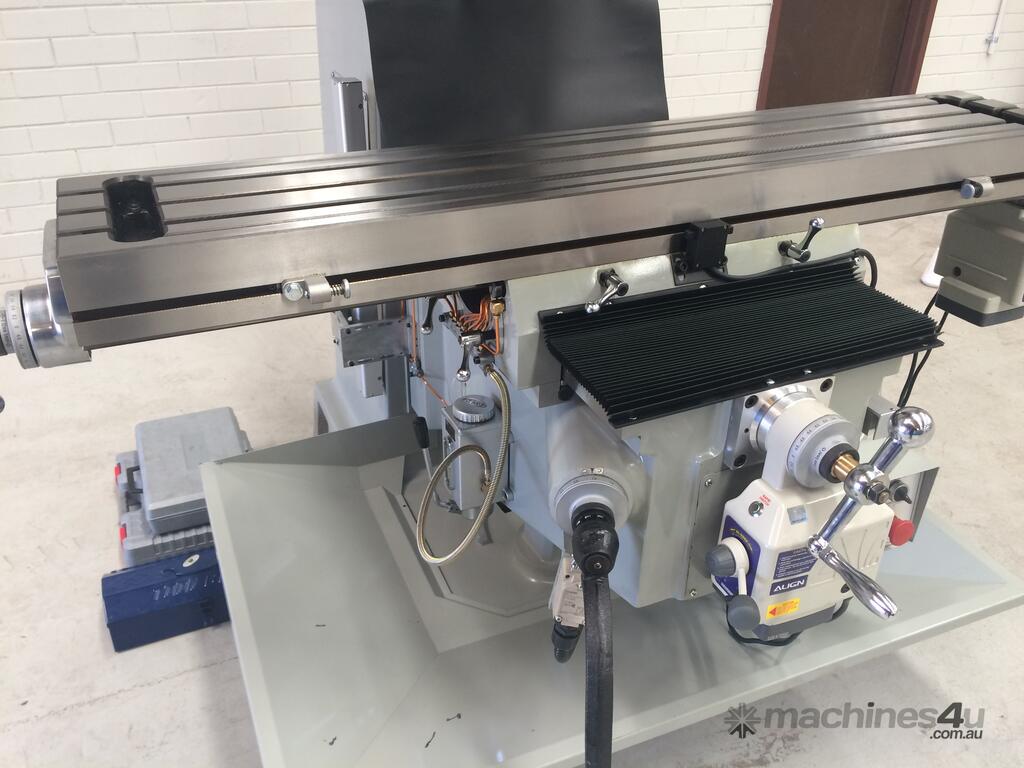

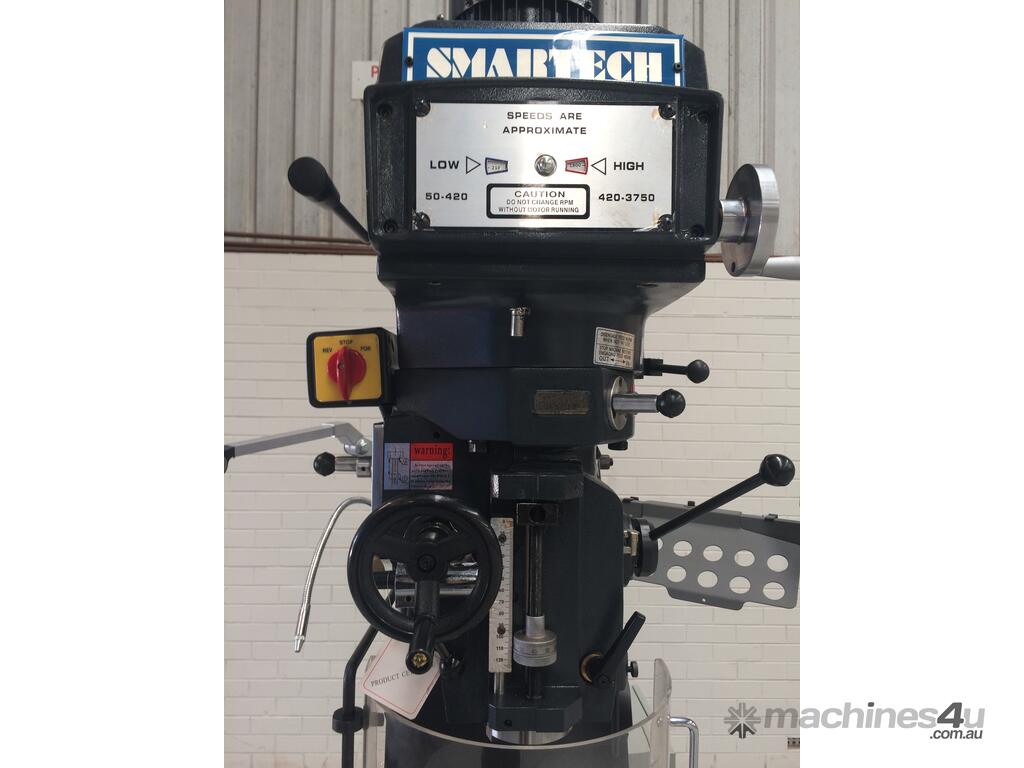

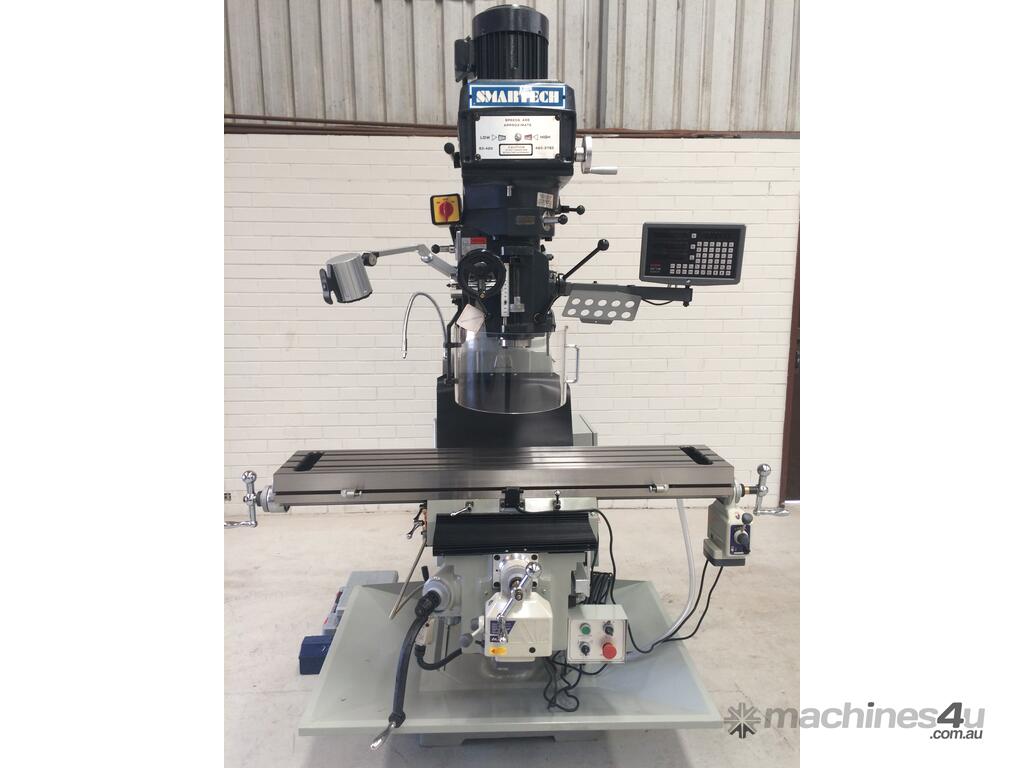

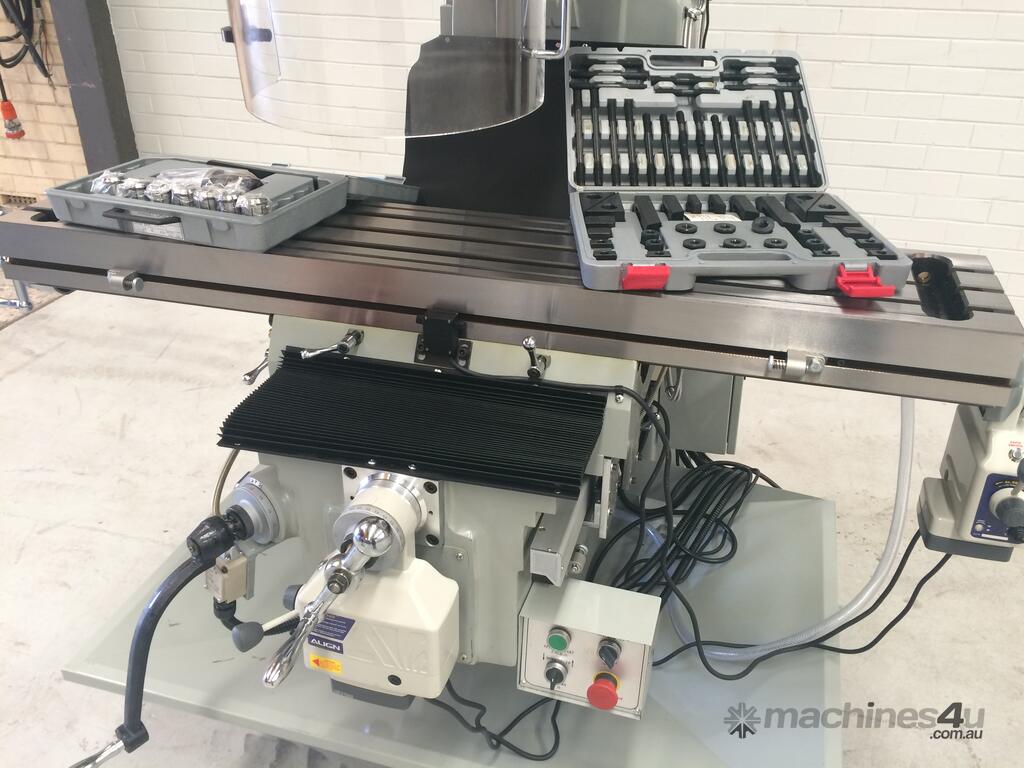

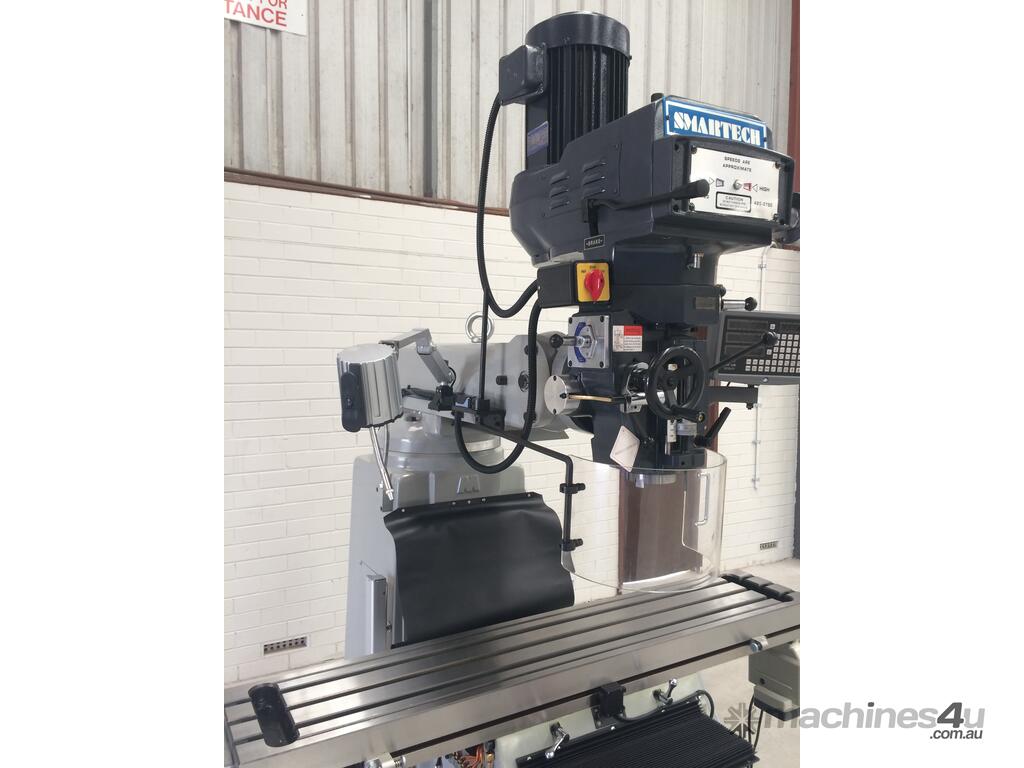

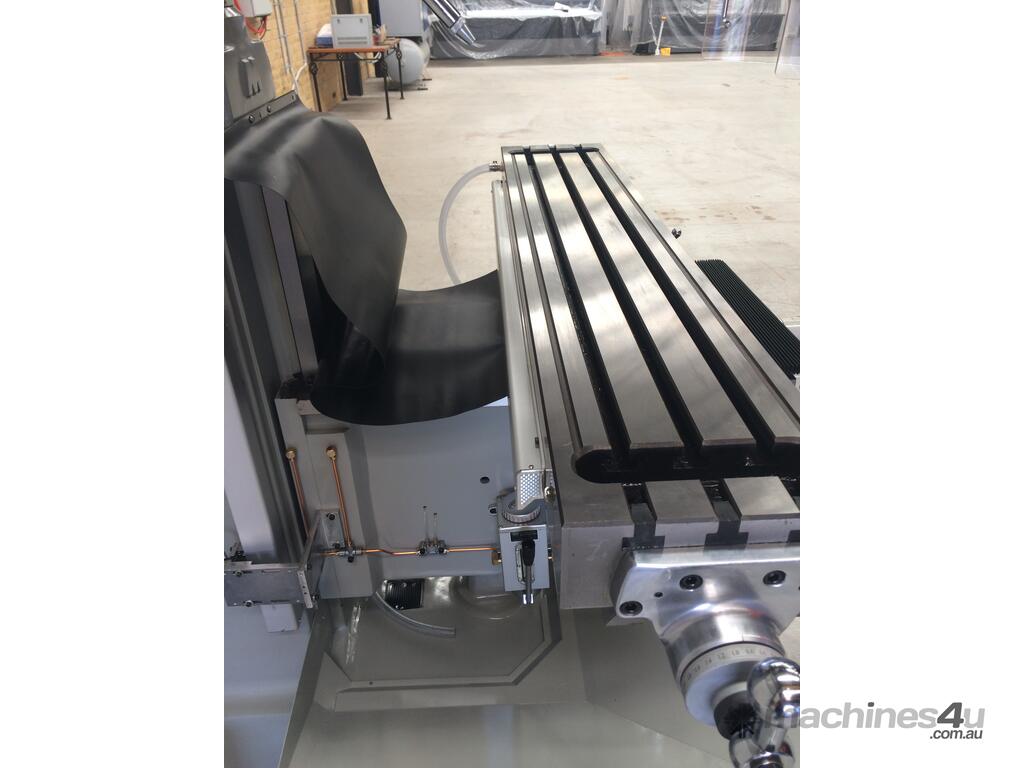

Smartech SM4 variable speed milling machine
3 Axis Digital readout, 5 hp spindle motor, ISO 40 spindle , Clamp kit, Milling chuck and collets,
Power feed in both X & Y axes, Chuck cover, Powered knee, Worklight, Coolant system
Table size 1370 x 254 mm
X axis travel 914 mm
Y axis travel 420 mm
Z axis quill travel 127 mm
Z axis knee travel 420 mm
Spindle taper ISO 40
Spindle speeds( variable ) 50 - 3750 rpm
Spindle motor 5HP
