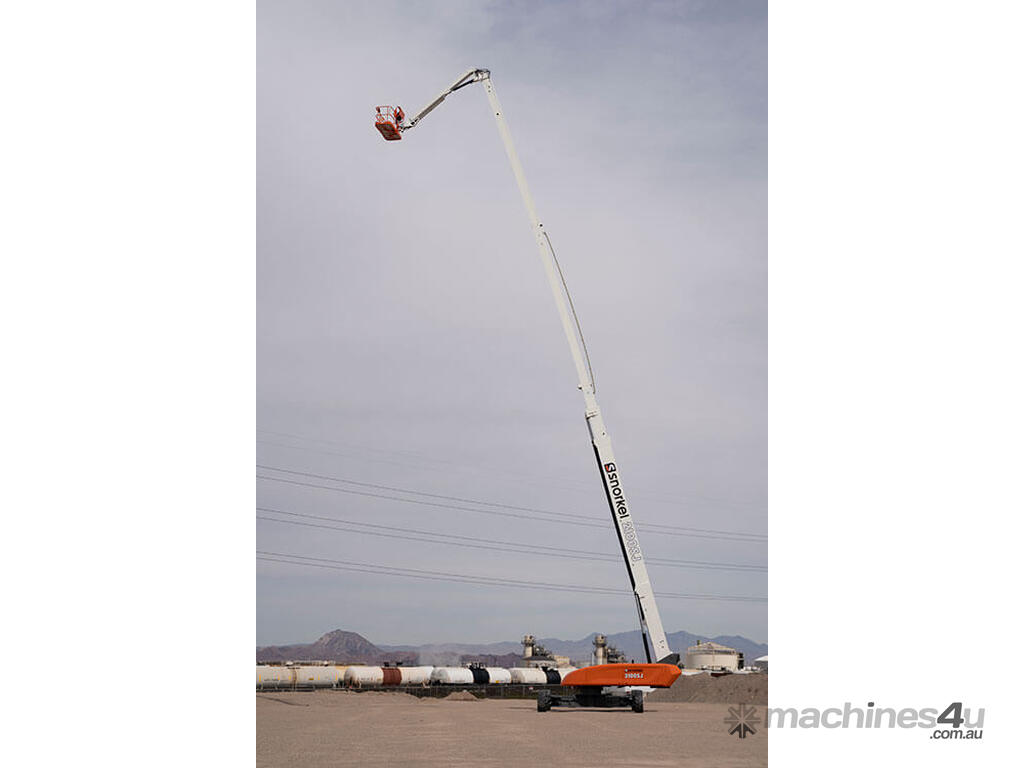

Snorkel 2100SJ Diesel Telescopic Boom Lift

Max. Working Height: 66.0m
Max. Horizontal Outreach: 35.1m
Platform Capacity (Unrestricted): 349kg
Weight: 41,730kg

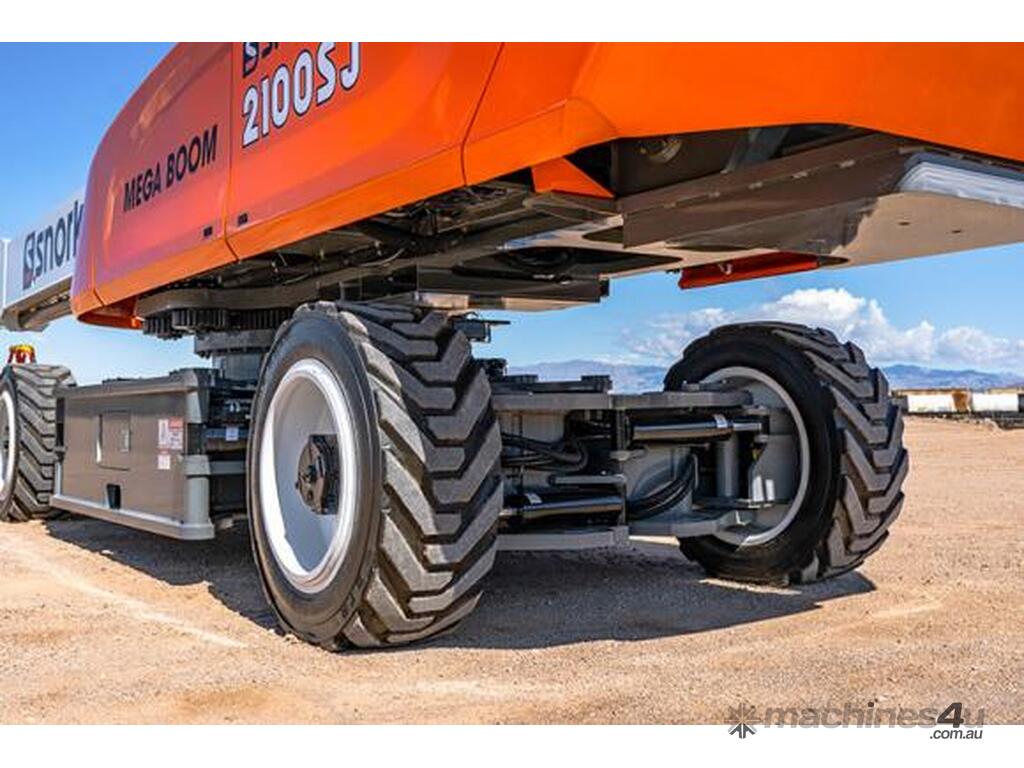

The Snorkel 2100SJ is Snorkel’s largest diesel telescopic boom lift with patented design features. With an impressive reach and lift height, exceptional up and over capabilities offer a maximum horizontal reach up to 100 ft. (30.5m) with a 30 ft. (9.1m) jib boom. Two control panels on the platform allow for safe operation while working at height. Robust 4-wheel drive and multiple steering modes deliver superb rough terrain performance with a tight inside turning radius for excellent maneuverability. Its innovative wheel extension and narrow wheelbase provide stability on the job and ease of transportation.

STANDARD FEATURES
Snorkel Guard™ secondary guarding system
Secondary platform controls
Four wheel drive
Hydraulic platform rotation
5 steering modes – front axle, rear axle, crab, complementary & lateral
360º continuous turntable rotation
All proportional controls
Tool tray
Remote lower control panel
Flashing amber light
Dual lanyard attachment points
Foam filled tires
Power line to platform
Snorkel OnSite™ telematics – 60 months
Drive motion alarm
2 year parts & labor, 5 year structural warranty

Key Specifications:
Max Working Height: 66.0 meters (exceptionally high, ideal for tall building projects or large outdoor installations)
Max Platform Height: 64.0 meters (platform height close to working height)
Max Horizontal Outreach: 35.1 meters (enabling extensive reach horizontally, great for applications requiring both height and outreach)

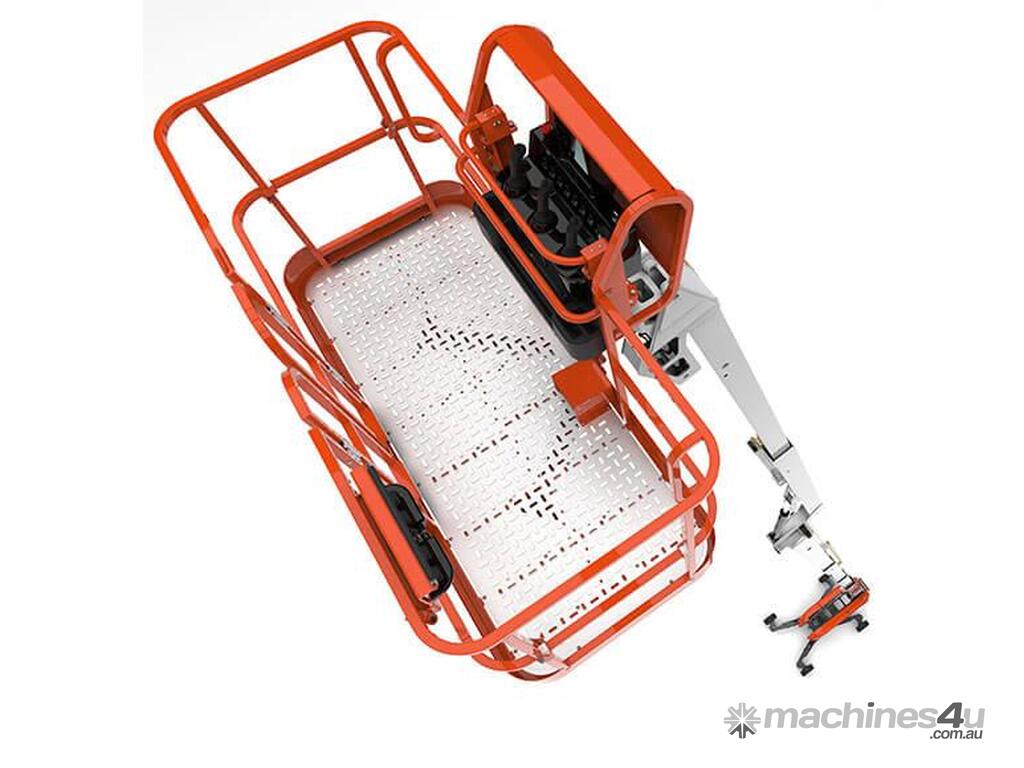

Platform Size: 2.4m x 0.9m (relatively spacious for workers and equipment)
Platform Capacity:
Unrestricted: 349kg (the maximum load capacity without any restrictions on platform position or configuration)
Restricted: 454kg (higher capacity when the platform is positioned in a restricted or safer operational zone)
Max Drive Height: 64.0 meters (meaning the lift can be driven while elevated to this height)
Jib Length: 9.1 meters (providing additional maneuverability for positioning and outreach)
Weight: 41,730kg (a very heavy machine, indicating a powerful and highly capable system, but also likely requiring transport via a large vehicle)
