Snorkel 600S All Terrain Telescopic Boom Lift

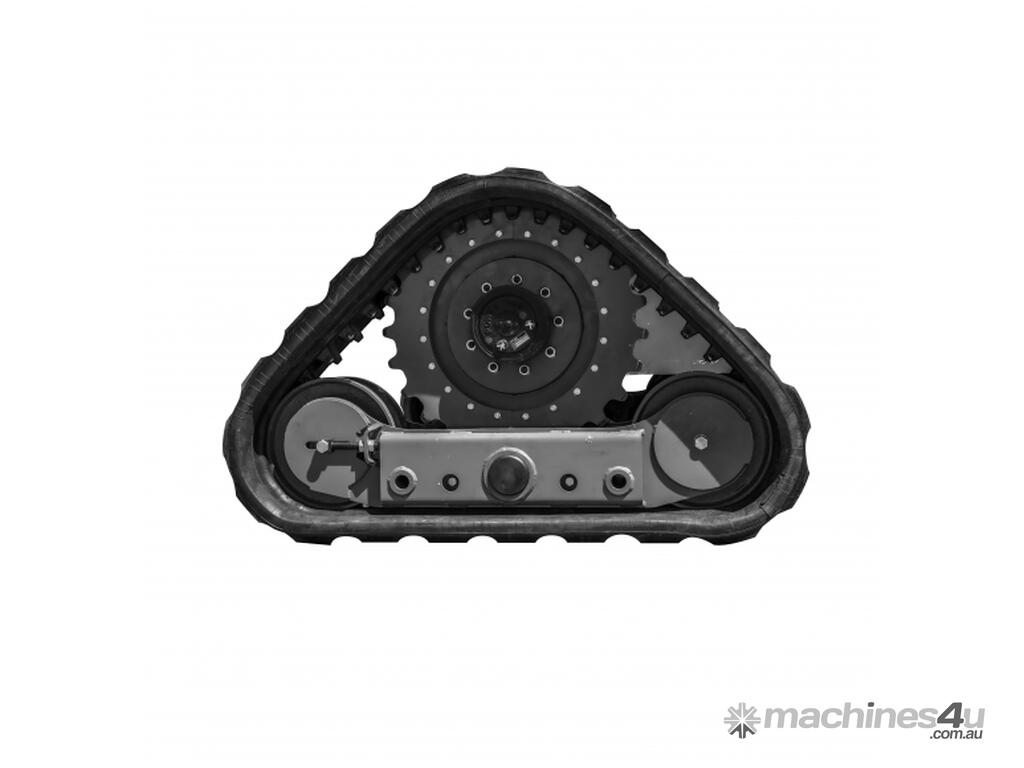

The Snorkel 600S All Terrain telescopic boom lift is fitted with four independent rubber tracks. Easily tackling soft and sensitive environments, this boom lift offers superb maneuverability without sinking or disturbing the ground. Developed with a high torque hydraulic pump, it also has excellent gradeability and can climb gradients up to 45%.

Key Specs
Max. Working Height: 20.5m
Max. horizontal reach: 16.0m
Platform Capacity: 272kg
Weight: 13,027kg
Standard Features
Snorkel Guard™ secondary guarding system
Oscillating axle (203mm of oscillation)
Hydraulic platform rotation
Hydraulic oil cooler
4-track drive
All proportional controls
Swing-out engine tray
Motion alarm
Horn
Hour meter & on-board diagnostics display
Power line to platform
5º tilt alarm & cut out
Hour meter & on-board diagnostics display
DC emergency operation
Tri-entry platform
Flashing amber light
Platform overload system
2 year parts & labor, 5 year structural warranty

Max Working Height 20.5m
Max. Platform Height 18.5m
Max Horizontal Outreach 16.0m
Platform Size 2.44m x 0.91m
Overall Width 2.46m
Transport width 2.24m
Transport Length 9.2m
Overall Length 9.2m
Transport Height 2.61m
Stowed Height 2.61m
Ground Clearance 444m
Platform capacity - unrestricted 272kg
Platform capacity - restricted 454kg
Max Drive Height 18.5m
Max. Wind Speed 12.5m/s
Max Drive Speed (stowed) 5.6km/h
Max Drive Speed (elevated) 0.96km/h
Jib Length n/a
Jib Arc n/a
Platform Rotation 150°
Superstructure Rotation (continuous) 360°
Tailswing 1.2m
Raise/Lower Time 50 / 50 sec
Gradeability 45%
Inside Turning Radius 5.94m
Outside Turning Radius 8.38m
Tyres Independent rubber tracks
Controls Proportional drive, raise, slew, extend, jib & platform rotate
Drive System 4 track drive
Power Source Deutz 2.9L 55kW/74hp - Stage V
Auxillary Power Unit 12V DC
Weight 13,027kg
