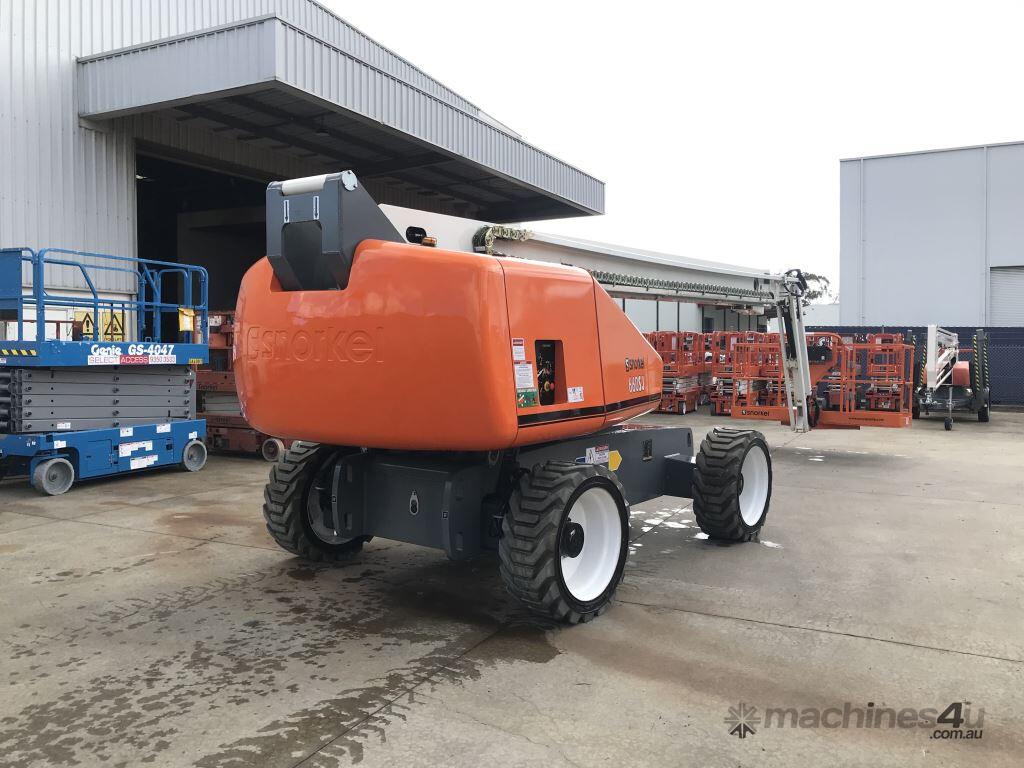

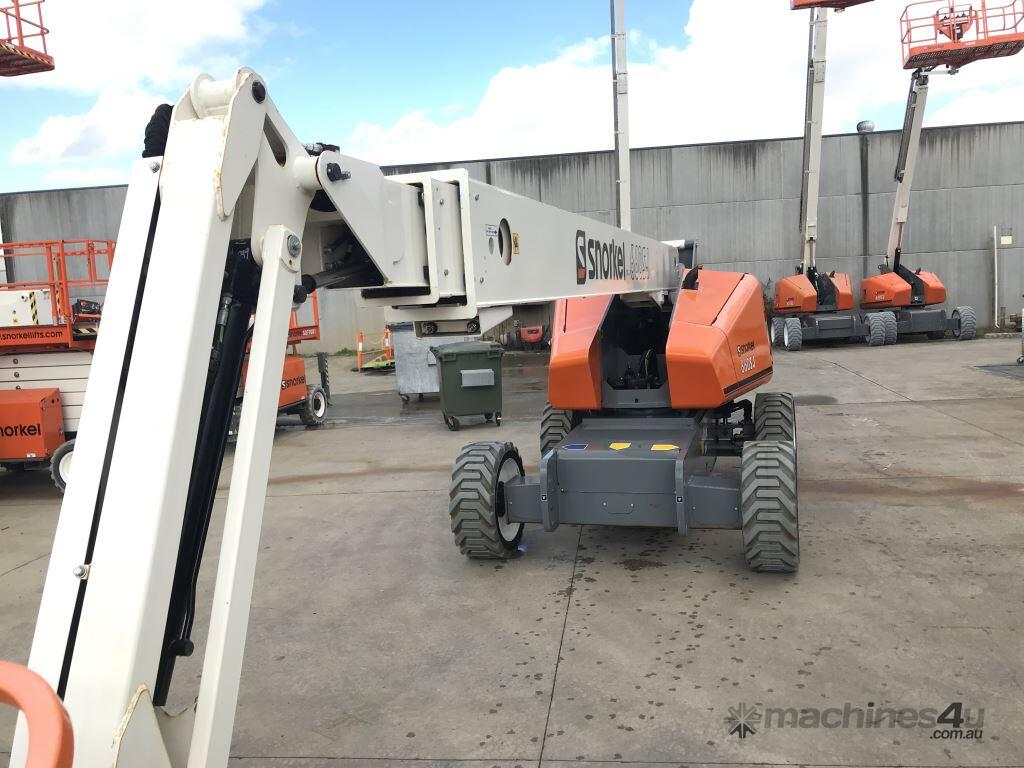

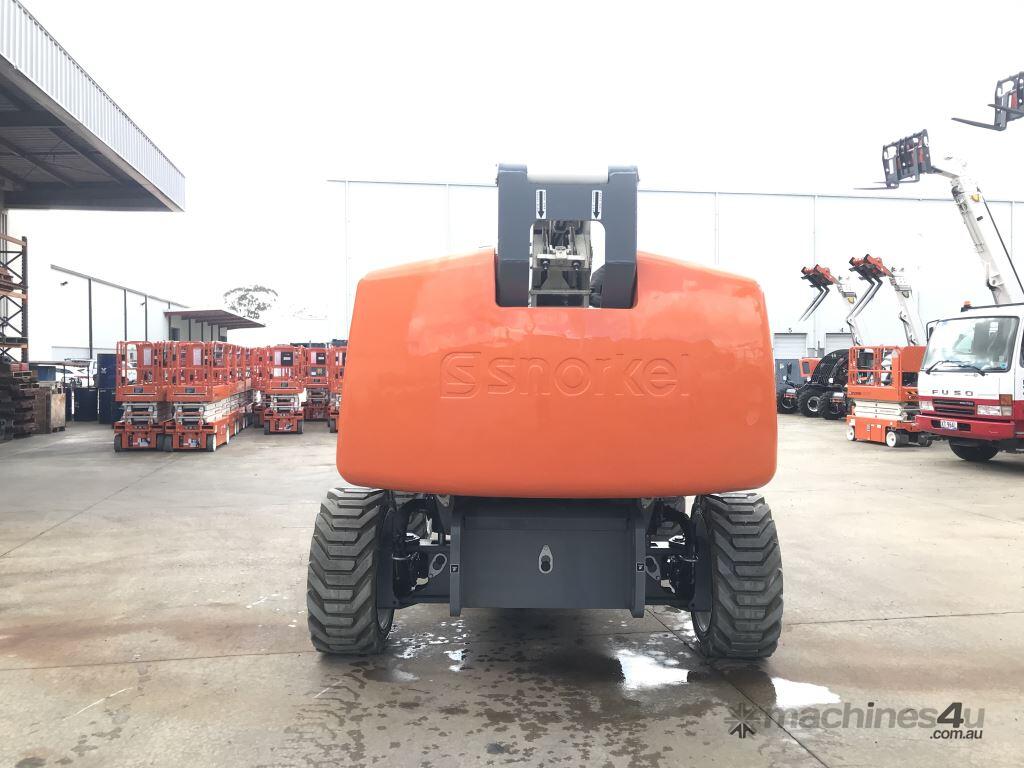

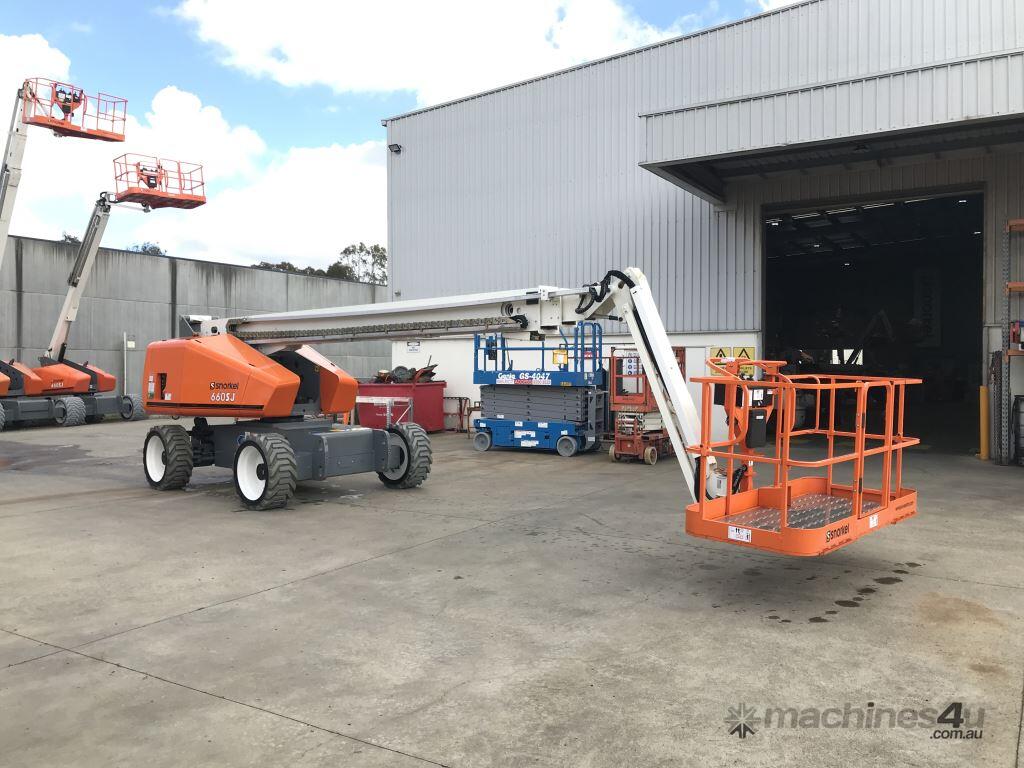

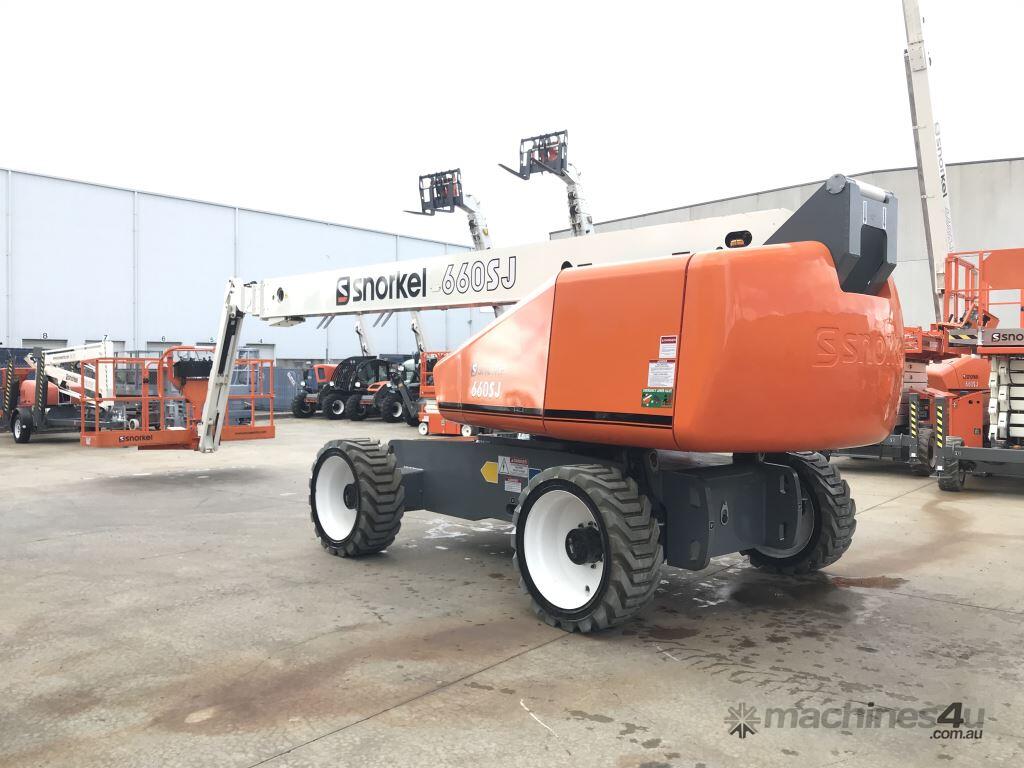

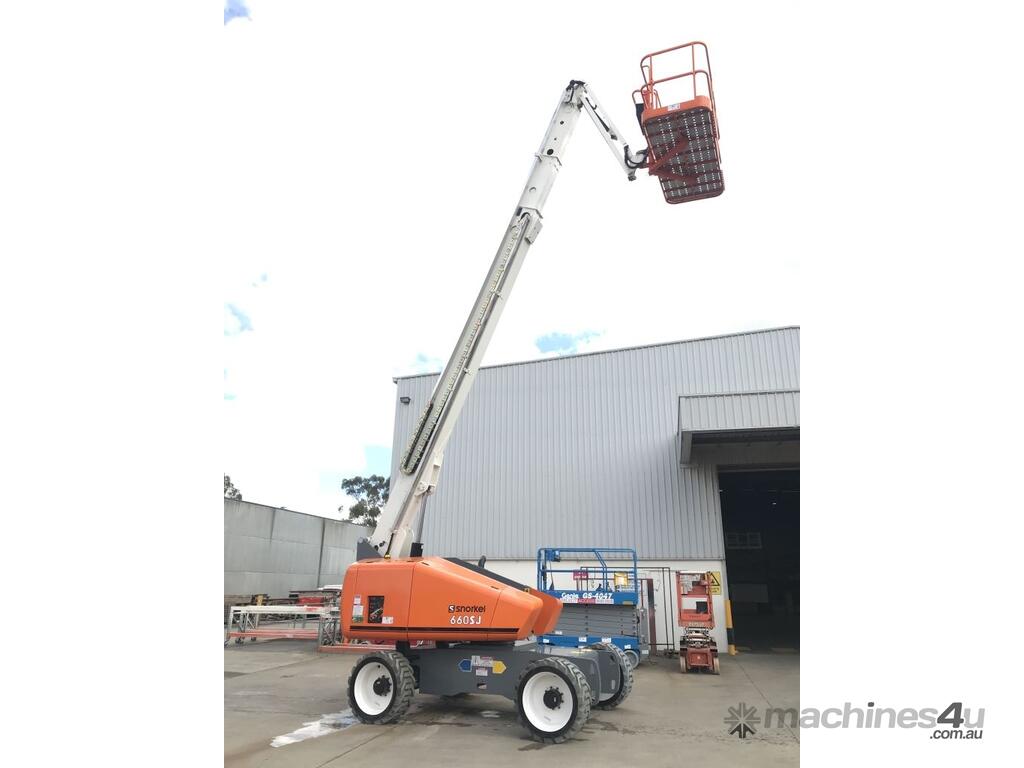

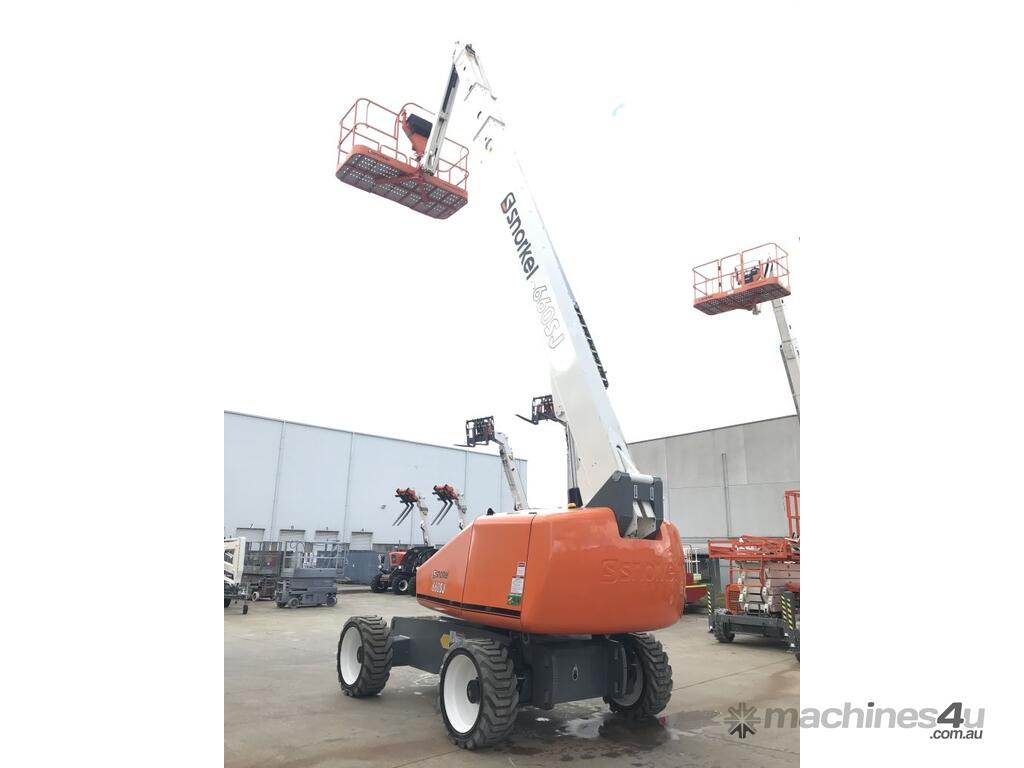

The Snorkel 660SJ mid-sized telescopic boom lift is rugged and robust for all terrains. Built to last, a constant 4-wheel drive delivers outstanding rough terrain performance. For full reach on any jobsite, operators benefit from all-proportional hydraulics and a jib for added flexibility.
Specifications

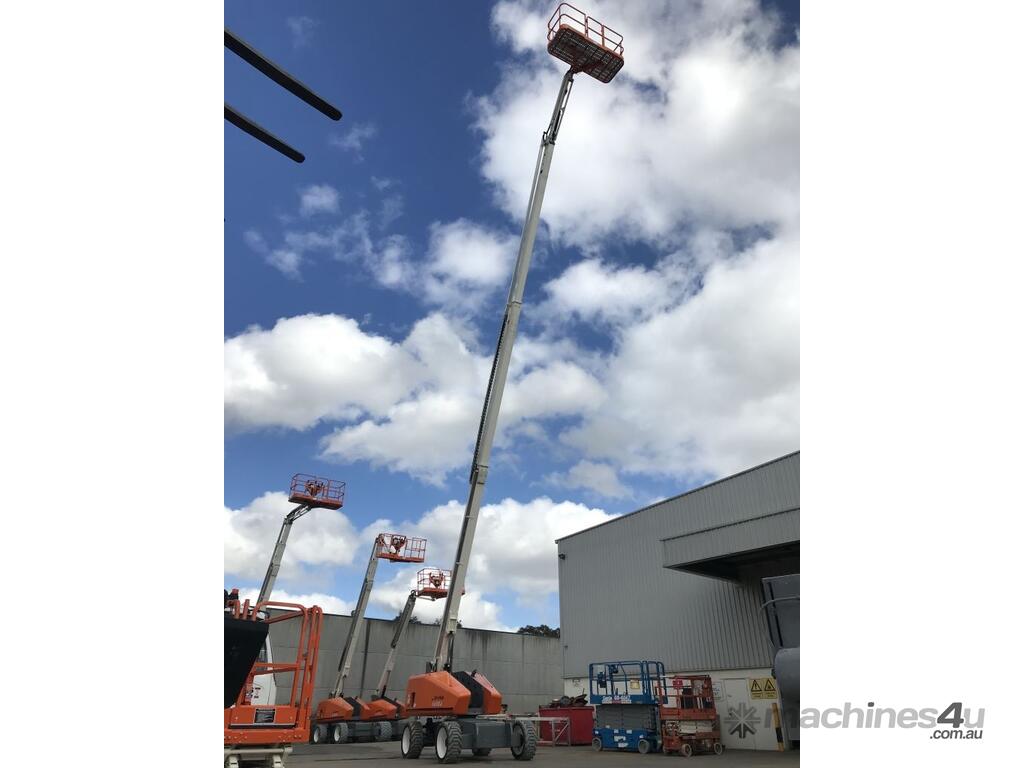

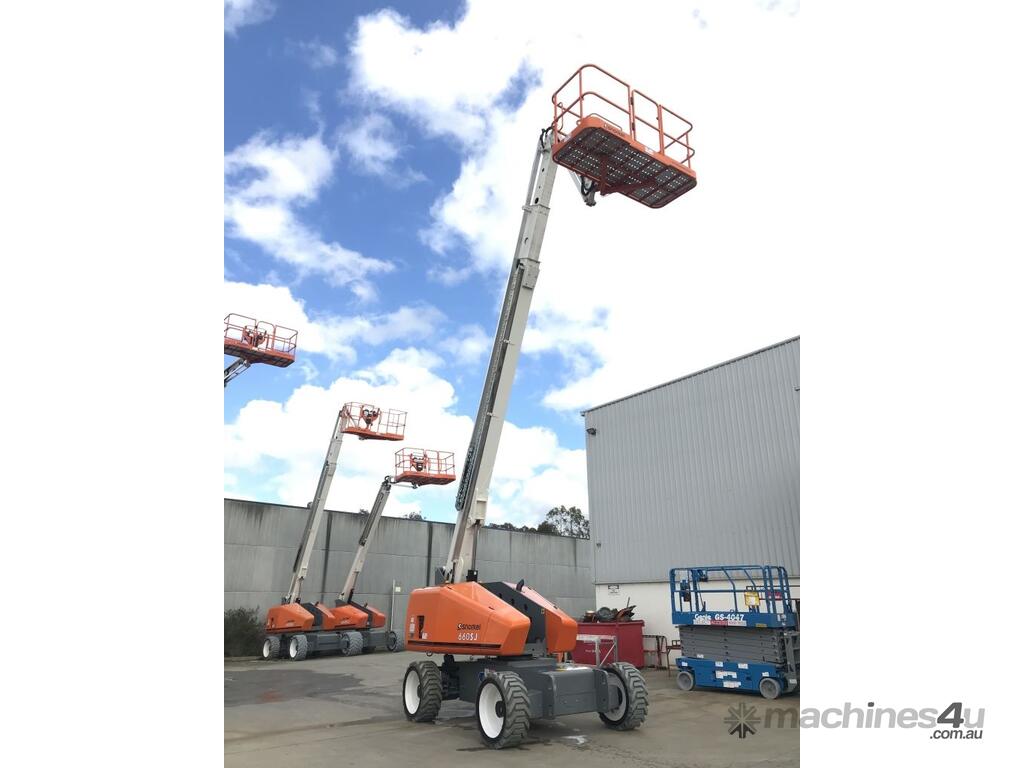

Max. Working Height: 22.0 m
Max. Platform Height: 20.0 m
Max. Horizontal Reach: 17.8 m

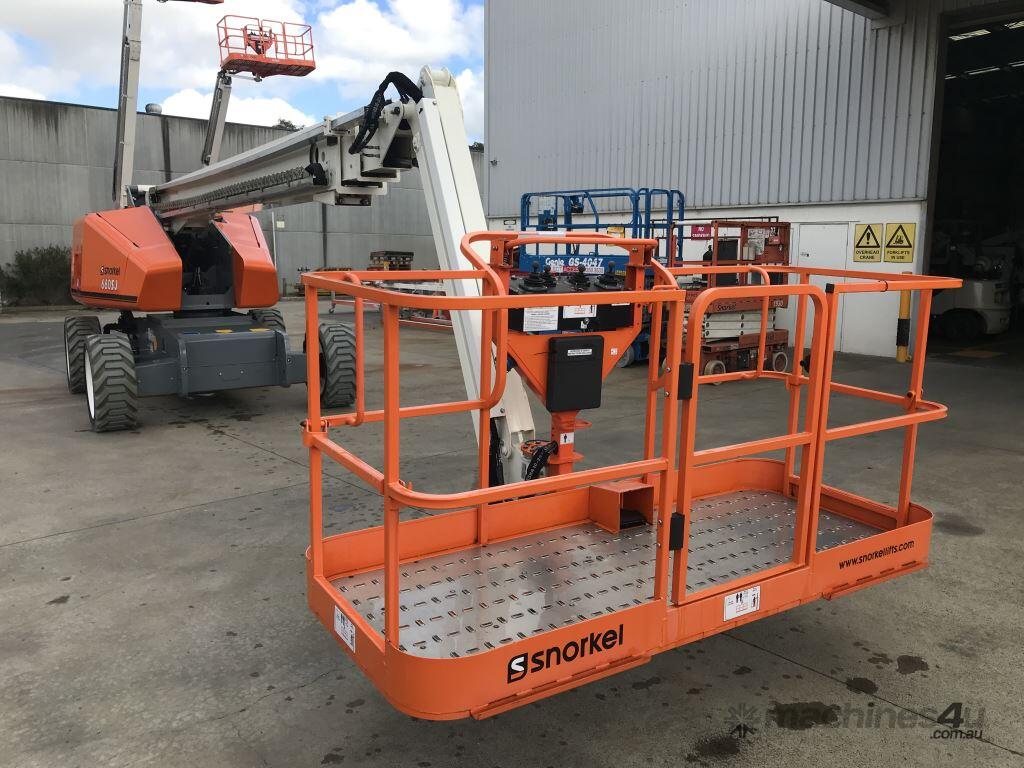

Platform Size: 2.44 m x 0.91 m
Overall Length: 10.1 m
Overall Width: 2.46 m
Transport Length: 8.3 m
Transport Height: 2.9 m
Stowed Height: 2.51 m
Ground Clearance: 340 mm
Platform Capacity (Unrestricted): 272 kg
Platform Capacity (Restricted): 454 kg
Max. Drive Height: 20.0 m
Max. Wind Speed: 12.5 m/s
Max. Drive Speed (Elevated): 0.96 km/h
Max. Drive Speed (Stowed): 5.6 km/h
Raise/Lower Time: 50 / 50 seconds
Gradeability: 45%
Jib Length: 1.67 m
Jib Arc: 135° (+70° / -65°)
Superstructure Rotation: 360° continuous
Tailswing: 1.2 m
Inside Turning Radius: 3.06 m
Outside Turning Radius: 5.21 m
Tires: 355/55 D625 foam-filled lug

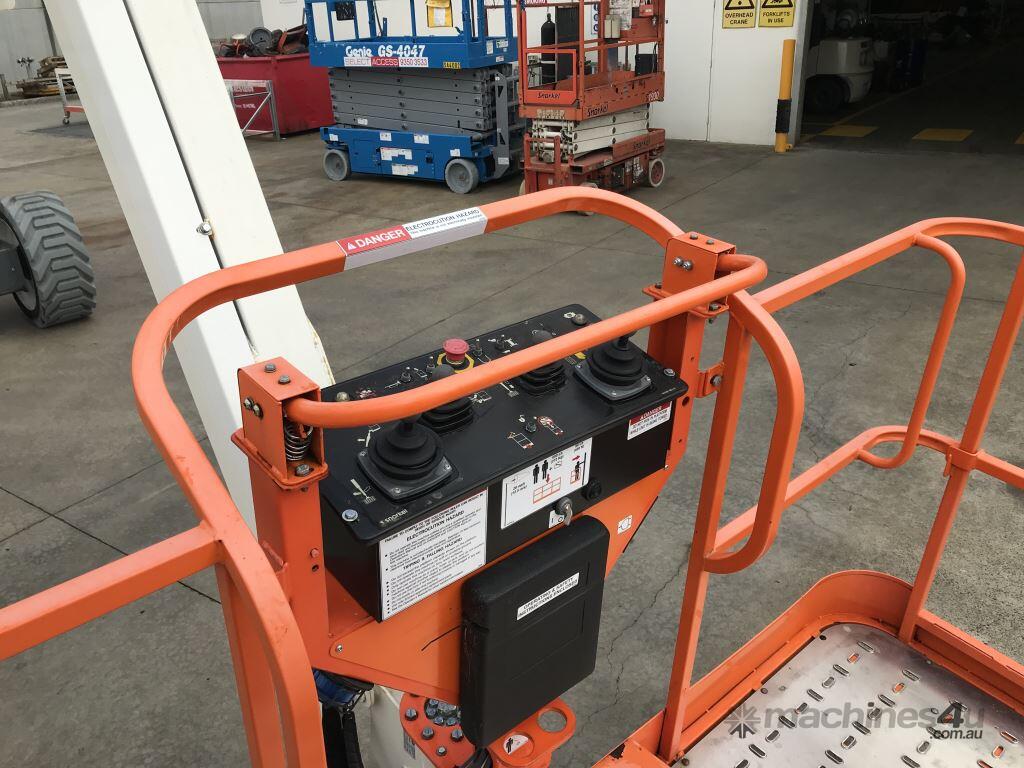

Controls: Proportional drive, raise, slew, extend, jib, and platform rotation
Drive System: 4-wheel drive
Power Source: Deutz 55 kW (74 hp) turbo diesel - Stage V
Auxiliary Power Unit: 12V DC
Weight: 12,982 kg
Auslift is Australia’s leading machinery hire and sales company with over 30 years of experience in the stock machinery industry. Enquire now and experience Auslift's differences.
