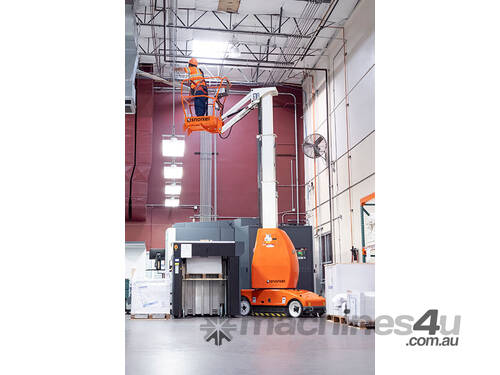

Snorkel MB20J Electric Mast Boom Lift

Max. Working Height: 8.1m
Max. Working Outreach: 2.6m
Platform Capacity: 215kg
Weight: 2,590kg

The Snorkel MB20J is a self-propelled electric mast boom lift fitted with a jib boom, which is ideal for working in compact spaces requiring ‘up and over’ capabilities. Fitted with non-marking tyres as standard.

STANDARD FEATURES
Ultra-tight inside turning radius
Proportional controls
Tilt alarm
Non-marking rubber tires
2 persons indoors
1 person outdoors
Self-seeking automatic battery charger
Automatic battery fill
Power line to platform
Hour meter & on-board diagnostics display
Hydraulic pothole protection system
2 year parts & labor, 5 year structural warranty

Specifications
Max Working Height: 8.1m
Max Platform Height: 6.1m
Max Working Outreach: 2.6m
Platform Size: 0.78m x 0.73m
Overall Width: 0.81m
Overall Length: 2.41m
Stowed Height: 1.98m
Ground Clearance: 100mm
Platform Capacity (SWL): 215kg
Max Drive Height: 6.1m
Max Wind Speed: 12.5m/s
Max Drive Speed (Stowed): 3.2km/h
Max Drive Speed (Elevated): 0.48km/h
Jib Length: 1.02m
Jib Arc: 130°
Mast Rotation (Non-Continuous): 360°
Raise/Lower Time: 54/26sec
Gradeability: 25%
Inside Turning Radius: 0.3m
Outside Turning Radius: 1.83m
Tyres: 323mm Non-marking rubber
Controls: Proportional controls
Drive System: Electro/hydraulic
Power Source: 4 x 6V x 375 AH batteries
Weight: 2,590kg
