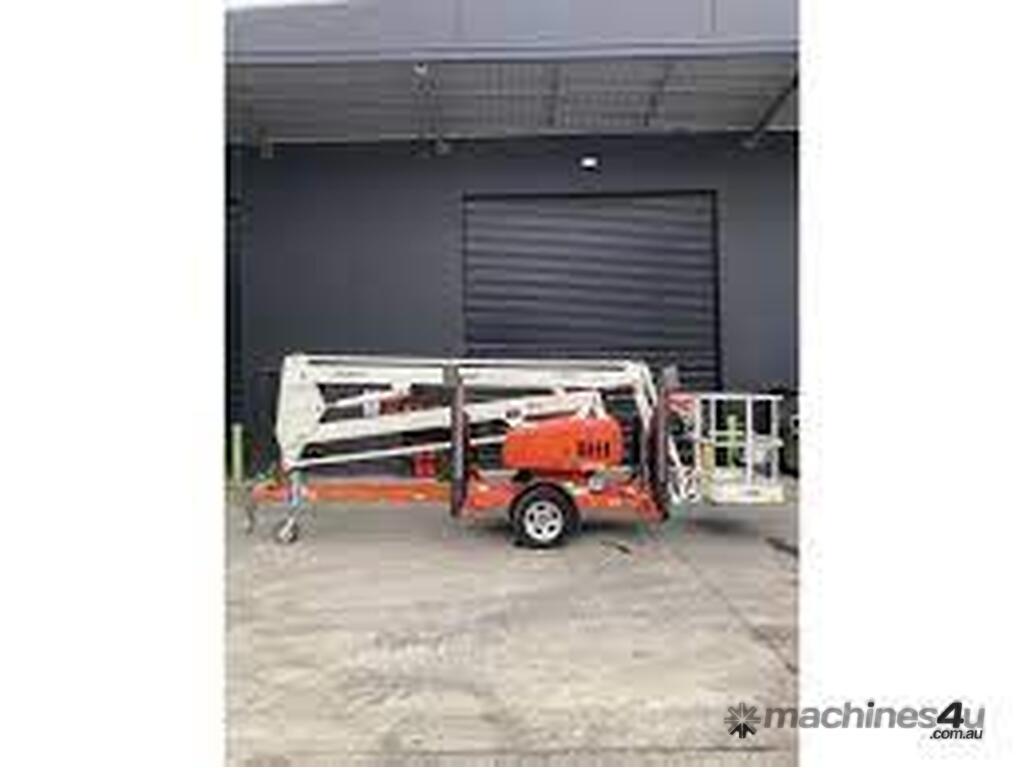

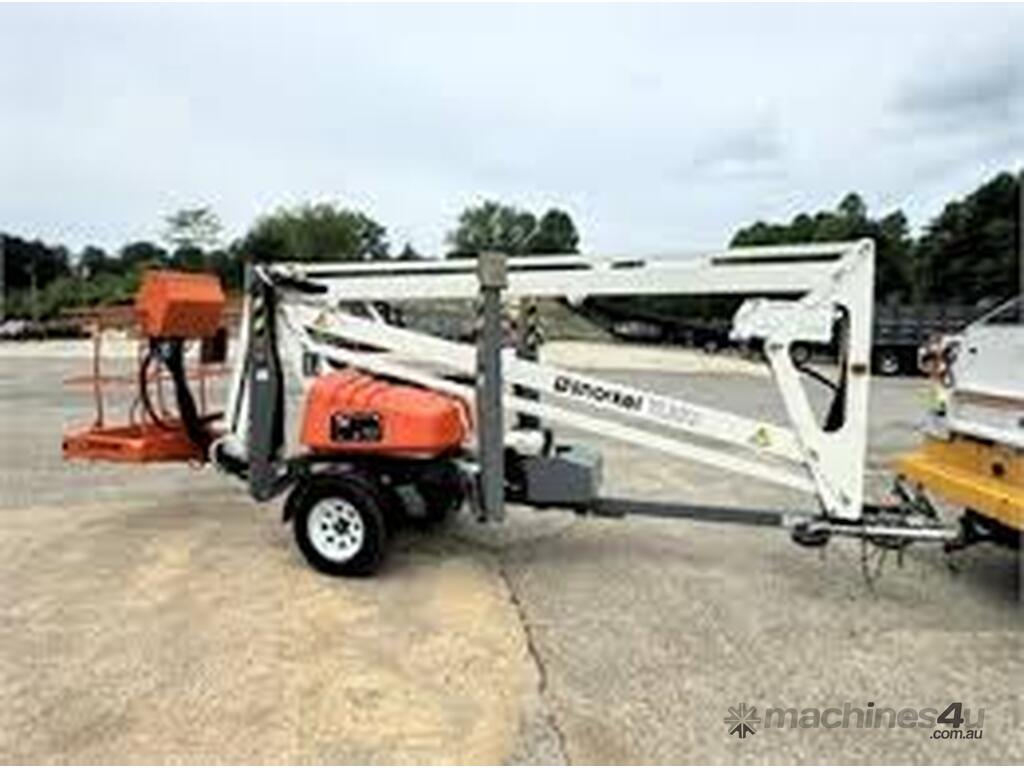

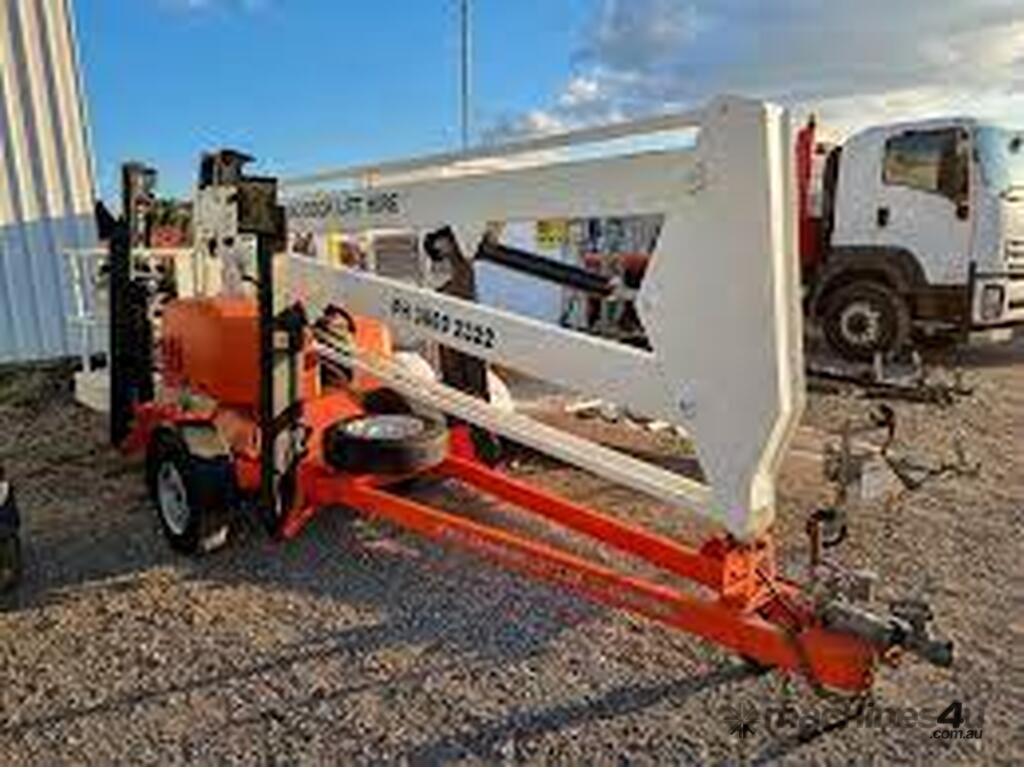

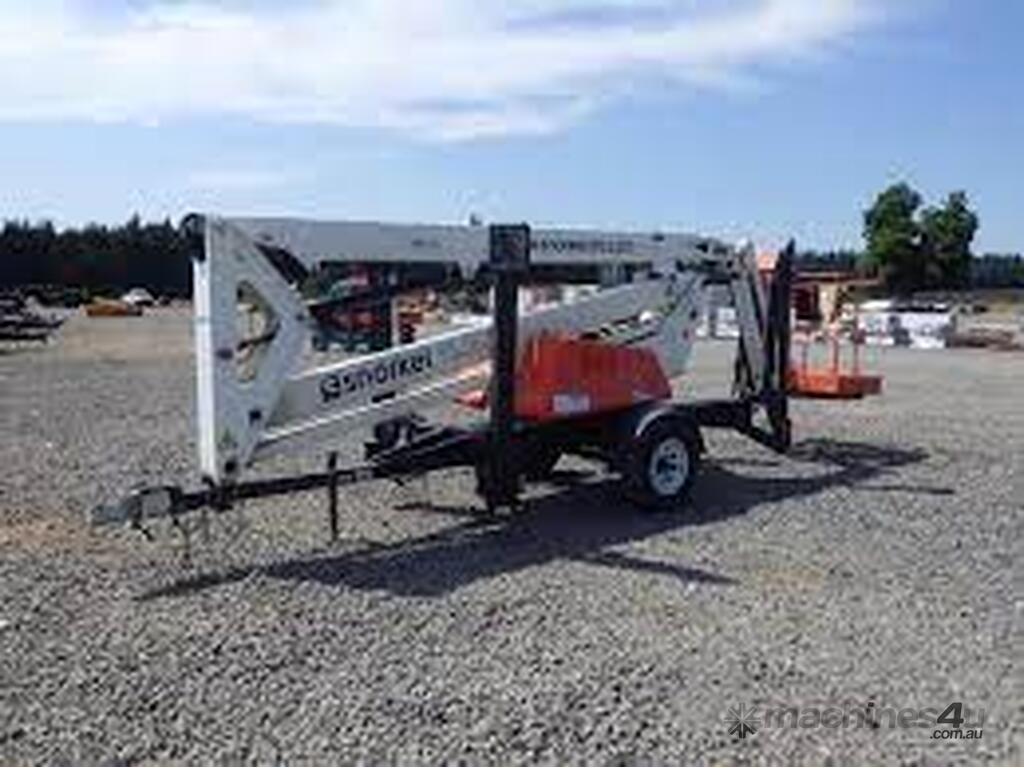

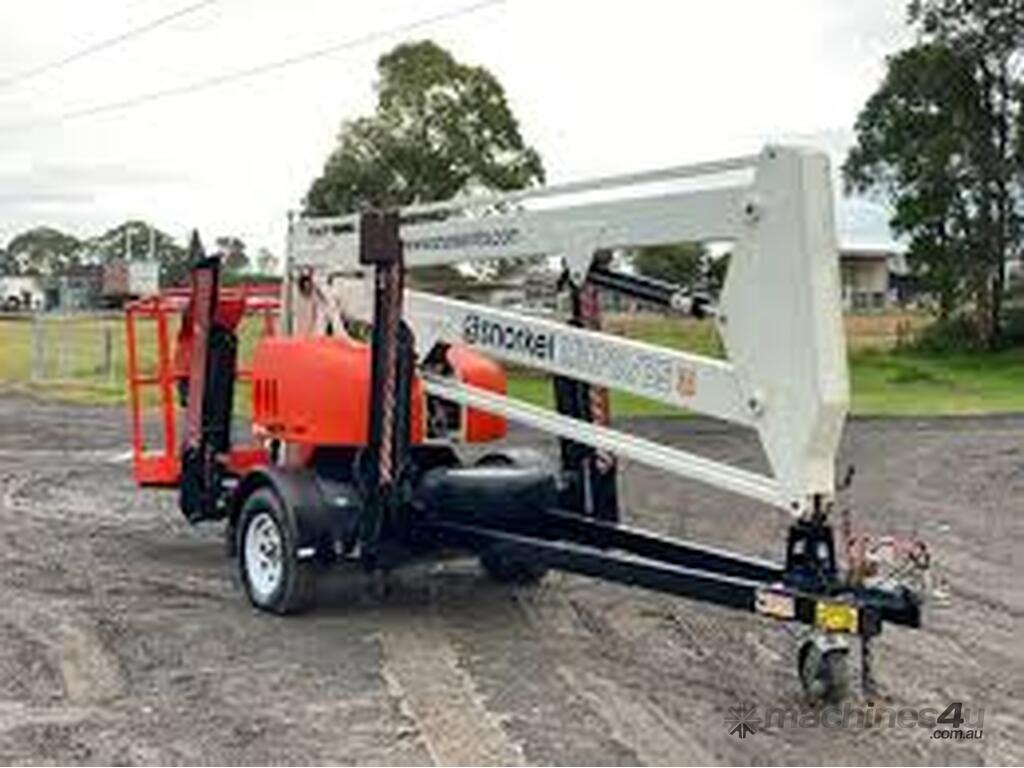

Snorkel MHP13/35 Boom Lifts

Max. Working Height: 12.6m
Max. Working Outreach: 5.6m at 6m
Platform Capacity: 227kg
Weight: 1,360kg

Built for the Australian market, the Snorkel MHP13/35 is a heavy duty trailer mounted boom lift, with a robust steel platform capable of lifting two people to a working height of 12.6m. Ideal for a wide range of construction, maintenance and landscaping applications.

STANDARD FEATURES
High strength steel boom and base construction
Proportional speed control
Heavy duty tow coupling
Heavy duty jockey wheel
Hydraulic disc brakes
Reliable petrol engine
Versatile jib boom (+70º to -70º)
Articulating boom sections for ‘up & over’ reach
600V AC rated cable to platform
Two man steel platform
Automatic self-levelling stabilisers
Outrigger/boom safety interlocks
Lockable hinged covers
Hour meter
Lifting lugs
Rotating basket mount
Platform rotator
Spare wheel


Max. Working Height
12.6m

Max. Platform Height
10.6m

Max. Horizontal Outreach
5.6m at 6m

Platform Size
1.25m x 0.78m 1.07m

Outrigger Footprint
3.7m x 3.9m

Overall Width (outriggers extended)
3.95m

Overall Width (outriggers stowed)
1.58m

Overall Length
5.99m

Transport Height
2.05m

Platform Capacity (SWL)
227kg

Max Wind Speed
12.5m/s

Levelling
auto

Turntable Rotation
540° non-continuous

Tyres
185 R14

Brakes
Hydraulic disc

Max. Axle Capacity
1,750 kg

Trailer Tongue Weight
65kg

Power Source
Honda petrol engine 5.5hp

Hydraulic System
Proportional electro/hydraulic

Weight
1,360 kg
