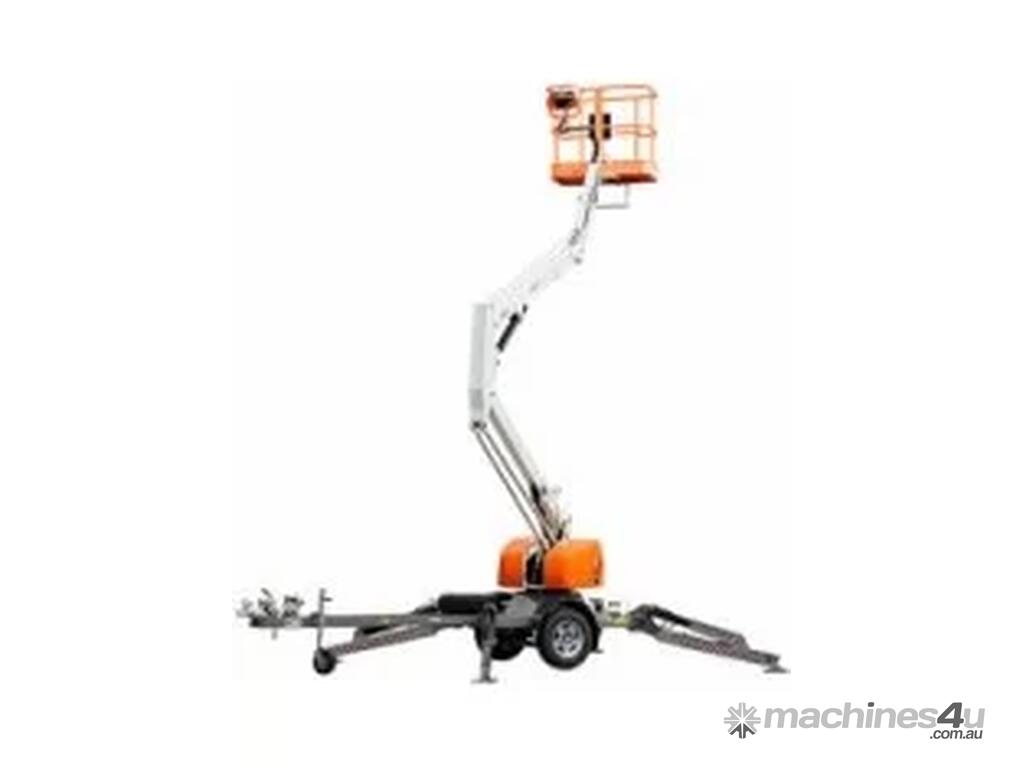

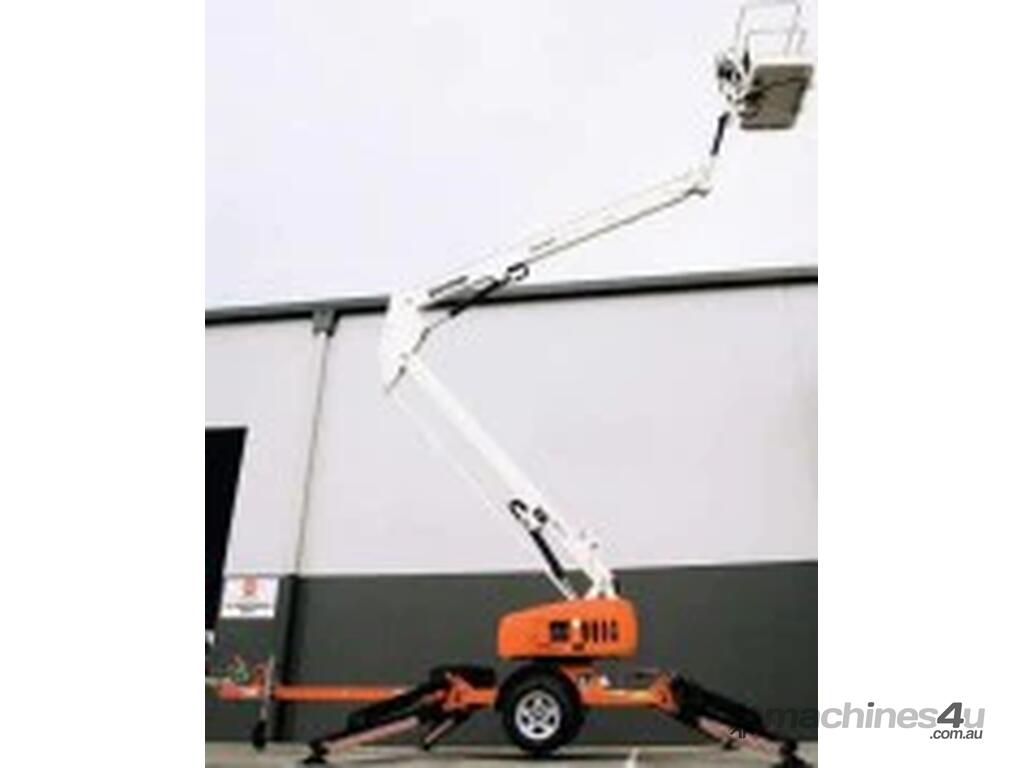

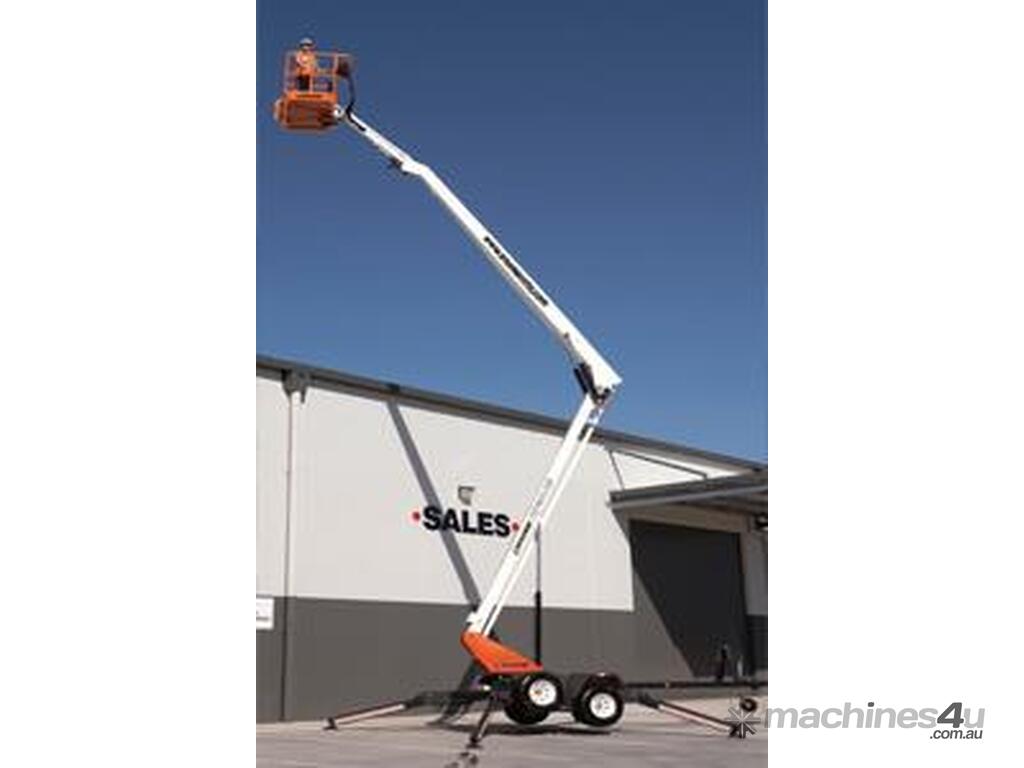

Snorkel MHP13/35 Heavy Duty Trailer Mounted Boom Lift, Robust, Built for Australian Market!

Max. Working Height: 12.6m
Max. Working Outreach: 5.6m at 6m
Platform Capacity: 227kg
Weight: 1,360kg

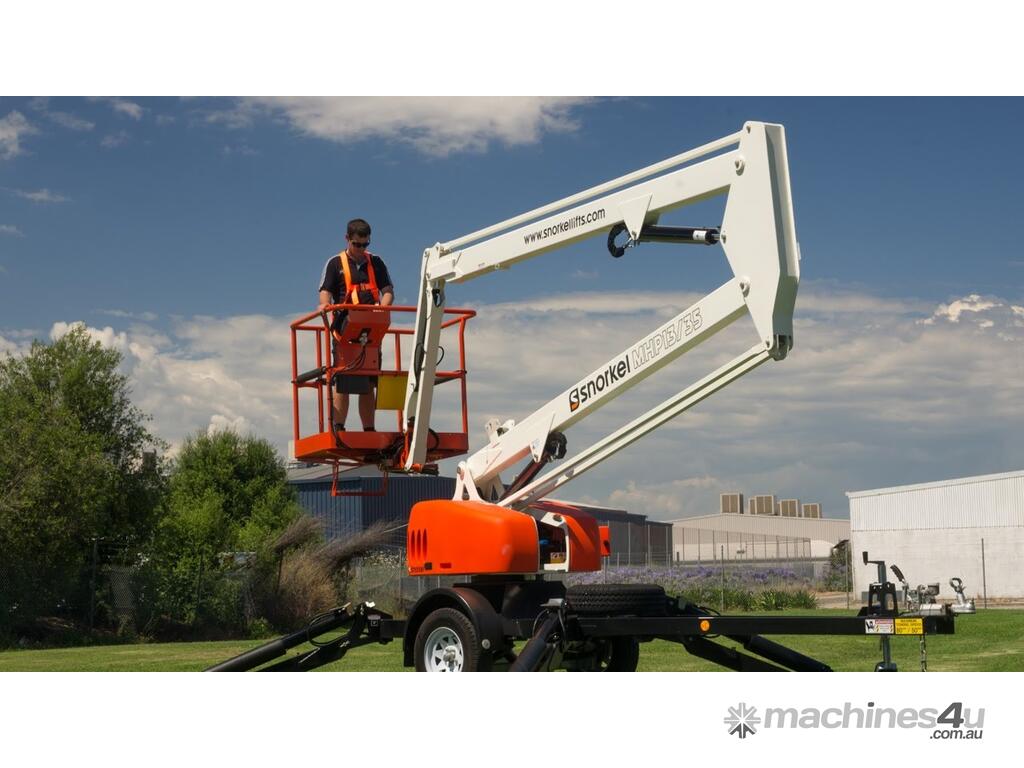

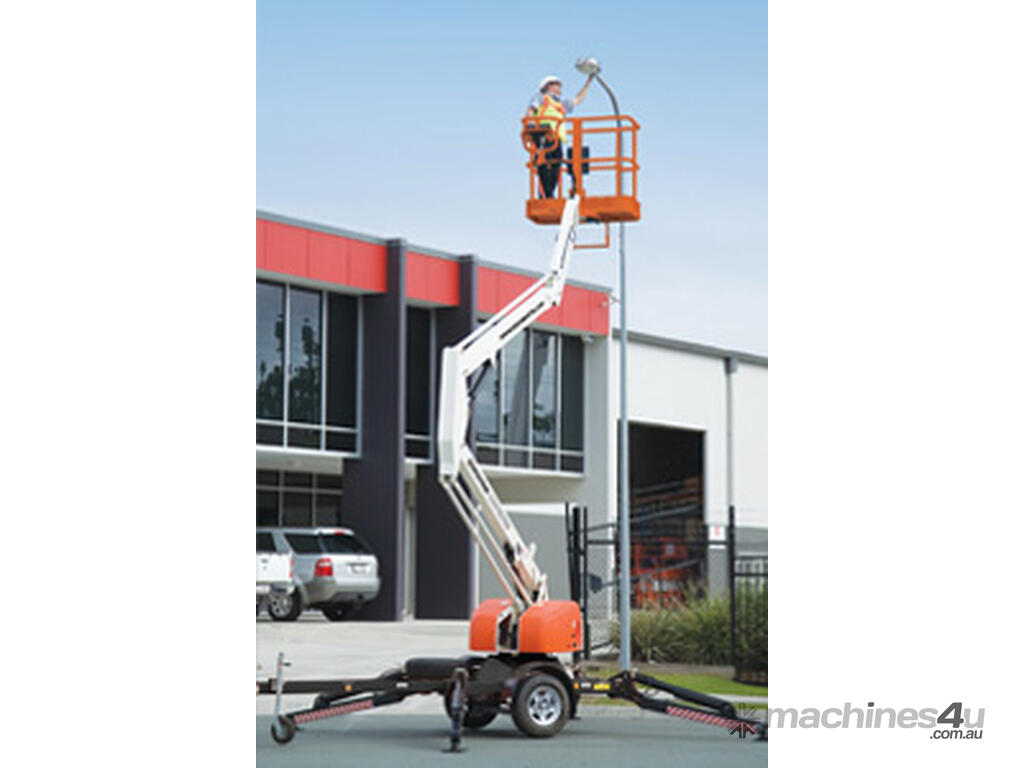

Built for the Australian market, the Snorkel MHP13/35 is a heavy duty trailer mounted boom lift, with a robust steel platform capable of lifting two people to a working height of 12.6m. Ideal for a wide range of construction, maintenance and landscaping applications.

STANDARD FEATURES
Max Working Height: 12.6 meters
Max Platform Height: 10.6 meters

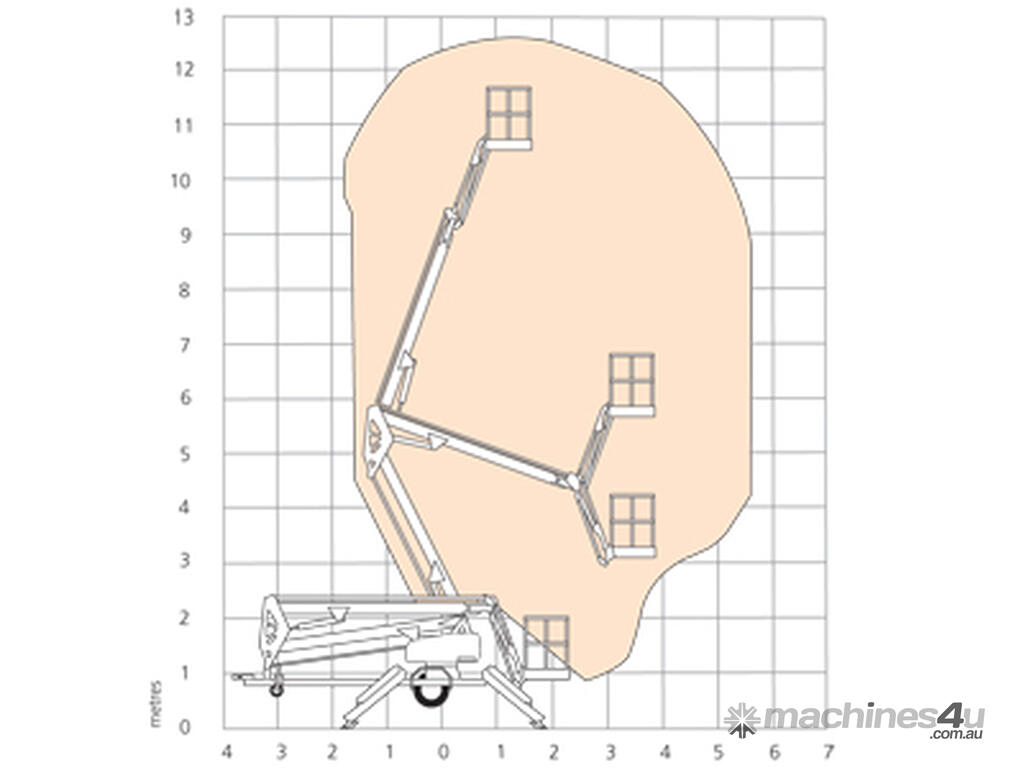

Max Horizontal Outreach: 5.6m at a height of 6m
Platform Size: 1.25m x 0.78m (1.07m at max extension)
Outrigger Footprint: 3.7m x 3.9m (when stabilizers are deployed)
Overall Width (outriggers extended): 3.95m
Overall Width (outriggers stowed): 1.58m

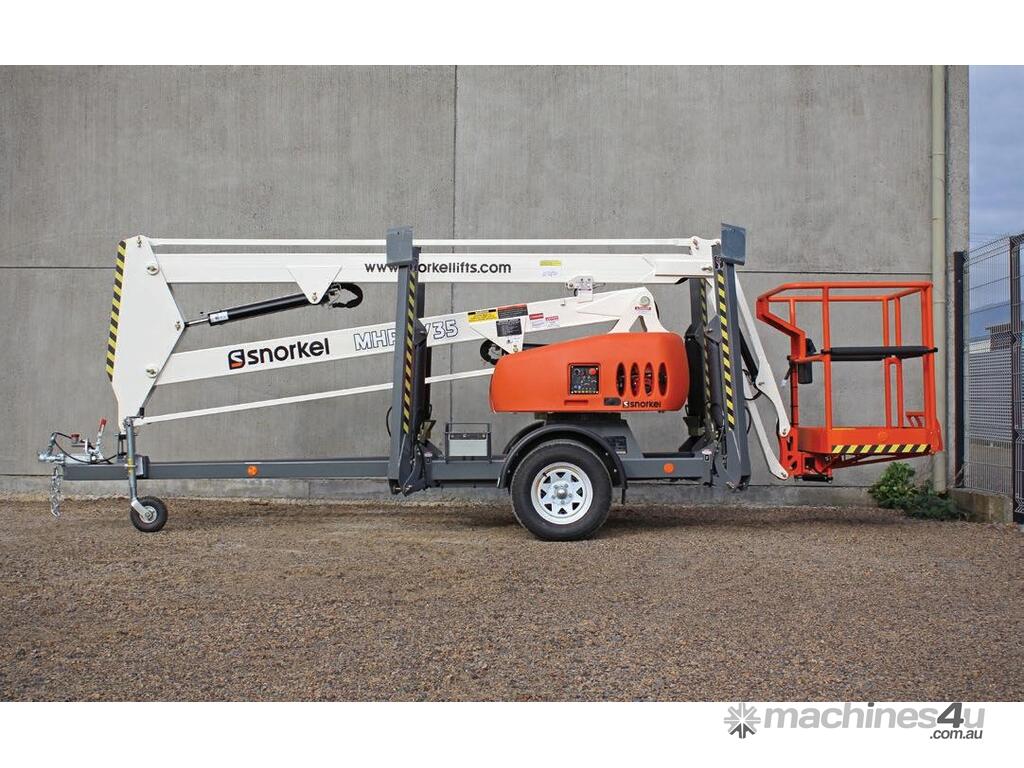

Overall Length: 5.99m
Transport Height: 2.05m
Platform Capacity: 227kg (Safe Working Load)
Max Wind Speed: 12.5m/s (suitable for outdoor use, with some wind tolerance)
Levelling: Auto levelling system
Turntable Rotation: 540° non-continuous (offers significant maneuverability)
Tyres: 185 R14 (suitable for outdoor terrain)
Brakes: Hydraulic disc brakes (for safety and control)
Max Axle Capacity: 1,750 kg
Trailer Tongue Weight: 65kg (weight on the hitch)
Power Source: Honda 5.5hp petrol engine
Hydraulic System: Proportional electro/hydraulic control for precision
Weight: 1,360 kg
