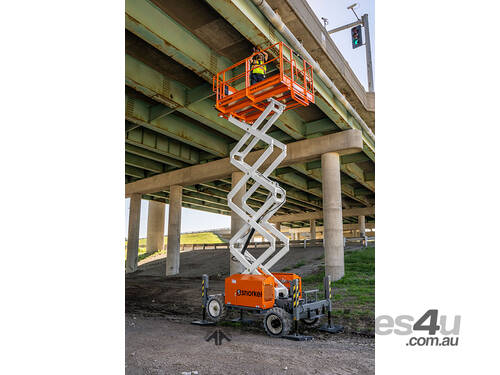

Snorkel S2770RTE Rough Terrain Scissor Lift

Max. Working Height: 10.1m
Overall Width: 1.8m
Platform Capacity: 580kg
Weight: 2,800kg

The Snorkel S2770RTE compact rough terrain electric scissor lift offers excellent maneuverability. Its robust 4-wheel drive is paired with a lightweight, compact design. The S2770RTE can handle rough terrain and work in confined spaces with ease. Powered by lithium-ion batteries, it provides long-lasting and quiet performance.

STANDARD FEATURES
Two lithium-ion battery systems 11.5kWh
4 wheel drive
Roll-out deck extension
4 hydraulic stabilizers with automatic leveling
Non-marking foam filled tires
Proportional controls
Power line to platform
Platform overload system
Drive motion alarm
Descent alarm
Fold-down guardrails
Flashing amber light (x2)
Oscillating axle
Hour meter & on-board diagnostics display
Manual lowering valve
Dual lanyard attachment points
2000 charging cycles/2 year** lithium battery warranty
2 years parts & labor, 5 year structural warranty

Max Working Height
10.1m

Max. Platform Height
8.1m

Platform Size (stowed)
1.6m x 2.8m

Platform Size (extended)
1.6m x 4.0m

Extension Deck Length
1.2m

Overall Width
1.8m

Overall Length
3.4m

Stowed Height
2.61m

Min Height (guardrails folded)
1.83m

Ground Clearance
330mm

Platform Capacity (SWL)
580kg

Max Drive Height
8.1m

Max. Wind Speed
12.5m/s

Max Drive Speed (stowed)
4.5km/h

Max Drive Speed (elevated)
0.5km/h

Raise/Lower Time
26/30 sec

Gradeability
35%

Max Stabilizer Leveling (front to rear)
6°

Max Stabilizer Leveling (side to side)
10°

Inside Turning Radius
2.7m

Outside Turning Radius
5.0m

Tyres
27 x 10.5 – 15 foam filled non marking

Controls
Proportional joystick

Drive System
4 wheel drive

Power Source
11.5kWh Li-ion batteries with integrated BMS

Operating Temperature
(-)25°C to (+)60°C

Charger
high frequency smart on-board 50A battery charger

Motor
AC electric motor

Weight
2,800kg
