Snorkel S3219 Plus Scissor Lifts

Key Specs
Working Height: 7.62 m / 25 ft
Key Features
Low step-in platform height
No hydraulic hoses
Electrically operated
No folding rails
Fits standard doorways
Large non-marking tires
Categories: Electric Scissor Lifts, Scissor Lifts

Specification Value
Max. Working Height 25 ft (7.62 m)
Max. Platform Height (A) 19 ft (5.79 m)
Platform Size (Stowed) 31.5 in x 69 in (0.8 m x 1.75 m)
Platform Size (Extended) 31.5 in x 105 in (0.8 m x 2.66 m)
Deck Extension Length 36 in (0.91 m)
Overall Length (C) 72 in (1.81 m)
Overall Width (D) 32 in (0.81 m)
Stowed Height (B) 78.75 in (2.0 m)
Ground Clearance (Stowed) 2.63 in (0.06 m)
Platform Capacity (SWL) 600 lbs (272.1 kg)
Max. Wind Speed 28 mph (45 kph)
Max. Drive Height 19 ft (5.79 m)
Max. Drive Speed (Stowed) 2.0 mph (3.21 kph)
Max. Drive Speed (Elevated) 0.4 mph (0.6 kph)
Raise/Lower Time 35/20 sec
Gradeability 25%
Max. Operation Slope (side-to-side) 1.5 degrees
Max. Operation Slope (front-to-back) 4 degrees

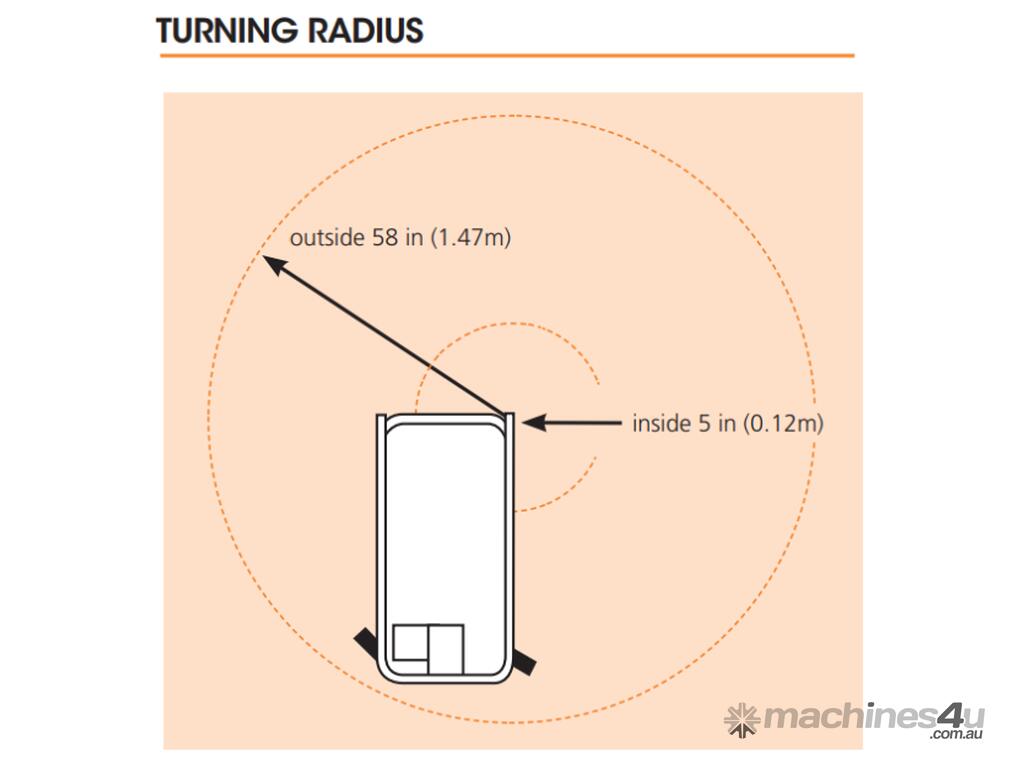

Inside Turning Radius 5 in (0.12 m)
Outside Turning Radius 58 in (1.47 m)
Tires 12.7 in (0.32 m)

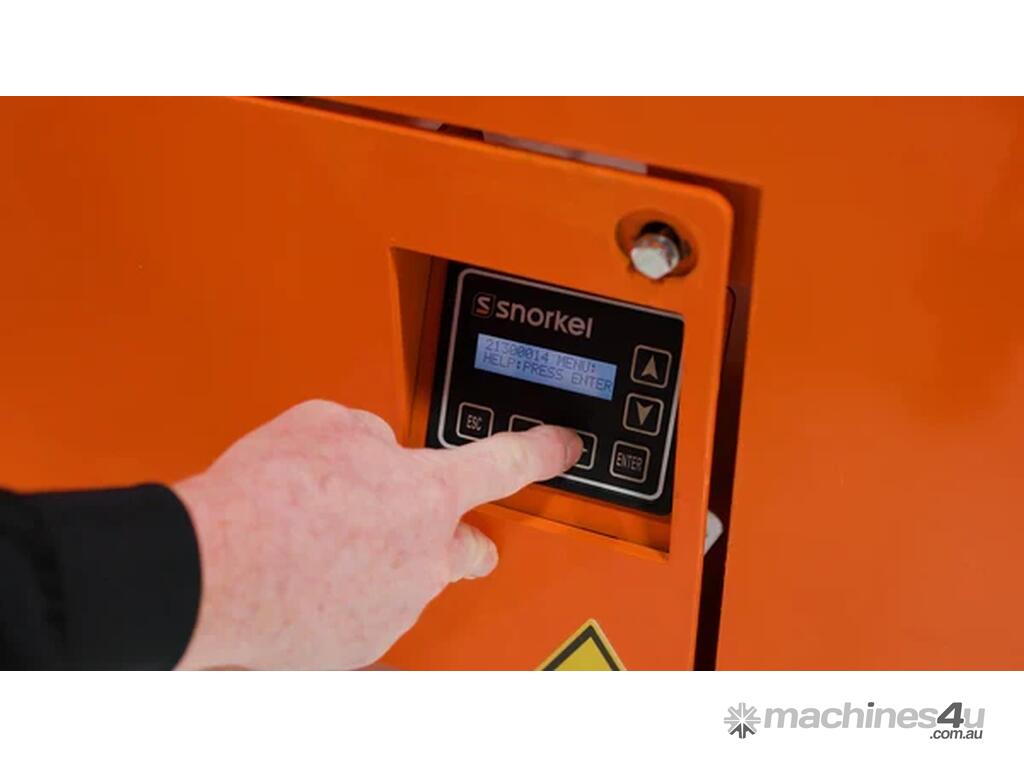

Controls Proportional
Drive System Dual DC Motors
Parking Brake 2-wheel, spring applied

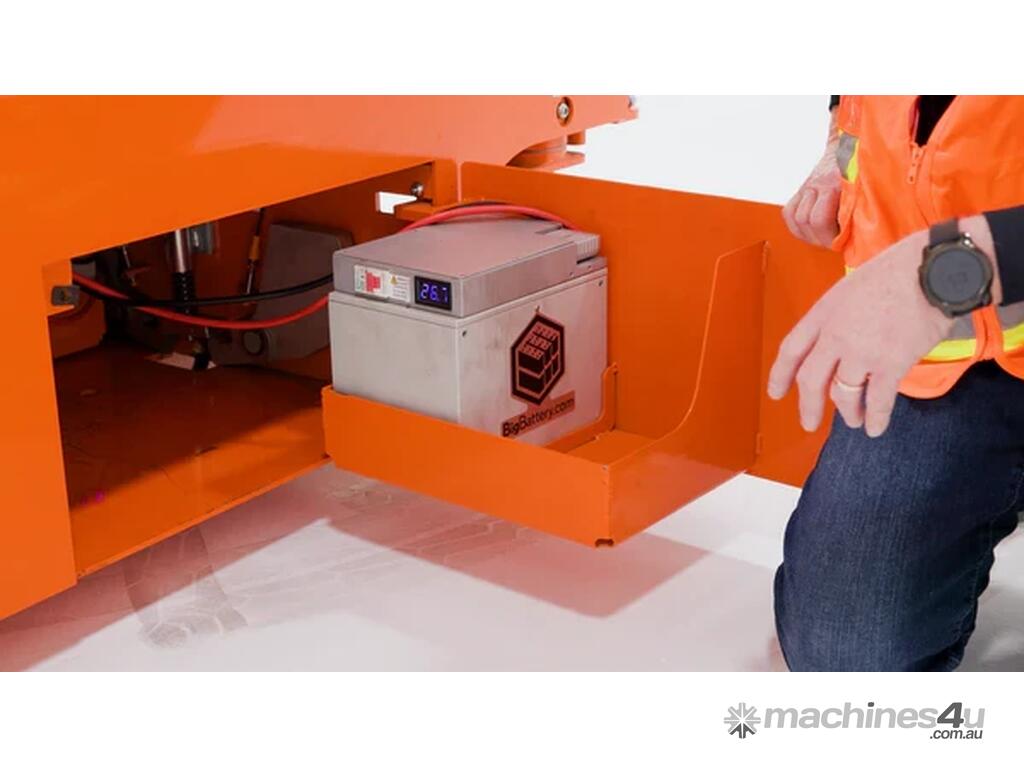

Power Source Two (2) 24V 60Ah Lithium Batteries
Charger 20A
Weight 2,900 lbs (1315.4 kg)
