Snorkel TM16E Vertical Lift

The Snorkel TM16E delivers the tallest working height in Snorkel’s line of self-propelled telescopic mast lifts. Featuring an electric drive system, this mast lift offers longer duty cycles on the job. Smooth proportional controls allows for precise positioning where needed most.

Key Specs
Max. Working Height: 6.87m
Overall Width: 0.76m
Platform Capacity: 227kg
Weight: 1,105kg
Standard Features
Roll-out deck extension

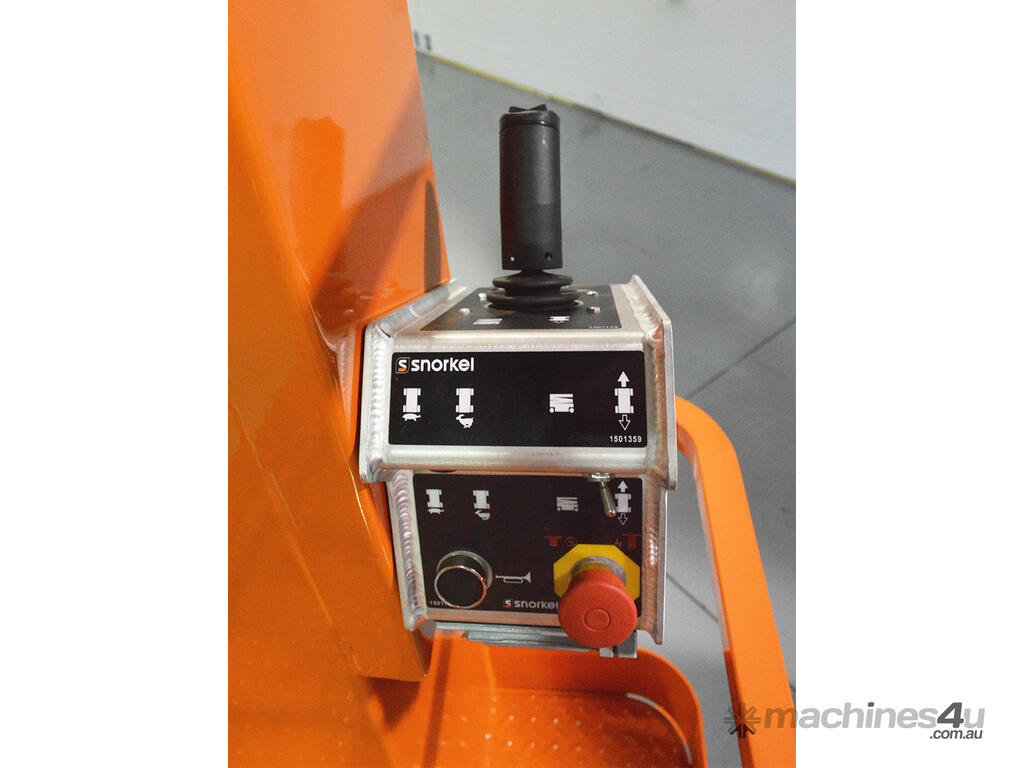

Proportional controls
Saloon-door style entry gates
Descent & tilt alarms

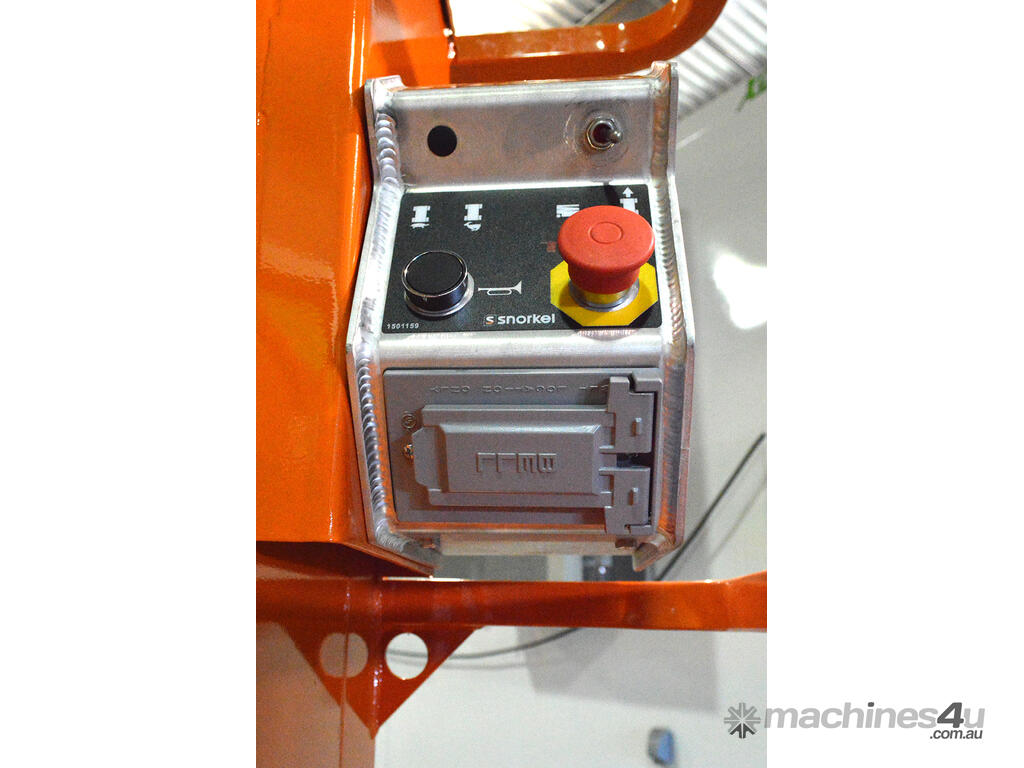

Emergency lowering at chassis controls
Non-marking rubber tyres
Crane lift points
Horn
2 persons indoor
Selectable motion alarm
Integrated battery charger 110V 20A
Hour meter & on-board diagnostics display
2 year parts & labour, 5 year structural warranty

Max Working Height 6.87m
Max. Platform Height 4.87m
Platform Size (stowed) 0.68m x 0.99m
Platform Size (extended) 0.68m x 1.5m
Extension Deck Length 0.51m
Overall Width 0.76m
Overall Length 1.37m
Stowed Height 1.98m
Ground Clearance 76mm
Platform Capacity (SWL) 227kg
Max Drive Height 4.87m
Max. Wind Speed 0m/s
Max Drive Speed (stowed) 4.0km/h
Max Drive Speed (elevated) 0.6km/h
Raise/Lower Time 28 / 36 seconds
Gradeability 25%
Max Operating Slope (side to side) 1.5º
Max Operating Slope (front to back) 1.5º
Inside Turning Radius 0m
Outside Turning Radius 1.4m
Tyres 323mm non-marking rubber
Parking Brake 2 wheel, spring applied, electric release

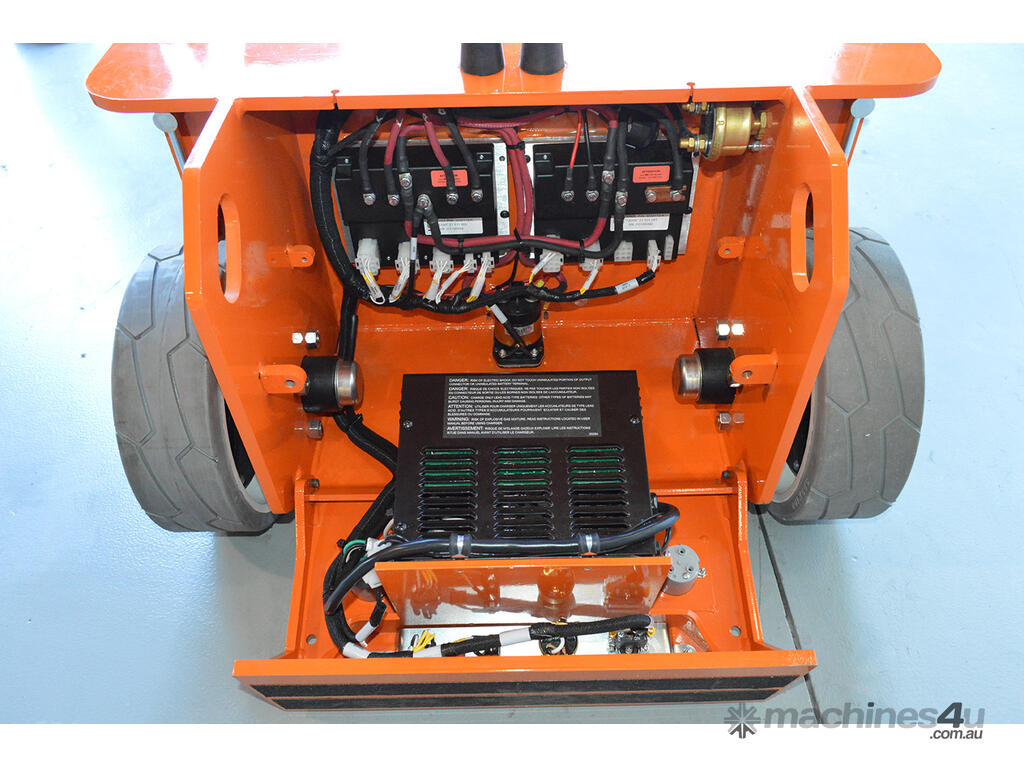

Drive System dual DC motors
Controls Proportional
Power Source 24V 220Ah batteries
Battery Charger 20 amp
Weight 1,105kg
