Snorkel UL25 DC Vertical Lift

The Snorkel UL25 is a robust push-around mast lift, which safely lifts one person plus tools to a working height of 9.6m. The lift can be easily pushed to position, and can be tilted back to pass through a standard doorway. The patented ‘Girder Lock’ telescopic mast design ensures a very stable working platform, and the lift also features an easy loader system for flatbed vehicle transport between sites.

Key Specs
Max. Working Height: 9.6m
Tilt-Back Height: 1.95m
Platform Capacity: 159kg
Weight (DC): 420kg
Standard Features
Patented girder lock telescopic mast system

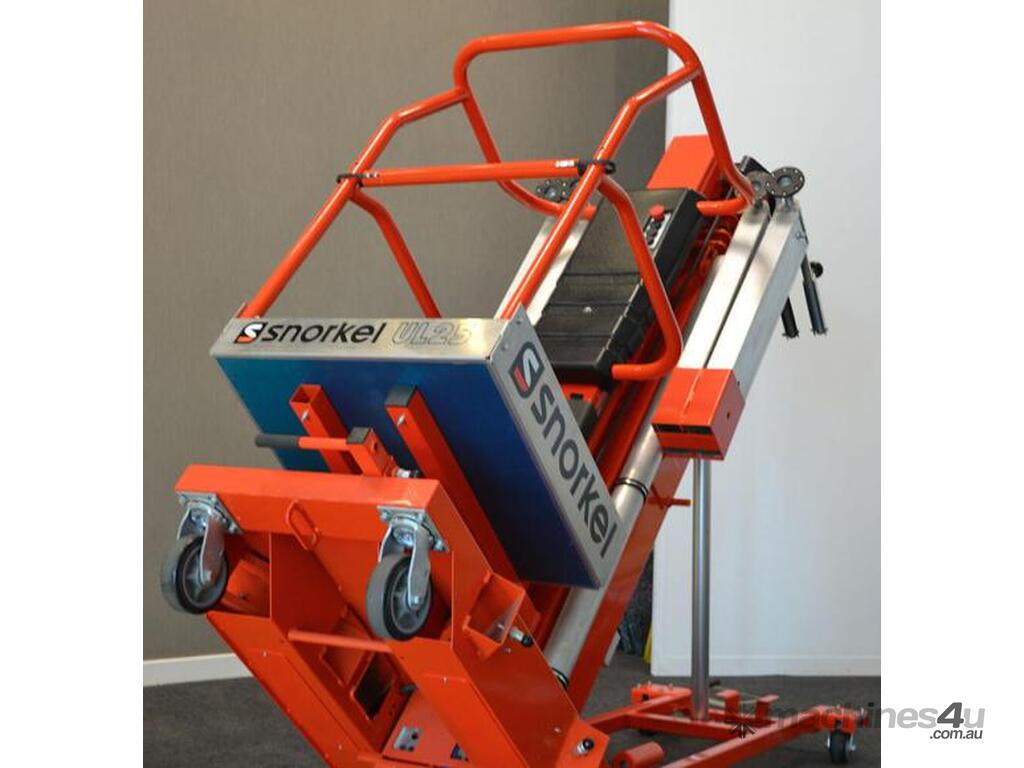

Integrated tilt-back system
Ground level entry
EZ Loader system for transport
Outrigger interlock indicators
Integrated battery charger (DC only)
Non-marking wheels & casters
2 year parts & labor, 5 year structural warranty

Max Working Height 9.6m
Max. Platform Height 7.6m
Platform Length 0.56m
Platform Width 0.66m
Outrigger Footprint 2.06m x 1.99m
Overall Width 0.74m
Overall Length 1.26m
Stowed Height 1.99m
Tilt Back Height 1.95m
Tilt Back Length 2.6m
Platform Capacity (SWL) 159kg
Max. Wind Speed 0m/s
Raise/Lower Time 43/23 seconds
Wheels 250mm x 64mm rear, 150mm castors front
Controls push button
Wall Access 356mm
Power Source (AC) 120/220V AC 50HZ
Power Source (DC) 1 X 12V 105AH battery
Gross Weight (AC) 390kg
Gross Weight (DC) 420kg
