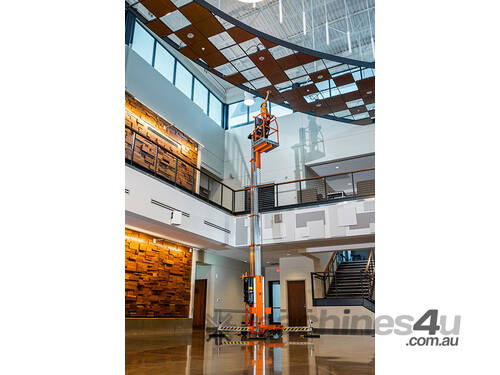

Snorkel UL25 Mast Lift

Max. Working Height: 9.6m
Tilt-Back Height: 1.95m
Platform Capacity: 159kg
Weight (DC): 420kg

The Snorkel UL25 is a robust push-around mast lift, which safely lifts one person plus tools to a working height of 9.6m. The lift can be easily pushed to position, and can be tilted back to pass through a standard doorway. The patented ‘Girder Lock’ telescopic mast design ensures a very stable working platform, and the lift also features an easy loader system for flatbed vehicle transport between sites.

STANDARD FEATURES
Patented girder lock telescopic mast system
Integrated tilt-back system
Ground level entry
EZ Loader system for transport
Outrigger interlock indicators
Integrated battery charger (DC only)
Non-marking wheels & casters
2 year parts & labor, 5 year structural warranty


Max Working Height
9.6m

Max. Platform Height
7.6m

Platform Length
0.56m

Platform Width
0.66m

Outrigger Footprint
2.06m x 1.99m

Overall Width
0.74m

Overall Length
1.26m

Stowed Height
1.99m

Tilt Back Height
1.95m

Tilt Back Length
2.6m

Platform Capacity (SWL)
159kg

Max. Wind Speed
0m/s

Raise/Lower Time
43/23 seconds

Wheels
250mm x 64mm rear, 150mm castors front

Controls
push button

Wall Access
356mm

Power Source (AC)
120/220V AC 50HZ

Power Source (DC)
1 X 12V 105AH battery

Gross Weight (AC)
390kg

Gross Weight (DC)
420kg
