Snorkel UL32 DC Vertical Lift

The Snorkel UL32 is a robust push-around mast lift, safely lifts one person plus tools to a working height of 11.7m. The lift can be easily pushed into position, and can pass through standard doorways thanks to its innovative tilt-back system.

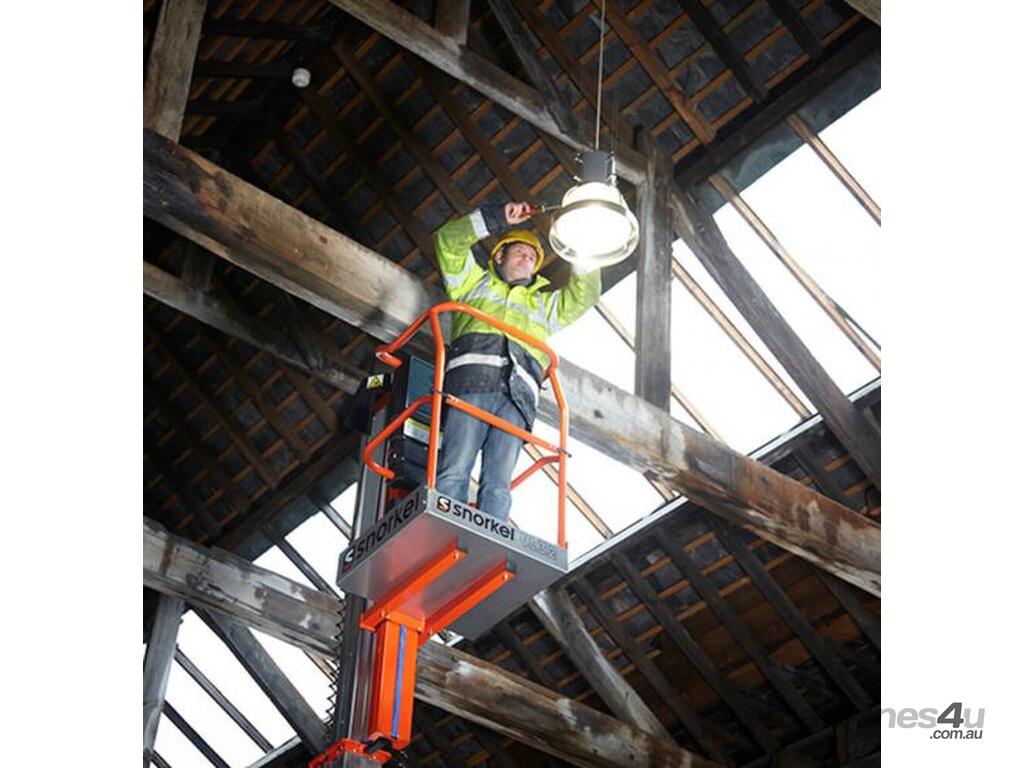

The patented ‘Girder Lock’ telescopic mast design provides a very stable platform, even at full elevation. The UL32 is ideal for interior maintenance, particularly in sports hall, auditoriums and atriums.

Key Specs
Max. Working Height: 11.7m
Tilt-Back Height: 1.95m
Platform Capacity: 136kg
Weight (DC): 465kg
Standard Features

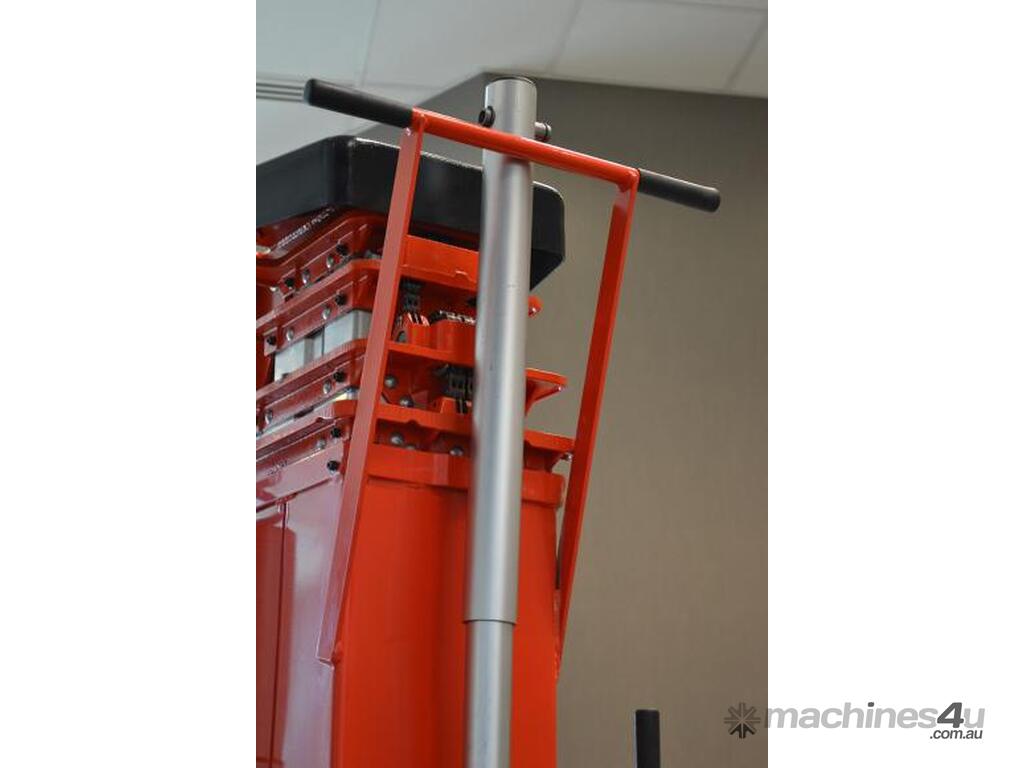

Patented girder lock telescopic mast system
Integrated tilt-back system
Ground level entry
EZ Loader system for transport

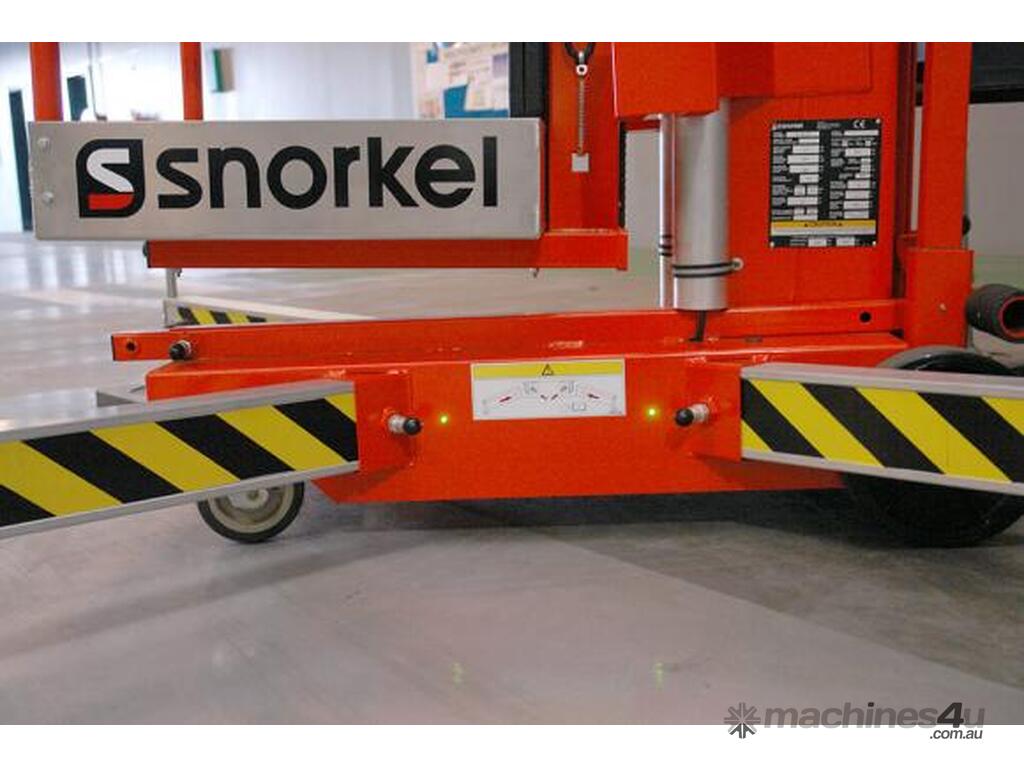

Outrigger interlock indicators
Integrated battery charger (DC only)
Non-marking wheels & casters
2 year parts & labor, 5 year structural warranty

Max Working Height 11.7m
Max. Platform Height 9.7m
Platform Length 0.56m
Platform Width 0.66m
Outrigger Footprint 2.06m x 1.99m
Overall Width 0.74m
Overall Length 1.32m
Stowed Height 2.51m
Tilt Back Height 1.95m
Tilt Back Length 2.64m
Platform Capacity (SWL) 136kg
Max. Wind Speed 0m/s
Raise/Lower Time 57/26 seconds
Wheels 250mm x 64mm rear, 150mm castors front
Controls push button
Wall Access 356mm
Power Source (AC) 120/220V AC 50HZ
Power Source (DC) 1 X 12V 105AH battery
Gross Weight (AC) 435kg
Gross Weight (DC) 465kg
