Snorkel UL40 AC Vertical Lift

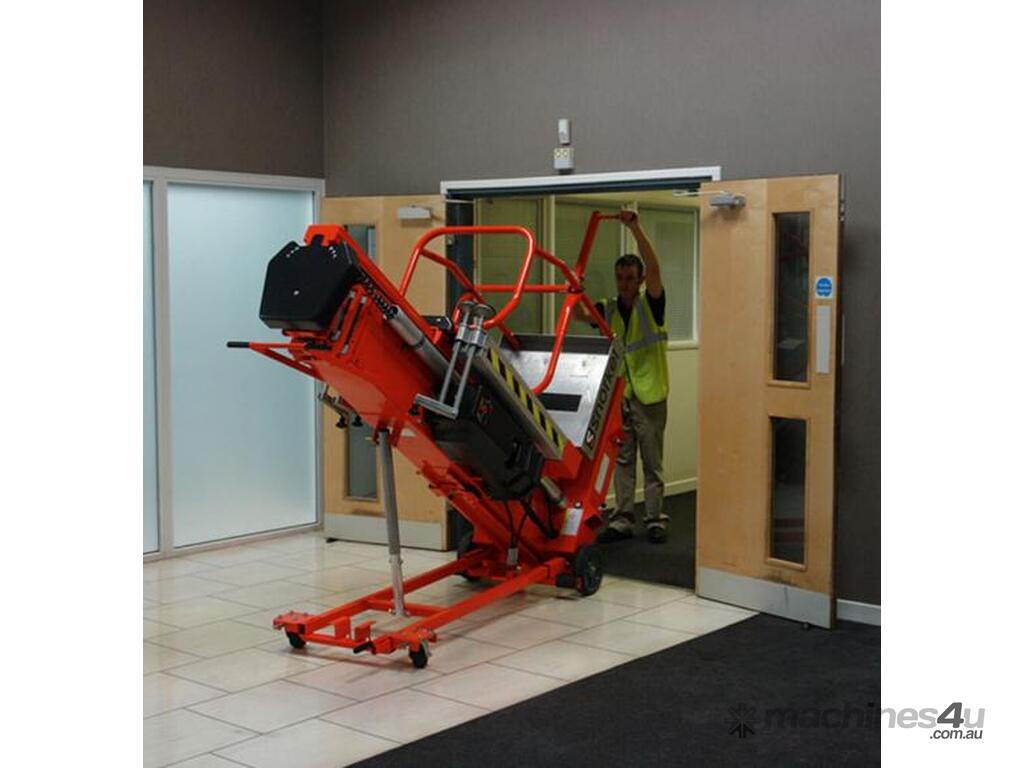

The Snorkel UL40 is the largest personnel lift in the range. This robust push-around mast lift, safely lifts one person plus tools to a working height of 14.1m. The lift can be easily pushed into position, and can pass through standard doorways thanks to its innovative tilt-back system. The patented ‘Girder Lock’ telescopic mast design provides a very stable platform, even at full elevation. The UL40 is ideal for interior maintenance, particularly in sports hall, auditoriums, atriums and shopping malls.

Key Specs
Max. Working Height: 14.1m
Tilt-Back Height: 2.0m
Platform Capacity: 136kg
Weight (DC): 500kg
Standard Features

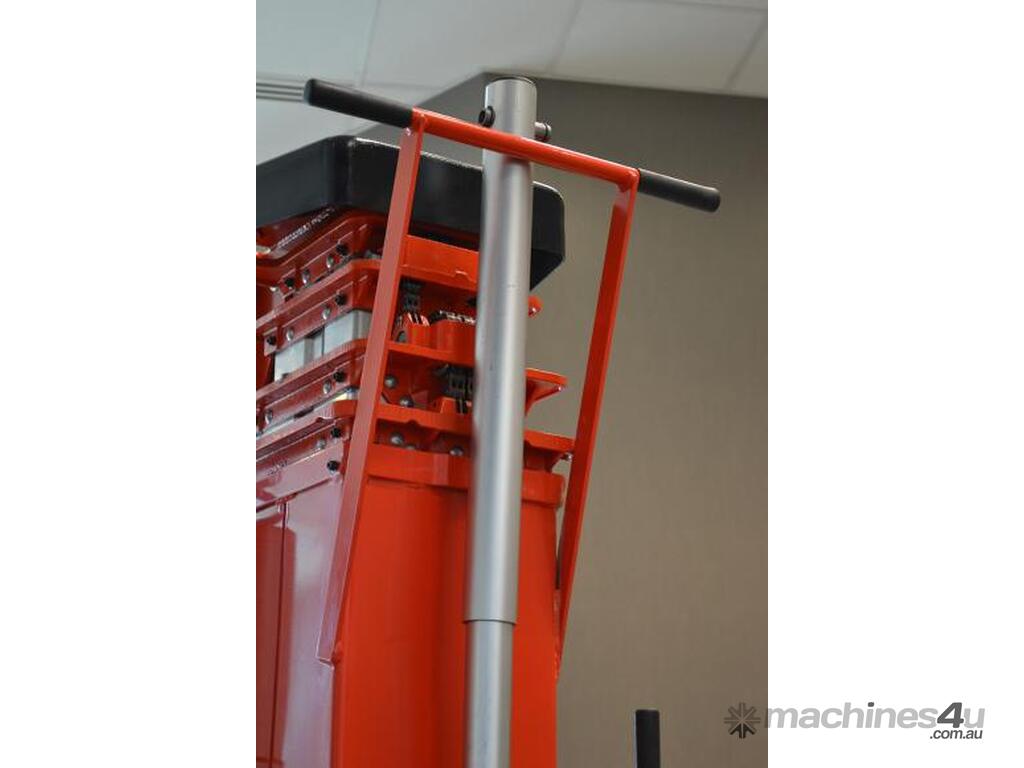

Patented girder lock telescopic mast system
Integrated tilt-back system
Ground level entry
EZ Loader system for transport

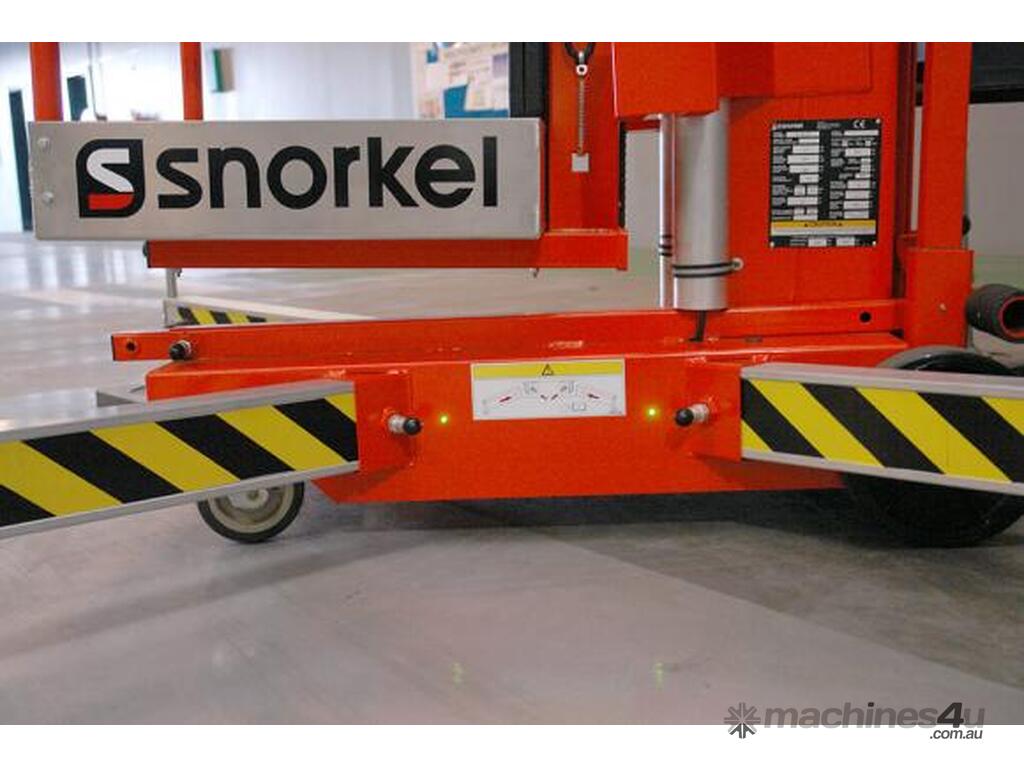

Outrigger interlock indicators
Integrated battery charger (DC only)
Non-marking wheels & casters
2 year parts & labor, 5 year structural warranty

Max Working Height 14.1m
Max. Platform Height 12.1m
Platform Length 0.56m
Platform Width 0.66m
Outrigger Footprint 2.95m x 2.85m
Overall Width 0.74m
Overall Length 1.32m
Stowed Height 2.9m
Tilt Back Height 2.0m
Tilt Back Length 2.99m
Platform Capacity (SWL) 136kg
Max. Wind Speed 0m/s
Raise/Lower Time 60/40 seconds
Wheels 250mm x 64mm rear, 150mm casters front
Controls push button
Wall Access 736mm
Power Source (AC) 120/220V AC 50HZ
Power Source (DC) 1 X 12V 105AH battery
Gross Weight (AC) 470kg
Gross Weight (DC) 500kg
