Sodick AD35L Die Sinker EDM

AD35L

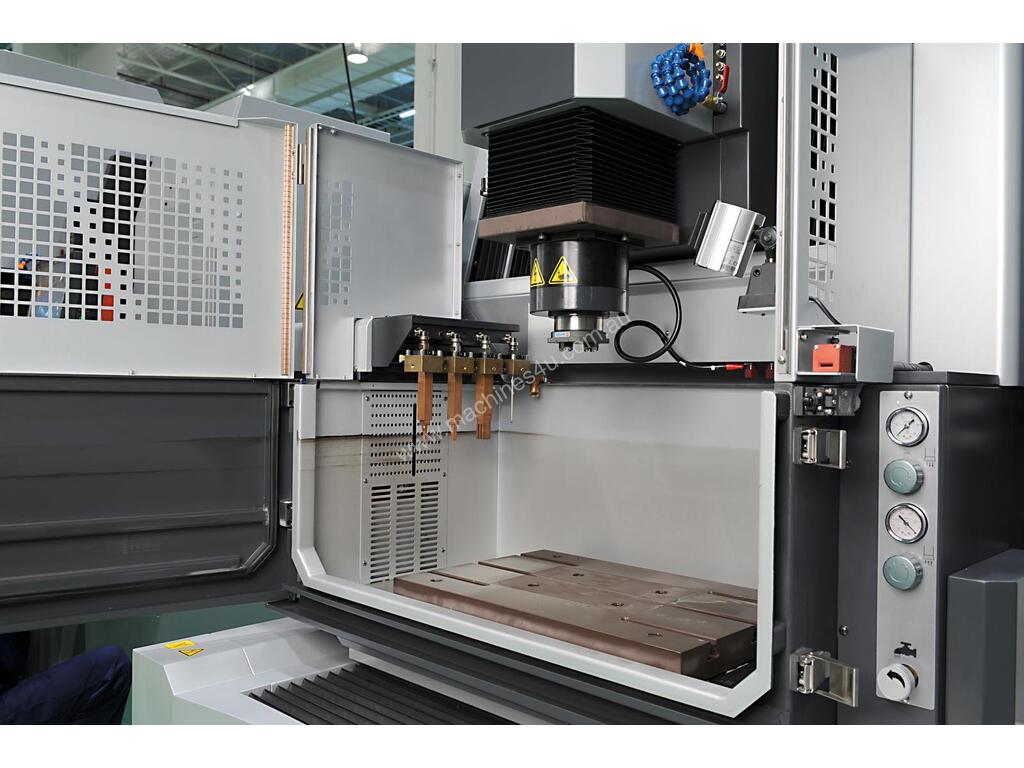

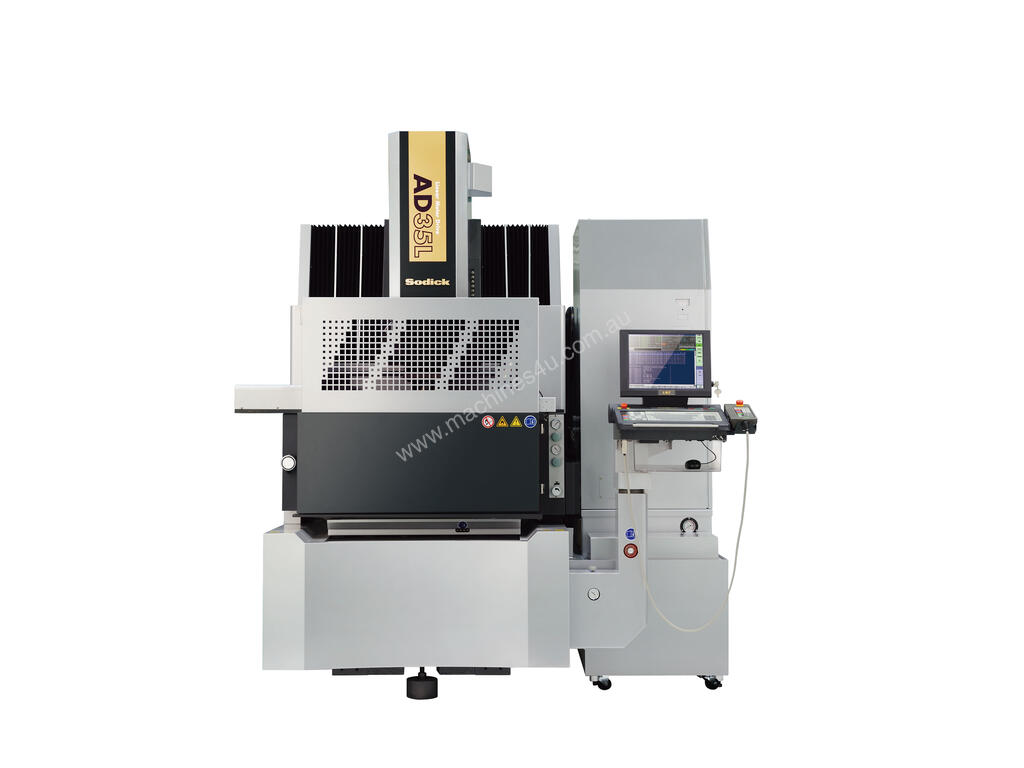

Sodick’s expertise in EDM innovation using 3D design systems, the latest CAE technologies and numerous simulations have made it possible to create an improved basic machine structure of optimised rib arrangements which increase rigidity by approximately 70%. Using the new AD35L machine deformation is minimised, allowing optimum performance at high-speed and rapid acceleration linear motors. Furthermore the original design of an independent X and Y-axis plus an efficient machine layout leads to a longer stroke, smaller footprint and highly accurate machining capability.

Technical Specification

X/Y/Z axis travel (mm): 350 x 250 x 270
Table dimensions (W x D, mm): 600 x 400
Work tank dimensions (W x D x H, mm): 975 x 555 x 350
Work tank fluid level (Min. to Max., mm): 170 ~ 300
Work tank capacity (l): 180
Max. workpiece weight (kg): 550
Max. Weight of electrode(kg): 50
Distance from floor to table top (mm): 810
Machine dimensions (W x D x H, mm): 2080 x 1955 x 2350
Machine installation dimensions (mm): 2800 x 2900
Machine weight (kg): 3200
Air pressure: 0.65 MPa
Air flow: 100 NL/min
Total power input: 3-phases 50/60Hz, 10 KVA

Dielectric Tank
External dimensions (W x D x H, mm): 800 x 1705 x 2125
Weight empty (kg): 840 (including power supply)
Capacity (l): 400
Filtration method: 2 replaceable paper filters (MF-2400)
