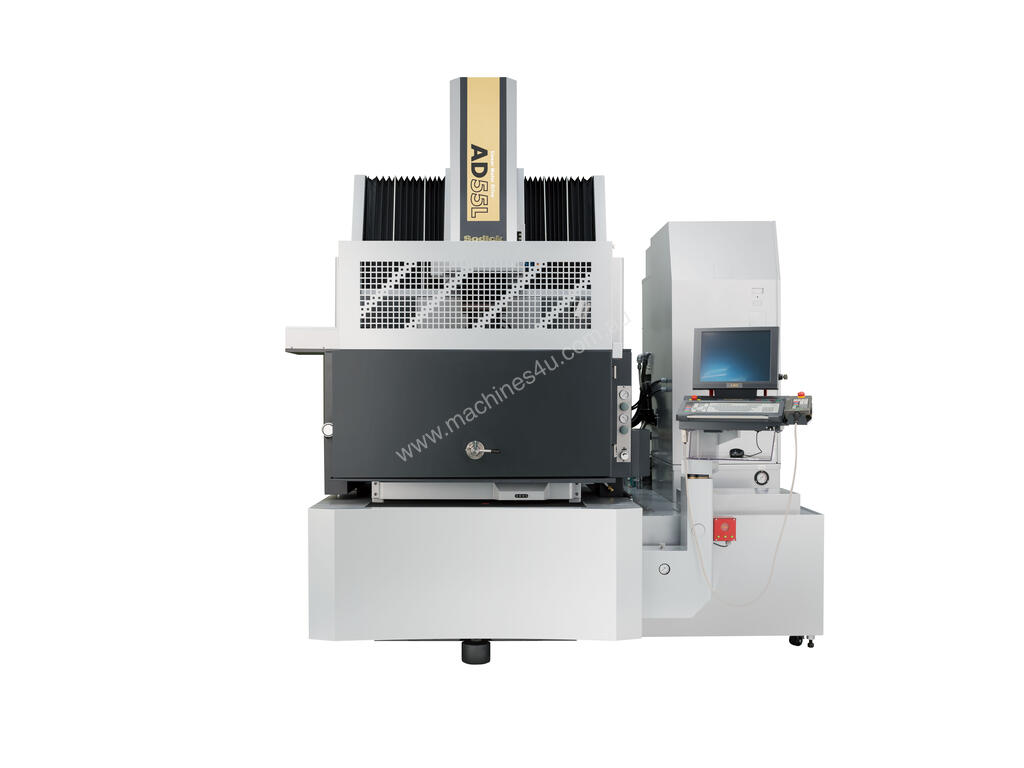

Sodick AD55L Die Sinker EDM

AD55L

Die sinking EDM with the dynamic response of linear technology – the Sodick AD series has set a new standard in the category of entry-level machines.
It comes with all the latest technologies such as linear motors, ceramics, motion controller and discharge unit.

Technical Specification

X/Y/Z axis travel (mm): 600 x 400 x 400
Table dimensions (W x D, mm): 750 x 550 (ceramic)
Work tank fluid level (Min. to Max., mm): 170 ~ 450
Work tank capacity (l): 1,200 x 800 x 500
Max. workpiece weight (kg): 1,000
Max. Weight of electrode(kg): 50
Distance from floor to table top (mm): 900
Machine dimensions (W x D x H, mm): 2,515 x 2,325 x 2,720
Machine weight (kg): 4,600
Air pressure: 0.65 Mpa
Step resolution (mm): 0.0001
Controlled axis: 4

Dielectric Tank
External dimensions (W x D x H, mm): 1,050 x 2,005 x 2,140
Weight empty (kg): 1,200
Capacity (l): 800
Filtration method: 2 Replaceable paper filters (MF-2400)
Dielectric fluid: Oil
