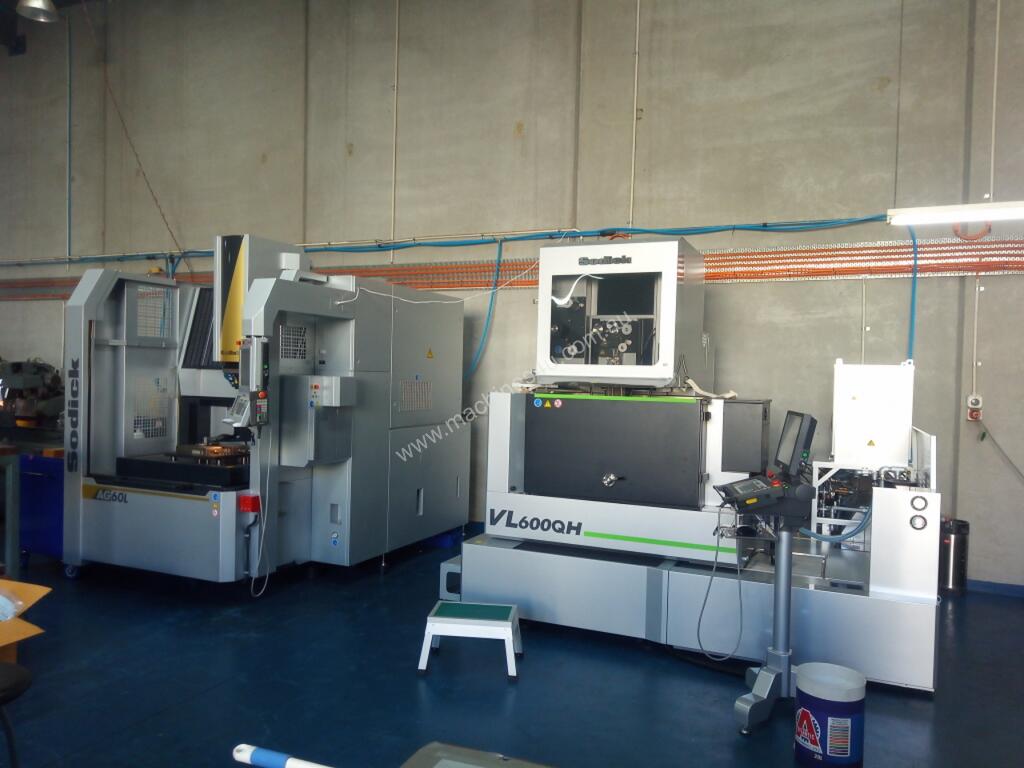

Sodick AG40L Die Sinker EDM

The fastest precision EDM
The most popular Linear Die sinker EDM range in the market, “AG series” ensures that machining in half the time has become an economically efficient reality.
The series features linear drive technology and simplified control mechanisms, which provide a direct link between the drive and the control. This ensures the fastest possible servo-response and optimal spark gaps at all times.


Technical Specification

X/Y/Z axis travel (mm): 400 x 300 x 270
Table dimensions (W x D, mm): 600 x 400
Work tank dimensions (W x D x H, mm): 750 x 620 x 350
Work tank fluid level (Min. to Max., mm): 100 ~ 300
Max. workpiece weight (kg): 550
Max. Weight of electrode(kg): 50
Distance from floor to table top (mm): 830
Machine dimensions (W x D x H, mm): 1662 x 2490 x 2330
Machine weight (kg): 4100
Air pressure: 0.65
Step resolution (mm): 0.0001
Controlled axis: 4
