Sodick AG80L Die Sinker EDM

The fastest cavity sinking EDM in terms of precision for workpieces up to 2000 kg

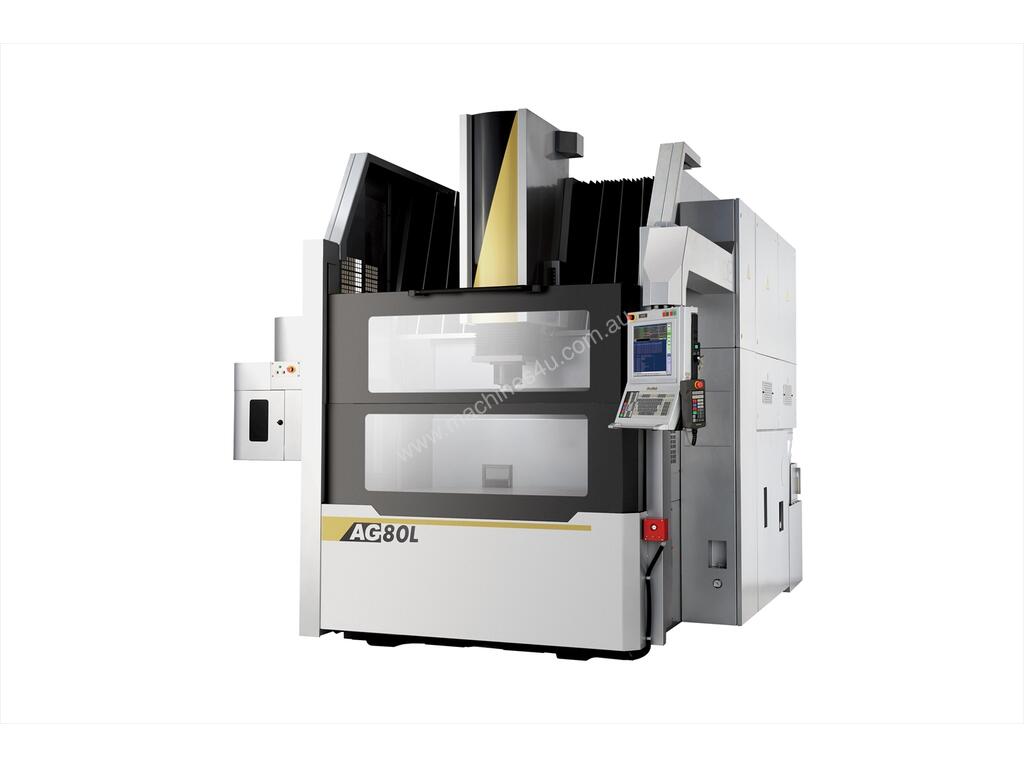

Sodick’s largest size Die sinker EDM machine in the range is the “AG80L”. It is suitable for cutting large work pieces in a very short space of time, thanks to the Sodick’s in-house fabricated technologies.

The series features linear drive technology and simplified control mechanisms, which provide a direct link between the drive and the control. This ensures the fastest possible servo response and optimal spark gaps at all times.

Technical Specification

X/Y/Z axis travel (mm): 850 x 520 x 420
Table dimensions (W x D, mm): 1100 x 700 (Ceramic)
Work tank dimensions (W x D x H, mm): 1400 x 950 x 500
Work tank fluid level (Min. to Max., mm): 150 ~ 450
Max. workpiece weight (kg): 3000
Max. Weight of electrode(kg): 100
Distance from floor to table top (mm): 840
Machine dimensions (W x D x H, mm): 2060 x 3130 x 2900
Machine weight (kg): 9000
Air pressure: 0.65
Step resolution (mm): 0.0001
Controlled axis: 4

Dielectric Tank
External dimensions (W x D x H, mm):-
Weight empty (kg):-
Capacity (l):845
Filtration method:Replaceable paper filter (MF-2400)
Dielectric fluid:Oil
