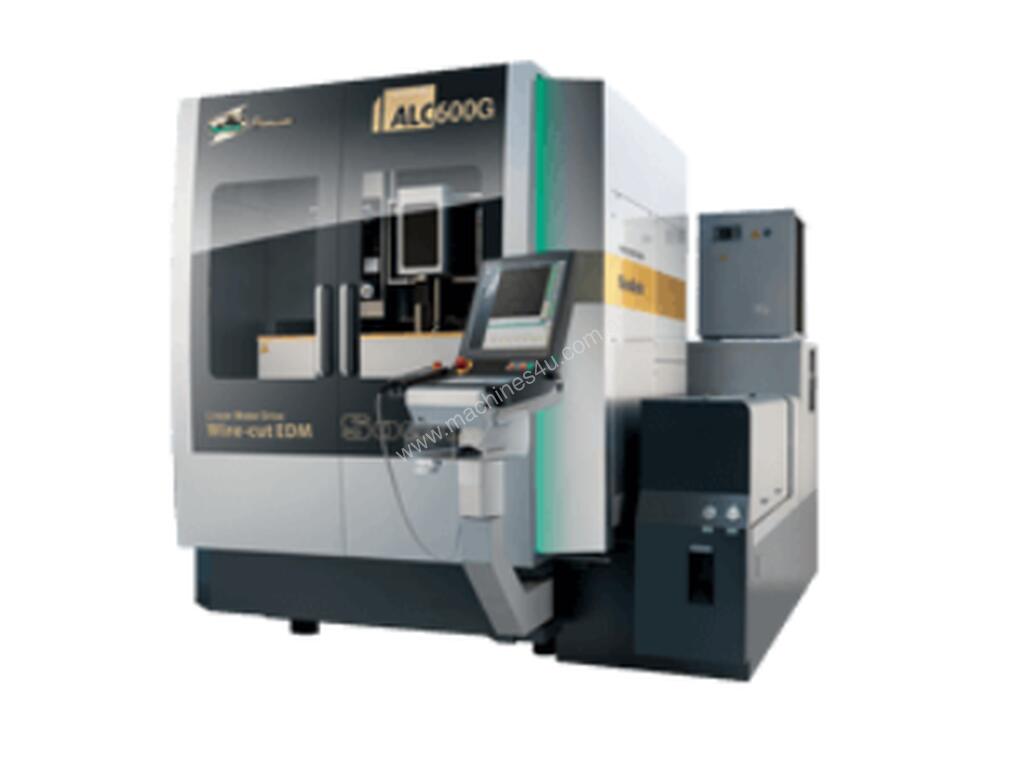

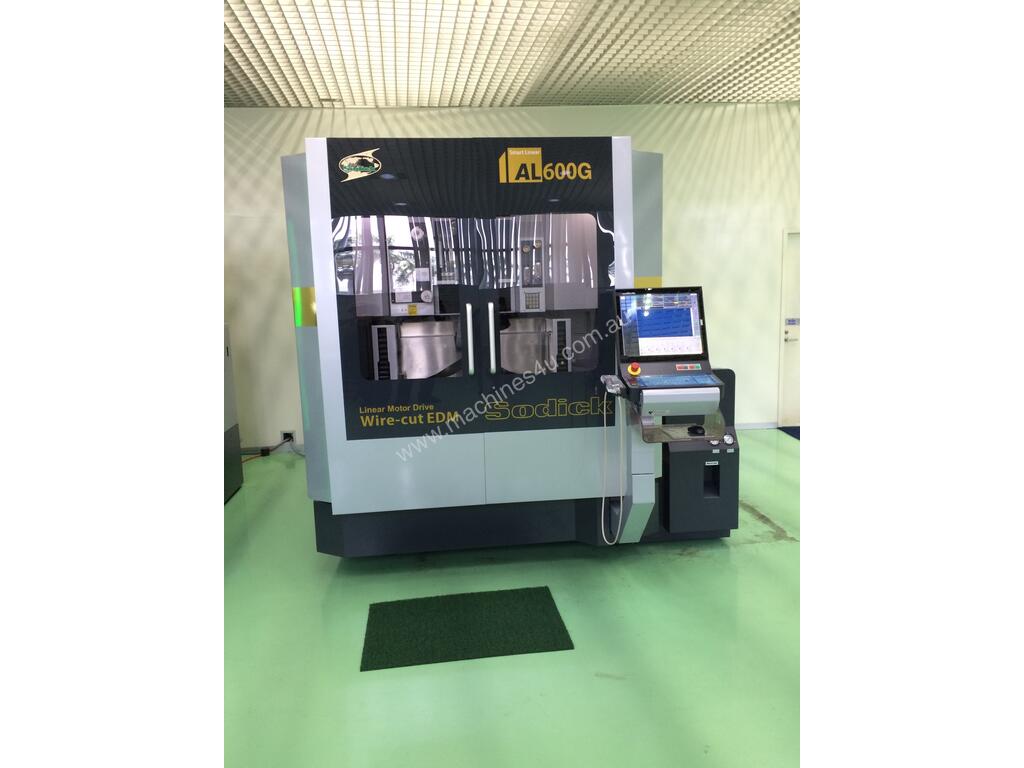

Sodick AL Series CNC Wire EDM

Based on the latest digital innovations in generator technologies and the use of advanced electrode materials, the new ALC range demonstrates considerable advances in cutting speed, accuracy and surface finish. This achievement was made possible through 15 years of Sodick Linear Technology.

To capitalise on the advances of the digital Smart Pulse generator and Sodick’s linear motor system, a new mechanical design was required. This new design resulted in a compact and fully enclosed machine tool which furthermore uses the latest human interface with a 19-inch touch screen colour control.


Technical Specification

X/Y/Z axis travel (mm): 600 x 400 x 350
U/V axis travel (mm): 150 x 150
Work tank dimensions (W x D x H, mm): 1050 x 710
Max. workpiece weight (kg): 1000
Distance from floor to table top (mm): 995
Machine dimensions (W x D x H, mm): 2495 x 2885 x 2345
Machine installation dimensions (mm): 3880 x 4235
Machine weight (kg): 3950
Taper angle: ±25°
Wire diameter (mm): Ø 0,10~ Ø 0,30
Wire tension (N): 3~23
Max. wire speed (mm/sec): 420


Dielectric Tank
External dimensions (W x D x H, mm): 725 x 2504
Tank weight (kg): 600
Capacity (l): 800
Filtration method: 3 replaceable paper filters (internal pressure)
