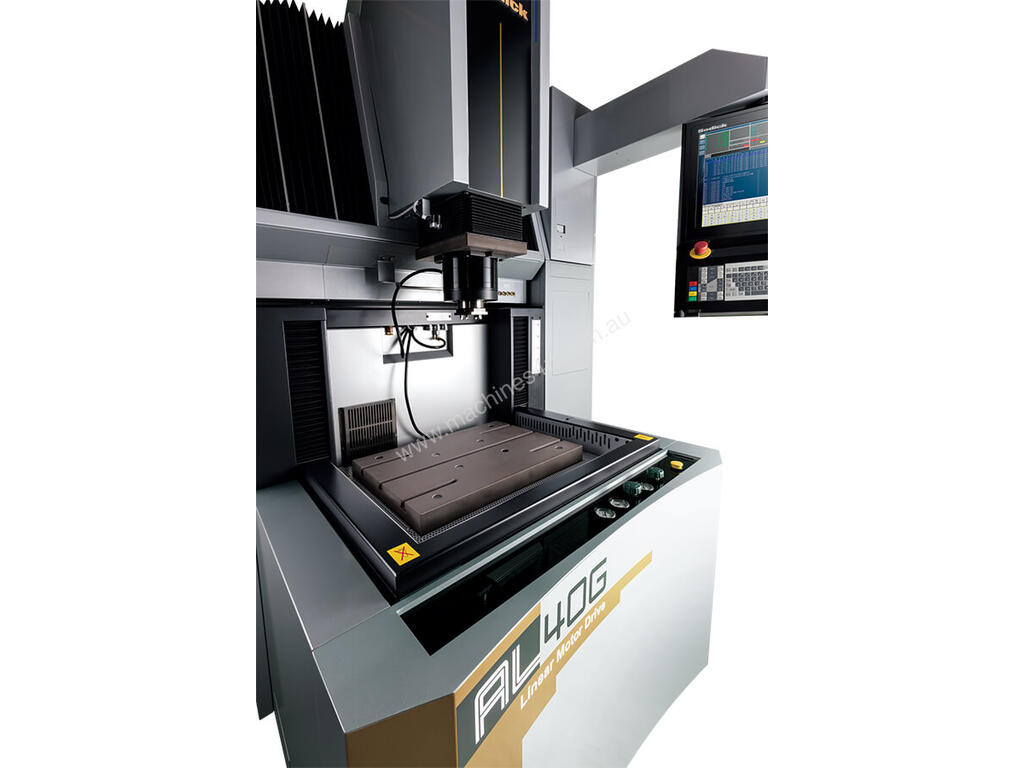

Sodick AL40G Die Sinker EDM

The AL40G, linear motor drive die-sinker EDM which incorporates Sodick’s new generation SP controller with the Smart Pulse generator is now available in the Sodick product range.

The new model features Sodick’s advanced technologies and latest innovation to realise unrivalled machining performance.

Feautures :

10-year guarantee on positioning accuracy
Linear Motor (X/Y/Z axis)
Absolute Linear scale (X/Y/Z axis)
Ceramic components
Sodick Motion Controller
Linear motor cooling unit
Dielectric fluid cooling unit
SVC circuit
“SGF4” Nano-Wear Discharge Unit
TMM4
BSN4 finishing circuit

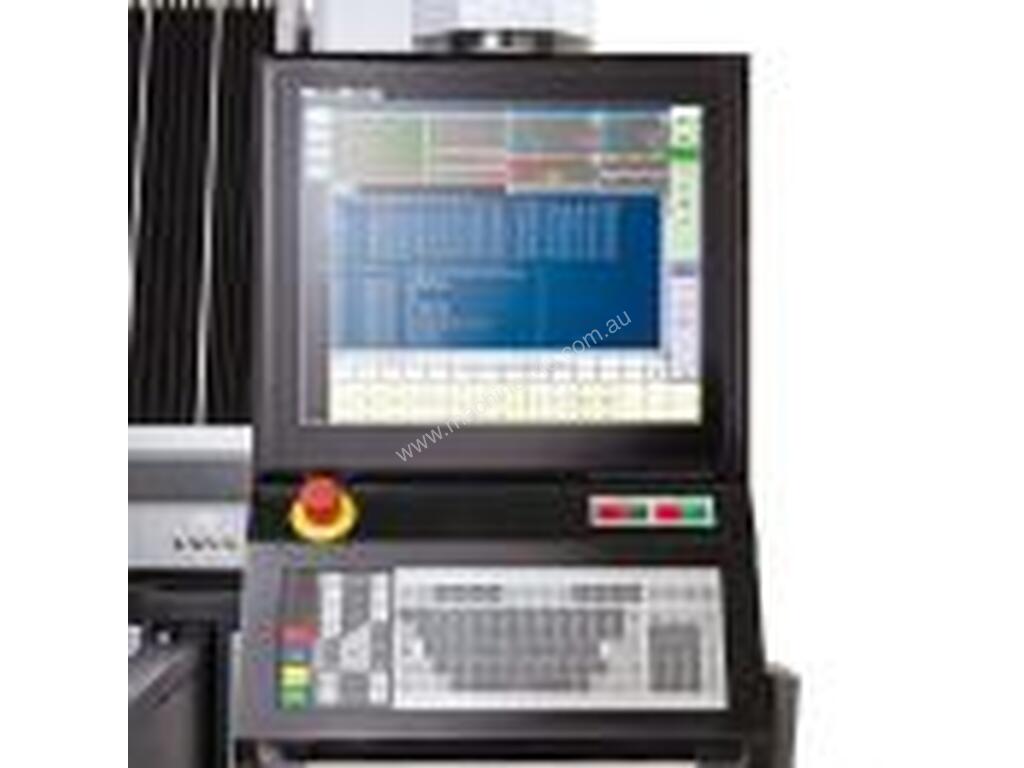

SP controller
19" TFT colour screen
Intelligent Q³vic EDM
Remote controller
LN Professional AI software for optimum condition search
3-side Rise and fall woank
Clamping chuck
LAN interface
USB port
Totalising hour metre
Work light

Options

C-axis SEC10 (20 rpm)
ATC Unit (4, 12, 16, 32-station)
SCF72P High-precision rotary head (2000 rpm)
40A Booster
Table Down 50 mm (Factory option)
Table Down 100 mm (Factory option)
Oscilloscope
Active Power Restart (UPS)
Automation system
8-axis simultaneous control SP-E (Factory option)
Custom Colour
