Sodick AL60G Die Sinker EDM

The AL60G, linear motor drive die-sinker EDM which incorporates Sodick’s new generation SP controller with the Smart Pulse generator is now available in the Sodick product range.

The new model features Sodick’s advanced technologies and latest innovation to realise unrivalled machining performance.

Technical Specification :

X/Y/Z axis travel (mm): 600 x 420 x 370
Table dimensions (W x D, mm): 750 x 550
Work tank dimensions (W x D x H, mm): 950 x 740 x 450
Work tank fluid level (Min. to Max., mm): 150~400
Max. workpiece weight (kg): 1,500
Max. Weight of electrode(kg): 50
Distance from floor to table top (mm): 850
Machine dimensions (W x D x H, mm): 1,875 x 2,930 x 2,570
Machine installation dimensions (mm): 2,600 x 3,850
Machine weight (kg): 5,350
Total power input: 3-phases, 50/60Hz, 10KvA
Controlled axis: 4


Dielectric Tank

Capacity (l): 465
Filtration method: 2 replaceable paper filters (MF-2400
Dielectric fluid: Oil


Features :

10-year guarantee on positioning accuracy
Linear Motor (X/Y/Z axis)
Absolute Linear scale (X/Y/Z axis)
Ceramic components
Sodick Motion Controller
Linear motor cooling unit
Dielectric fluid cooling unit
SVC circuit
“SGF4” Nano-Wear Discharge Unit
TMM4
BSN4 finishing circuit
SP controller

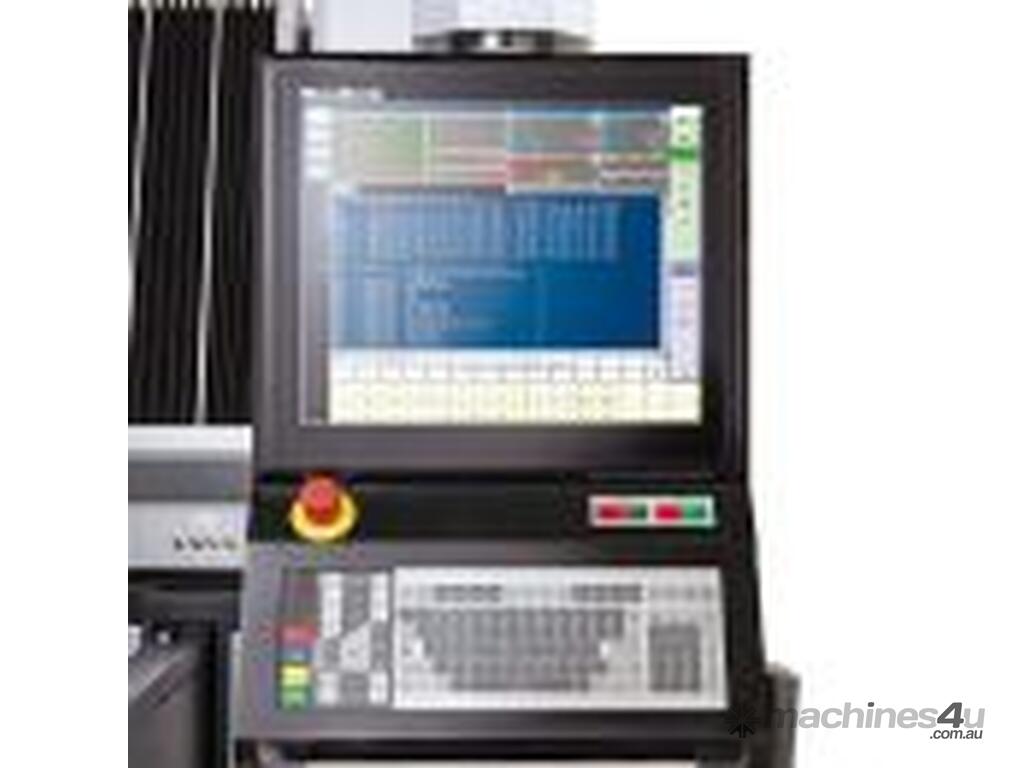

19" TFT colour screen
Intelligent Q³vic EDM
Remote controller
LN Professional AI software for optimum condition search
3-side Rise and fall woank
Clamping chuck
LAN interface
USB port
Totalising hour metre
Work light


Options

C-axis SEC10 (20 rpm)
ATC Unit (6, 12, 16, 32-station)
SCF72P High-precision rotary head (2000 rpm)
40A Booster
Table Down 50 mm (Factory option)
Oscilloscope
Active Power Restart (UPS)
Automation system
8-axis simultaneous control SP-E (Factory option)
Custom Colour
