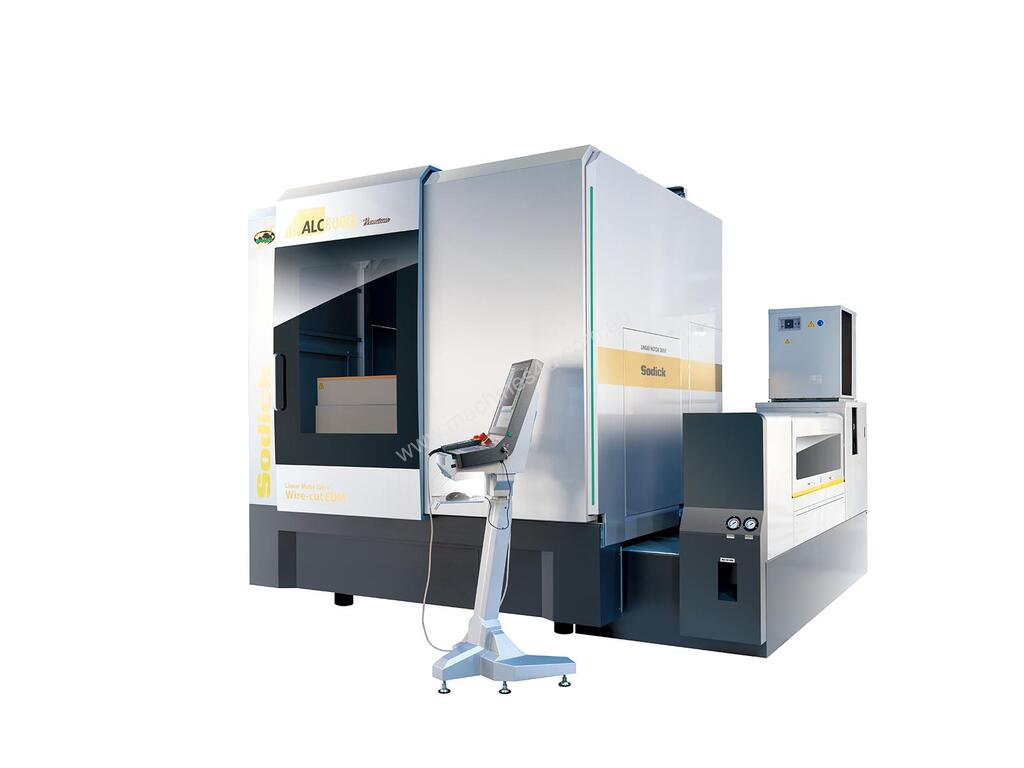

Sodick ALC800 Precision CNC Wire EDM

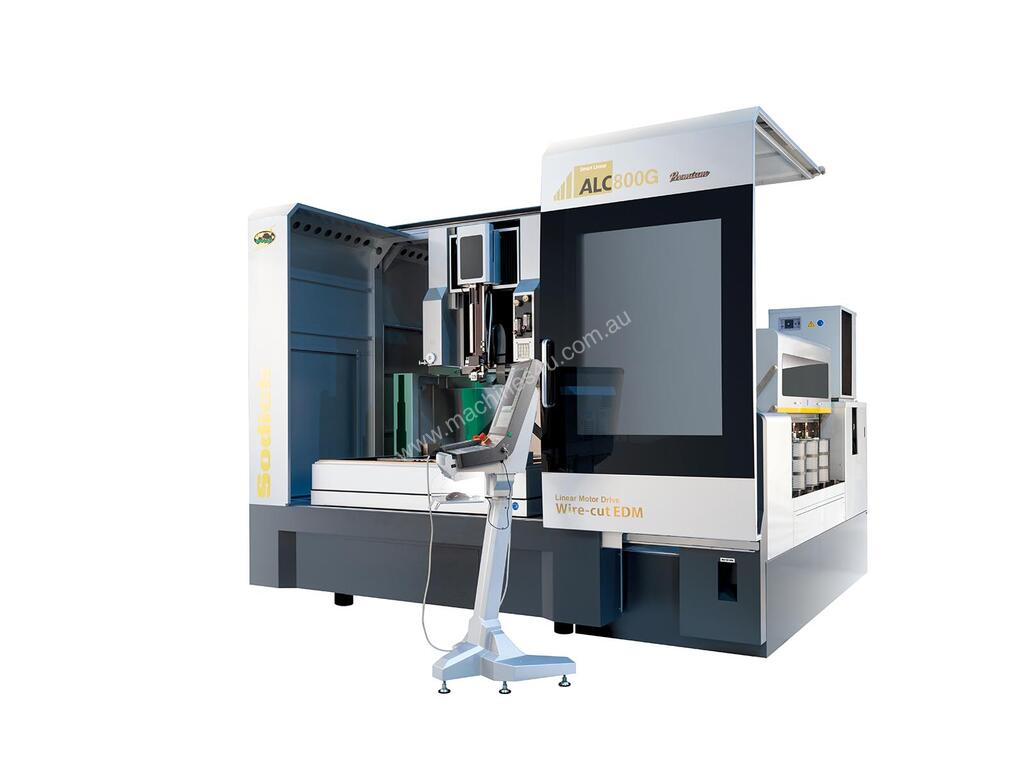

ALC800G

Based on the latest digital innovations in generator technologies and the use of advanced electrode materials, the new ALC range demonstrates considerable advances in cutting speed, accuracy and surface finish. This achievement was made possible through 15 years of Sodick Linear Technology.

To capitalise on the advances of the digital Smart Pulse generator and Sodick’s linear motor system, a new mechanical design was required. This new design resulted in a compact and fully enclosed machine tool which furthermore uses the latest human interface with a 19-inch touch screen colour control.

Technical Specification

X/Y/Z axis travel (mm): 800 x 600 x 500 (Z 800mm Option)
U/V axis travel (mm): 200 x 200
Work tank dimensions (W x D x H, mm): 1,312 x 1,058
Max. workpiece weight (kg): 3,000
Distance from floor to table top (mm): 995
Machine dimensions (W x D x H, mm): 4,200 x 3,590 x 3,390

Machine installation dimensions (mm): 5,500 x 4,600
Machine weight (kg): 6,000
Taper angle: ±25°
Wire diameter (mm): Ø 0,10~ Ø 0,30
Wire tension (N): 3~23
Max. wire speed (mm/sec): 420

Dielectric Tank
External dimensions (W x D x H, mm): 1,505 x 3,060
Tank weight (kg): 800
Capacity (l): 1,500
Filtration method: 4 replaceable paper filters (internal pressure)
