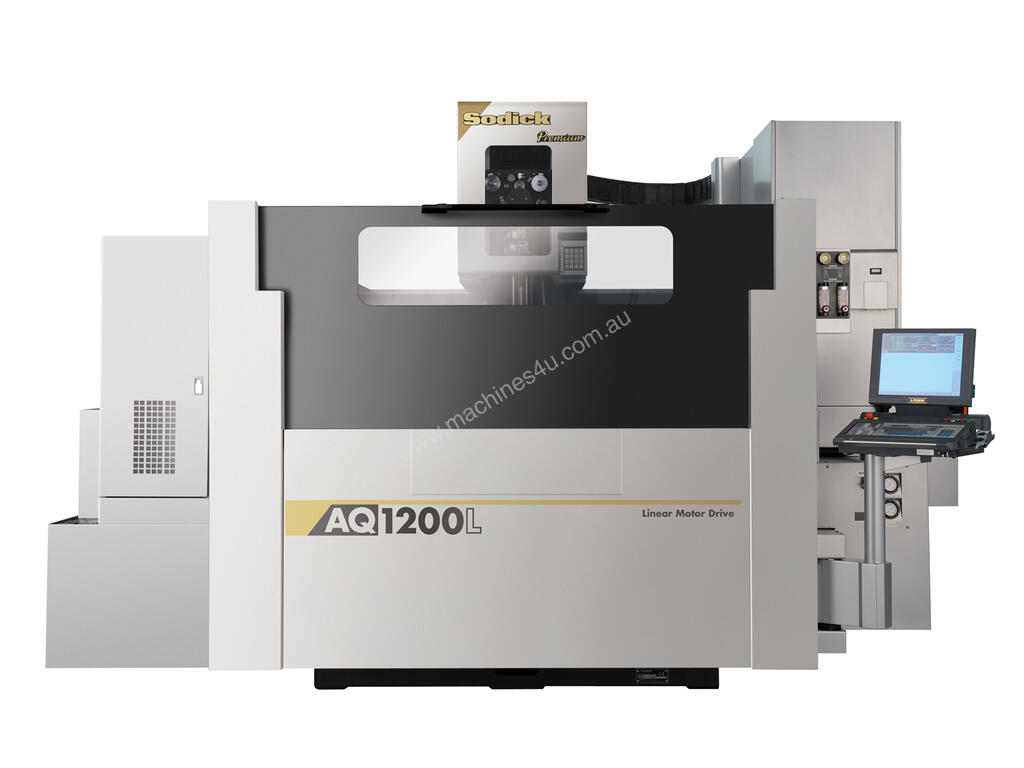

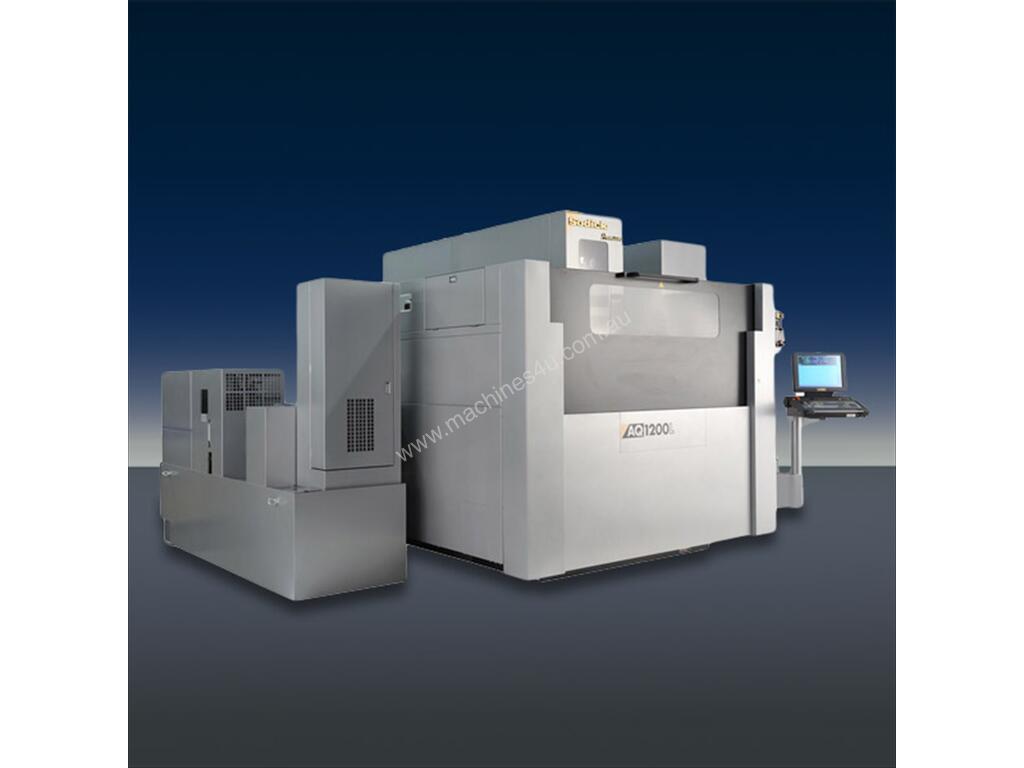

Sodick AQ1200L Precision Wire EDM - 1200 mm X / 800 mm Y / 600 mm Z

The World’s Biggest Linear Motor Drive Wire-cut EDM

Sodick’s largest size wire cut EDM machine AQ1200L is now available in the range.

The machine comes with all accuracy and quality which you would expect from Sodick. High speed, precision and accuracy with linear motors plus communication technology of 1Gbit/sec.

The AQ1200L is suitable for larger parts in industry; such as automobile, aerospace and energy. Cutting height of up to 600mm submerged is also available as a factory option.

Technical Specification

X/Y/Z axis travel (mm): 1200 x 800 x 400 (Z=600 optional)
U/V axis travel (mm): 1,220 x 820
Max. workpiece weight (kg): 4000
Distance from floor to table top (mm): 1200
Machine dimensions (W x D x H, mm): 4140 x 3935 x 2510
Machine installation dimensions (mm): 5200 x 5200
Machine weight (kg): 11000
Air pressure: 0.5 MPa, 30 NL/min
Taper angle: ±30°
Wire diameter (mm): Ø 0.15~Ø 0.33
Wire tension (N): 3~23
Max. wire speed (mm/sec): 420
Max. workpiece dimensions (W x D x H, mm): 1600 x 1200 x 400
Controlled axis: 5


Dielectric Tank
External dimensions (W x D x H, mm): -
Weight empty (kg): 850 (Main) + 550 (Sub
Capacity (l): 3000
Filtration method: 4 replaceable paper filters
