Sodick High Speed small hole EDM Drill

High-speed hole EDM by Sodick

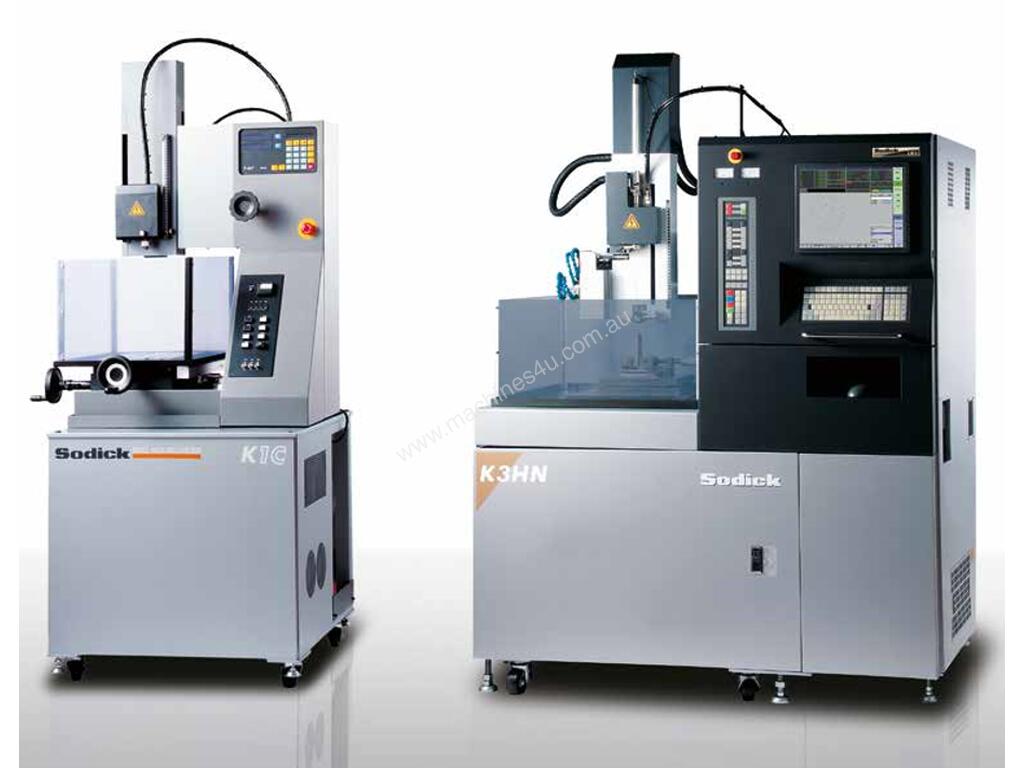

Sodick’s K-series range of machines can produce very small holes quickly and efficiently.

The manually operated K1C model is ideally suited for the production of small diameter holes with a machining range of 0.25 to 3.0 mm diameter, particularly in materials which cannot be machined by traditional methods, and without high tooling cost.

Technical Specification

X/Y/Z axis travel (mm): 200 x 300 x 300
Table dimensions (W x D, mm): 250 x 350
Max. workpiece weight (kg): 100
Machine dimensions (W x D x H, mm): 890 x 870 x 2015
Machine weight (kg): 550
W-Axis (Cutting axis in mm): 250
Max. workpiece dimensions (W x D x H, mm): 250 x 350 x 300
Electrode diameter (mm): 0.25 ~ 3.0
Electrode guide to table surface (mm): 50 ~ 300


Dielectric Tank
External dimensions (W x D x H, mm): -
Capacity (l): 20
Filtration method: Replaceable sponge filter
Dielectric fluid: Water
