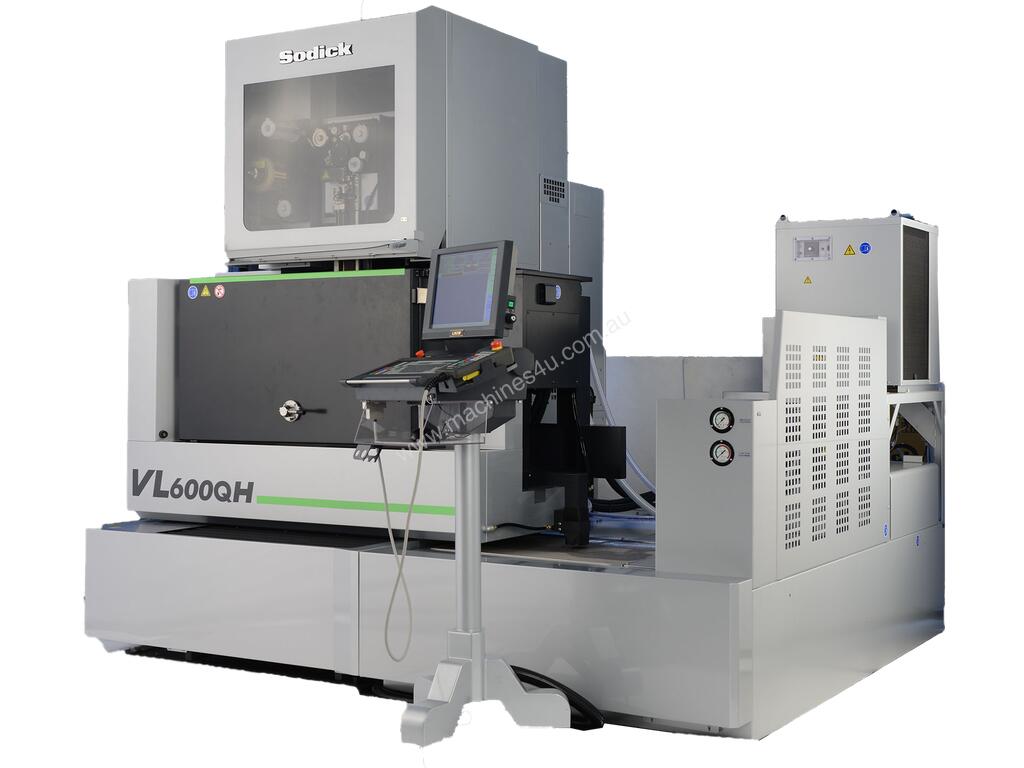

Sodick VL Series Wire EDM

X/Y/Z axis travel (mm): 600 x 400 x 270 mm (Z: 500 mm optional)

U/V axis travel (mm):90 x 90
Max. workpiece weight (kg):700 kg
Distance from floor to table top (mm):930 mm
Machine dimensions (W x D x H, mm):2,620 x 2,605 x 2,080 mm
Machine weight (kg):3,140 kg
Air pressure:0.5 MPa, 30 NL/min
Total power input:11 kVA, 3 Phasen, 50/60 Hz
Taper angle:±15 °
Wire diameter (mm):ø 0.1 ~ ø 0.3 mm
Wire tension (N):3 ~ 23 N

Dielectric Tank
External dimensions (W x D x H, mm):960 x 2,430 x 1,810 mm
Weight empty (kg):420 kg
Capacity (l):890 l
Filtration method:2 replaceable paper filters
Dielectric fluid:Ion-exchange resin (18 Liter)
